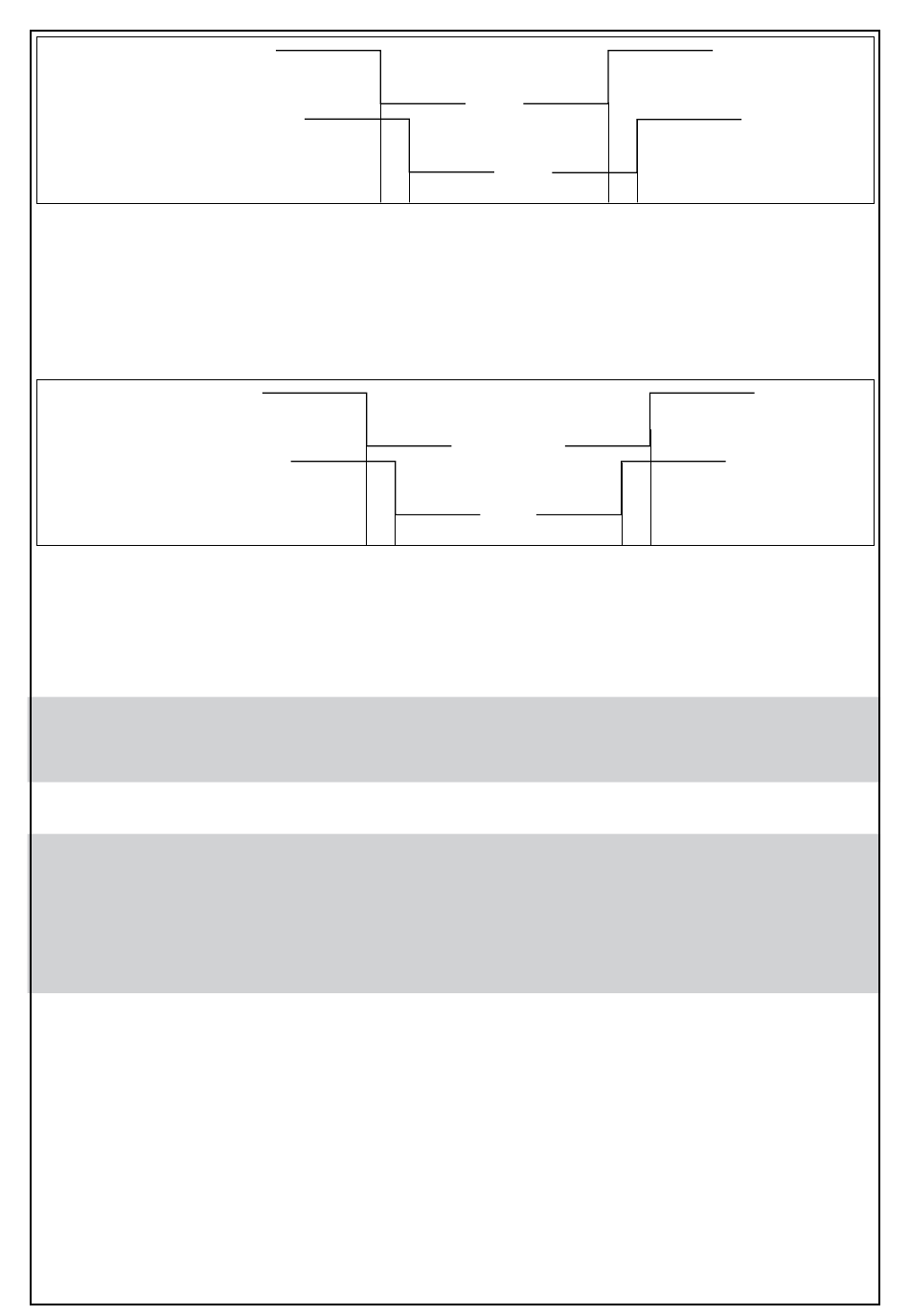

Safe stand-still function

Advertisement

Controller enable
AVy:
80/82 contact
XVy-EV: 0/32 contact
-
T1 max 50ms.
-
T2 "Ready to start" 80/82 (aVy) o 30/32 (XVy-EV)
contatto chiuso al termine della magnetizzazione nel
caso di motori a induzione.
-
Contatto di feedback dal relè di sicurezza per moni-
torare la condizione di sicurezza. Contatto ai morset-
ti 5/6, 1/2.
Controller enable
STFy enable
T1 =T2 = 50 ms min.
Per evitare l'intervento di allarmi nel drive, è ne-
cessario rispettare la sequenza tra i segnali "Con-
troller enable" e "SFTy enable".
A
!
ttenzione
è possibile danneggiare il drive se non viene ri-
spettata la sequenza.
A
!
ttenzione
Nel caso, rilevando il segnale ai morsetti 80/82
(aVy) o 30/32 (XVy-EV), la funzione safety non sia
operativa in modo corretto: il drive deve essere
scollegato elettricamente dalla rete di alimen-
tazione tramite il contattore di linea e devono
essere ricercate le cause del guasto.
3
T1
T1
-
T1 max 50ms.
-
T2 "Ready to start" 80/82 (aVy) or 30/32 (XVy-EV)
contact closed after magnetizing in case of induction
motors.
-
Safety relay feedback contact to monitor the safety
condition. Contact at terminals 5/6, 1/2.
It is important to comply with the sequence be-
tween the "Controller enable" and "SFTy enable"
signals to prevent alarms occurring in the drive.
C
!
Aution
Failure to comply with this sequence could dam-
age the drive.
W
!
Arning
If the safety function is not fully operational when
detecting the signal at terminals 80/82 (aVy) or
30/32 (XVy-EV): disconnect the drive from the
electrical power supply via the line contactor
and investigate the causes of the fault.
SFTy card
T2
T2
5
