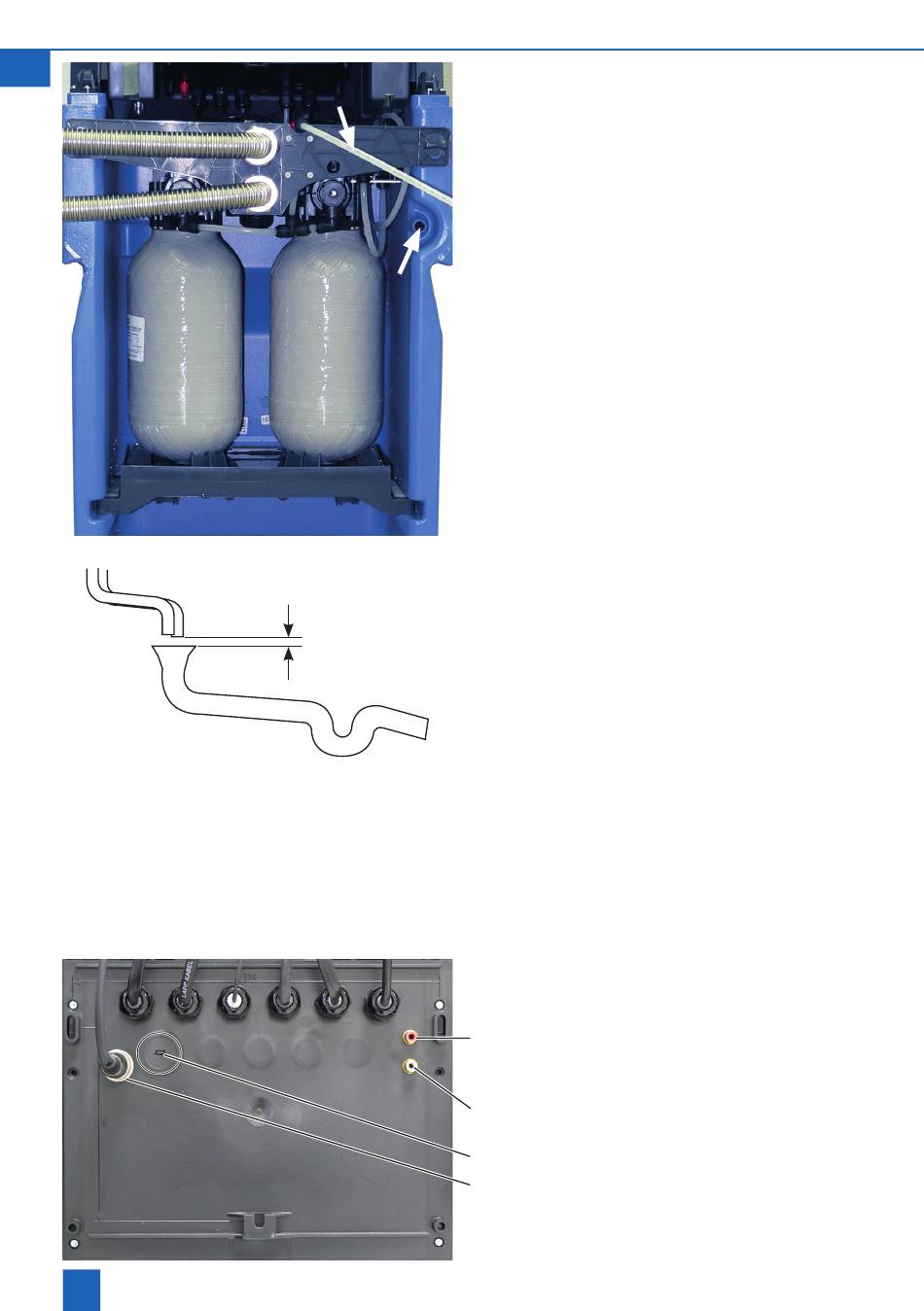

Route the flushing water hose (12) at an incline to
12
the sewage system connection (drain) and secure
the end with the fixing material supplied to prevent
it flapping about when under pressure.
Attach the overflow hose (18 x 24) to the overflow
(13). Secure it with cable ties and route it with an
incline of at least 10 cm to the sewage system
connection (drain).
13
The two hoses connected to the sewage system
may not be connected or constricted at any point.
In accordance with EN 1717, the flushing water and
> 20 mm
overflow hoses must be connected to the sewage
system at least 20 mm above the highest possible
waste water level (unimpeded drainage).
Place the floor sensor on the floor.
6.2
Only the following connections are required on the
underside of the electronics housing:
Cover (2), remove the 2 large plastic screws,
lift up the flap with the electronics and hold it
securely.
● Central instrumentation and control (CIC) sys-
tem, CIC connection (red RCA socket) for low
salt, etc.
● Control connection for metering pumps (white
RCA socket)
● USB socket
● Socket for blending equipment
