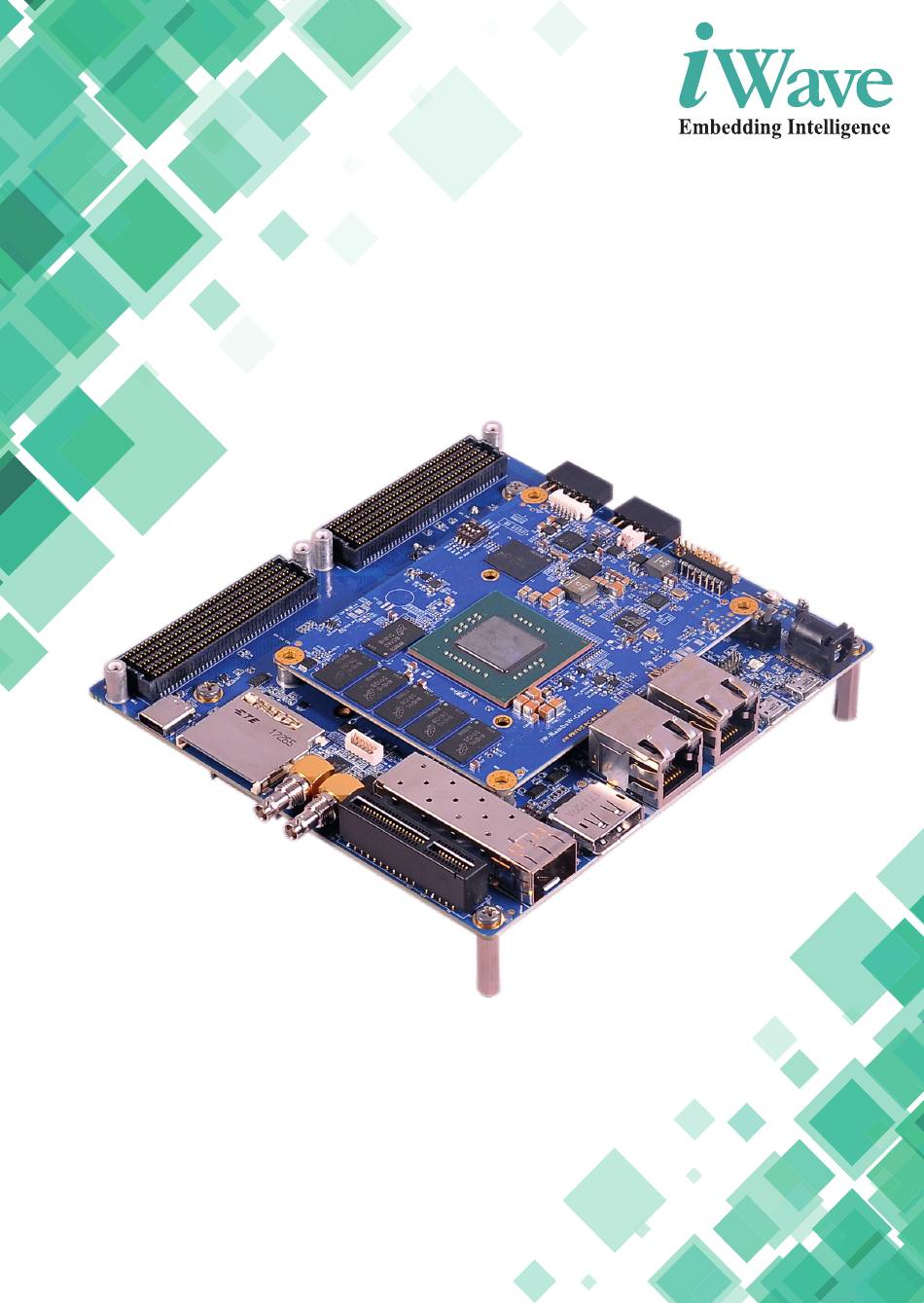

- Page 1 Zynq Ultrascale+ MPSoC (ZU7/ZU5/ZU4) SOM Development Platform iW-RainboW-G30D Quick Start Guide...
- Page 2 Disclaimer iWave Systems reserves the right to change details in this publication including but not limited to any Product specification without notice. No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent...

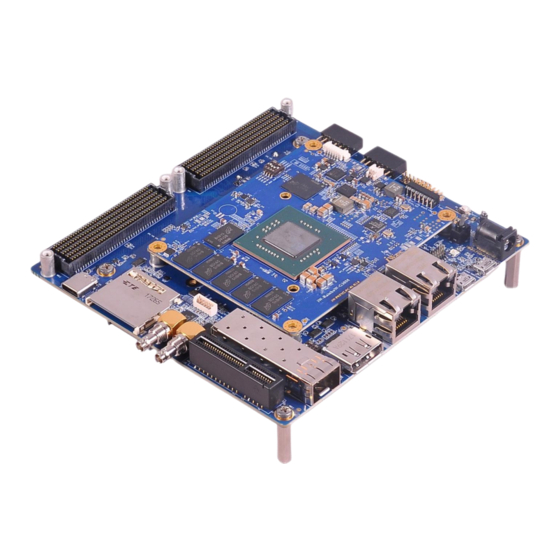

- Page 3 T h e i W - R a i n b o W - G 3 0 D Z y n q U l t ra s c a l e + M P S o C (ZU7/ZU5/ZU4) SOM Development platform incorporates with iWave's Zynq Ultrascale+ MPSoC based SOM and High Performance carrier board with all necessary interface connectors for developing an embedded application based on Xilinx Zynq Ultrascale+ MPSoC.
-
Page 4: Environmental Compliance
Safety Environmental Compliance iW-RainboW-G30D-Zynq Ultrascale+ MPSoC SOM Development Platform is designed by using RoHS2 and REACH c o m p l i a n t c o m p o n e n t s a n d manufactured on lead free production process. -
Page 5: Quick Start Steps
Avoid using board in extreme dust, humidity and temperature conditions. Also this development platform is not water proof. Keep away from wet surface. Zynq Ultrascale+ MPSoC SOM Development Platform iW-RainboW-G30D Quick Start Guide Package Box... - Page 6 Step 2 - What's Inside The Box ? Make sure that, below deliverables are received without any physical damage. Development Platform Zynq Ultrascale+ MPSoC SOM Development Platform iW-RainboW-G30D Quick Start Guide USB OTG Cable 12V,5A Power Supply...
- Page 7 Step 3 - Download FTP Contents All the technical resources of iW-RainboW-G30D Zynq Ultrascale+ MPSoC (ZU7/ZU5/ZU4) SOM Development platform is available in iWave FTP server. FTP Folder Structure iW-RainboW-G30D iW-RainboW-G30D Hardware Hardware Software+FPGA Datasheet-UserGuides MPSoC Name QuickStartGuide SOM Part Number...
- Page 8 Step 4 - Read Documents Before moving to next step, one must go through all the documents including Hardware User Guides and get familiar about iW-RainboW-G30D Development platform. Development Platform Documents: ■ Quick Start Guide (This document) ■ SOM Hardware User Guide ■...
-
Page 9: Top View
Step 5 -Quick View-SOM TOP View 1. JTAG Header 2. FAN Header 3. PMIC Programming Header 4. Boot Mode Switch 5. Zynq US+ MPSoC BOTTOM View 1. Board to Board connector 1 2. Board to Board connector 2... - Page 10 Step 6 - Quick View-Carrier Board TOP View 01. PMOD Connector 2 02. Board to Board Conn 1 03. PMOD Connector 1 04. JTAG Header 05. Board to Board Conn 2 06. PS IO Header 07. RESET Switch 08. ON/OFF Switch 09.
- Page 11 Step 7 - Setting-Up On Board Switch Setting Make sure that On-SOM Boot Mode Switch (SW1) is set for eMMC boot as shown in below image. (0 1 1 0) 1 - ON 0 - OFF...
-
Page 12: Debug Port Setting
Debug Port Setting Connect TypeA end of USB cable to PC and MicroB end of USB cable to Development platform's Debug USB MicroAB Connector (J5) as shown below. Install the driver for Debug Port in Host PC/Laptop using the below link. https://ftdichip.com/products/ft232rq/ Setup the Debug Terminal parameters. - Page 13 Development platform. 2. Do not plug or remove the Zynq Ultrascale+ MPSoC / FPGA SOM from carrier board with live power. 3. Contact iWave if power status LEDs are not glowing or PS Error status LEDs are glowing.
- Page 14 Step 9 - Test Environment setup Once power is applied to the Development Platform as explained in the previous section, boot messages being displayed in the debug terminal of the PC/Laptop which is connected to the Development platform. Press any key in terminal immediately to see the command prompt of the Boot loader or wait until OS boots.
- Page 15 Heat Sink Integration iW-RainboW-G30D Zynq Ultrascale+ MPSoC (ZU7/ZU5/ZU4) SOM Development platform comes with Heatsink+Fan attached to it. Makesure to power up the platform only with Heatsink+Fan attached. Below is the Heatsink+Fan integration procedure for reference. Heatsink + Fan Peel off Thermal pad sticker...
-
Page 16: Jtag Connection
JTAG Connection iW-RainboW-G30D Zynq Ultrascale+ MPSoC (ZU7/ZU5/ZU4) SOM Development platform Support JTAG interface in SOM and Carrier Board for MPSoC/FPGA Programming and debugging. Example JTAG Cable which is tested with this Platform is mentioned below. JTAG-HS2 Programming Cable Part Number: 410-249... - Page 17 JTAG Connection to Carrier Board :...
- Page 18 Product Name: Zynq US+ MPSoC (11/17/19- EG) SOM Processor: Xilinx’s Zynq US+ MPSoC (11/17/19-EG) RAM: 4GB PS DDR4* 4GB Dual PL DDR4* Application: Video Surveillance, Cloud Computing, Artificial Intelligence/Machine Learning, 5G Wireless, RAM size is expandable. Contact iWave team for further details...
-
Page 19: Need More Help
Contact your iWave window to enable Live Chat support. Phone Call us on : +91-80-26683700, 26781643, 26786245 Warranty & RMA Warranty support for Hardware: 1 Year from iWave or iWave's EMS partner. For Warranty terms & Registration, scan the QR code or go to : https://www.iwavesystems.com/support/... - Page 20 Headquarters: INDIA JAPAN UNITED STATES iWave Systems Tech. Pvt. Ltd. iWave Japan, Inc. iWave USA 7/B, 29th Main, BTM Layout 2nd Stage, 8F-B, Kannai Sumiyoshi Building, 1692 Westmont Ave., Campbell, Bengaluru-560076,India. 3-29, Sumiyoshi-cho, Naka-ku, Yokohama, CA95008 USA Ph: +91-80-26683700, 26781643 Kanagawa, Japan.
