- Page 1 Virtex UltraScale+ FPGA SOM Development Platform iW-RainboW-G47D Quick Start Guide mktg@iwavesystems.com www.iwavesystems.com...
- Page 2 Disclaimer iWave Systems reserves the right to change details in this publication including but not limited to any Product specification without notice. No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent...

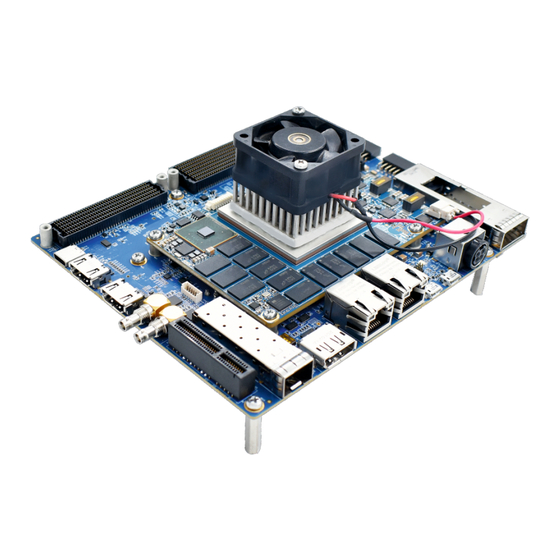

- Page 3 Development Platform from the packed box. Development Platform Description The iW-RainboW-G47D Virtex UltraScale+ FPGA SOM Development platform incorporates with iWave's Virtex UltraScale+ FPGA based SOM and Ultra High Performance carrier board with all necessary interface connectors for developing an embedded application based on Xilinx Virtex UltraScale+ FPGA.
-
Page 4: Environmental Compliance
Safety Environmental Compliance iW-RainboW-G47D-Virtex UltraScale+ FPGA SOM Development Platform is designed by using RoHS and REACH c o m p l i a n t c o m p o n e n t s a n d manufactured on lead free production process. -
Page 5: Quick Start Steps
Quick Start Steps Step 1 - Unpacking Remove the Development platform from anti-static cover and place it above the ESD free area. Use anti-static pad/mat with proper grounding to place the Development Platform. Don't touch inside surface of the circuit board. Avoid using board in extreme dust, humidity and temperature conditions. -
Page 6: Step 2 - What's Inside The Box
Step 2 - What's Inside The Box ? Make sure that, below deliverables are received without any physical damage. Development Platform 12V,14A Power Supply USB OTG Cable JTAG Cable... - Page 7 Step 3 - Download FTP Contents All the technical resources of iW-RainboW-G47D Virtex UltraScale+ FPGA SOM Development platform is available in iWave FTP server. FTP Folder Structure iW-RainboW-G30D iW-RainboW-G47D Hardware Hardware Software+FPGA Datasheet FPGA Name QuickStartGuide SOM Part Number SOM-Datasheet...
- Page 8 Step 4 - Read Documents Before moving to next step, one must go through all the documents including Hardware Datasheets and get familiar about iW-RainboW-G47D Virtex UltraScale+ FPGA SOM Development platform. Development Platform Documents: ■ Quick Start Guide (This document) ■...
-
Page 9: Top View
Step 5 -Quick View-SOM TOP View 1. Virtex UltraScale+ FPGA SoC 2. PMIC Programming Header 3. LS1021A Layerscape CPU 4. Board to Board connector 1 5. Board to Board connector 2 6. Board to Board connector 3 BOTTOM View 7. Board to Board connector 4... - Page 10 Step 6 - Quick View-Carrier Board TOP View 01. FireFly Connector 02. FireFly Power Connector 03. JTAG Connector 04. PMOD Connector 2 05. Reset Switch 06. PMOD Connector 1 07. Board to Board Connector4 08. Power ON/OFF Switch 09. Power Connector 10.
-
Page 11: Step 7 - Debug Port Setting
Step 7 - Debug Port Setting Connect TypeA end of USB cable to PC and MicroB end of USB cable to Development platform's Debug USB MicroAB Connector (J13) as shown below. Install the driver for Debug Port in Host PC/Laptop using the below link. - Page 12 1. Do not try to connect any other power supply other than supplied along with the Development platform. 2. Do not plug or remove the Virtex UltraScale+ FPGA SOM from carrier board with live power. 3. Contact iWave if any LEDs are not glowing...
- Page 13 Step 9 - Test Environment setup Once power is applied to the Development Platform as explained in the previous section, boot messages being displayed in the debug terminal of the PC/Laptop which is connected to the Development platform. Press any key in terminal immediately to see the command prompt of the Boot loader or wait until OS boots.
- Page 14 Heat Sink Heat Sink Integration iW-RainboW-G47D Virtex UltraScale+ FPGA SOM Development platform comes with Heat Sink + Fan mounted on SOM. Makesure to power up the platform only with Heatsink+Fan attached. Below is the Heatsink+Fan integration procedure for reference. Heatsink + Fan...
-
Page 15: Jtag Connection
JTAG JTAG Connection iW-RainboW-G47D Virtex UltraScale+ FPGA SOM Development platform Support JTAG interface in Carrier Board for FPGA and CPU Programming. In the carrier board Config Switch (SW6.2) is provided for selecting the JTAG device between FPGA and CPU. FPGA as JTAG Device... - Page 16 FPGA JTAG Connection to Carrier Board : After changing Config switch and selecting the JTAG device as FPGA, Power on the board connect the JTAG cable to the carrier board as shown below. Example JTAG Cable which is tested with this Platform is mentioned below.
- Page 17 After changing Config switch and selecting the JTAG device as CPU, connect the CodeWarrior® TAP to carrier board via custom made JTAG cable provided from iWave. Connect the CodeWarrior® TAP to the PC through USB and Power on the board.
- Page 18 (11/17/19-EG) SOM Processor: Xilinx’s Zynq US+ MPSoC (11/17/19-EG) RAM: 4GB PS DDR4* 4GB Dual PL DDR4* Application: Video Surveillance, Cloud Computing, Artificial Intelligence/Machine Learning, 5G Wireless, High Precision Test Instrument. RAM size is expandable. Contact iWave team for further details...
-
Page 19: Need More Help
Contact iWave to enable Live Chat support. Phone Call us on : +91-80-26683700, 26781643, 26786245 Warranty & RMA Warranty support for Hardware: 1 Year from iWave or iWave's EMS partner. For Warranty terms & Registration, scan the QR code or go to : https://www.iwavesystems.com/support/... - Page 20 Headquarters: INDIA JAPAN UNITED STATES iWave Systems Tech. Pvt. Ltd. iWave Japan, Inc. iWave USA 7/B, 29th Main, BTM Layout 2nd Stage, 8F-B, Kannai Sumiyoshi Building, 1692 Westmont Ave., Campbell, Bengaluru-560076,India. 3-29, Sumiyoshi-cho, Naka-ku, Yokohama, CA95008 USA Ph: +91-80-26683700, 26781643 Kanagawa, Japan.
