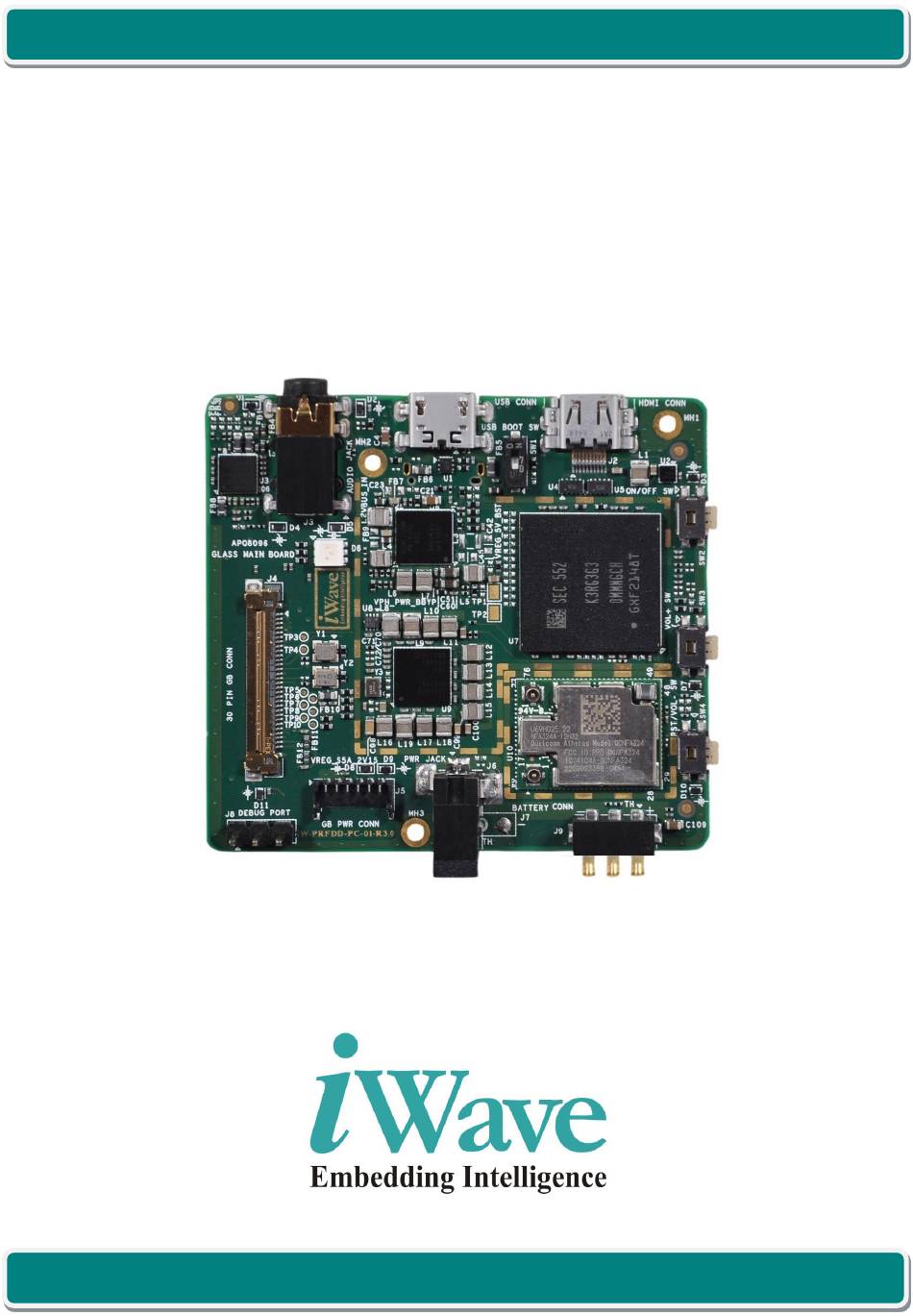

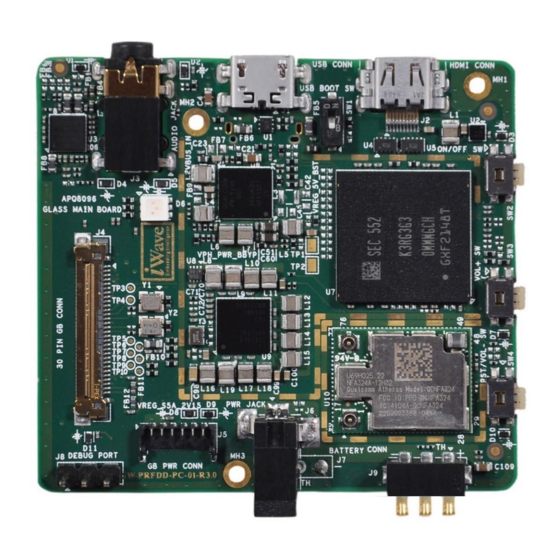

- Page 1 SD820 SBC QFIL Tool User Guide iW-RainboW-G25S SD820 SBC QFIL Tool User Guide REL1.0 iWave Systems Technologies Pvt. Ltd. Page 1 of 15...
- Page 2 If you are not the intended recipient (or authorized to receive for the recipient), you are hereby notified that any disclosure, copying distribution or use of any of the information contained within this document is STRICTLY PROHIBITED. Thank you. “iWave Systems Tech. Pvt. Ltd.” REL1.0 iWave Systems Technologies Pvt.
- Page 3 No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent permitted by law no liability (including liability to any person by reason of negligence) will be accepted by iWave Systems, its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.
-
Page 4: Table Of Contents
INTRODUCTION ............................6 Purpose ................................6 Scope ................................. 6 List of Acronyms ..............................6 QFIL TOOL ..............................7 Device Requirements ............................7 QFIL Tool Installation ............................7 Binary Programming ............................8 REL1.0 iWave Systems Technologies Pvt. Ltd. Page 4 of 15... - Page 5 Figure 7 : Selecting Build Type ............................12 Figure 8 : Selecting Programmer ............................. 13 Figure 9 : Selecting XML ..............................14 List of Tables Table 1: Acronyms & Abbreviations ........................6 REL1.0 iWave Systems Technologies Pvt. Ltd. Page 5 of 15...
-
Page 6: Introduction
The purpose of this document is to help the software engineer to program iW-RainboW-G25S SBC Android development platform using QFIL Tool. 1.2 Scope The document describes the procedure to install the tool and flash the binaries in the iW-RainboW-G25S SBC platform. 1.3 List of Acronyms The following acronyms will be used throughout this document. -
Page 7: Qfil Tool
This section explains procedure about installing the QFIL Tool on the Host PC and programming the binaries into boot devices. 2.1 Device Requirements To install the QFIL Tool on the Host PC and to program the binaries in eMMC for iW-RainboW-G25S-SBC platform, following items are required: •... -
Page 8: Binary Programming
Quick Start Guide. Refer the below image for the switch position for the USB Boot mode. Figure 1: USB Boot Selection Switch • Connect OTG cable from Windows PC to the USB OTG Port of iW-RainboW-G25S-SBC platform. REL1.0 iWave Systems Technologies Pvt. Ltd. - Page 9 SD820 SBC QFIL Tool User Guide • Click Start > Programs > QPST > QFIL. Figure 2 : Launching QFIL Tool • QFIL Tool will launch as shown below. Figure 3 : QFIL Tool UI REL1.0 iWave Systems Technologies Pvt. Ltd. Page 9 of 15...
- Page 10 SD820 SBC QFIL Tool User Guide • Select the Configuration from Menu and click on FireHose Configuration. Figure 4 : Selecting the Configuration REL1.0 iWave Systems Technologies Pvt. Ltd. Page 10 of 15...
- Page 11 SD820 SBC QFIL Tool User Guide • In the Download Configuration window, under FireHose Common Setting, change the "Device Type" to eMMC and click OK. Figure 5 : Selecting Device Type REL1.0 iWave Systems Technologies Pvt. Ltd. Page 11 of 15...
- Page 12 SD820 SBC QFIL Tool User Guide • Select Flat Build from the Select Build type as shown below. Figure 6 : Selecting Build Type REL1.0 iWave Systems Technologies Pvt. Ltd. Page 12 of 15...
- Page 13 Programmer path "prog_emmc_firehose_8996_ddr.elf" from the "Binaries" folder. In the deliverables, the “Binaries" folder is located in the below path. iW-RainboW-G25S-RX.X-RELX.X-AndroidX.X.X_Deliverables/QFIL_Tool/iW-PRFDD-SC-01-RX.X-RELX.X- QFIL_AndroidX.X.X/Binaries Figure 7 : Selecting Programmer REL1.0 iWave Systems Technologies Pvt. Ltd. Page 13 of 15...
- Page 14 USB Boot Switch to OFF position. Refer Figure 1 for the switch position for the USB Boot mode. Note: If QFIL tools fails to flash or recognize the USB, please follow below HTTP link to update USB driver. https://answers.microsoft.com/en-us/windows/forum/windows_7-hardware/error-code-52-usb-ports-not- recognizing-connected/2379017c-d513-478c-a184-0d1b7cd408b2 REL1.0 iWave Systems Technologies Pvt. Ltd. Page 14 of 15...
- Page 15 SD820 SBC QFIL Tool User Guide REL1.0 iWave Systems Technologies Pvt. Ltd. Page 15 of 15...
