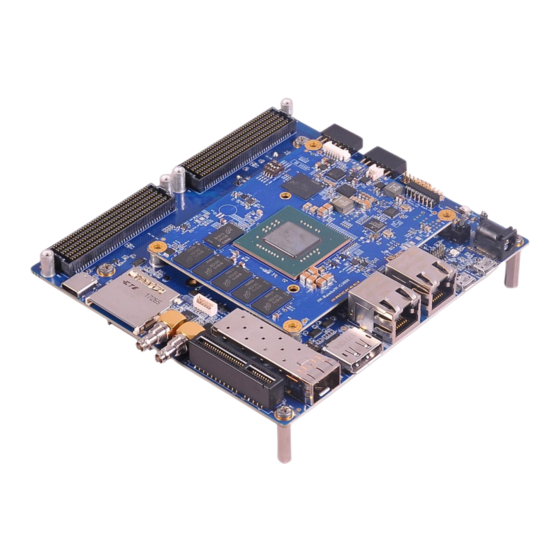

Zynq-Ultrascale+ MPSoC SOM Development Platform Hardware User Guide
iW-RainboW-G30D
Zynq Ultrascale+ MPSoC SOM
Development Platform
Hardware User Guide
REL1.0
iWave Systems Technologies Pvt. Ltd.
Page 1 of 90

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iW-RainboW-G30D and is the answer not in the manual?

Questions and answers

Related Manuals for iWave iW-RainboW-G30D

Summary of Contents for iWave iW-RainboW-G30D

  • Page 1 Zynq-Ultrascale+ MPSoC SOM Development Platform Hardware User Guide iW-RainboW-G30D Zynq Ultrascale+ MPSoC SOM Development Platform Hardware User Guide REL1.0 iWave Systems Technologies Pvt. Ltd. Page 1 of 90...
  • Page 2 If you are not the intended recipient (or authorized to receive for the recipient), you are hereby notified that any disclosure, copying distribution or use of any of the information contained within this document is STRICTLY PROHIBITED. Thank you. “iWave Systems Tech. Pvt. Ltd.” REL1.0 iWave Systems Technologies Pvt.
  • Page 3 No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent permitted by law no liability (including liability to any person by reason of negligence) will be accepted by iWave Systems, its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.

  • Page 4: Table Of Contents

    3.3.1 Environmental Specification ........................87 3.3.2 RoHS Compliance ............................87 3.3.3 Electrostatic Discharge ..........................87 Mechanical Characteristics ..........................88 3.4.1 Carrier Board Mechanical Dimensions ......................88 ORDERING INFORMATION .......................... 89 REL1.0 iWave Systems Technologies Pvt. Ltd. Page 4 of 90...
  • Page 5 Figure 29: RTC Coin Cell Holder ............................84 Figure 30: Power Jack..............................85 Figure 31: Carrier board Mechanical dimension – Top View ..................88 Figure 32: Carrier board Mechanical dimension – Side View ..................88 REL1.0 iWave Systems Technologies Pvt. Ltd. Page 5 of 90...
  • Page 6 Table 16: GPIO Header Pin Assignment .......................... 80 Table 17: Power Input Requirement ..........................85 Table 18: Power Output Specification ..........................86 Table 19: Environmental Specification ........................... 87 Table 20: Orderable Product Part Numbers ........................89 REL1.0 iWave Systems Technologies Pvt. Ltd. Page 6 of 90...

  • Page 7: Introduction

    HardwareUserGuide”. Overview iWave's Zynq Ultrascale+ MPSoC Development platform incorporates Zynq Ultrascale+ MPSoC SOM which is based on Xilinx’s Zynq Ultrascale+ MPSoC and the High-Performance Carrier Board. The development board can be used for quick prototyping of various applications targeted by the Zynq Ultrascale+ MPSoC. With the 130mmx140mm size, carrier board is packed with all the necessary on-board connectors to validate the features of Zynq Ultrascale+ MPSoC SOM.
  • Page 8 Secure Digital Input Output SDHI SD Card Host Interface Small Form-factor Pluggable System On Module TXVR Transceiver Transmitter UART Universal Asynchronous Receiver/Transmitter Universal Serial Bus USB OTG USB On The Go REL1.0 iWave Systems Technologies Pvt. Ltd. Page 8 of 90...

  • Page 9: References

    Note: Signal Type does not include internal pull-ups or pull-downs implemented by the chip vendors and only includes the pull-ups or pull-downs implemented on board. References • Zynq Ultrascale+ MPSoC Datasheet & Reference Manual • Zynq Ultrascale+ MPSoC SOM Hardware User Guide REL1.0 iWave Systems Technologies Pvt. Ltd. Page 9 of 90...

  • Page 10: Architecture And Design

    GTR High Speed Transceivers x 2channels Note: ¹ By default, 3G SDI IN/OUT is supported. Optionally, 12G SDI IN/OUT can be supported on request. Figure 1: Zynq Ultrascale+ MPSoC SOM Carrier Board Block Diagram REL1.0 iWave Systems Technologies Pvt. Ltd. Page 10 of 90...

  • Page 11: Zynq Ultrascale+ Mpsoc Som Carrier Board Features

    ➢ Upto 15 LVDS IOs/30 Single ended (SE) IOs ➢ Upto 4 Single ended (SE) IOs ➢ 2 Clock Input Capable LVDS/SE pins ➢ 1 Clock Output Capable LVDS/SE pins • PMOD Connector x 2 REL1.0 iWave Systems Technologies Pvt. Ltd. Page 11 of 90...
  • Page 12 Reset Pushbutton Switch x 1 • RTC Coin Cell Holder x 1 General Specification • Power Supply : DC 12V, 5A Power Input Jack • Form Factor : 130mm X 140mm REL1.0 iWave Systems Technologies Pvt. Ltd. Page 12 of 90...

  • Page 13: Board To Board Connectors

    Board to Board Connector1 (J10) is physically located at the top of the board as shown below. Note: For the Board to Board Connector1 pinout, refer the Zynq Ultrascale+ MPSoC SOM Hardware User Guide. Figure 2: Board to Board Connector1 REL1.0 iWave Systems Technologies Pvt. Ltd. Page 13 of 90...

  • Page 14: Board To Board Connector2

    Board to Board Connector2 (J11) is physically located at the top of the board as shown below. Note: For the Board to Board Connector2 pinout, refer the Zynq Ultrascale+ MPSoC SOM Hardware User Guide. Figure 3: Board to Board Connector2 REL1.0 iWave Systems Technologies Pvt. Ltd. Page 14 of 90...

  • Page 15: Ps Interface Features

    The MUX/DEMUX connection and interface selection option is shown below for easy understanding. The selection control of each MUX IC is connected to PS-GTR Lane selection 4bit DIP switch (SW5). Figure 4: PS-GTR External Switch Connectivity REL1.0 iWave Systems Technologies Pvt. Ltd. Page 15 of 90...

  • Page 16: Figure 5: Ps-Gtr Lane Selection Switch

    USB3.0 TypeC connector (default) Lane3 Bit4 PS-GTR Lane3 is connected to Lane3 PS-GTR Lane3 is connected to M.2 of PCIe x4 connector SATA connector (default) Figure 5: PS-GTR Lane Selection Switch REL1.0 iWave Systems Technologies Pvt. Ltd. Page 16 of 90...

  • Page 17: Figure 6: Pcie X4 Connector

    PCIe x4 connector (J19) is physically located at the top of the board as shown below. Note: For more details on PS-GTR Lane selection options, refer Table 3. Figure 6: PCIe x4 Connector REL1.0 iWave Systems Technologies Pvt. Ltd. Page 17 of 90...

  • Page 18: Table 4: Pcie X4 Connector Pin Assignment

    12V Supply Voltage. RSVD Power Ground. SMCLK I2C0_SCL(PS_MIO10_500) O, 3.3V CMOS SMB Clock. SMDAT I2C0_SDA(PS_MIO11_500) IO, 3.3V CMOS SMB DATA. Power Ground. +3V3 VCC_3V3 O, 3.3V Power 3.3V Supply Voltage. TRST# REL1.0 iWave Systems Technologies Pvt. Ltd. Page 18 of 90...
  • Page 19 PS_MGTRTXN2_505 PCIe Lane2 Transmit pair negative Power Ground. Power Ground. PETp3 PS_MGTRTXP3_505 PCIe Lane3 Transmit pair positive. PETn3 PS_MGTRTXN3_505 PCIe Lane3 Transmit pair negative Power Ground. RSVD PRSNT#2 Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 19 of 90...

  • Page 20: Figure 7: Display Port Connector

    PL Bank IO. This Display Port connector (J13) is physically located at the top of the board as shown below. Note: For more details on PS-GTR Lane selection options, refer Table 3. Figure 7: Display Port Connector REL1.0 iWave Systems Technologies Pvt. Ltd. Page 20 of 90...

  • Page 21: Table 5: Display Port Connector Pin Assignment

    100K PD Power Ground. AUX_CH- PL_AA10_LVDS66_L6N IO, DIFF/ Auxiliary channel negative. 100K PU HOT_PLUG PL_C12_LVDS46_L9N O,3.3V CMOS/ Hot Plug Detect. 100K PD RETURN DP_PWR DP_PWR O, 3.3V Power 3.3V Supply Voltage. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 21 of 90...
  • Page 22 Enable pin of the USB Power switch is connected to the PS GPIO “PS_MIO25_500” from Board to Board connector2 pin38. This USB Type-C connector (J20) is physically located at the top of the board as shown below. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 22 of 90...

  • Page 23: Figure 8: Usb Type-C Connector

    Zynq-Ultrascale+ MPSoC SOM Development Platform Hardware User Guide Figure 8: USB Type-C Connector REL1.0 iWave Systems Technologies Pvt. Ltd. Page 23 of 90...

  • Page 24: Table 6: Usb Typec Pin Assignment

    USB2.0 Transmit Data Negative. SBU2 VBUS VBUS_USB3.0 Power 5V Power Supply. SSRXn1 PS_MGTRRXN2_505 I, DIFF USB3.0 Super Speed Receive Data Negative. SSRXp1 PS_MGTRRXP2_505 I, DIFF USB3.0 Super Speed Receive Data Positive. Mechanical Pin. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 24 of 90...

  • Page 25: Figure 9: M.2 Sata Connector (Key B)

    Gen1(1.5Gbps), Gen2(3Gbps) & Gen3(6Gbps) datarates. The PS-GTR Lane selection to M.2 SATA connector is done through PS-GTR Lane Selection Switch (SW5). For more details on PS-GTR Lane selection options, refer Table 3. Figure 9: M.2 SATA Connector (Key B) REL1.0 iWave Systems Technologies Pvt. Ltd. Page 25 of 90...

  • Page 26: Table 7: M.2 Sata Connector Pin Assignment

    N/A4 PETn2 N/A5 PETp2 N/A6 Power Ground. N/A7 PERn1 N/A8 PERp1 N/A9 Power Ground. N/A10 PETn1 N/A11 PETp1 DEVSLP Power Ground. N/A12 SATA-B+/PERn0 PS_MGTRRXP3_505 I, DIFF SATA Receive pair positive. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 26 of 90...
  • Page 27 O, 3.3V Power Supply Voltage. Power Ground. 3.3V VCC_3V3 O, 3.3V Power Supply Voltage. Power Ground. 3.3V VCC_3V3 O, 3.3V Power Supply Voltage. CONFIG_2 This pin is connected to Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 27 of 90...

  • Page 28: Gigabit Ethernet Port1

    RJ45 Magjack (J9). The Ethernet supports Speed (Yellow) and Link/Activity (Green) LED indications on RJ45 Magjack connector. This RJ45 Magjack connector(J9) is physically located at the top of the board as shown below. Figure 10: Gigabit Ethernet Connector1 REL1.0 iWave Systems Technologies Pvt. Ltd. Page 28 of 90...

  • Page 29: Gigabit Ethernet Port2

    RJ45 Magjack (J12). Also it supports Speed (Yellow) and Link/Activity (Green) LED indications on RJ45 Magjack connector. This RJ45 Magjack connector is physically located at the top of the board as shown below. Figure 11: Gigabit Ethernet Connector2 REL1.0 iWave Systems Technologies Pvt. Ltd. Page 29 of 90...

  • Page 30: Usb2.0 Otg Port

    B2B-2) and controls the power using the USB_PWR_EN pin (32 pin of B2B-2). This USB2.0 OTG connector (J13) is physically located at the top of the board as shown below. Figure 12: USB OTG Connector REL1.0 iWave Systems Technologies Pvt. Ltd. Page 30 of 90...

  • Page 31: Standard Sd Port

    If PS_MIO43_501 is set to high, then 1.8V IO level is selected for SD1 signals to SD connector. The Standard SD connector (J18) is physically located at the top of the board as shown below. Figure 13: Standard SD Connector REL1.0 iWave Systems Technologies Pvt. Ltd. Page 31 of 90...

  • Page 32: Can0 Header

    Note: Optionally connected to on board 12V through resistor and by default not populated. CANL IO, DIFF CAN Differential negative. Power Ground. CANH IO, DIFF CAN Differential positive. Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 32 of 90...

  • Page 33: Debug Uart

    The output of the USB convetor is conencted to USB MicroAB Connector (J5). This USB MicroAB Connector can be used for Debug purpose which is is physically located at the top of the board as shown below. Figure 15: Debug UART Connector REL1.0 iWave Systems Technologies Pvt. Ltd. Page 33 of 90...

  • Page 34: Interface Features

    SFP+ Connector (1 GTH Transceivers) o 3G/12G SDI Video IN (1 GTH Transmitter) o 3G/12G SDI Video OUT (1 GTH Receiver) o Dual FMC HPC Connectors (14 GTH Transceivers) Figure 16: GTH Transceiver Connections REL1.0 iWave Systems Technologies Pvt. Ltd. Page 34 of 90...

  • Page 35: Figure 17: Sfp+ Connector With Cage

    Also PS I2C0 is connected to this connector for control and configuration. All other contorl signals of SFP+ connnector is connected from IO Expander. This SFP+ connector (J16) is physically located at the top of the board as shown below. Figure 17: SFP+ Connector with Cage REL1.0 iWave Systems Technologies Pvt. Ltd. Page 35 of 90...

  • Page 36: Table 9: Sfp+ Connector Pin Assignment

    3.3V Receiver Supply Voltage VCCT VCC_3V3 O, 3.3V Power 3.3V Transmitter Supply Voltage VEET2 Power Ground. GTHTXP2_226 O, DIFF SFP+ Transmit Data Negative GTHTXN2_226 O, DIFF SFP+ Transmit Data Positive VEET3 Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 36 of 90...

  • Page 37: Figure 18: Sdi Video In Hd Bnc Connector

    0x2D. SDI Video IN HD BNC connector (J22) is physically located at the top of the board as shown below. Note: By default, 3G Adaptive Cable Equalizer chip “LMH0397” is supported on the board. To support 12G Adaptive Cable Equalizer chip “LMH1297”, contact iWave. Figure 18: SDI Video IN HD BNC Connector REL1.0...

  • Page 38: Figure 19: Sdi Video Out Hd Bnc Connector

    Note: By default, 3G Cable Driver chip “LMH0397” is supported on the board. To support 12G Cable Driver chip “LMH1297”, contact iWave. Figure 19: SDI Video OUT HD BNC Connector REL1.0 iWave Systems Technologies Pvt. Ltd. Page 38 of 90...

  • Page 39: Figure 20: Fmc Connector1

    4 Clock Input Capable LVDS/SE pins • 2 Clock Output Capable LVDS/SE pins This 400Pin FMC HPC connector1 (J14) is physically located at the top of the board as shown below. Figure 20: FMC Connector1 REL1.0 iWave Systems Technologies Pvt. Ltd. Page 39 of 90...

  • Page 40: Figure 21: Fmc Hpc Connector1 Pin Out

    Board Connector1 (J10). Power Ground. Power Ground. DP2_M2C_P MGTHRXP2_223 I, DIFF GTH Bank223 channel2 High speed differential receiver positive. This Pin is connected to 57 pin of Board to Board Connector1 (J10). REL1.0 iWave Systems Technologies Pvt. Ltd. Page 40 of 90...
  • Page 41 Board Connector1 (J10). DP1_C2M_N MGTHTXN1_223 O, DIFF GTH Bank223 channel1 High speed differential transmitter negative. This Pin is connected to 11 pin of Board to Board Connector1 (J10). Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 41 of 90...
  • Page 42 This Pin is connected to 105 pin of Board to Board Connector1 (J10). Power Ground. CLK_DIR This Pin is connected to 168 pin of Board to Board Connector1 (J10). Power Ground. Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 42 of 90...
  • Page 43 Power Ground. DP9_C2M_P This Pin is connected to 163 pin of Board to Board Connector1 (J10). DP9_C2M_N This Pin is connected to 165 pin of Board to Board Connector1 (J10). REL1.0 iWave Systems Technologies Pvt. Ltd. Page 43 of 90...
  • Page 44 Board Connector1 (J10). DP0_C2M_N MGTHTXN0_223 O, DIFF GTH Bank223 channel0 High speed differential transmitter negative. This Pin is connected to 5 pin of Board to Board Connector1 (J10). Power Ground. Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 44 of 90...
  • Page 45 Board Connector1 (J10). LA18_N_CC IO_L6N_HDGC_45 IO, 1.8V LVDS PL Bank45 IO6 differential negative. This Pin is connected to 82 pin of Board to Board Connector1 (J10). Power Ground. Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 45 of 90...
  • Page 46 Board Connector1 (J10). Power Ground. Power Ground. LA01_P_CC IO_L11P_T1U_N8_ IO, 1.8V LVDS PL Bank64 IO11 differential positive. GC_64 This Pin is connected to 176 pin of Board to Board Connector2 (J11). REL1.0 iWave Systems Technologies Pvt. Ltd. Page 46 of 90...
  • Page 47 Board to Board Connector2 (J11). Power Ground. LA26_P IO_L2P_AD10P_46 IO, 1.8V LVDS PL Bank46 IO2 differential positive. This Pin is connected to 91 pin of Board to Board Connector1 (J10). REL1.0 iWave Systems Technologies Pvt. Ltd. Page 47 of 90...
  • Page 48 This Pin is connected to 202 pin of Board to Board Connector1 (J10). Power Ground. Power Ground. HA05_P This Pin is connected to 154 pin of Board to Board Connector1 (J10). REL1.0 iWave Systems Technologies Pvt. Ltd. Page 48 of 90...
  • Page 49 Ground. HB05_P HB05_N Power Ground. HB09_P HB09_N Power Ground. HB13_P HB13_N Power Ground. HB19_P HB19_N Power Ground. HB21_P HB21_N Power Ground. VADJ VCC_FMC_ADJ O, 1.8V Power Supply Voltage. Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 49 of 90...
  • Page 50 Board to Board Connector1 (J10). Power Ground. HA15_P HA15_N Power Ground. HA19_P HA19_N This Pin is connected to 10 pin of Board to Board Connector1 (J10). Power Ground. HB02_P REL1.0 iWave Systems Technologies Pvt. Ltd. Page 50 of 90...
  • Page 51 Board to Board Connector2 (J11). LA03_N IO_L18N_T2U_N11_AD IO, 1.8V LVDS PL Bank64 IO18 differential negative. 2N_64 This Pin is connected to 137 pin of Board to Board Connector2 (J11). Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 51 of 90...
  • Page 52 Board to Board Connector1 (J10). LA25_N IO_L3N_AD13N_45 IO, 1.8V LVDS PL Bank45 IO3 differential negative. This Pin is connected to 42 pin of Board to Board Connector1 (J10). Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 52 of 90...
  • Page 53 Board to Board Connector2 (J11). LA04_N IO_L17N_T2U_N9_AD1 IO, 1.8V LVDS PL Bank64 IO17 differential negative. 0N_64 This Pin is connected to 133 pin of Board to Board Connector2 (J11). REL1.0 iWave Systems Technologies Pvt. Ltd. Page 53 of 90...
  • Page 54 Board to Board Connector1 (J10). LA24_N IO_L4N_AD12N_45 IO, 1.8V LVDS PL Bank45 IO4 differential negative. This Pin is connected to 40 pin of Board to Board Connector1 (J10). Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 54 of 90...
  • Page 55 HA03_N This Pin is connected to 236 pin of Board to Board Connector1 (J10). Power Ground. HA07_P This Pin is connected to 147 pin of Board to Board Connector1 (J10). REL1.0 iWave Systems Technologies Pvt. Ltd. Page 55 of 90...
  • Page 56 Power Ground. HB01_P HB01_N Power Ground. HB07_P HB07_N Power Ground. HB11_P HB11_N Power Ground. HB15_P HB15_N Power Ground. HB18_P HB18_N Power Ground. VIO_B_M2C Power Ground. VREF_B_M2C Power Ground. Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 56 of 90...
  • Page 57 Board to Board Connector1 (J10). Power Ground. HA17_P_CC HA17_N_CC Power Ground. HA21_P HA21_N Power Ground. HA23_P HA23_N Power Ground. HB00_P_CC HB00_N_CC Power Ground. HB06_P_CC HB06_N_CC Power Ground. HB10_P HB10_N Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 57 of 90...
  • Page 58 Zynq-Ultrascale+ MPSoC SOM Development Platform Hardware User Guide FMC Connector1 Signal Name Signal Type/ Description Pin Name Termination HB14_P HB14_N Power Ground. HB17_P_CC HB17_N_CC Power Ground. VIO_B_M2C REL1.0 iWave Systems Technologies Pvt. Ltd. Page 58 of 90...

  • Page 59: Figure 22: Fmc Connector2

    2 Clock Input Capable LVDS/SE pins • 1 Clock Output Capable LVDS/SE pins This 400Pin FMC HPC connector2 (J6) is physically located at the top of the board as shown below. Figure 22: FMC Connector2 REL1.0 iWave Systems Technologies Pvt. Ltd. Page 59 of 90...

  • Page 60: Figure 23: Fmc Hpc Connector2 Pin Out

    Board to Board Connector1 (J10). Power Ground. Power Ground. DP2_M2C_P MGTHRXP2_225 I, DIFF GTH Bank225 channel2 High speed differential receiver positive This Pin is connected to 237 pin of Board to Board Connector1 (J10). REL1.0 iWave Systems Technologies Pvt. Ltd. Page 60 of 90...
  • Page 61 Board to Board Connector1 (J10). DP1_C2M_N MGTHTXN1_225 O, DIFF GTH Bank225 channel1 High speed differential transmitter negative. This Pin is connected to 191 pin of Board to Board Connector1 (J10). REL1.0 iWave Systems Technologies Pvt. Ltd. Page 61 of 90...
  • Page 62 O, DIFF GTH Bank226 channel1 High speed differential transmitter negative. This Pin is connected to 207 pin of Board to Board Connector2 (J11). Power Ground. CLK_DIR Power Ground. Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 62 of 90...
  • Page 63 Board to Board Connector2 (J11). Power Ground. Power Ground. DP9_C2M_P DP9_C2M_N Power Ground. Power Ground. DP8_C2M_P DP8_C2M_N Power Ground. Power Ground. DP7_C2M_P DP7_C2M_N Power Ground. Power Ground. DP6_C2M_P DP6_C2M_N Power Ground. Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 63 of 90...
  • Page 64 Board to Board Connector1 (J10). LA14_N IO_L1N_AD11N_46 IO, 1.8V LVDS PL Bank46 IO1 differential negative. This Pin is connected to 89 pin of Board to Board Connector1 (J10). REL1.0 iWave Systems Technologies Pvt. Ltd. Page 64 of 90...
  • Page 65 VCC_FMC_ADJ voltage regulator(U27). Power Ground. Power Ground. GBTCLK0_M2C_P MGTREFCLK0P_225 I, DIFF GTH Bank225 differential reference clock0 positive. This Pin is connected to 184 pin of Board to Board Connector1 (J10). REL1.0 iWave Systems Technologies Pvt. Ltd. Page 65 of 90...
  • Page 66 LA17_N_CC IO_L5N_HDGC_AD7 IO, 1.8V LVDS PL Bank46 IO5 differential negative. N_46 This Pin is connected to 116 pin of Board to Board Connector1 (J10). Power Ground. LA23_P LA23_N Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 66 of 90...
  • Page 67 O, 3.3V Power Supply Voltage. Power Ground. HA01_P_CC HA01_N_CC Power Ground. Power Ground. HA05_P HA05_N Power Ground. HA09_P HA09_N Power Ground. HA13_P HA13_N Power Ground. HA16_P HA16_N Power Ground. HA20_P HA20_N REL1.0 iWave Systems Technologies Pvt. Ltd. Page 67 of 90...
  • Page 68 This Pin is connected to 10 pin of IO Expander (U40). Power Ground. Power Ground. HA00_P_CC HA00_N_CC Power Ground. HA04_P HA04_N Power Ground. HA08_P HA08_N Power Ground. HA12_P HA12_N Power Ground. HA15_P HA15_N Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 68 of 90...
  • Page 69 Board to Board Connector2 (J11). Power Ground. LA03_P IO_L7P_T1L_N0_QBC IO, 1.8V LVDS PL Bank66 IO7 differential positive. _AD13P_66 This Pin is connected to 100 pin of Board to Board Connector2 (J11). REL1.0 iWave Systems Technologies Pvt. Ltd. Page 69 of 90...
  • Page 70 Board to Board Connector1 (J10). Power Ground. LA20_P LA20_N Power Ground. LA22_P LA22_N Power Ground. LA25_P LA25_N Power Ground. LA29_P LA29_N Power Ground. LA31_P LA31_N Power Ground. LA33_P LA33_N REL1.0 iWave Systems Technologies Pvt. Ltd. Page 70 of 90...
  • Page 71 Board to Board Connector2 (J11). Power Ground. IO_L11P_AD1P_46 PL Bank46 IO11 differential positive. LA15_P IO, 1.8V LVDS This Pin is connected to 46 pin of Board to Board Connector1 (J10). REL1.0 iWave Systems Technologies Pvt. Ltd. Page 71 of 90...
  • Page 72 O, 1.8V Power Supply Voltage. Power Ground. CLK3_BIDIR_P CLK3_BIDIR_N Power Ground. Power Ground. HA03_P HA03_N Power Ground. HA07_P HA07_N Power Ground. HA11_P HA11_N Power Ground. HA14_P HA14_N Power Ground. HA18_P HA18_N REL1.0 iWave Systems Technologies Pvt. Ltd. Page 72 of 90...
  • Page 73 Ground. VREF_B_M2C Power Ground. Power Ground. CLK2_BIDIR_P CLK2_BIDIR_N Power Ground. HA02_P HA02_N Power Ground. HA06_P HA06_N Power Ground. HA10_P HA10_N Power Ground. HA17_P_CC HA17_N_CC Power Ground. HA21_P HA21_N Power Ground. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 73 of 90...
  • Page 74 Signal Type/ Description Pin Name Termination HA23_P HA23_N Power Ground. HB00_P_CC HB00_N_CC Power Ground. HB06_P_CC HB06_N_CC Power Ground. HB10_P HB10_N Power Ground. HB14_P HB14_N Power Ground. HB17_P_CC HB17_N_CC Power Ground. VIO_B_M2C REL1.0 iWave Systems Technologies Pvt. Ltd. Page 74 of 90...

  • Page 75: Pmod Host Port Connectors

    Pmod Connectors through Voltage level translator. Pmod Host port connector1 (J2) and Connector2 (J1) are physically located at the top of the board as shown below. Figure 24: Pmod Host Port Connectors REL1.0 iWave Systems Technologies Pvt. Ltd. Page 75 of 90...

  • Page 76: Table 12: Pmod Connector1 Pin Assignment

    IO, 3V3 LVCMOS General purpose Input Output. PL_AD2_LVDS66_L19P_DBC IO, 3V3 LVCMOS General purpose Input Output. PL_Y8_LVDS66_L9N Power Ground. PL_W8_LVDS66_L9P Power Ground. Power Ground. VCC_3V3 O, 3.3V Power 3V3 Supply Voltage. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 76 of 90...

  • Page 77: Additional Features

    Expander controls the enable pin of USB type-C Switch , SFP+ Control signals and FMC Control Signals. This GPIO 16- Bit port Expander is connected to PS I2C0 through level translator. The GPIO 16-Bit port Expander I2C address is 0X72. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 77 of 90...

  • Page 78: Jtag Connector

    FMC connector. JTAG-HS2/ JTAG-HS3 programming cable can be plugged to this JTAG Header for programming and debugging purpose. This JTAG Header (J3) is physically located at the top of the board as shown below. Figure 25: JTAG Connector REL1.0 iWave Systems Technologies Pvt. Ltd. Page 78 of 90...

  • Page 79: Table 15: Jtag Header Pin Assignment

    Power Ground JTAG_TDO O,3V3 LVCMOS/ JTAG test data output. 49.9K PU Power Ground JTAG_TDI I, 3V3 LVCMOS JTAG test data input Power Ground Not Connected Power Ground JTAG_TRSTB Not Connected REL1.0 iWave Systems Technologies Pvt. Ltd. Page 79 of 90...

  • Page 80: Gpio Header

    This Pin is connected to 211 pin of Board to Board Connector1 (J10). PS_I2C0_SDA IO, 1.8V OD/ I2C0 data. 4.7K PU This Pin is connected to 46 pin of Board to Board Connector2 (J11). REL1.0 iWave Systems Technologies Pvt. Ltd. Page 80 of 90...
  • Page 81 SPI Master input Slave output. Same pin can be configured as General Purpose Input/Output if required. This Pin is connected to 67 pin of Board to Board Connector2 (J11). Power Ground Power Ground REL1.0 iWave Systems Technologies Pvt. Ltd. Page 81 of 90...

  • Page 82: Power On/Off Switch

    The Zynq Ultrascale+ MPSoC Carrier board has power ON/OFF switch (SW2) to control the Main power Input ON/OFF functionality. This power ON/OFF switch is physically located at the top of the board as shown below. Figure 27: Power On/Off Switch REL1.0 iWave Systems Technologies Pvt. Ltd. Page 82 of 90...

  • Page 83: Reset Switch

    CPU. Reset signal of Board to Board connector2 Pin 35 is directly connected from Reset Push button switch. This Reset Push button switch (SW1) is physically located at the top of the board as shown below. Figure 28: Reset Switch REL1.0 iWave Systems Technologies Pvt. Ltd. Page 83 of 90...

  • Page 84: Rtc Coin Cell Holder

    Zynq Ultrascale+ MPSoC SOM for RTC back up voltage when VCC main power is off. This Coin Cell Holder (J23) is physically located at the bottom of the board as shown below. Figure 29: RTC Coin Cell Holder REL1.0 iWave Systems Technologies Pvt. Ltd. Page 84 of 90...

  • Page 85: Technical Specification

    VCC_12V 11.75V 12.25V ±50mV VRTC_3V0¹ 2.8V 3.3V ±20mV ¹ The Zynq Ultrascale+ MPSoC DevKit uses this voltage as backup power source to On-SOM PMIC RTC controller when VCC is off. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 85 of 90...

  • Page 86: Power Output Specification

    3.45 100mA VCC_12V 11.75V 12.25V To Pmod Connector1 VCC_3V3 3.15 3.45 500mA To Pmod Connector2 VCC_3V3 3.15 3.45 500mA To GPIO Header VCC_5V 3.15 3.45 500mA VCC_1V8 1.75 1.85 200mA REL1.0 iWave Systems Technologies Pvt. Ltd. Page 86 of 90...

  • Page 87: Environmental Characteristics

    3.3.3 Electrostatic Discharge iWave’s Zynq Ultrascale+ MPSoC Development platform is sensitive to electro static discharge and so high voltages caused by static electricity could damage some of the devices on board. It is packed with necessary protection while shipping.

  • Page 88: Mechanical Characteristics

    Ethernet Connector (15.27mm) and bottom side maximum height component is M.2 SATA Connector (4.20mm). Please refer the below figure for height details of the Zynq Ultrascale+ MPSoC Carrier board. Figure 32: Carrier board Mechanical dimension – Side View REL1.0 iWave Systems Technologies Pvt. Ltd. Page 88 of 90...

  • Page 89: Ordering Information

    ZU4EV (-1) MPSOC SOM Linux Development Platform with iW-G30D-C4EV-4E002G-E008G-LCA Commercial 2GB PS DDR4 with ECC, 1GB FPGA DDR4, 8GB EMMC Note: For Development platform identification purpose, Product part number is pasted as Label with Barcode readable format. REL1.0 iWave Systems Technologies Pvt. Ltd. Page 89 of 90...
  • Page 90 Zynq-Ultrascale+ MPSoC SOM Development Platform Hardware User Guide REL1.0 iWave Systems Technologies Pvt. Ltd. Page 90 of 90...
