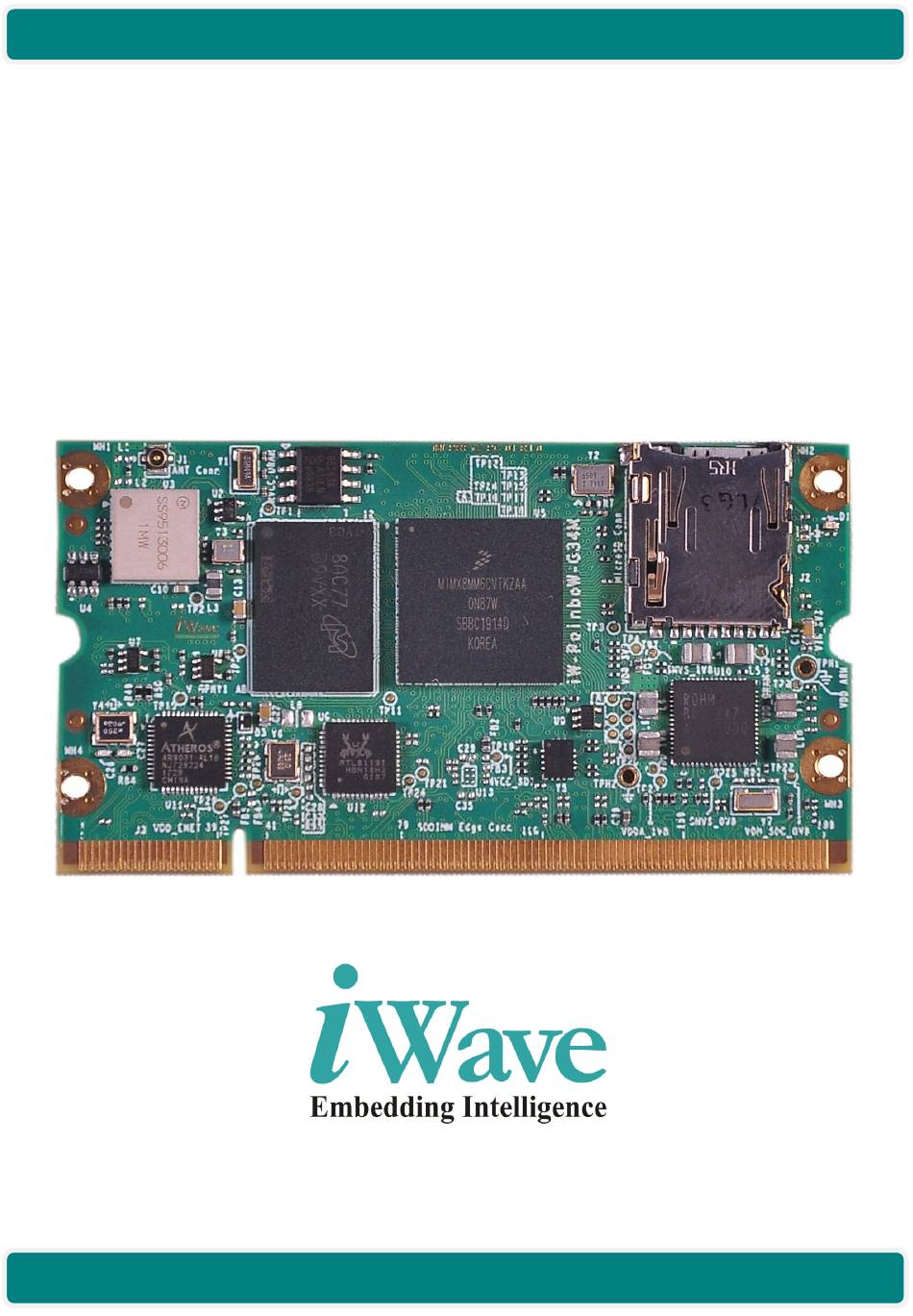

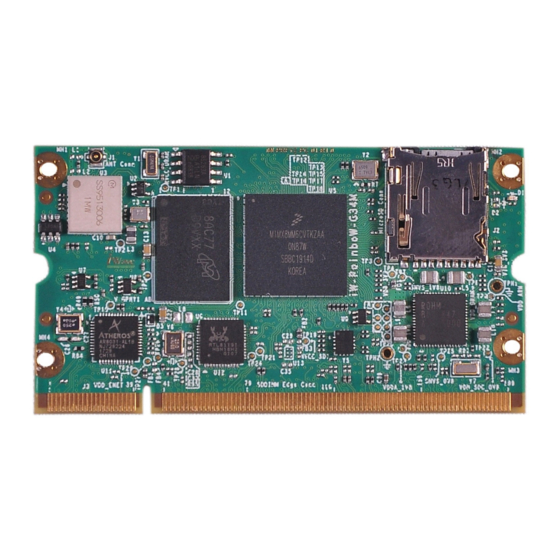

- Page 1 8M Mini or i.MX 8M Nano SODIMM SOM Hardware User Guide iW-RainboW-G34M/G37M i.MX 8M Mini & i.MX 8M Nano SODIMM System On Module Hardware User Guide REL0.1 iWave Systems Technologies Pvt. Ltd. Page 1 of 62...
- Page 2 If you are not the intended recipient (or authorized to receive for the recipient), you are hereby notified that any disclosure, copying distribution or use of any of the information contained within this document is STRICTLY PROHIBITED. Thank you. “iWave Systems Tech. Pvt. Ltd.” REL0.1 iWave Systems Technologies Pvt.
- Page 3 No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent permitted by law no liability (including liability to any person by reason of negligence) will be accepted by iWave Systems, its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.
-
Page 4: Table Of Contents
2.8.17 Power and GND ............................40 i.MX 8M Mini or i.MX 8M Nano Pin Multiplexing on SODIMM Edge ............. 41 TECHNICAL SPECIFICATION.......................... 50 Electrical Characteristics ..........................50 3.1.1 Power Input Sequencing ..........................50 REL0.1 iWave Systems Technologies Pvt. Ltd. Page 4 of 62... - Page 5 Guidelines to insert the SOIDMM SOM into carrier board ................60 Guidelines to remove the SOIDMM SOM from carrier board ................ 60 APPENDIX II ..............................61 i.MX 8M Mini or i.MX 8M Nano SODIMM SOM Development Platform ............61 REL0.1 iWave Systems Technologies Pvt. Ltd. Page 5 of 62...
- Page 6 Table 12: Environmental Specification ........................... 53 Table 13: i.MX 8M Mini SODIMM SOM Orderable Product Part Numbers ..............57 Table 14:i.MX 8M Nano SODIMM SOM Orderable Product Part Numbers ..............58 REL0.1 iWave Systems Technologies Pvt. Ltd. Page 6 of 62...
-
Page 7: Introduction
This document is the Hardware User Guide for the SODIMM SOM based on the NXP’s i.MX 8M Mini or i.MX 8M Nano Application processor. This board is fully supported by iWave Systems Technologies Pvt. Ltd. This Guide provides detailed information on the overall design and usage of the i.MX 8M Mini or i.MX 8M Nano SODIMM SOM from a Hardware Systems perspective. - Page 8 SODIMM Small outline dual in line memory module System On Module To Be Defined UART Universal Asynchronous Receiver/Transmitter Universal Serial Bus USB OTG USB On The Go Wi-Fi Wireless Fidelity REL0.1 iWave Systems Technologies Pvt. Ltd. Page 8 of 62...
-
Page 9: Terminology Description
Note: Signal Type does not include internal pull-ups or pull-downs implemented by the chip vendors and only includes the pull-ups or pull-downs implemented On-SODIMM SOM. References • IMX8MMIEC_Revx.x.pdf • IMX_8M_Mini_RM_Revx.x.pdf • IMX8MNIEC_Revx.x.pdf • IMX_8M_Nano_RM_Revx.x.pdf REL0.1 iWave Systems Technologies Pvt. Ltd. Page 9 of 62... - Page 10 In this signal, BCONFIG_0 is the GPIO functionality which we are using and GPIO1_9 is the GPIO number. Note: The above naming is not applicable for other signals which are not connected to SoC. REL0.1 iWave Systems Technologies Pvt. Ltd. Page 10 of 62...
-
Page 11: Architecture And Design
SAI5 is shared between SODIMM Edge connector and Bluetooth Audio, by default it will be connected to SODIMM Edge. Not supported in i.MX 8M Nano mktg@iwavesystems.com iWave Systems Technologies Pvt. Ltd. Figure 1: i.MX 8M Mini or i.MX 8M Nano SODIMM SOM Block Diagram REL0.1 iWave Systems Technologies Pvt. -
Page 12: I.mx 8M Mini Or I.mx 8M Nano Sodimm Som Features
PCIe to Ethernet PHY (Optional) • RTC Controller SODIMM PCB Edge Interfaces • Gigabit Ethernet x 1 Port (Mini optionally support x 2) • PCIe x 1 Port (Not supported in Nano) REL0.1 iWave Systems Technologies Pvt. Ltd. Page 12 of 62... - Page 13 4GB (32Gb) RAM. The i.MX 8M Nano SoC can support up to 2GB (32Gb) RAM. Memory Size will differ based on iWave’s SOM Product Part Number. uSDHC1 is shared between Wi-Fi module and micro SD connector, by default it will be connected to Wi-Fi Module.
-
Page 14: I.mx 8M Mini Or I.mx 8M Nano
LPDDR4, DDR4, DDR3L, Quad SPI/Octal SPI (FlexSPI), eMMC 5.1, RAW NAND and SD, and a wide range of peripheral I/Os such as PCIe 2.0 provide wide flexibility. Figure 2: i.MX 8M Mini Block Diagram REL0.1 iWave Systems Technologies Pvt. Ltd. Page 14 of 62... -
Page 15: Figure 3: I.mx 8M Nano Block Diagram
8M Mini or i.MX 8M Nano SODIMM SOM Hardware User Guide Similarly, the iW-RainboW-G37M i.MX 8M Nano SODIMM SOM can support different i.MX 8M Nano SoCs from NXP. The i.MX 8M Nano Family also consists of six processors: i.MX 8M Nano Quad, Quad Lite, Dual, Dual Lite, Solo, Solo Lite. -
Page 16: Bd71847Amwv Pmic
Nano. The LPDDR4 IC (U6) placed on Top side of the SOM. The RAM size can be expandable up to maximum of 4GB in Mini and up to 2GB in Nano. To customize the LPDDR4 memory size, contact iWave. 2.5.2 eMMC Flash The i.MX 8M Mini or i.MX 8M Nano SODIMM SOM supports 8GB eMMC as default boot device and storage device. -
Page 17: Qspi Flash (Optional)
8M Mini or i.MX 8M Nano SODIMM SOM Hardware User Guide Note: In default configuration USDHC1 is used for on board Wi-Fi module. Contact iWave Support team if microSD feature is required. Figure 4: Micro SD Connector 2.5.4 QSPI Flash (Optional) The i.MX 8M Mini or i.MX 8M Nano SODIMM SOM optionally supports 2MB QSPI Flash and can be used as optional... -
Page 18: Wi-Fi And Bluetooth Interface
SODIMM SOM, antenna pin of Wi-Fi & Bluetooth module is connected to J1 Connector. Figure 5: Wi-Fi and Bluetooth Antenna Connector Connector Part Number - : MM4829-2702RA4 from Murata Electronics. Antenna Part Number - : 2042811100 from Molex/ FXP830.24.0100B from Taoglas Limited REL0.1 iWave Systems Technologies Pvt. Ltd. Page 18 of 62... -
Page 19: Sodimm Pcb Edge Connector
8M Mini or i.MX 8M Nano SODIMM SOM Hardware User Guide Note: The LBEE5HY1MW module supports operating temperature -30°C to 85°C with the default module’s firmware. To set the module temperature to industrial grade in firmware, please contact iWave. SODIMM PCB Edge Connector i.MX 8M Mini or i.MX 8M Nano SODIMM SOM Supports JEDEC Physical Standard 200pin SODIMM PCB edge... -
Page 20: Table 3: Sodimm Edge Connector Pinouts
MIPI_DSI_DATA0_P MIPI_DSI_DATA1_N MIPI_DSI_DATA2_N MIPI_DSI_DATA1_P MIPI_DSI_DATA2_P MIPI_DSI_DATA3_N MIPI_DSI_CLK_N MIPI_DSI_DATA3_P MIPI_DSI_CLK_P VIN_3V3 SAI5_RX_DATA0(SAI5_RXD0) ECSPI2_SS0 ECSPI2_MISO GPIO_CLK(SAI5_MCLK) ECSPI2_SCLK SAI5_TX_DATA0(SAI5_RXD3) SAI1_RXD2 (NC in Nano) ECSPI2_MOSI GPIO1_6 VIN_3V3 GPIO1_7 SAI1_RXC (NC in Nano) UART2_RTS_B(SAI3_RXD) USB1_OTG_OC(GPIO1_13) REL0.1 iWave Systems Technologies Pvt. Ltd. Page 20 of 62... - Page 21 GPIO1_8 GPIO1_5 SAI1_RXD3 (NC in Nano) SAI1_RXD4 (NC in Nano) MIPI_CSI_CLK_N MIPI_CSI_CLK_P I2C3_SCL SAI1_TXD7 (NC in Nano) I2C3_SDA SAI1_TXD0 (NC in Nano) SAI1_TXC (NC in Nano) SAI1_RXD1 (NC in Nano) REL0.1 iWave Systems Technologies Pvt. Ltd. Page 21 of 62...
- Page 22 ECSPI3_SS0(UART2_TXD) BOOT_MODE0 VRTC_3V0 BOOT_MODE1 n_RST_OUT USB2_DP (NC in Nano) ECSPI3_SCLK(UART1_RXD) USB2_DN (NC in Nano) JTAG_TDO VIN_3V3 JTAG_TRST_B(BOOT_MODE2) ECSPI3_MOSI(UART1_TXD) JTAG_TDI ECSPI3_MISO(UART2_RXD) JTAG_TCK JTAG_TMS USB_OTG1_VBUS * Optional feature, by default not supported. REL0.1 iWave Systems Technologies Pvt. Ltd. Page 22 of 62...
-
Page 23: Gigabit Ethernet
3 negative. GPHY1_DTXRXP IO, GBE Gigabit Ethernet MDI differential pair 3 positive. VDVDH_GPHY1 GPHY1_LINK_LED2 O, 3.3V CMOS Gigabit Ethernet link status LED. GPHY1_ACTIVITY_LED1 O, 3.3V CMOS Gigabit Ethernet activity status. REL0.1 iWave Systems Technologies Pvt. Ltd. Page 23 of 62... - Page 24 Ethernet Activity status LED. GPHY2_ACTIVITY_LED1 NA O, 3.3V CMOS 1000Mbps Ethernet link status LED Note: PCIe is not supported in i.MX 8M Nano SODIMM SOM. So, 2 Ethernet is also not supported. REL0.1 iWave Systems Technologies Pvt. Ltd. Page 24 of 62...
-
Page 25: Pcie Interface (Not Available In Nano)
SOM PCIe to Ethernet controller through resistor and default not populated PCIE_TXP PCIE_TXN_P/B20 O, PCIe / PCIe Transmit Positive. 0.1uF AC Couple Note: PCIe Transmitter Positive is optionally connected On-SOM PCIe to Ethernet controller REL0.1 iWave Systems Technologies Pvt. Ltd. Page 25 of 62... -
Page 26: Sd Interface
SD data 0. CMOS/10K PU SD2_DATA1 SD2_DATA1/AB24 IO, 1.8/3.3V SD data 1. CMOS/10K PU SD2_DATA2 SD2_DATA2/V24 IO, 1.8/3.3V SD data 2. CMOS/10K PU SD2_DATA3 SD2_DATA3/V23 IO, 1.8/3.3V SD data 3. CMOS/10K PU REL0.1 iWave Systems Technologies Pvt. Ltd. Page 26 of 62... -
Page 27: Usb Interface
I, 5V Power USB2 host power detection, when this port is used as a device. USB2_ID I,3.3V USB2 OTG ID. CMOS/PU 10K USB2_OTG_OC(GPIO1_15) GPIO1_IO15/AB9 I, 3.3V CMOS USB Port2 Over Current Indicator. REL0.1 iWave Systems Technologies Pvt. Ltd. Page 27 of 62... -
Page 28: Mipi Csi Camera
O, 3.3V OD/ I2C Clock for MIPI Camera. 4.7K PU I2C3_SDA I2C3_SDA/ F10 IO, 3.3V OD/ I2C Data for MIPI Camera. 4.7K PU GPIO1_5 GPIO1_IO05/AF12 O, 3.3V CMOS MIPI Camera Reset signal REL0.1 iWave Systems Technologies Pvt. Ltd. Page 28 of 62... -
Page 29: Mipi Dsi Display Interface
Note: This signal is used as GPIO reset for Carrier Peripherals GPIO 1_1 GPIO1_IO01/ AF14 O, 3.3V CMOS Used for Display Touch reset GPIO1_8 GPIO1_IO08/AG10 I, 3.3V CMOS Used for Display Touch Interrupt REL0.1 iWave Systems Technologies Pvt. Ltd. Page 29 of 62... -
Page 30: Audio Interface
SAI5_TX_BCLK(SAI5_RXD2) SAI5_RXD2/AD13 O, 3.3V CMOS/ SAI5 Transmitter Bit Clock Note: SAI5_TX_BCLK is 33E Series optionally connected On-SOM Wi-fi module through resistor and default not populated. REL0.1 iWave Systems Technologies Pvt. Ltd. Page 30 of 62... -
Page 31: Uart Interface
UART1_RTS_B(SAI2_RXD0) is by default connected to On -SOM Bluetooth. Default NC. Note: Optionally connect to UART1_CTS_B. This pin is optionally connected to i.MX 8M Mini or i.MX 8M Nano SoC’s UART1_CTS_B(SAI2_TXFS) through REL0.1 iWave Systems Technologies Pvt. Ltd. Page 31 of 62... -
Page 32: Spi Interface
For more details on ESPI3 pinouts on SODIMM PCB Edge connector, refer below table: SODIMM SODIMM Edge SoC Ball Name/ Signal Type/ Description Pin No. Signal Name Pin Number Termination ECSPI3_SS0(UART2_TXD) UART2_TXD/E15 O, 3.3V CMOS SPI3 Chip Select 0 REL0.1 iWave Systems Technologies Pvt. Ltd. Page 32 of 62... -
Page 33: I2C Interface
SODIMM Edge Signal Type/ Description Pin No. Signal Name Pin Number Termination JTAG_TRST_B/C27 I, 3.3V CMOS/ JTAG test reset signal. 10K PU Note: By default, do not connect to JTAG_TRST_B REL0.1 iWave Systems Technologies Pvt. Ltd. Page 33 of 62... -
Page 34: Gpio Interface
The Sony/Philips Digital Interface (SPDIF) audio block is a stereo transceiver that allows the processor to receive and transmit digital audio. The SPDIF is composed of two parts: SPDIF Receiver and SPDIF Transmitter. As the SPDIF internal data width is 24-bit. REL0.1 iWave Systems Technologies Pvt. Ltd. Page 34 of 62... -
Page 35: Boot Setting
Sony/Philips Digital Interface Receive. Note: iWave has not tested SPDIF interface in the present BSP, if needed will support in future BSP versions. In the present BSP the above SPDIF signals are configured as input GPIOs (General Purpose Input/Output). 2.8.14 Boot Setting i.MX 8M Mini or i.MX Nano SoC boot process begins at Power On Reset (POR) where the hardware reset logic forces... -
Page 36: Table 5: I.mx 8M Nano Boot Mode Pin Settings Truth Table
8M Mini or i.MX 8M Nano SODIMM SOM Hardware User Guide Note: i.MX 8M Mini eFuse setting is not modified by iWave from silicon shipped value. In this mode, i.MX 8M Mini boot Serial Downloader media can be Programmed through its... -
Page 37: Management Pins
IC to power up the i.MX 8M Mini or i.MX 8M Nano SoC. For more details on supported Management Signals pinouts on SODIMM PCB Edge connector and corresponding pin description, refer the below table. REL0.1 iWave Systems Technologies Pvt. Ltd. Page 37 of 62... -
Page 38: Miscellaneous Signals
SAI1_RXD0 (NC in SAI1_RXD0/ IO, 3.3V CMOS/ SAI1 Receive Data Lane 0 Nano) AG15 100K PD/4.7K PU Note: Termination will differ based on Boot configuration setting. REL0.1 iWave Systems Technologies Pvt. Ltd. Page 38 of 62... - Page 39 AF22 100K PD/4.7K PU Note: Termination will differ based on Boot configuration setting. SAI1_TXD6 (NC in SAI1_TXD6/ IO, 3.3V CMOS/ SAI1 Transmit Data Lane 6 Nano) AG23 100K PD/4.7K PU REL0.1 iWave Systems Technologies Pvt. Ltd. Page 39 of 62...
-
Page 40: Power And Gnd
160, 180 & 192 1, 5, 13, 27, 40, 41, Power Ground. 51, 65, 79, 95, 113, 131, 151, 169, 185, 186, 198 VRTC_3V0 I, 3V Power 3V coin cell input for RTC. REL0.1 iWave Systems Technologies Pvt. Ltd. Page 40 of 62... -
Page 41: I.mx 8M Mini Or I.mx 8M Nano Pin Multiplexing On Sodimm Edge
This table has been prepared by referring NXP’s i.MX 8M Mini or i.MX 8M Nano Hardware User’s Manual. Important Note: It is strongly recommended to use the pin function same as selected in the SODIMM SOM Edge connector for iWave’s BSP reusability. Table 6: i.MX 8M Mini SoC IOMUX for SODIMM Edge Connector interfaces SODIMM i.MX 8M... - Page 42 ECSPI1_MOSI UART3_TX GPIO5_IO[7] GPIO5_IO[7] ECSPI1 ECSPI1_MISO UART3_CTS_B GPIO5_IO[8] GPIO5_IO[8] ECSPI1_SS0 UART3_RTS_B GPIO5_IO[9] GPIO5_IO[9] ECSPI2_SCLK UART4_RX GPIO5_IO[10] GPIO5_IO[10] ECSPI2_MOSI UART4_TX GPIO5_IO[11] GPIO5_IO[11] ECSPI2 ECSPI2_MISO UART4_CTS_B GPIO5_IO[12] GPIO5_IO[12] ECSPI2_SS0 UART4_RTS_B GPIO5_IO[13] GPIO5_IO[13] REL0.1 iWave Systems Technologies Pvt. Ltd. Page 42 of 62...
- Page 43 PCIE1_CLKREQ_B GPIO5_IO[28] GPIO5_IO[28] UART4 UART4_TX UART2_RTS_B GPIO5_IO[29] GPIO5_IO[29] USB1_DN USB1_DN USB1_DP USB1_DP USB1 2.0 USB1_ID USB1_ID SDMA2_EXT_E AB10 GPIO1_IO[12] USB1_OTG_PWR GPIO1_IO[12] VENT[1] GPIO1_IO[13] USB1_OTG_OC PWM2_OUT GPIO1_IO[13] USB2_DN USB2_DN USB2_DP USB2_DP REL0.1 iWave Systems Technologies Pvt. Ltd. Page 43 of 62...
- Page 44 SAI1 AG17 SAI1_RX_DATA[2] SAI5_RX_DATA[2] GPIO4_IO[4] BOOT_CFG[2] GPIO4_IO[4] (Boot AF17 SAI1_RX_DATA[3] SAI5_RX_DATA[3] GPIO4_IO[5] BOOT_CFG[3] GPIO4_IO[5] Config) AG18 SAI1_RX_DATA[4] SAI6_TX_BCLK SAI6_RX_BCLK GPIO4_IO[6] BOOT_CFG[4] GPIO4_IO[6] AF18 SAI1_RX_DATA[5] SAI6_TX_DATA[0] SAI6_RX_DATA[0] SAI1_RX_SYNC GPIO4_IO[7] BOOT_CFG[5] GPIO4_IO[7] REL0.1 iWave Systems Technologies Pvt. Ltd. Page 44 of 62...
-
Page 45: Table 7: I.mx 8M Nano Iomux For Sodimm Edge Connector Interfaces
MIPI_CSI_D0_N MIPI_CSI_D0_N MIPI_CSI_D0_P MIPI_CSI_D0_P MIPI_CSI_D1_N MIPI_CSI_D1_N MIPI_CSI_D1_P MIPI_CSI_D1_P MIPI CSI MIPI_CSI_D2_N MIPI_CSI_D2_N MIPI_CSI_D2_P MIPI_CSI_D2_P MIPI_CSI_D3_N MIPI_CSI_D3_N MIPI_CSI_D3_P MIPI_CSI_D3_P I2C3_SCL PWM4_OUT GPT2_CLK ECSPI2_SCLK GPIO5_IO[18] GPIO5_IO[18] I2C3_SDA PWM3_OUT GPT3_CLK ECSPI2_MOSI GPIO5_IO[19] GPIO5_IO[19] REL0.1 iWave Systems Technologies Pvt. Ltd. Page 45 of 62... - Page 46 GPIO2_IO[17] GPIO2_IO[17] EAM2 PDM_BIT_STR USDHC2_DATA3 SAI5_TX_DATA0 ECSPI2_MISO SPDIF1_IN GPIO2_IO[18] GPIO2_IO[18] EAM3 ECSPI1_SCLK UART3_RX I2C1_SCL SAI5_RX_SYNC GPIO5_IO[6] GPIO5_IO[6] ECSPI1 ECSPI1_MOSI UART3_TX I2C1_SDA SAI5_RX_BCLK GPIO5_IO[7] GPIO5_IO[7] ECSPI1_MISO UART3_CTS_B I2C2_SCL SAI5_RX_DATA0 GPIO5_IO[8] GPIO5_IO[8] REL0.1 iWave Systems Technologies Pvt. Ltd. Page 46 of 62...
- Page 47 UART1_CTS_B GPIO4_IO[24] GPIO4_IO[24] SAI2_RX_ DATA1 SAI3_RX_BCLK GPT1_CLK SAI5_RX_BCLK UART2_CTS_B GPIO4_IO[29] PDM_CLK GPIO4_IO[29] SAI3_TX_ DATA1 PDM_BIT_STRE UART2 SAI3_RX_DATA[0] GPT1_COMPARE1 SAI5_RX_DATA[0] UART2_RTS_B GPIO4_IO[30] GPIO4_IO[30] PDM_BIT_STRE SAI3_TX_SYNC GPT1_CAPTURE2 SAI5_RX_DATA[1] SAI3_TX_DATA[1] UART2_RX GPIO4_IO[31] GPIO4_IO[31] REL0.1 iWave Systems Technologies Pvt. Ltd. Page 47 of 62...
- Page 48 CJTAG_TCK CJTAG_TCK CJTAG_TDO CJTAG_TDO USDHC1_CD_ AG11 GPIO1_IO[6] ENET1_MDC CCM_EXT_CLK3 GPIO1_IO[6] AF11 GPIO1_IO[7] ENET1_MDIO USDHC1_WP CCM_EXT_CLK4 GPIO1_IO[7] GPIOs AB15 SAI5_RX_SYNC GPIO3_IO[19] GPIO3_IO[19] AC15 SAI5_RX_BCLK PDM_CLK GPIO3_IO[20] GPIO3_IO[20] SPDIF1_OUT PWM3_OUT GPIO5_IO[3] GPIO5_IO[3] REL0.1 iWave Systems Technologies Pvt. Ltd. Page 48 of 62...
- Page 49 SPDIF1_IN PWM2_OUT GPIO5_IO[4] GPIO5_IO[4] SPDIF1_EXT_CLK PWM1_OUT GPIO5_IO[5] GPIO5_IO[5] USDHC3_CD_ PWM3_OUT GPIO1_IO[14] CCM_CLKO1 GPIO1_IO[14] GPIO1_IO[15] USDHC3_WP PWM4_OUT CCM_CLKO2 GPIO1_IO[15] PWM3 AD10 GPIO1_IO[10] USB1_OTG_ID GPIO1_IO[10] PWM2_ USDHC3_VSEL CCM_PMIC_R AC10 GPIO1_IO[11] GPIO1_IO[11] EADY REL0.1 iWave Systems Technologies Pvt. Ltd. Page 49 of 62...
-
Page 50: Technical Specification
NXP recommends customers to remove power (Voltage source) to all components on the board in the event of a processor reset. REL0.1 iWave Systems Technologies Pvt. Ltd. Page 50 of 62... -
Page 51: Power Consumption
0.09A/0.297W RTC power when no VIN_3V3 supply is provided VRTC_3V0 0.39µA/1.17µW ¹ Power consumption measurements have been done in iWave ’s i.MX 8M Mini SoC based SODIMM Development platform with iWave ‘s iW-PRFYZ-SC-01-R1.0-REL1.0-Linux4.14.98 BSP. REL0.1 iWave Systems Technologies Pvt. Ltd. -
Page 52: Table 11: I.mx 8M Nano Sodimm Som Power Consumption
0.02A/0.066W RTC power when no VIN_3V3 supply is provided VRTC_3V0 0.4µA/1.2µW ¹ Power consumption measurements have been done in iWave ’s i.MX 8M Nano SoC based SODIMM Development platform with iWave ‘s iW-PRGJZ-SC-01-R1.0-REL0.1-Linux5.4.24 BSP. REL0.1 iWave Systems Technologies Pvt. Ltd. -
Page 53: Environmental Characteristics
SoC. Note: iWave supports Heat Sink/ Heat Spreader Solution for i.MX 8M Mini or i.MX 8M Nano SODIMM SOM SOM. For more information on Heat Sink/ Heat Spreader contact iWave support team. Do not Power On the SOM without a proper thermal solution. -
Page 54: Figure 8: Mechanical Dimension Heat Sink
8M Mini/Nano SODIMM SOM Hardware User Guide Figure 8: Mechanical dimension Heat Sink REL0.1 iWave Systems Technologies Pvt. Ltd. Page 54 of 62... -
Page 55: Rohs Compliance
3.3.4 Electrostatic Discharge iWave’s i.MX 8M Mini or i.MX 8M Nano SODIMM SOM is sensitive to electro static discharge and so high voltages caused by static electricity could damage some of the devices on board. It is packed with necessary protection while shipping. -
Page 56: Mechanical Characteristics
U20 IC (1.20mm) will be the maximum height on bottom side in default configuration. Please refer the above figure which gives height details of the i.MX 8M Mini or i.MX 8M Nano SODIMM SOM. REL0.1 iWave Systems Technologies Pvt. Ltd. Page 56 of 62... -
Page 57: Ordering Information
The below table provides the standard orderable part numbers for different i.MX 8M Mini or i.MX 8M Nano SODIMM SOM variations. Please contact iWave for orderable part number of higher RAM memory size or Flash memory size SOM configurations. Also, if the desired part number is not listed in below table or if any custom configuration part number is required, please contact iWave. -
Page 58: Table 14:I.mx 8M Nano Sodimm Som Orderable Product Part Numbers
Nano Dual, 1GB LPDDR4, 8GB eMMC with boot -40°C to 85°C code iW-G37M-SM02-4L001G-E008G-BIB i.MX8M Nano Dual Lite, 1GB LPDDR4, 8GB eMMC with -40°C to 85°C boot code iW-G37M-SM2L-4L001G-E008G-BIB REL0.1 iWave Systems Technologies Pvt. Ltd. Page 58 of 62... - Page 59 -40°C to 85°C boot code iW-G37M-SM2L-4L002G-E008G-BIB Important Note: Some of the above-mentioned Part Numbers are subject to MOQ purchase. Please contact iWave for further details. For SOM identification purpose, Product Part Number and SOM Unique Serial Number are pasted as Label with Barcode readable format on SOM.
-
Page 60: Guidelines To Insert The Soidmm Som Into Carrier Board
When you remove the module, pull away the retention clips (A) on each side of the memory module. • The module pops up. Grasp the edge of the module (B) and gently pull the module out of the connector. Figure 12: Module Removal Procedure REL0.1 iWave Systems Technologies Pvt. Ltd. Page 60 of 62... -
Page 61: I.mx 8M Mini Or I.mx 8M Nano Sodimm Som Development Platform
& on-board connectors to validate complete supported features. iWave Systems supports also supports SODIMM MIPI Add-On-module for i.MX 8M Mini or i.MX 8M Nano SODIMM SOM Development Platform to validate MIPI DSI and MIPI CSI interface. For more details on i.MX 8M Mini or i.MX 8M Nano SODIMM SOM Development Platform, visit the below web link. - Page 62 8M Mini/Nano SODIMM SOM Hardware User Guide REL0.1 iWave Systems Technologies Pvt. Ltd. Page 62 of 62...
