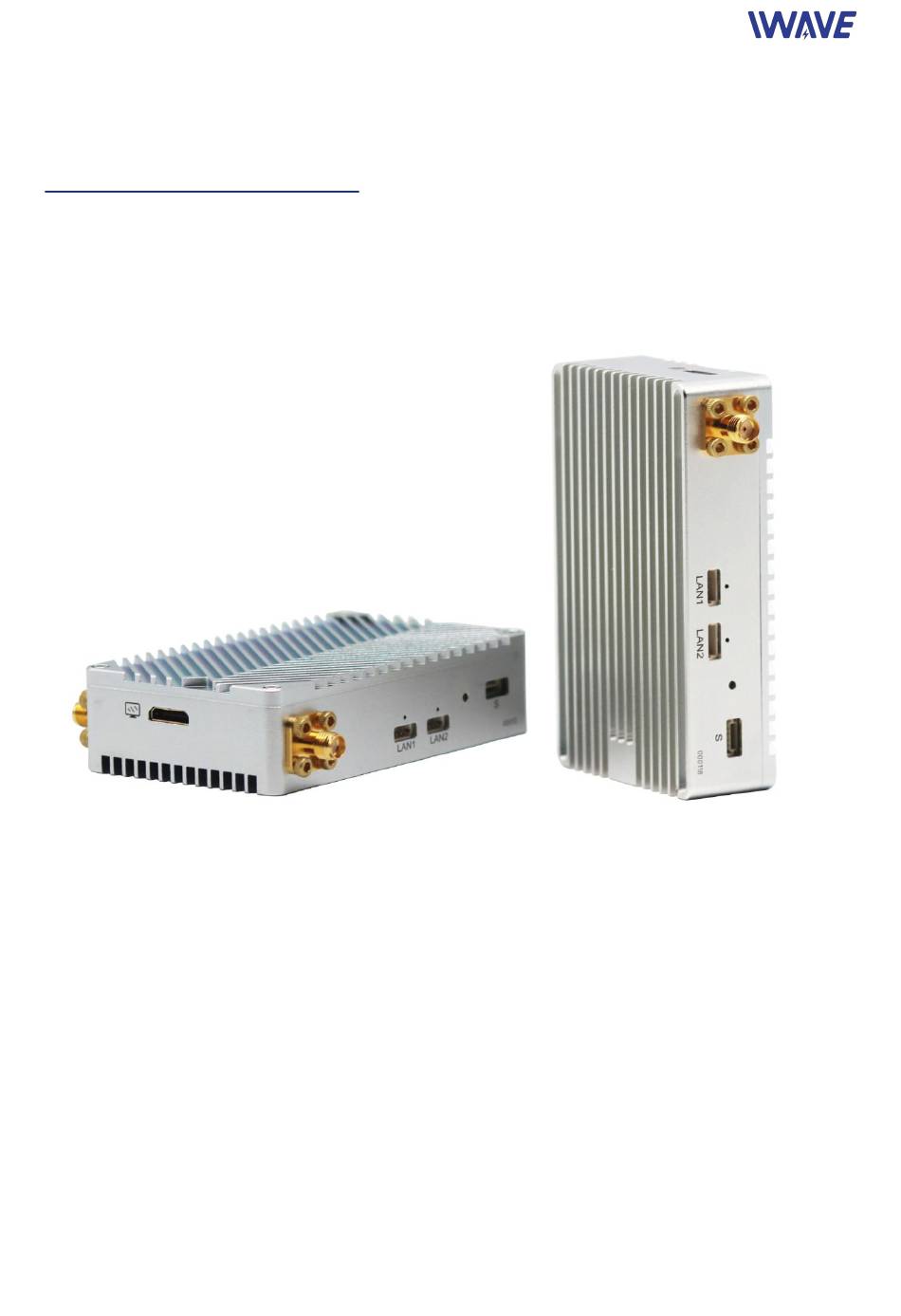

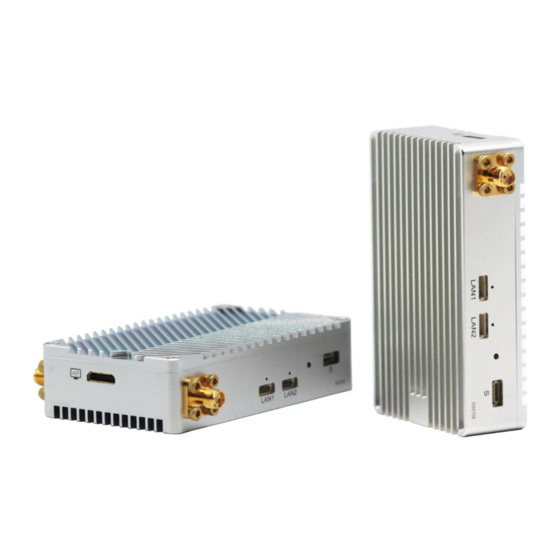

- Page 1 FPS-8408 User Manual July 2019 Version 1.0 1 / 8 www.iwavecomms.com...
- Page 2 Contents 1. Package List ....................................... 3 2. Connectors and LED ..................................3 Front Side ...................................... 3 Right Side .......................................4 Rear Side ......................................5 3. Settings & Installation ..................................6 3.1. Setting up steps of HDMI Video transmitting ......................6 3.2. Play Video on Windows PC by TPlayer .......................... 6 3.3.
- Page 3 1. Package List 2. Connectors and LED Front Side Tx Unit 3 / 8 www.iwavecomms.com...
- Page 4 Rx Unit The MIini HDMI ports is to connect with camera(Tx Unit) or display(Rx Unit) Right Side 1*2P Power connector (Model XT30PW). The voltage range is 7~18V 1*Power switch 1*Power LED: it will be bright when power is on ...
- Page 5 1*MicroUSB: It’s reserved for production testing Left Side 1*5P serial connector: It is to connect the TTL-serial cable for transmitting serial signal(voltage is 3.3V). 1*SMA connector for connecting with antenna. Note: the antenna should be connected before powering on ...
- Page 6 TPlayer and then select the adapter connecting the receiver and click “Play” button A video playback window will pop out and begin to play the video 3.3. Network Settings FPS-8408 units are working as wireless bridges. IP Address of FPS-8408 units 192.168.1.2 192.168.1.3 6 / 8...
- Page 7 4.3 Serial Data Format. Note: FPS-8408 supports HDMI video transmitting and network communication simultaneously. While when HDMI video is transmitting over wireless channel, there is only 100kbps throughput left in the channel for LAN1+LAN2.
- Page 8 Rx side. If two antennas don’t keep proper distance, the wireless signal may become weak and the transmission range may become shorter Please not dismantle or modify FPS-8408 units. Any problem you meet, please contact our sales person or email to support@iwavecomms.com...
