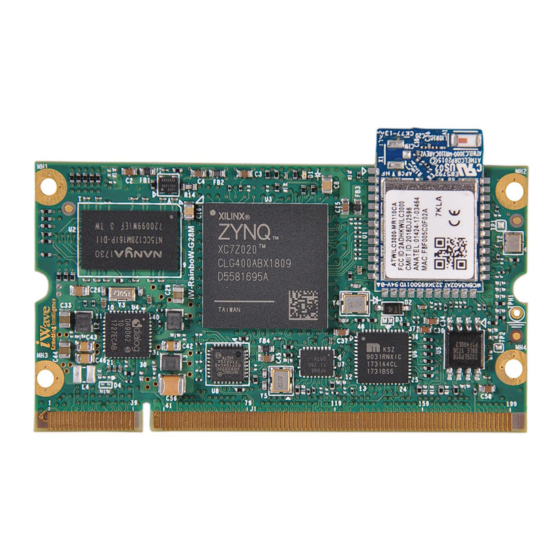

Zynq-7000 SoC SODIMM SOM Hardware User Guide
iW-RainboW-G28M
Zynq-7000 SoC SODIMM SOM
Hardware User Guide
REL1.3
iWave Systems Technologies Pvt. Ltd.
Page 1 of 52
Arrow.com.
Downloaded from

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iW-RainboW-G28M Zynq-7000 SoC SODIMM SOM and is the answer not in the manual?

Questions and answers

Summary of Contents for iWave iW-RainboW-G28M Zynq-7000 SoC SODIMM SOM

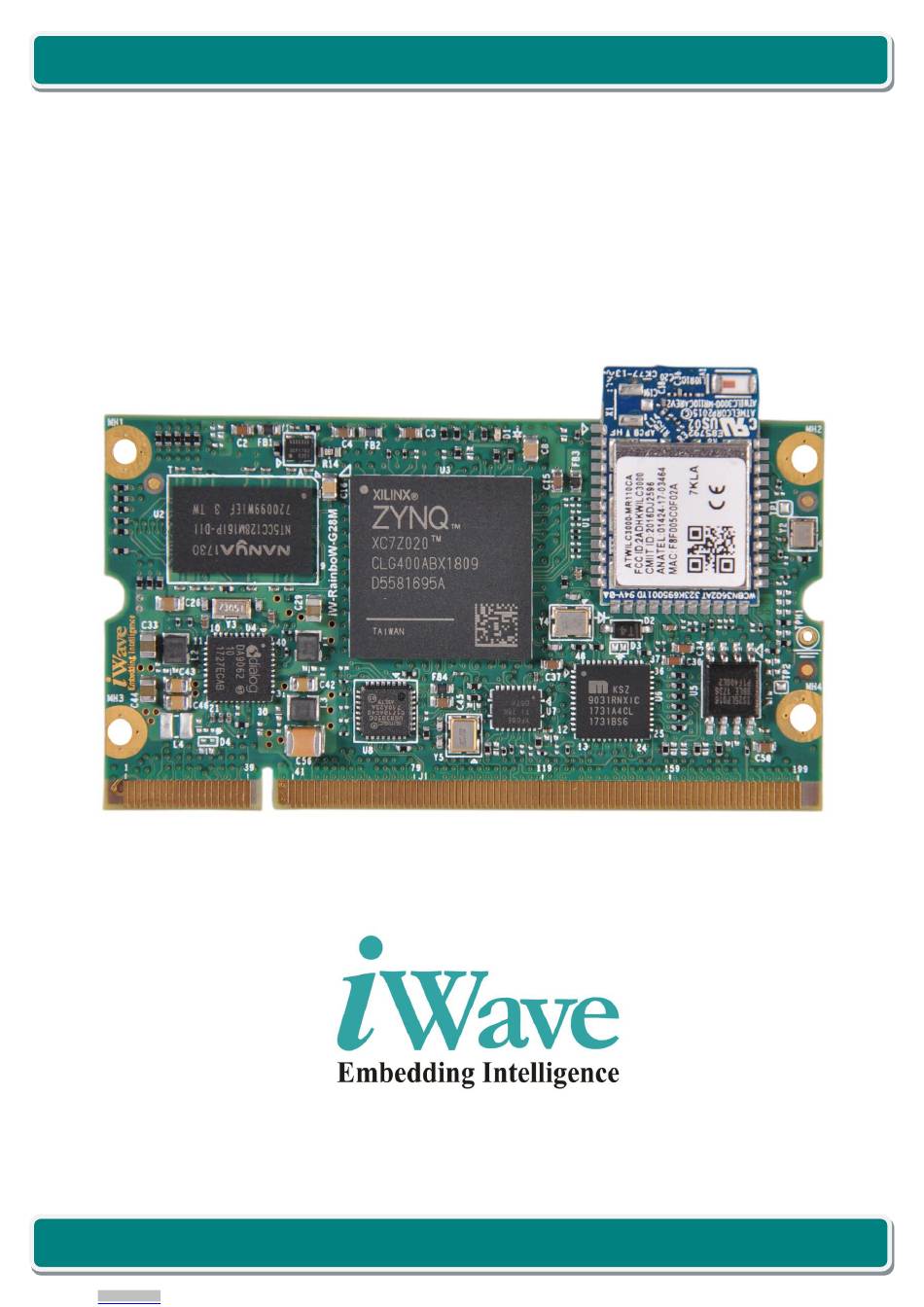

  • Page 1 Zynq-7000 SoC SODIMM SOM Hardware User Guide iW-RainboW-G28M Zynq-7000 SoC SODIMM SOM Hardware User Guide REL1.3 iWave Systems Technologies Pvt. Ltd. Page 1 of 52 Arrow.com. Downloaded from...
  • Page 2 If you are not the intended recipient (or authorized to receive for the recipient), you are hereby notified that any disclosure, copying distribution or use of any of the information contained within this document is STRICTLY PROHIBITED. Thank you. “iWave Systems Tech. Pvt. Ltd.” REL1.3 iWave Systems Technologies Pvt.
  • Page 3 No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent permitted by law no liability (including liability to any person by reason of negligence) will be accepted by iWave Systems, its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.
  • Page 4: Table Of Contents

    Environmental Characteristics ........................45 3.2.1 Environmental Specification ........................45 3.2.2 Heat Sink ............................... 45 3.2.3 RoHS Compliance ........................... 46 3.2.4 Electrostatic Discharge ........................... 46 REL1.3 iWave Systems Technologies Pvt. Ltd. Page 4 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from...
  • Page 5 3.3.2 Guidelines to insert the SODIMM SOM into Carrier board ............... 48 3.3.1 SODIMM SOM removing procedure from Carrier board ................48 ORDERING INFORMATION ..........................49 APPENDIX ................................. 51 Zynq-7000 SoC SODIMM SOM Development Platform ................51 REL1.3 iWave Systems Technologies Pvt. Ltd. Page 5 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 6 Table 6: Power Input Requirement ..........................43 Table 7: Power Consumption¹ ........................... 44 Table 8: Environmental Specification ........................45 Table 9: Orderable Product Part Numbers ......................... 49 REL1.3 iWave Systems Technologies Pvt. Ltd. Page 6 of 52 Arrow.com. Arrow.com. Arrow.com.
  • Page 7: Introduction

    This document is the Hardware User Guide for the Zynq-7000 SODIMM System on Module based on the Xilinx’s Zynq- 7000 SoC. This board is fully supported by iWave Systems Technologies Pvt. Ltd. This Guide provides detailed information on the overall design and usage of the Zynq-7000 SODIMM System on Module from a Hardware Systems perspective.
  • Page 8 Real Time Clock Secure Digital System On Chip System On Module UART Universal Asynchronous Receiver/Transmitter Universal Serial Bus USB OTG USB On The Go REL1.3 iWave Systems Technologies Pvt. Ltd. Page 8 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 9: Terminlogy Description

    Note: Signal Type does not include internal pull-ups or pull-downs implemented by the chip vendors and only includes the pull-ups or pull-downs implemented On-SOM. References • Zynq-7000 SoC Datasheet & Technical Reference Manual • 200 Pin DDR S.O.DIMM physical Specification REL1.3 iWave Systems Technologies Pvt. Ltd. Page 9 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 10: Architecture And Design

    • In PL, Bank13 is available only in Z-7014S & Z-7020 SoC. • If BT support is required, then two SE IOs from PL BANK35 can’t be connected to SODIMM edge connector. Figure 1:Zynq-7000 SoC SODIMM SOM Block Diagram REL1.3 iWave Systems Technologies Pvt. Ltd. Page 10 of 52 Arrow.com. Arrow.com.
  • Page 11: Zynq-7000 Soc Sodimmsom Features

    USB 2.0 OTG x 1 Port (through On-SOM USB2.0 transceiver) • Debug UART • I2C x 1 Port • SD (4bit) x 1 Port (Optional) • JTAG Interface REL1.3 iWave Systems Technologies Pvt. Ltd. Page 11 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 12 In Zynq-7000 SoC SODIMM SOM, IO voltage of PL BANK13 is fixed to 3.3V by default and so this bank IOs can be used as only 3.3V Single Ended IOs. If 1.8V LVDS IOs support is required for BANK13, contact iWave.
  • Page 13: Zynq-7000 Soc

    Figure 2: Zynq-7000 CPU Simplified Block Diagram Note: Please refer the latest Zynq 7000 Datasheet & Reference Manual for more details which may be revised from time to time. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 13 of 52 Arrow.com. Arrow.com.
  • Page 14: Figure 3: Zynq-7000 Soc Devices Comparison

    SoC to route most of the IO peripheral interfaces to PL I/O pins called as EMIO. Zynq-7000 SoC PS Peripheral Pin mapping options between MIO & EMIO is shown below. Figure 4: Zynq-7000 SoC IOs REL1.3 iWave Systems Technologies Pvt. Ltd. Page 14 of 52 Arrow.com. Arrow.com.
  • Page 15: Zynq-7000 Soc Reference Clock

    The DA9062 PMIC’s Linear Regulators LDO1 and LDO4 are connected to PL BANK 34 and BANK 35 respectively. These LDO Outputs from PMIC can be configured from 1.2V to 3.3V through I2C0 in Uboot. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 15 of 52 Arrow.com.
  • Page 16: Memory

    Note: In Zynq-7000 SoC SODIMM SOM, SD1 interface signals are connected to both eMMC Flash and MicroSD connector. So either one feature only can be supported at a time in the SOM and by default, eMMC is supported. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 16 of 52 Arrow.com.
  • Page 17: Micro Sd Slot (Optional)

    Note: In Zynq-7000 SoC PS, QSPI+SD/eMMC and NAND Signals are multiplexed in same pins and so either QSPI + SD/eMMC or NAND Flash can be supported. By default, QSPI + eMMC is supported in Zynq-7000 SoC SODIMM SOM. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 17 of 52 Arrow.com.
  • Page 18: Wi-Fi & Bluetooth

    Note: In Zynq-7000 SoC SODIMM SOM, IO voltage of PL BANK35 is connected from PMIC LDO4 and can be set to 1.8V or 3.3V to support 3.3V Single Ended IOs respectively. If On-SOM Bluetooth support is required, then BANK35 IO voltage has to be set to 3.3V only. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 18 of 52 Arrow.com. Arrow.com.
  • Page 19: Sodimm Pcb Edge Connector

    Figure 5: SODIMM PCB Edge Connector Number of Pins - 200 Connector Part - Not Applicable (On Board PCB Edge connector) Mating Connector - 1473005-1 from TE Connectivity REL1.3 iWave Systems Technologies Pvt. Ltd. Page 19 of 52 Arrow.com. Arrow.com. Arrow.com.
  • Page 20: Table 4: Sodimm Pcb Edge Connector Pinout Map

    PL_IO_L8P_T1_34 PL_IO_L4P_T0_34 PL_IO_L7N_T1_34 PL_IO_L11N_T1_SRCC_34 PL_IO_L7P_T1_34 PL_IO_L11P_T1_SRCC_34 PL_IO_L17P_T2_34 PL_IO_L6N_T0_VREF_34 VIN_3V3 PL_IO_L6P_T0_34 PL_IO_L17N_T2_34 PL_IO_0_34 PL_IO_25_34 USB_OTG_ID USB_PWR_EN REL1.3 iWave Systems Technologies Pvt. Ltd. Page 20 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 21 PL_IO_L8P_T1_AD10P_35 PL_IO_L7P_T1_AD2P_35 PL_IO_L7N_T1_AD2N_35 PL_IO_L9P_T1_DQS_AD3P_35¹ PL_IO_L9N_T1_DQS_AD3N_35¹ PL_IO_L11P_T1_SRCC_35 PL_IO_L14P_T2_AD4P_SRCC_35 PL_IO_L10N_T1_AD11N_35 PL_IO_L10P_T1_AD11P_35 PL_IO_L6N_T0_VREF_35 PL_IO_L16P_T2_35 PL_IO_25_35 PL_IO_L12N_T1_MRCC_35 PL_IO_L14N_T2_AD4N_SRCC_35 VIN_3V3 REL1.3 iWave Systems Technologies Pvt. Ltd. Page 21 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 22 Wi-Fi/Bluetooth module or to SODIMM Edge connector. In Non-Wi-Fi/Bluetooth supported Zynq-7000 SoC SODIMM SOM, these pins can be used as SDIO & PL IOs at SODIMM Edge connector. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 22 of 52 Arrow.com. Arrow.com.
  • Page 23: Gigabit Ethernet Interface

    RJ45 Magjack with two Green LED JK0654219NL Pulse 0°C to 70°C RJ45 Magjack with two Green LED 0826-1G1T-23-F Bel Fuse 0°C to 70°C REL1.3 iWave Systems Technologies Pvt. Ltd. Page 23 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 24: Usb 2.0 Otg Interface

    USB VBUS for VBUS monitoring. Note: Recommending to connect always available 5V to this pin from carrier board to maintain compatibility with iWave’s other SODIMM SOMs. 2.8.3 Debug UART Interface The Zynq-7000 SoC SODIMM SOM support one UART interfaces on SODIMM Edge connector for Zynq-7000 SoC PS Debug.
  • Page 25: I2C Interface

    LVCMOS SD0_CLK PS_MIO40_501/ O, 3.3V SD0 Clock (PS_MIO40_501) LVCMOS SD0_DATA1 PS_MIO43_501/ IO, 3.3V SD0 DATA1 (PS_MIO43_501) LVCMOS REL1.3 iWave Systems Technologies Pvt. Ltd. Page 25 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 26: Fpga Ios - Pl Bank34

    Important Note: If 50MHz external reference clock has to be used in PL, then IO voltage of PL BANK34 has to be set to 3.3V only through PMIC LDO1. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 26 of 52 Arrow.com.
  • Page 27 LVDS Channel23 Positive if Bank34 IO voltage is set to 1.8V. PL_IO_L13N_T2_MRC L13N_34/ IO, 3.3V Bank34 User I/O Single ended pin. C_34 LVCMOS REL1.3 iWave Systems Technologies Pvt. Ltd. Page 27 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 28 Bank34 User I/O Single ended pin. LVCMOS Same pin can be configured as Bank34 LVDS Channel6 Negative if Bank34 IO voltage is set to 1.8V. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 28 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 29 Bank34 User I/O Single ended pin. LVCMOS Same pin can be configured as Bank34 LVDS Channel22 Positive if Bank34 IO voltage is set to 1.8V REL1.3 iWave Systems Technologies Pvt. Ltd. Page 29 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 30 Bank34 User I/O Single ended pin. LVCMOS Same pin can be configured as Bank34 LVDS Channel14 Negative if Bank34 IO voltage is set to 1.8V. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 30 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 31 Same pin can be configured as Bank34 LVDS Channel15 Positive if Bank34 IO voltage is set to 1.8V. PL_IO_L3N_T0_DQS_3 L3N_34/ IO, 3.3V Bank34 User I/O Single ended pin. LVCMOS REL1.3 iWave Systems Technologies Pvt. Ltd. Page 31 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 32: Fpga Ios - Pl Bank35

    ATWILC3000 Bluetooth module or to SODIMM Edge connector. By default, these are connected to Bluetooth module. Important Note: In Zynq-7000 SoC SODIMM SOM, if On-SOM Bluetooth support is required, then BANK35 IO voltage has to be set to 3.3V only REL1.3 iWave Systems Technologies Pvt. Ltd. Page 32 of 52 Arrow.com. Arrow.com.
  • Page 33 PL_IO_L7N_T1_AD2N L7N_35/ IO, 3.3V Bank35 User I/O Single ended pin. LVCMOS Note: This pin is optionally connected to WIFI Bluetooth Request to Send. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 33 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 34 IO, 3.3V Bank35 User I/O Single ended pin. LVCMOS PL_IO_L24N_T3_ L24N_35/ IO, 3.3V Bank35 User I/O Single ended pin. AD15N_35 LVCMOS REL1.3 iWave Systems Technologies Pvt. Ltd. Page 34 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 35 L1N_35/ IO, 3.3V Bank35 User I/O Single ended pin. LVCMOS PL_IO_L2N_T0_AD8N L2N_35/ IO, 3.3V Bank35 User I/O Single ended pin. LVCMOS REL1.3 iWave Systems Technologies Pvt. Ltd. Page 35 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 36 Note: In Zynq-7000 SoC SODIMM SOM, these signals from Zynq-7000 SoC Bank35 can be connected to either ATWILC3000 Wi-Fi/Bluetooth module or to SODIMM Edge connector. In the default Wi-Fi/Bluetooth supported Zynq- 7000 SoC SODIMM SOM, these signals are connected to ATWILC3000 Wi-Fi module. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 36 of 52 Arrow.com. Arrow.com.
  • Page 37: Fpga Ios - Pl Bank13

    The IO voltage of this PL Bank13 is fixed to 3.3V to support 3.3V SE IOs. Optionally, 1.8V IO voltage can be supported to PL Bank13 in Zynq-7000 SoC SODIMM SOM to support LVDS IOs. Please contact iWave to support 1.8V IO voltage for PL Bank13.
  • Page 38 Bank13 User I/O Single ended pin. LVCMOS Same pin can be configured as Bank13 LVDS Channel17 Positive if Bank13 IO voltage is set to 1.8V. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 38 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 39 Bank13 User I/O Single ended pin. LVCMOS Same pin can be configured as Bank13 LVDS Channel16 Positive if Bank13 IO voltage is set to 1.8V. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 39 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 40: Jtag Interface

    Important Note: This pin is directly /B10 connected to PMIC Power Enable pin. Use this pin only for connecting the reset push button in the carrier board. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 40 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 41: Zynq-7000 Soc Ps Pin Multiplexing On Sodimm

    ETH0_RX_CLK SD1_DATA0 PS_MIO23_501 GPIO-23 ETH0_RXD0 SD1_CMD PS_MIO24_501 GPIO-24 ETH0_RXD1 SD1_CLK PS_MIO25_501 GPIO-25 ETH0_RXD2 SD1_DATA1 PS_MIO26_501 GPIO-26 ETH0_RXD3 SD1_DATA2 iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 42 SD0_DATA PS_MIO43_501 GPIO-43 USB1_NXT (Optional) SD0_DATA PS_MIO44_501 GPIO-44 USB1_DATA0 SD0_DATA PS_MIO45_501 GPIO-45 USB1_DATA1 SPI0_MOS PS_MIO48_501 GPIO-48 USB1_CLK SD1_CLK iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 43: Technical Specification

    SOM, SOM will take around 30ms for all the powers to get stable and come out of reset, Make sure that from the carrier board IOs shall not driving before all the SOM powers are stable. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 43 of 52 Arrow.com. Arrow.com. Arrow.com.
  • Page 44: Power Consumption

    RTC coin cell power (when VIN_3V3 is off) VRTC_3V0 1.4uA ¹ Power consumption measurements have been done in Zynq-7020 SoC based SODIMM Development platform (iW- G28D-SM20-3D512M-E008G-LCA) with iWave’s Linux4.14.0 BSP (iW-PRFOZ-SC-01-R2.0-REL1.0-Linux4.14.0). REL1.3 iWave Systems Technologies Pvt. Ltd. Page 44 of 52 Arrow.com.
  • Page 45: Environmental Characteristics

    ² To meet this humidity specification, conformal coating needs to be done on the board. By default, iWave boards doesn’t come with conformal coating. Please contact iWave to support conformal coating.
  • Page 46: Rohs Compliance

    3.2.4 Electrostatic Discharge iWave’s Zynq-7000 SoC SODIMM SOM is sensitive to electro static discharge and so high voltages caused by static electricity could damage some of the devices on board. It is packed with necessary protection while shipping. Do not open or use the SOM except at an electrostatic free workstation.
  • Page 47: Mechanicalcharacteristics

    (1.75mm) followed by LDO Regulator (1.23mm). Please refer the below figure which gives height details of the Zynq- 7000 SoC SOM. Figure 8: Mechanical dimension of Zynq-7000 SoC SODIMM SOM- Side View REL1.3 iWave Systems Technologies Pvt. Ltd. Page 47 of 52 Arrow.com. Arrow.com.
  • Page 48: Guidelines To Insert The Sodimm Som Into Carrier Board

    Important Note: Before touching any electronic components, make sure you are properly grounded by using some static control device to prevent static electricity stored on your body or clothing from damaging the system. REL1.3 iWave Systems Technologies Pvt. Ltd. Page 48 of 52 Arrow.com.
  • Page 49: Ordering Information

    The below table provides the standard orderable part numbers for different Zynq-7000 SoC SODIMM SOM variations. Please contact iWave for orderable part number of higher RAM memory size or Flash memory size SOM configurations. Also if the desired part number is not listed in below table or if any custom configuration part number is required, please contact iWave.
  • Page 50 Heat Sink for Zynq-7000 SoC SODIMM SOM iW-HSKALU-CLASLR-SS03 Important Note: Some of the above-mentioned Part Number is subject to MOQ purchase. Please contact iWave for further details. Note: For SOM identification purpose, Product Part Number and SOM Unique Serial Number are pasted as Label with Barcode readable format on SOM.
  • Page 51: Appendix

    Systems supports iW-RainboW-G28D – Zynq-7000 SoC SODIMM SOM Development Platform which is targeted for quick validation of Zynq-7000 SoC based SODIMM SOM. iWave's Zynq-7000 SoC SODIMM Development Board incorporates Zynq-7000 SoC SODIMM SOM and SODIMM Carrier board with complete BSP support. For more details on Zynq-7000 SoC SODIMM SOM Development Platform, visit the below web link.
  • Page 52: Iwave Systems Technologies Pvt. Ltd

    Zynq-7000 SoC SODIMM SOM Hardware User Guide REL1.3 iWave Systems Technologies Pvt. Ltd. Page 52 of 52 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
