Levelflex FMP56, FMP57
Endress+Hauser

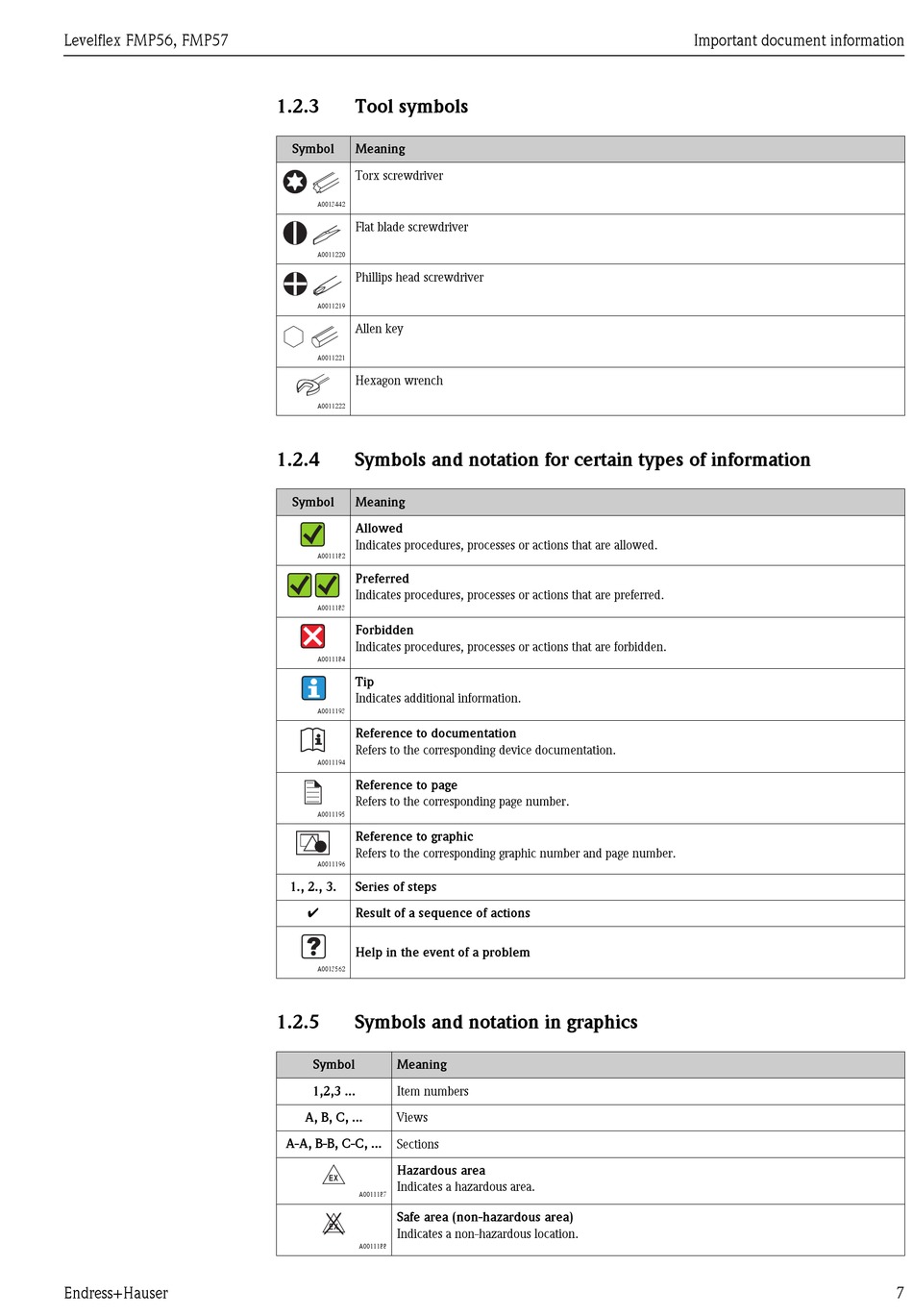

1.2.3

Tool symbols

Symbol Meaning
Torx screwdriver
A0013442
Flat blade screwdriver
A0011220
Phillips head screwdriver
A0011219
Allen key
A0011221
Hexagon wrench
A0011222
1.2.4

Symbols and notation for certain types of information

Symbol Meaning
Allowed
Indicates procedures, processes or actions that are allowed.
A0011182
Preferred
Indicates procedures, processes or actions that are preferred.
A0011183
Forbidden
Indicates procedures, processes or actions that are forbidden.
A0011184
Tip
Indicates additional information.
A0011193
Reference to documentation
Refers to the corresponding device documentation.
A0011194
Reference to page
Refers to the corresponding page number.
A0011195
Reference to graphic
Refers to the corresponding graphic number and page number.
A0011196
1., 2., 3. Series of steps
Result of a sequence of actions
Ã
Help in the event of a problem
A0013562
1.2.5

Symbols and notation in graphics

Symbol Meaning
1,2,3 ... Item numbers
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
Hazardous area
-
Indicates a hazardous area.
A0011187
Safe area (non-hazardous area)
.
Indicates a non-hazardous location.
A0011188
Important document information
7
