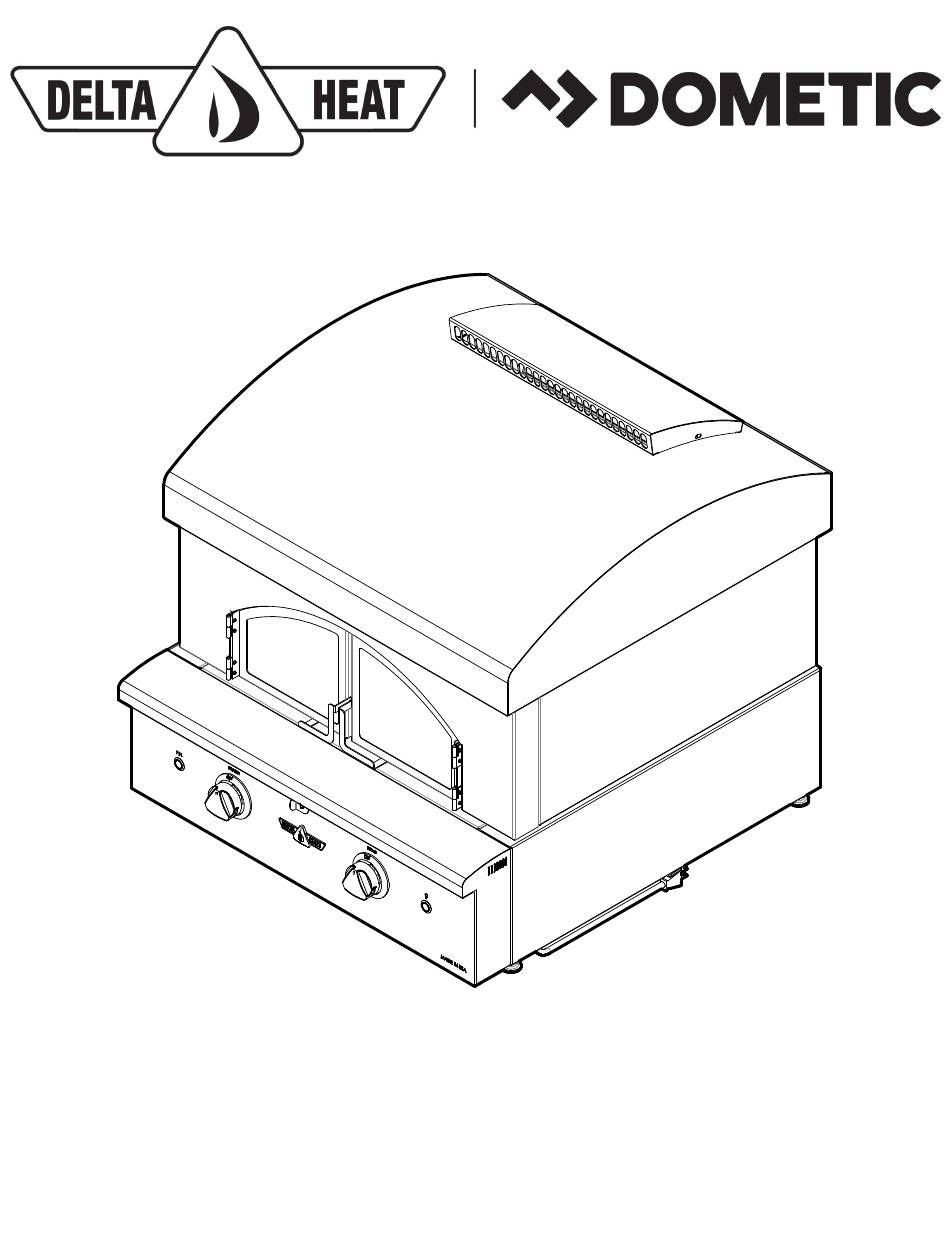

- Page 1 DELTA HEAT PIZZA OVEN INSTALLATION, USE & CARE MANUAL MODELS: DHPO30F 13259 166th Street DHPO30BI P/N: 17738B 03/22 Cerritos, CA 90703...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS This instruction manual contains important information for the proper assembly and safe use of the appliance. Read and follow all warnings and these instructions before assem- bling and using the appliance. Follow all warnings and instructions when using this appliance. Keep this manual for future reference.
- Page 3 GENERAL SAFETY REQUIREMENTS • The installation of this appliance must conform with local codes or, in the absence of local codes, either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installa- tion Code, CSA B149.1; Propane Storage and Handling, CSA B149.2; or the Standard for Recre- ational Vehicles, ANSI A119.2/NFPA 1192;...
- Page 4 equipment. • Never leave pot holders or any cloth in contact with hot surfaces of the Pizza Oven. • Only certain types of glass, heatproof glass ceramic, earthenware, or glazed utensils are suit- able for oven use. These types of materials may break with sudden temperature changes. Use only on low or medium heat settings and according to Operating Instructions.
- Page 5 A Special Message to our Customers... Congratulations on your purchase of Delta Heat Pizza Oven. Delta Heat is com- mitted to making outdoor cooking products you’ll be proud to own for years. This manual gives you easy to follow instructions for installing, operating and maintaining your Delta Heat Pizza Oven.
-
Page 6: Table Of Contents
TABLE OF CONTENTS ASSEMBLY INSTRUCTIONS GAS SAFETY REQUIREMENTS LP GAS HOOK-UP NATURAL GAS INSTALLATION LOCATING THE OVEN LEAK TEST ELECTRICAL REQUIREMENT BURNER FLAME / AIR SHUTTER ADJUSTMENT 10-11 ADJUSTING THE VALVE LOW END PROPER BURNER SEATING OPERATING INSTRUCTIONS 14-16 CHANGING THE LIGHT BULB WINDY CONDITIONS BUILT-IN DIMENSIONS CLEANING &... -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Your new Delta Heat Pizza Oven is fully assembled, factory tested, and requires no major as- sembly. 1. Remove all packaging materials, labels and protective plastic film. DO NOT LEAVE UNIT UN- DER THE SUN WITH PROTECTIVE PLASTIC FILM ON FOR A LONG PERIOD OF TIME AS IT WILL BECOME DIFFICULT TO REMOVE THE FILM. -
Page 8: Gas Safety Requirements
GAS SAFETY REQUIREMENTS Each appliance is set and tested at the factory for the type of gas supply to be used. Identify the type of gas, either Natural Gas (NG) or Liquid Petroleum (LP) gas and make sure that the marking on the data plate (rating plate) matches the gas being supplied to the oven. -
Page 9: Lp Gas Hook-Up
LP GAS HOOK-UP Follow these steps to connect your LP regulator to the portable LP cylinder: • Check to ensure that the tank’s gas valve on top of the cylinder is closed. • Place LP Cylinder on a level surface in the enclosure below the oven and arranged for vapor with- drawl. - Page 10 LP GAS HOOK-UP - CONT’D. WARNING DO NOT PLACE MORE THAN ONE CYLINDER IN THE ENCLOSURE AT ANY TIME. DO NOT USE A DENTED OR RUSTED LP CYLINDER. DO NOT STORE SPARE LP GAS CYLINDER UNDER OR NEAR THIS APPLIANCE. NEVER FILL THE CYLINDER BEYOND 80 PERCENT FULL.
-
Page 11: Natural Gas Installation
NATURAL GAS INSTALLATION The installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1 or Propane Storage and Handling Code, B149.2. 1. -
Page 12: Locating The Oven
LOCATING THE PIZZA OVEN This gas appliance is designed and certified for outdoor use only. Do not locate this oven un- der overhead construction. NOTE: Caution should be taken when ovens are used near glass, vinyl siding or other tem- perature sensitive construction materials. - Page 13 RECOMMENDED APPLIANCE AND CYLINDER PLACEMENT The cylinder should be placed in such a DO NOT place the cylinder in such a way that way that it cannot strike the unit when fall- it becomes a tripping hazard or it could be ing to the ground.
-
Page 14: Leak Test
LEAK TEST CAUTION BEFORE TESTING • Finding and/or fixing a gas leak is NOT a “DO-IT-YOURSELF” procedure. • NEVER USE THE OVEN WITHOUT FIRST LEAK TESTING THE GAS CONNECTIONS. • WARNING: DO NOT USE OPEN FLAME TO CHECK FOR LEAKS. USE OF AN OPEN FLAME COULD RESULT IN A FIRE, EXPLOSION, BODILY HARM OR DEATH. -
Page 15: Electrical Requirement
ELECTRICAL REQUIREMENT WARNING AVERTISSEMENT Electrical Grounding Instructions: Instruction pour la mise à la terre electrique: This outdoor gas cooking appliance is equipped Cet appareil est muni d’une fiche à trois broches with a three prong (grounding) plug for your (mise à la terre) afin de vous protéger des chocs protection against shock hazard and should be et doit être branché... -
Page 16: Burner Flame / Air Shutter Adjustment
BURNER FLAME / AIR SHUTTER ADJUSTMENT CAUTION Before adjusting the air shutter, verify that the correct orifice size for the gas type specified was installed. ADJUSTING THE REAR BURNER FLAME Each oven burner is tested and adjusted at the factory prior to shipment; however, variations in the local gas supply may make it necessary to adjust the rear burner. - Page 17 AIR SHUTTER DETAIL Air Shutter Adjustment Screw Burner set to LP Burner set to NG The Air Shutter may be adjusted while the burner is installed in the unit. With the Rear Access Panel removed, loosen the adjustment screw and gently open or close the Air Shutter to adjust the flame for the Rear Burner.
-
Page 18: Adjusting The Valve Low End
ADJUSTING THE VALVE LOW END Your Delta Heat Pizza Oven is set at the factory, but every installation is different. Take note of the gas type of your unit and ensure the gas being plumbed to your unit matches. Follow the guide- lines below to adjust the low end of your Pizza Oven valves to provide the optimum burning condi- tions for your oven: FOR LP GAS:... -
Page 19: Proper Burner Seating
PROPER BURNER SEATING When adjusting the burners, it is critically important that the orifices are properly installed in the air shutter of the burner. Improper seating of the burners on the orifices may result in fire inside the oven body, which may lead to damage to the oven or severe injury to your persons. Ensure that the burners are installed on the orifices as shown below: REAR BURNER REAR BURNER NOT... -
Page 20: Operating Instructions
OPERATING INSTRUCTIONS BEFORE LIGHTING THE PIZZA OVEN • DO NOT ATTEMPT TO LIGHT THE PIZZA OVEN IF YOU SMELL GAS. • WARNING! IT IS CRITICAL THAT THE GAS BURNERS ARE PROPERLY INSTALLED WITH THEIR ORIFICES INSIDE THE BURNERS AIR SHUTTERS. If not properly installed, gas may leak outside of the burner that could lead to fire, potential damage to your grill, bodi- ly injury or death. - Page 21 TO MANUALLY LIGHT THE OVEN BURNERS If there is no electrical power supply available or if the hot surface igniters will not light the burners, the burners may be lit manually using a lighted long match, taper or BBQ lighter. Rear Burner Match/BBQ Lighter Lighting Instructions: Follow the steps below to manually light your Pizza Oven rear burner:...
- Page 22 USING THE OVEN Follow the steps below to safely use your Pizza Oven: 1. Light the oven burners using the instructions outlined in Lighting the Oven. 2. Turn the control knobs to HI and allow the oven to preheat for 15 minutes or until desired tem- perature (usually 650°-700°F on hearth and 700°-750°F on dome) is reached in the stones as checked by a hand-held laser I.R.
-
Page 23: Changing The Light Bulb
REPLACING INTERIOR LIGHT BULB WARNING! • Ensure the oven is unplugged from the power source before replacing the light bulb. • Do not attempt to replace the light bulb while the oven is hot as the light assembly will be hot and may cause severe burns. -
Page 24: Windy Conditions
WINDY CONDITIONS If the oven is installed where a prevailing wind hits the unit from behind, make sure the flue cover is facing towards the front of the unit as shown. (doors closed optional) If the oven is installed where a prevailing wind hits the unit from the front, make sure the flue cover is facing towards the rear of the unit... -
Page 25: Built-In Dimensions
BUILT-IN DIMENSIONS The Pizza Oven can be installed into an existing or new built-in enclosure. Built-in model en- closures must be made of noncombustible masonry materials. When installing the Pizza Oven as a built-in unit, careful consideration must be taken with the materials to be used in the construction of the enclosure. -
Page 26: Cleaning & Maintenance
CLEANING & MAINTENANCE IMPORTANT STAINLESS STEEL & GENERAL PRODUCT CARE To keep your Delta Heat products free of surface corrosion and in good working order, it is important to take additional precautions under certain conditions. If your Delta Heat products are located in corrosive conditions, such as: •... - Page 27 Do not use abrasives on the polished highlights. Be extra careful when cleaning around the high- lights. Metal polisher or mild chrome cleaner can be used to bring back the luster on highlights. To touch-up minor scratches in the stainless steel, sand the affected surface very lightly, with 100-dry grit emery sandpaper in the direction of the grain.
-
Page 28: Troubleshooting Guide
TROUBLESHOOTING GUIDE BEFORE CALLING FOR SERVICE: If your DELTA HEAT oven does not function properly, use the following troubleshooting guide before contacting your dealer for service. The troubleshooting guide may save the cost of a service call and the inconvenience of being without your oven. PROBLEM WHAT TO DO 1. -
Page 29: Exploded View
EXPLODED VIEW Delta Heat Service (562) 263-3600 | 23... -
Page 30: Replacement Parts List
REPLACEMENT PARTS LIST ITEM DHPO DHPO PART NO. DESCRIPTION 30BI S29034WY FIREBOX WELDED ASSEMBLY S29051-RWY RIGHT SIDE PANEL WELDED ASSY S14476 BIG LEG ASSEMBLY S29020 ORIFICE ELBOW BRACKET S12603 ELBOW, MIXER, .375CC X .125 FIP S12669 NUT, RETAINING S29050-LWY LEFT SIDE PANEL WELDED ASSY S29028WY BURNER GUARD WELDED ASSY S16050Y... - Page 31 REPLACEMENT PARTS LIST - CONT. ITEM DHPO DHPO PART NO. DESCRIPTION 30BI S29015 VP BAFFLE S29016 VP BAFFLE 2 S12618 NIPPLE, 1/2 CLOSE BI S12677 ELBOW, BRASS 3/8 FLARE X 1/2 FIP 90DEG S29005WY 30” LANDING LEDGE WELD ASSY S29053 VALVE PANEL S13199 BEZEL, KNOB, DELTA HEAT...
-
Page 32: Wiring Diagram
WIRING DIAGRAM 26 | www.deltaheat.com... -
Page 33: Warranty
WARRANTY • LIMITED LIFETIME WARRANTY: Delta Heat warrants the rear burner and all fabricated stainless-steel components, to be free from defects in materials and workmanship under normal residential use for the lifetime of the product. This warranty excludes discoloration, surface scratches, weather and atmospheric related staining, and minor surface rust and oxidation which are normal conditions and are to be expected with any outdoor product. -
Page 34: How To Obtain Service
HOW TO OBTAIN SERVICE For service, please contact your DELTA HEAT dealer or call DELTA HEAT direct at (562) 263-3600 or (800) 422-0091 or fax (562) 802-3391 Mailing address: DELTA HEAT, Inc. 13259 166th Street Cerritos, CA 90703 Visit us at www.deltaheat.com Please provide: •... - Page 35 PLACE POSTAGE HERE Customer Service ATTN: Warranty Department 13259 166th Street Cerritos, CA 90703 Service Direct Line: (562) 263-3600 Fax: (562) 801-3391...
