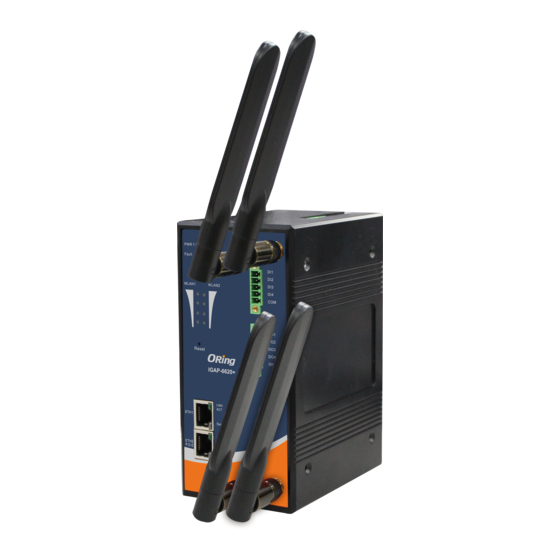

Summary of Contents for ORiNG IGAP-420 series
- Page 1 ’ ’...
-
Page 2: Contact Information
ORing warrants that all ORing products are free from defects in material and workmanship for a specified warranty period from the invoice date (5 years for most products). ORing will repair or replace products found by ORing to be defective within this warranty period, with shipment expenses apportioned by ORing and the distributor. -
Page 3: Table Of Contents
Table of Content Getting to Know Your Access Point ............1 About the ORing Access Point ..................1 Software Features ......................1 Hardware Features ......................1 Hardware Installation ..................2 Installation device on Din-Rail..................2 Wall Mounting Installation ..................... 3 Hardware Overview .................. - Page 4 Client Mode ........................28 Bridge Mode ........................29 Wireless Options ......................... 33 Extra parameters for Client Mode(X-Roaming) ..............35 5.5.4 Advanced Setting ....................... 36 Filters ..........................36 Misc. Settings ........................37 5.5.5 Even Warning Settings ....................38 System Log ......................... 38 E-Mail ..........................
-
Page 6: Getting To Know Your Access Point
IAP-420/620/6620 Series User’s Manual etting to Know Your Access Point 1.1 About the ORing Access Point IGAP-420/620/6620 reliable IEEE802.11b/g/n; IEEE802.11 a/b/g/n WLAN with 2 ports LAN Access Point. It can be configured to operate in AP/Client/Bridge/AP-Client mode. You can configure IGAP-420/620/6620 by Window Utility or WEB interfaces via LAN port or WLAN interface. -
Page 7: Hardware Installation
Each device has a DIN-Rail kit on rear panel. The DIN-Rail kit helps device to fix on the DIN-Rail. Step 1: Slant the router and mount the metal spring to DIN-Rail. Step 2: Push the device toward the DIN-Rail until you heard a “click” sound. ORing Industrial Networking Corp. -
Page 8: Wall Mounting Installation
Step 2: Use 6 screws that can be found in the package to combine the wall mount panel. Just like the picture shows below: The screws specification shows in the following two pictures. In order to prevent the ORing Industrial Networking Corp. - Page 9 IGAP-420/620/6620 Series User’s Manual device from any damage, the screws should not larger than the size that used in it. Pozidrive Step 3: Mount the combined device on the wall. ORing Industrial Networking Corp.
-
Page 10: Hardware Overview
Ethernet ports auto-negotiation. Default Setting : auto speed Relay Output Relay output to carry capacity of 3A at 24VDC Redundant power inputs Dual Power Inputs. 12~48 VDC DIDO 4 digital input / 4 digital output ORing Industrial Networking Corp. - Page 11 IGAP-420/620/6620 Series User’s Manual IGAP-420/620 IGAP-420+/620+ ORing Industrial Networking Corp.
- Page 12 7. LED for Fault Relay. When the fault occurs, the red LED will be light on. 8. Power Input port 9. Ethernet port1 connector 10. Ethernet port2 connector 11. Digital input 12. Digital output 13. Reset button 14. LED for P.O.E Status (IGAP-420+/620+) ORing Industrial Networking Corp.
- Page 13 IGAP-420/620/6620 Series User’s Manual IGAP-6620 IGAP-6620+ ORing Industrial Networking Corp.
-
Page 14: Front Panel Leds
Port link up at 10Mbps/1000Mbps. ETH2 Port link up at 100Mbps. Green Blinking Data transmitted. WLAN activated. WLAN Green Blinking WLAN Data transmitted. 2.4GHz Green In using 5GHz Green In using Fault relay. Power failure or Port Fault down/fail. ORing Industrial Networking Corp. -
Page 15: Ethernet Cables
1000Base-T(X) Cat 5e,6 UTP 100 m (328 ft) RJ45 Wireless Antenna 2.4GHz/5GHz antenna is used for IGAP-420/620/6620 and connected with a reversed SMA connector. External RF cable and antenna also can be applied with this connector. ORing Industrial Networking Corp. -
Page 16: Management Interface
Explore IGAP-420/620/6620 5.1.1 Open-Vision_Commander IGAP-420/620/6620 can also be configure through Oring’s window utility Open-Vision Step 1: Open the commander and click “Discover”, the AP devices will show on the list. Step 2: Choose your access point, and it will show the AP function tree. Simultaneity, you can login and then set the AP. -
Page 17: Upnp Equipment
Components Wizard > Networking Servers > UPnP User Interface and pitch on the UPnP User Interface. UPnP configuration page Step 2: At the right-below corner of the computer, you will find a sign of the UPnP equipment. ORing Industrial Networking Corp. -
Page 18: Configuration By Web Browser
Java Applets with an aim to reduce network bandwidth consumption, enhance access speed and present an easy viewing screen. Note: By default, IE5.0 or later version does not allow Java Applets to open sockets. You need to explicitly modify ORing Industrial Networking Corp. -
Page 19: Main Interface
For security reasons, we strongly suggest you change the password. Click on Administrator Password and modify the password. Main Interface The Home screen will appear. Please click “Run Wizard” to go to the Home > Setup Wizard page to quick install the AP. ORing Industrial Networking Corp. -
Page 20: Overview
IGAP-420/620/6620 Series User’s Manual Main interface 5.5.1 Overview System Info System Info Lan Info Lan Info ORing Industrial Networking Corp. -
Page 21: Wireless Info
5.5.2 Basic Setting System Info Setting System Info Setting interface The following table describes the labels in this screen. Label Description Device Name Define Device Name Device Location Define Device Location Device Description Define Device Description ORing Industrial Networking Corp. -
Page 22: Lan Setting
Default Gateway: Enter the IP address of the router in your network. Obtain DNS server This option is selected by DHCP server. address ORing Industrial Networking Corp. - Page 23 It is the time period that system will reset the dynamic IP assignment to ensure the dynamic IP will not been occupied for a long time or the server doesn’t know that the dynamic IP is idle. ORing Industrial Networking Corp.
-
Page 24: Time Setting
Set the time, and the AP’s time synchronize with the NTP Server Synchronize at the time Local Date Set local date manually. Local Time Set local time manually. Get Current Date & Click this button, you can set the time from browser. Time from Browser ORing Industrial Networking Corp. -
Page 25: Dido
Service Set Identifier Default is the default setting. The SSID is a unique name that identifies a network. All devices on the SSID network must share the same SSID name in order to communicate on the network. If you change the SSID from the ORing Industrial Networking Corp. - Page 26 WPA-PSK or WPA2-PSK without a RADIUS server. WPA/WPA2-Enterprice: Select for WPA or WPA2 (Wi-Fi Protected Access) authentication in conjunction with a RADIUS server. 802.1x: Authentication through RADIUS server Security Type – None No security protection on your wireless LAN access. ORing Industrial Networking Corp.
- Page 27 Key 1-4: Input up to four encryption keys. ASCII (American Standard Code for Information Interchange) is a code for representing English letters as numbers from 0-127. Hex digits consist of the numbers 0-9 and the letters A-F. ORing Industrial Networking Corp.
- Page 28 Security Type –WPA/WPA2-Personal (per share key) WPA/WPA2-Personal setting interface 1. Security Type: Select WPA/WPA2-Personal. 2. Encryption Type: Select TKIP or AES encryption. 3. Share Key: Enter your password. The password can be between 8 and 64 characters. ORing Industrial Networking Corp.
- Page 29 WPA/WPA2-Enterprice setting interface 1. Security Type: Select WPA/WPA2-Enterprice 2. Radius Server IP: Enter the IP address of the RADIUS Server. 3. Port: Enter the RADIUS port (1812 is default). 4. Shared Secret: Enter the RADIUS password or key. ORing Industrial Networking Corp.
- Page 30 802.1x setting interface 1. Security Type: Select 802.1x 2. Radius Server IP: Enter the IP address of the RADIUS Server. 3. Port: Enter the RADIUS port (1812 is default). 4. Shared Secret: Enter the RADIUS password or key. ORing Industrial Networking Corp.
- Page 31 ISA server may also refuse you to carry a claim according to the authorization strategy of the Radius server. The principle of the Radius server shows in the following pictures: ORing Industrial Networking Corp.
-
Page 32: Ap-Client Mode
Master Mode Enable / disable master mode Security options Select the type of security for your wireless network at Security ORing Industrial Networking Corp. -
Page 33: Client Mode
You can scan the APs which used for AP mode in the certainty Site Scan area Enable / disable Slave mode Slave Mode Security Type Set the same security with the AP which you want to connect. ORing Industrial Networking Corp. -
Page 34: Bridge Mode
This type of wireless link is established between two IEEE 802.11 access points. Wireless packets transmitted along the WDS link comply with the IEEE 802.11 WDS (Wireless Distribution System) format at the link layer. Point-to-Point WDS Link The following table describes the labels in this screen. ORing Industrial Networking Corp. - Page 35 4. Each AP should have the same setting except ‘Peer Mac Address’ set to the other’s Mac address 5. At wireless web setting Security and Channel should be the same, 6. AP’s distance should be limited within a certainty area. ORing Industrial Networking Corp.
- Page 36 AP learns MAC addresses of up to 64 wireless or 128 total wired and wireless network devices, which are connected to their respective Ethernet ports to limit the amount of data to be forwarded. Only data destined for stations which are known to reside on the peer Ethernet ORing Industrial Networking Corp.
- Page 37 The peer WDS APs are according to the MAC address listed in "Peer Mac Address" fields. The working principle of Repeater Mode as follows: In the figure, Repeater is used to extend the range of the wireless infrastructure by ORing Industrial Networking Corp.
-
Page 38: Wireless Options
Fragmentation This value should remain at its default setting of 2346. The Threshold range is 256-2346 bytes. It specifies the maximum size for a packet before data is fragmented into multiple packets. If you ORing Industrial Networking Corp. - Page 39 Values are Long and Short, default value is Long. If your wireless device supports the short preamble and you are having trouble getting it to communicate with other 802.11b devices, make sure that it is set to use the long preamble ORing Industrial Networking Corp.
-
Page 40: Extra Parameters For Client Mode(X-Roaming)
Disable: Disable X-Roaming protocol. X-roaming: Enable X-Roaming protocol Scan channel All: scan all support channel Manual: only scan “channel select” value Channel Select Assign the roaming channel value Sensitivity Set the signal sensitivity Scan interval Set the scan interval ORing Industrial Networking Corp. -
Page 41: Advanced Setting
Connected Clients This list will display the wireless MAC addresses that linked with MAC Address MAC addresses need to be added to or clear from MAC filter list. Apply Click Apply to set the configurations. ORing Industrial Networking Corp. -
Page 42: Misc. Settings
Misc. Settings Misc. setting interface The following table describes the labels in this screen. Label Description UPnP Enable or disable UPnP function LLDP Protocol Enable or disable LLDP function Spanning Tree Enable or disable STP function Protocol ORing Industrial Networking Corp. -
Page 43: Even Warning Settings
IGAP-420/620/6620 Series User’s Manual 5.5.5 Even Warning Settings When the AP event triggered, the notification procedure will be performed according to the type of the event. System Log System Log setting interface ORing Industrial Networking Corp. - Page 44 Not only the syslog keeps the logs locally, it can also log to remote server. Specify the IP of remote server. Leave it blank to disable logging remotely. Syslog Server Port Specify the port of remote logging. Default port is 514. ORing Industrial Networking Corp.
-
Page 45: E-Mail
IGAP-420/620/6620 Series User’s Manual E-Mail E-Mail setting interface ORing Industrial Networking Corp. - Page 46 Simple Message Transfer Protocol, enter the backup host to use if primary host is unavailable while sending mail by SMTP server. Server Port Specify the port where MTA can be contacted via SMTP server. E-mail Address 1-4 Inputs specify the destination mail address. ORing Industrial Networking Corp.
-
Page 47: Snmp
IGAP-420/620/6620 Series User’s Manual SNMP SNMP setting interface ORing Industrial Networking Corp. -
Page 48: Relay
Specify the IP of trap server, which is the address to which it will send traps AP generates. Community Community is essentially password to establish trust between managers and agents. Normally "public" is used for read-write community. SysLocation Specify sysLocation string. SysContact Specify sysContact string. Relay Relay setting interface ORing Industrial Networking Corp. -
Page 49: System Status
Traffic/Port Status This page displays the network traffic statistics for both received and transmitted packets through the Ethernet port and wireless connections associated with the AP. Simultaneity, the traffic counter will reset by the device rebooting. ORing Industrial Networking Corp. -
Page 50: System Log
'0-9', 'a-z', 'A-Z' and must be between 0 to 15 characters in length. The factory default value of login password is null. New Name Enter a new login name. Acceptable inputs of this field contains ORing Industrial Networking Corp. -
Page 51: Configuration
You may also reset the IGAP-420 / 420+ ; IGAP-620/620+ back to Settings factory settings by clicking on Restore Default Settings. Make sure to save the unit’s settings before clicking on this button. You will lose your current settings when you click this button. ORing Industrial Networking Corp. -
Page 52: Firmware Upgrade
Default Settings. Make sure to save the unit’s settings before clicking on this button. You will lose your current settings when you click this button. Restart If you want restart the access point through the Warm Reset, click Restart Now to restart the AP. ORing Industrial Networking Corp. -
Page 53: Technical Specifications
802.11b : -85dBm ± 2dBm@11Mbps 802.11g : -76dBm ± 2dBm@54Mbps 802.11gn HT20:-75dBm ± 2dBm@MCS7 802.11gn HT40:-72dBm ± 2dBm@MCS7 802.11an HT20:-74dBm ± 2dBm@MCS7(IGAP-620) 802.11an HT40:-71dBm ± 2dBm@MCS7(IGAP-620) Encryption Security WEP: (64-bit, 128-bit key supported) WPA/WPA2:802.11i (WEP and AES encryption) ORing Industrial Networking Corp. - Page 54 (2.93 x 4.3 x 6.05 inch.) Casing IP-30 protection Regulatory Approvals FCC Part 15, CISPR (EN55022) class A EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 Shock IEC60068-2-27 Free Fall IEC60068-2-32 Vibration IEC60068-2-6 Rail Traffic EN60950-1 ORing Industrial Networking Corp.
-
Page 55: Fcc Statement
“Digital Apparatus,” ICES-003 of Industry Canada. Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matérial brouilleur: “Appareils Numériques,” NMB-003 édictée par l’Industrie. ORing Industrial Networking Corp. - Page 56 Avertissement d'exposition RF: L'équipement est conforme aux limites d'exposition aux RF établies pour un incontrôlés environnement. L'antenne (s) utilisée pour ce transmetteur ne doit pas être co-localisés ou fonctionner en conjonction avec toute autre antenne ou transmetteur. ORing Industrial Networking Corp.
