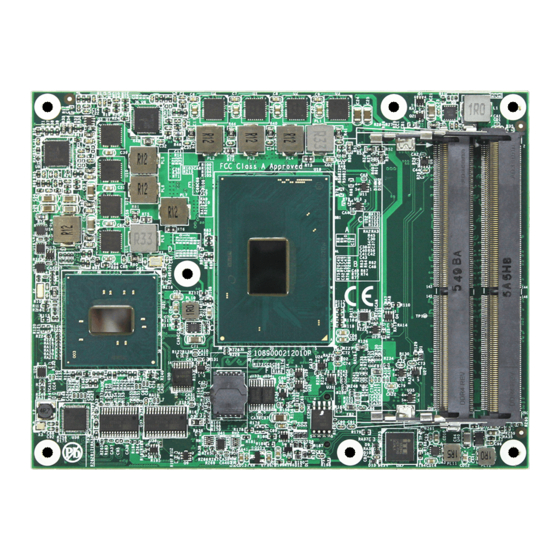

EmETXe-i89M0
85
Form Factor
COM Express
Basic
®
Type 6 CPU Module
LAN
Intel
i219LM PCIe GbE
®
PHY with iAMT
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first on our
website.
https://www.arbor-technology.com
Please do not hesitate to e-mail our customer service when you still can not find out
the answer.
E-mail: info@arbor.com.tw
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Copyright
All Rights Reserved.
®
COM Express
CPU
6
Generation Intel
th
Core™ i7-6822EQ
Audio
HD Audio Link
Basic Type 6 CPU Module
®
Quick Installation Guide
®
4041890002110P
- 1 -
Version 1.1
Video
24-bit Dual Channels
LVDS/ DDI
I/O
USB 2.0 / SATA/ PCIe/ I2C/
GPIO/UART
85
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Arbor Technology EmETXe-i89M0
Summary of Contents for Arbor Technology EmETXe-i89M0
- Page 1 EmETXe-i89M0 COM Express Basic Type 6 CPU Module ® Quick Installation Guide Version 1.1 Form Factor Video COM Express Basic Generation Intel 24-bit Dual Channels ® ® Type 6 CPU Module Core™ i7-6822EQ LVDS/ DDI Audio Intel i219LM PCIe GbE USB 2.0 / SATA/ PCIe/ I2C/...
- Page 2 (440 pins) Connector placement and most mounting holes have transparency 2.0GHz (Base) / 2.8GHz (Turbo) between Form Factors. ® Intel PCH QM170 Chipset The differences among the Module Type 6 and EmETXe-i89M0 are summarized 2 x DDR4-RS SO-DIMM sockets Memory in table below: AMI UEFI BIOS BIOS Module Type...
- Page 3 Ordering Information Board Dimensions Generation Intel Core™ i7-6822EQ ® EmETXe-i89M0-6822EQ 2.0GHz (Base) / 2.8GHz (Turbo) COM Express ® Compact Type 6 WT CPU module Optional Accessories Heat spreader, threaded standoffs (bore hole) HS-89M0-F1 (125x95x18mm) HS-89M0-C1 Heat sink with FAN 125x95x39.7mm...
- Page 4 Connectors Quick Reference COM Express AB Connector (bottom side) Top Side GND (FIXED) GND (FIXED) PCIE_RX9- PCIE_TX9- GBE0_ACT# GBE0_MDI3- DIO_6 LPC_FRAME# GBE0_MDI3+ PCIE_RX4+ PCIE_TX4+ LPC_AD0 GBE0_LINK100# PCIE_RX4- PCIE_TX4- LPC_AD1 GBE0_LINK1000# LPC_AD2 GBE0_MDI2- PCIE_RX3+ PCIE_TX3+ LPC_AD3 GBE0_MDI2+ PCIE_RX3- PCIE_TX3- LPC_DRQ0# GBE0_LINK# DIO_7 GPI1 LPC_DRQ1#...
- Page 5 COM Express CD Connector (bottom side) GND (FIXED) GND (FIXED) PEG_TX1- PEG_RX1- TYPE2# USB_SSTX0- USB_SSRX0- PEG_TX2+ PEG_RX2+ USB_SSTX0+ USB_SSRX0+ PEG_TX2- PEG_RX2- GND (FIXED) GND (FIXED) USB_SSTX1- USB_SSRX1- PEG_TX3+ PEG_RX3+ USB_SSTX1+ USB_SSRX1+ PEG_TX3- PEG_RX3- USB_SSTX2- USB_SSRX2- USB_SSRX2+ PEG_RX4+ USB_SSTX2+ PEG_TX4+ GND (FIXED) GND (FIXED) PEG_TX4- PEG_RX4-...
