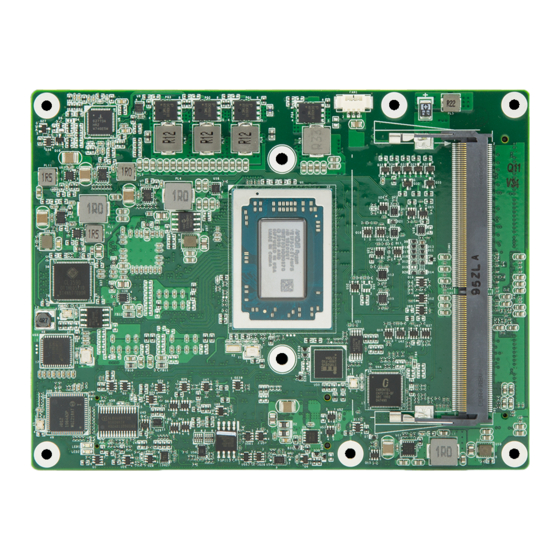

EmETXe-a10M3
Form Factor
COM Express
Basic
®
Type 6 CPU Module
LAN
Intel
i210IT PCIe
®
Controller
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first on our
website.
https://www.arbor-technology.com
Please do not hesitate to call or e-mail our customer service when you still can not
find out the answer.
https://www.arbor-technology.com
E-mail: info@arbor.com.tw
FCC Class B
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Copyright© 2020 All Rights Reserved.
COM Express
CPU
AMD Ryzen Embedded
V1000 V1807B/ V1756B/
V1605B Processor
I/O
USB 2.0/ USB 3.0/ SATA/
PCIe x1/ I2C/ DIO
Basic Type 6 CPU Module
®
Quick Installation Guide
4041100300100P
- 1 -
Version 1.0
Memory
DDR4 ECC SO-DIMM
Sockets
Advertisement
Table of Contents
Related Manuals for Arbor Technology COM Express EmETXe-a10M3
Summary of Contents for Arbor Technology COM Express EmETXe-a10M3
- Page 1 EmETXe-a10M3 COM Express Basic Type 6 CPU Module ® Quick Installation Guide Version 1.0 Form Factor Memory COM Express Basic AMD Ryzen Embedded DDR4 ECC SO-DIMM ® Type 6 CPU Module V1000 V1807B/ V1756B/ Sockets V1605B Processor Intel i210IT PCIe USB 2.0/ USB 3.0/ SATA/ ®...
- Page 2 COM Express supports seven pin-out Type applying to Basic and Extended form factors: Module Type 1 and 10 support single connector with two rows of pins (220 pins) Module Type 2, 3, 4, 5 and 6 support two connectors with four rows of pins (440 pins) Connector placement and most mounting holes have transparency between Form Factors.
- Page 3 Specifications System Soldered onboard AMD Ryzen V1000 V1605B 2.0GHz(Base)/ 3.6GHz (Turbo) or V1756B 3.25GHz(Base)/ 3.6GHz (Turbo) or V1807B 3.25GHz(Base)/ 3.8GHz (Turbo) processor 2 x DDR4 ECC SO-DIMM sockets, supporting up to Memory 32GB SDRAM (one is on the bottom side) BIOS AMI UEFI BIOS Watchdog Timer...
- Page 4 Mechanical & Environmental Power Requirement 8.5V~28V wide range voltage input Power Consumption 2.39A@12V (V1605B typical) Operating Temp. -20 ~ 70°C (-4 ~ 158°F) Operating Humidity 10 ~ 95% @ 70ºC (non-condensing) Dimension (L x W) 125 x 95 mm (4.9” x 3.7”) Ordering Information AMD Ryzen Embedded V1000 V1605B COM Express®...
- Page 5 Board Dimensions 2,7 * 6.0 (5,2) 62,87 (3,9) Unit: mm - 5 -...
- Page 6 Connectors Quick Reference Top Side Bottom Side COM Express AB Connector COM Express CD Connector - 6 -...
- Page 7 COM Express AB Connector (bottom side) GND(FIXED) A1 GND(FIXED) PCIE_RX4- PCIE_TX4- GBE0_MDI3- A2 GBE0_ACT# GBE0_MDI3+ A3 LPC_FRAME# PCIE_RX3+ PCIE_TX3+ GBE0_LINK100# A4 LPC_AD0 PCIE_RX3- PCIE_TX3- GBE0_LINK1000# A5 LPC_AD1 GND(FIXED) GND(FIXED) GBE0_MDI2- A6 LPC_AD2 PCIE_RX2+ PCIE_TX2+ GBE0_MDI2+ A7 LPC_AD3 PCIE_RX2- PCIE_TX2- N/C A8 LPC_DRQ0# GPO3 GPI1...
- Page 8 COM Express CD Connector (bottom side) GND(FIXED) GND(FIXED) PEG_TX1- PEG_RX1- TYPE2# TYPE1# USB_SSTX0- USB_SSRX0- PEG_TX2+ PEG_RX2+ USB_SSRX0+ PEG_RX2- USB_SSTX0+ PEG_TX2- GND(FIXED) GND(FIXED) USB_SSTX1- USB_SSRX1- PCIE_TX3+ PCIE_RX3+ USB_SSTX1+ USB_SSRX1+ PCIE_TX3- PCIE_RX3- RSVD RSVD USB_SSTX2- USB_SSRX2- RSVD RSVD USB_SSTX2+ USB_SSRX2+ PCIE_TX4+ PCIE_RX4+ GND(FIXED) GND(FIXED) PCIE_TX4-...
