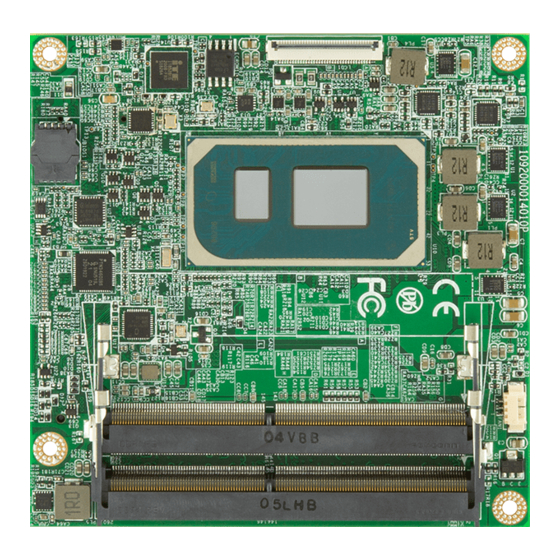

EmETXe-i92U0
85
Form Factor
COM Express
Compact
®
Type 6 CPU Module
LAN
Intel
i219LM PCIe GbE
®
PHY
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first on our
website.
http://www.arbor-technology.com
Please do not hesitate to call or e-mail our customer service when you still can not
find out the answer.
E-mail: info@arbor.com.tw
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Copyright
2022 All Rights Reserved.
©
COM Express
CPU
11
Gen. Intel
th
i7-1185G7E/ i5-1145G7E/
i3-1115G4E/ Celeron 6305E
Audio
HD Audio Link
Compact Type 6 CPU Module
®
Core™
®
4041920000110P
- 1 -
Quick Installation Guide
Video
24-bit Dual Channels
LVDS/ DDI/ Analog RGB
I/O
USB / SATA/ PCIe / I
UART
Version 1.1
C/
2
85
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Arbor Technology EmETXe-i92U0
Summary of Contents for Arbor Technology EmETXe-i92U0
- Page 1 EmETXe-i92U0 COM Express Compact Type 6 CPU Module ® Quick Installation Guide Version 1.1 Form Factor Video COM Express Compact Gen. Intel Core™ 24-bit Dual Channels ® ® Type 6 CPU Module i7-1185G7E/ i5-1145G7E/ LVDS/ DDI/ Analog RGB i3-1115G4E/ Celeron 6305E...
-
Page 2: Packing List
Module Type 2, 3, 4, 5 and 6 support two connectors with four rows of pins (440 pins) Connector placement and most mounting holes have transparency between Form Factors. The differences among the Module Type 6 and EmETXe-i92U0 are summarized in table below: Module Type... -
Page 3: Specifications
Specifications System ® Soldered onboard 11th Generation Intel Core™ - i7-1185G7E 1.8GHz(Base)/ 4.4GHz (Turbo) - i5-1145G7E 1.5GHz(Base)/ 4.1GHz (Turbo) - i3-1115G4E 2.2GHz(Base)/ 3.9GHz (Turbo) - Celeron 6305E 1.8GHz processor Memory 2 x DDR4 SO-DIMM sockets BIOS AMI UEFI BIOS Watchdog Timer 1~255 levels reset 12 x USB ports: USB Port... -
Page 4: Ordering Information
C (non-condensing) Dimensions (L x W) 95 x 95 mm (3.7” x 3.7”) Ordering Information Gen. Intel® Core™ i7-1185G7E WT COMe Compact EmETXe-i92U0-WT-1185G7E Type 6 CPU module, -40 ~ 85 Gen. Intel® Core™ i5-1145G7E WT COMe Compact EmETXe-i92U0-WT-1145G7E Type 6 CPU module, -40 ~ 85 Gen. -
Page 5: Driver Installation
Driver Installation To install the drivers, please visit our website at www.arbor-technology.com and download the drivers from the Download Center. - 5 -... -
Page 6: Board Dimensions
Board Dimensions ∅�,�* ∅�.� 52,58 32,26 Unit: mm - 6 -... -
Page 7: Connectors Quick Reference
Connectors Quick Reference Top Side Fan Connector So-Dimm Sockets MIPI DSI Bottom Side COM Express Connectors - 7 -... - Page 8 FAN1: Fan connctor Connector type: Wafer 3-pin 1.25mm 85204-03X0L Description Fan out Fan Tachometer Input MIPI DSI: MIPI DSI connector (by OEM request) Connector type: Wafer 35-pin Description Pin Description 3V3-LCD MIPI_TCN0 3V3-LCD MIPI_TCP0 3V3-LCD LCD_RST NC_24 LEDK MIPI_TDN3 LEDK MIPI_TDP3 LEDK LEDK...
- Page 9 COM Express AB Connector (bottom side) PCIE_RXN5 PCIE_TXN5 LAN1_MDI3N LAN_LED_LNK#_ACT DIO_6 LPC_FRAME# LAN1_MDI3P PEG_RXP3 PEG_TXP3 LPC_AD0 LAN_LED_100# PEG_TXN3 PEG_RXN3 LPC_AD1 LAN_LED_1000# LPC_AD2 LAN1_MDI2N PEG_RXP2 PEG_TXP2 LPC_AD3 LAN1_MDI2P PEG_RXN2 PEG_TXN2 LAN_LED_LNK# LPC_LDRQ0- DIO_7 DIO_1 LPC_LDRQ1- LAN1_MDI1N PEG_RXP1 PEG_TXP1 LAN1_MDI1P LPC_CLK_EXPRESS PEG_RXN1 PEG_TXN1 PCH_WAKE# LAN1_MDI0N...
- Page 10 COM Express CD Connector (bottom side) USB3_TXN0 USB3_RXN0 USB3_TXP0 USB3_RXP0 USB3_TXN1 USB3_RXN1 USB3_RXP1 USB3_TXP1 USB3_RXN2 USB3_TXN2 USB3_TXP2 USB3_RXP2 USB3_TXN3 USB3_RXN3 USB3_TXP3 USB3_RXP3 DDI0_CLK_AUX DDI0_DATA_AUX# PCIE_TXP7 PCIE_RXP7 PCIE_RXN7 PCIE_TXN7 PCIE_RXP8 PCIE_TXP8 PCIE_TXN8 PCIE_RXN8 DDP0_HPD DDI0_PAIR_0 DDI0_PAIR_0# DDI0_PAIR_1 DDI0_PAIR_1# DDI0_PAIR_2 DDI1_CLK_AUX DDI1_DATA_AUX# DDI0_PAIR_2# DDI0_DDC_AUX_SEL DDI1_DDC_AUX_SEL...
-
Page 11: Block Diagram
Block Diagram DDR4 3200MT/s 2 x SO-DIMM DDR4 sockets 4 x USB 3.2 ports (HSIO 1-4) 2 x PCIex1 TCP0 (DDI) TCP1 (DDI) TCP3 (DDI) TCP4 Analog RGB Chrontel CH7517A eDP (DDIB) Dual Chnnels NXP PTN3460 24-bit LVDS Intel Core™ ®...
