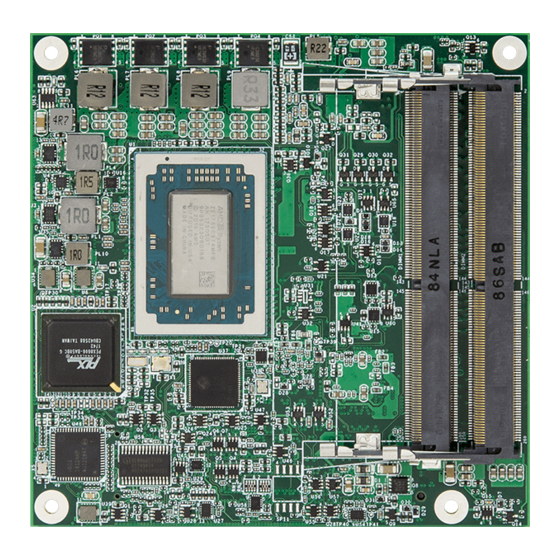

EmETXe-a10M0
Form Factor
COM Express
Compact
®
Type 6 CPU Module
LAN
Intel
i210IT PCIe
®
Controller
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first on our
website.
https://www.arbor-technology.com
Please do not hesitate to call or e-mail our customer service when you still can not
find out the answer.
https://www.arbor-technology.com
E-mail: info@arbor.com.tw
FCC Class B
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Copyright© 2019 All Rights Reserved.
COM Express
CPU
AMD Ryzen Embedded
V1000 V1807B/ V1756B/
V1605B Processor
I/O
USB 2.0/ USB 3.0/ SATA/
PCIe x1/ I2C/ DIO
Compact Type 6 CPU Module
®
4041100003100P
- 1 -
Quick Installation Guide
Memory
DDR4 ECC SO-DIMM
Sockets
Version 1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Arbor Technology EmETXe-a10M0
Summary of Contents for Arbor Technology EmETXe-a10M0
- Page 1 EmETXe-a10M0 COM Express Compact Type 6 CPU Module ® Quick Installation Guide Version 1.0 Form Factor Memory COM Express Compact AMD Ryzen Embedded DDR4 ECC SO-DIMM ® Type 6 CPU Module V1000 V1807B/ V1756B/ Sockets V1605B Processor Intel i210IT PCIe USB 2.0/ USB 3.0/ SATA/...
-
Page 2: Packing List
Module Type 2, 3, 4, 5 and 6 support two connectors with four rows of pins (440 pins) Connector placement and most mounting holes have transparency between Form Factors. The differences among the Module Type 6 and EmETXe-a10M0 are summarized in table below: Module Type... -
Page 3: Specifications
Specifications System Soldered onboard AMD Ryzen V1000 V1605B 2.0GHz(Base)/ 3.6GHz (Turbo) or V1756B 3.25GHz(Base)/ 3.6GHz (Turbo) or V1807B 3.25GHz(Base)/ 3.8GHz (Turbo) processor 2 x DDR4 ECC SO-DIMM sockets, supporting up to Memory 32GB SDRAM BIOS AMI UEFI BIOS Watchdog Timer 1~255 levels reset USB Port 12 x USB ports:... -
Page 4: Ordering Information
10 ~ 95% @ 70ºC (non-condensing) Dimension (L x W) 95 x 95 mm (3.7” x 3.7”) Ordering Information AMD Ryzen Embedded V1000 V1605B COM Express® EmETXe-a10M0-V1605B Compact Type 6 CPU Module AMD Ryzen Embedded V1000 V1756B COM Express® EmETXe-a10M0-V1756B Compact Type 6 CPU Module AMD Ryzen Embedded V1000 V1807B COM Express®... -
Page 5: Board Dimensions
Board Dimensions φ 2,7* φ 6.0 32,39 Unit：mm - 5 -... -
Page 6: Connectors Quick Reference
Connectors Quick Reference Top Side Bottom Side COM Express AB Connector COM Express CD Connector Unit: mm - 6 - Unit: mm... - Page 7 COM Express AB Connector (bottom side) GND(FIXED) A1 GND(FIXED) PCIE_RX4- PCIE_TX4- GBE0_MDI3- A2 GBE0_ACT# GBE0_MDI3+ A3 LPC_FRAME# PCIE_RX3+ PCIE_TX3+ GBE0_LINK100# A4 LPC_AD0 PCIE_RX3- PCIE_TX3- GBE0_LINK1000# A5 LPC_AD1 GND(FIXED) GND(FIXED) GBE0_MDI2- A6 LPC_AD2 PCIE_RX2+ PCIE_TX2+ GBE0_MDI2+ A7 LPC_AD3 PCIE_RX2- PCIE_TX2- N/C A8 LPC_DRQ0# GPO3 GPI1...
- Page 8 COM Express CD Connector (bottom side) GND(FIXED) GND(FIXED) PEG_TX1- PEG_RX1- TYPE2# TYPE1# USB_SSTX0- USB_SSRX0- PEG_TX2+ PEG_RX2+ USB_SSTX0+ USB_SSRX0+ PEG_TX2- PEG_RX2- GND(FIXED) GND(FIXED) USB_SSTX1- USB_SSRX1- PCIE_TX3+ PCIE_RX3+ USB_SSTX1+ USB_SSRX1+ PCIE_TX3- PCIE_RX3- RSVD RSVD USB_SSTX2- USB_SSRX2- RSVD RSVD USB_SSTX2+ USB_SSRX2+ PCIE_TX4+ PCIE_RX4+ GND(FIXED) GND(FIXED) PCIE_TX4-...
