Arbor Technology EmETX-i2304 User Manual

Etx cpu module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

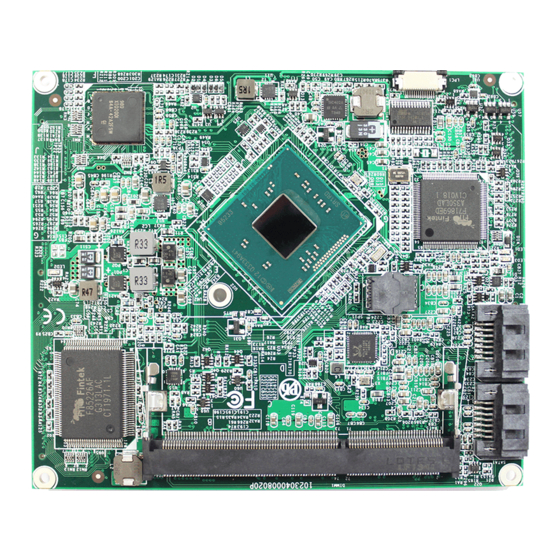

EmETX-i2304
®
ETX
CPU Module
User's Manual
Version 2.0
2021.03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EmETX-i2304 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arbor Technology EmETX-i2304

Summary of Contents for Arbor Technology EmETX-i2304

  • Page 1 EmETX-i2304 ® CPU Module User’s Manual Version 2.0 2021.03...
  • Page 2 Revision History Version Date Description Oct, 2014 Initial release Nov, 2014 Add P37~P45 • 1.3 Specifications: Remove IDE Interface • 1.4 Remove Driver CD • 2.1 Board Dimension/ Connector Loca- tion > Bottom View: Remove IDE from Sep, 2020 ETX4 •...

  • Page 3: Table Of Contents

    Table of Contents Preface................ ii Copyright Notice ..............ii Declaration of Conformity ..........ii Warning ................iv Replacing the Lithium Battery ........iv Technical Support ............iv Warranty ................v Chapter 1 - Introduction ..........1 1.1 The Product ...............2 1.2 About This Manual ............2 1.3 Specifications ............3 1.4 Inside the Package ............4 1.6 Driver (7.8A) Installation ..........5 Chapter 2 - Board Overview ........

  • Page 4: Preface

    Preface Copyright Notice All Rights Reserved. The information in this document is subject to change without prior notice in order to improve the reliability, design and function. It does not represent a commitment on the part of the manufacturer. Under no circumstances will the manufacturer be liable for any direct, indirect, special, incidental, or consequential damages arising from the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 5 RoHS ARBOR Technology Corp. certifies that all components in its products are in compliance and conform to the European Union’s Restriction of Use of Haz- ardous Substances in Electrical and Electronic Equipment (RoHS) Directive 2002/95/EC.

  • Page 6: Warning

    Preface SVHC / REACH To minimize the environmental impact and take more responsibility to the earth we live, Arbor hereby confirms all products comply with the restriction of SVHC (Substances of Very High Concern) in (EC) 1907/2006 (REACH --Registration, Evaluation, Authorization, and Restriction of Chemicals) regulated by the European Union.

  • Page 7: Warranty

    Preface Warranty This product is warranted to be in good working order for a period of two years from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
  • Page 8 This page is intentionally left blank. - vi -...

  • Page 9: Chapter 1 Introduction

    Introduction Chapter 1 Introduction Chapter 1 - Introduction - 1 -...

  • Page 10: The Product

    Introduction 1.1 The Product EmETX-i2304 needs another carrier board, PBE- 1000, to work with to deliver best performance. The I/O cabling from boards to chassis, or the daughter boards are not needed. Money spent on these parts can be saved. Cost is substantially reduced.

  • Page 11: Specifications

    Introduction 1.3 Specifications Form Factor ETX® CPU Module Intel® Atom™ Processor E3825 dual-core 1.33GHz or E3845 quad-core 1.91GHz 1 x 204-pin SO-DIMM socket, up to 8GB DDR3L Memory 1333 MT/s SDRAM Graphics Chipset SoC Integrated Intel® Gen7 graphic Ethernet 1 x Realtek RTL8106E PCIe 10/100Mbps controller Realtek ALC886 5.1 Channel HD Audio CODEC, Audio Mic-in/ Line-in/Line-out...

  • Page 12: Inside The Package

    Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x EmETX-i2304 ETX® CPU Module 1 x Quick Installation Guide If any of the above items is damaged or missing, contact your vendor immediately.

  • Page 13: Driver (7.8A) Installation

    Introduction 1.6 Driver (7.8A) Installation Windows 7 Driver Path \Audio\32bit_Win7_R273 AUDIO \Audio\64bit_Win7_R273 CHIPSET \Chipset\Win32_64_10.1.17 Ethernet \Ethernet\Install_Win7_7076_11222013 \Graphic\32bit_36.15.0.1073 Graphic \Graphic\64bit_37.15.0.1073 Processor IO \Processor IO \TXE Patch USB3.0 \USB3.0 Windows 10 Driver Path \Audio\Win32 AUDIO \Audio\Win64 GPIO I \GPIO I2C\windows10 32_64 Graphic \Graphic\Win32 \Graphic\Win64 \INF\Win32_64_10.1.17...
  • Page 14 This page is intentionally left blank. - 6 -...

  • Page 15: Chapter 2 - Board Overview

    Board Overview Chapter 2 Board Overview Chapter 2 - Board Overview - 7 -...

  • Page 16: Board Dimension/ Connector Location

    Board Overview 2.1 Board Dimension/ Connector Location Top View SATA1 SO-DIMM SATA2 LPC1 Unit:mm Bottom View ETX3 ETX1 IrDA PCI bus Serial Ports Parallel Port Audio Floppy Keyboard Mouse ETX4 ETX2 ISA bus SMbus Miscellaneous DDI1 - 8 -...

  • Page 17: Block Diagram

    Board Overview 2.2 Block Diagram Single Channel DDR3L 1 xSO-DIMM FPC connector socket 1333MT/s USB ports x4 Dual Cannels PTN3460BS 24-bit LVDS Analog R.G.B. Realtek AC Link Audio ALC886 COM1 COM2 Super IO LPT1/ FDD F71869 PCIe to PCI LPC I/F PCIe x1 4 x PCI IrDA...

  • Page 18: Jumpers And Connectors

    Board Overview 2.3 Jumpers and Connectors SATA1, SATA2 Connectors (Top side) Description LPC1 Connector (Top side, by OEM request) Connector type: FPC12-14P-P0.5 (Hirose) Pin Desc. Pin Desc. VCC3(2) SER_IRQ VCC3(1) LFRAME# GND5 GND1 GND4 LPC_CLK(33M) GND3 LPC_RST# - 10 -...
  • Page 19 Board Overview DDI1 Connector (Bottom side) Connector type: FH12-30S-0.5SH (Hirose) Pin Description Pin Description 16 N/C 17 N/C 18 GND 19 TXP3 +5VS 20 TXN3 +5VS 21 GND +5VS 22 TXP2 +5VS 23 TXN2 HPDET# 24 GND 10 DDC_AUX_SEL 25 TXP1 26 TXN1 12 GND 27 GND...
  • Page 20 Board Overview ETX1 Connector ETX2 Connector A1 GND GND A2 B1 GND GND B2 A3 PCICLK3 PCICLK4 A4 B3 SD14 SD15 B4 A5 GND GND A6 B5 SD13 MASTER# B6 A7 PCICLK1 PCICLK2 A8 B7 SD12 DREQ7 B8 GNT#3 A10 DACK#7 B10 A9 REQ#3 B9 SD11...
  • Page 21 Board Overview ETX3 Connector ETX4 Connector C1 GND GND C2 D1 GND GND D2 C3 R B C4 D3 5V_SB PWGIN D4 C5 HSY SPEAKER D6 G C6 D5 PS_ON C7 VSY Analog RGB_DDC_CLK C8 D7 PWERBTN# BATT D8 C9 DETECT#(NC) Analog RGB_DDC_ATA C10 D9 KBINH (N/C) LILED D10...
  • Page 22 This page is intentionally left blank. - 14 -...

  • Page 23: Chapter 3 - Bios

    BIOS Chapter 3 BIOS Chapter 3 - BIOS - 15 -...
  • Page 24 BIOS The BIOS Setup utility is featured by Insyde BIOS to configure the system set- tings stored in the system’s BIOS ROM. Insyde BIOS is activated once the com- puter powers on. After entering the utility, use the left/right arrow keys to navigate between the top menus and use the down arrow key to access one.
  • Page 25 BIOS Key Commands The BIOS Setup utility relies on a keyboard to receive user’s instructions. Hit the following keys to navigate within the utility and configure the utility. Keystroke Function ← → Moves left/right between the top menus. ↓ ↑ Moves up/down between highlight items.

  • Page 26: Main

    BIOS 3.1. Main menu displays some BIOS info and features the settings of Main System Date System Time The BIOS info displayed is: Info Item Description BIOS Version Delivers the computer’s BIOS version. Project name Delivers the name of the project Delivers the date and time when the BIOS Setup utility was created/ Build Date and Time updated.

  • Page 27: Advanced

    BIOS 3.2. Advanced The Advanced menu controls the system’s CPU, IDE, Super IO, AHCI and USB. It also helps users monitor hardware health. - 19 -...
  • Page 28 BIOS The featured submenus are: Submenu Description Boot Configuration 3.2.1. Boot Configuration on page 20. IDE Configuration 3.2.2. IDE Configuration on page USB Configuration 3.2.3. USB Configuration on page 20. Audio Configuration 3.2.4. Audio Configuration on page 21. LAN Configuration 3.2.5.
  • Page 29 BIOS 3.2.4. Audio Configuration The featured settings are: Setting Description Audio Controller Enables/Disables Azalia Controller Azalia VCi Enable Enables/Disables Virtual Channel 1 of Audio Controller Azalia HDMI Codec Enables/Disables Internal HDMI codec for Azalia 3.2.5. LAN Configuration The featured settings are: Setting Description LAN Configuration...
  • Page 30 BIOS 3.2.7. Miscellaneous Configuration The featured settings are: Setting Description / Available Options HPET - HPET support Enables/Disables HPET support in Windows XP Set the state of System when power is re-applied after a Power State After G3 failure (G3 state) Options are S0 State(default)/S5 State Clock Spread Spectrum Enables/Disables Clock Spread Spectrum...
  • Page 31 BIOS 3.2.9. Video Configuration Configure video settings The featured setting is: 3.2.9.1 Video Configuration Setting Description Set Logo & SCU Resolution. Logo & SCU Resolution Options are Auto/640 x480/800 x 600/1024 x 768 3.2.9.2 VBT Hook Configuration Setting Description Set the option of CRT. Configure CRT as Options are Default / CRT / No Device CRT EDID Support...
  • Page 32 BIOS 3.2.9.4 GOP Configuration Setting Description GOP Brightness Level Set the Brightness Level of GOP. GOP Driver Enables/Disables GOP Driver 3.2.9.5 IGD Configuration Setting Description Integrated Graphics Enables/disables Intergrated Graphics Device. Device Set IGD or PCI graphic device as the Primary Display. Primary Display Options are Auto/IGD/PCie.
  • Page 33 BIOS 3.2.9.6 IGD- LCD Control Setting Description Set mode of as the Primary Display. Force Lid Status Options are ON (default) / OFF / Auto. Set the mode of BIA. Options are Auto (default) /Disabled / Level 1 /Level 2 /Level 3 /Level 4 /Level 5.
  • Page 34 BIOS 3.2.10. ACPI Table/Feature Control Setting Description FACP - RTC S4 This function will be avalible only when ACPI is enabled. Wakeup Enables/disables S4 Wakup from RTC. This item is valid only for WIN2K and WINXP. Also, a frech install of APIC - IO APIC the OS must occur when APIC mode is desired.

  • Page 35: Security

    BIOS 3.3. Security menu sets up the password for the system’s administrator account. Security Once the administrator password is set up, this BIOS Setup utility is limited to access and will ask for the password each time any access is attempted. The featured setting is: Setting Description...

  • Page 36: Power

    BIOS 3.4. Power menu sets up the power option of system Power The featured setting is: Setting Description Advanced 3.4.1 Advanced CPU Control on page CPU Control Enables or diables Wake on PME. Wake on PME Determines the action taken when the system power is off and a PCI Power Management Enable wake up event occurs.
  • Page 37 BIOS 3.4.1 Advanced CPU Control Setting Description Use XD Enables or disables processor XD capability. Capability Sets whether the processor should limit the maximum CPUID input value to 03h when the operating system queries it upon startup. Limit CPUID Select Enabled to allow a processor with Intel® Hyper-Thread- Max value ing technology to work with an operating system that doesn’t support it.
  • Page 38 BIOS P-States(IST) Enables/disables processor performance states (P-States) Boot Select the performance state that BIOS will set before OS handoff Performance Mode Enables/disables processor Turbo mode (EMTTM enabled is re- Turbo Mode quired) C-States Enables/disables processor idle power saving states (C-states) Enhanced Enables/disables P-state transitions to occur in combination with C- C-States...

  • Page 39: Boot

    BIOS 3.5. Boot menu configures how to boot up the system such as the configuration Boot of boot device priority. The featured settings are: Setting Description Boot type Set the boot type. Options are Legacy Boot Type. Allow InsydeH20 to Skip certain tests while booting . This will Quick Boot decrease the time need to boot the system.
  • Page 40 BIOS USB Boot Disables or enables booting to USB boot devices. Set the waiting seconds before booting the default boot se- Timeout lection Automatic Failover Enables/disables the Automatic Failover. Legacy Setting Description Normal Boot Menu Set the boot Menu. Options are Normal / Advance. Set the boot type order.

  • Page 41: Exit

    BIOS 3.6. Exit menu features a handful of commands to launch actions from the Save & Exit BIOS Setup utility regarding saving changes, quitting the utility and recovering defaults. The features settings are: Setting Description Exit Saving Changes Saves the changes and quits the BIOS Setup utility. Save Changes Without Exit Save Changes but does not quit the BIOS.
  • Page 42 This page is intentionally left blank. - 34 -...

  • Page 43: Appendix

    Appendix Appendix Appendix - 35 -...

  • Page 44: Appendix A. Watchdog Timer (Wdt) Setting

    Appendix Appendix A. Watchdog Timer (WDT) Setting The application software depends on its requirement to trigger WDT with ad- equate timer setting. Before WDT timeout, the functional normal system will re- load the WDT. The WDT never time-out for a normal system. The WDT will not be reloaded by an abnormal system, then WDT will time-out and auto-reset the system to avoid abnormal operation.
