EmNANO-i230V
85
Form Factor
COM Express® Mini
Type 10 CPU Module
LAN
Intel i210IT PCIe GbE
controller
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first at:
https://www.arbor-technology.com
Please do not hesitate to call or e-mail our customer service when you still can not find
out the answer.
http://www.arbor-technology.com
E-mail: info@arbor.com.tw
♦ Declaration of Conformity
FCC Class B
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions : (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Copyright® All Rights Reserved.
COM Express® Mini Type 10 CPU Module
CPU
Intel Atom E3800 family
SoC processor
Audio
HD Audio Link
- 1 -
Quick Installation Guide
Video
DDI port, LVDS
I/O
USB/ SATA/ PCIe x1 / I2C/
UART
4042023000100P
Version 1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Arbor Technology EmNANO-i230V
Summary of Contents for Arbor Technology EmNANO-i230V
- Page 1 EmNANO-i230V COM Express® Mini Type 10 CPU Module Quick Installation Guide Version 1.0 Form Factor Video COM Express® Mini Intel Atom E3800 family DDI port, LVDS Type 10 CPU Module SoC processor Audio Intel i210IT PCIe GbE HD Audio Link...
-
Page 2: Packing List

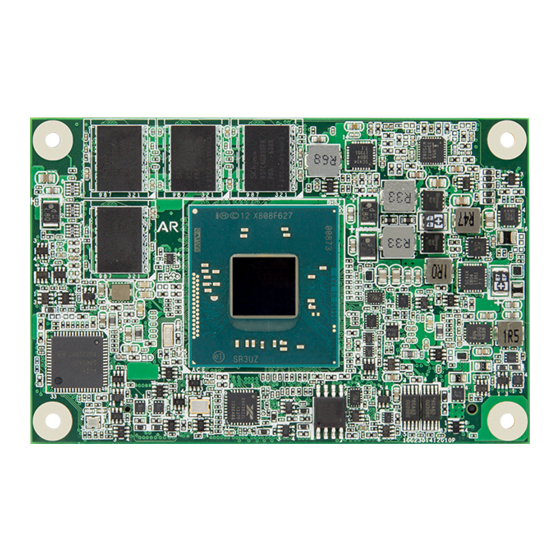

The Ultra-small COM Express® Mini Module EmNANO-i230V is a COM Express® Mini Type 10 module. The module size is 55 mm x 84 mm, which is the smallest in ARBOR’s COM Express® product lineup, next to the Basic size (125 mm x 95 mm) and Compact size (95mm x 95mm) form factors. -
Page 3: Specifications
84 x 55 mm (3.30" x 2.16") Ordering Information Intel Atom™ processor WT E3825 COM Express Type 10 CPU module ® EmNANO-i230V-WT-E3825-4G with 4GB memory soldered on CPU module Intel Atom™ processor WT E3845 COM Express Type 10 CPU module ®... - Page 4 Windows 7 Driver Path \EmNANO-i230V\Win7\Audio\32bit_Win7_R273 Audio \EmNANO-i230V\Win7\Audio\64bit_Win7_R273 Chipset \EmNANO-i230V\Win7\Chipset \EmNANO-i230V\Win7\Graphics\win32_153339 Graphics \EmNANO-i230V\Win7\Graphics\win64_153339 \EmNANO-i230V\Win7\LAN \EmNANO-i230V\Win7\Processor IO\Win7_IO_Drivers Processor IO TXE Patch \EmNANO-i230V\Win7\TXE Patch USB3.0 \EmNANO-i230V\Win7\USB3.0 Windows 10 Driver Path Audio \EmNANO-i230V\win10\Audio\Win10_WHQLx64 \EmNANO-i230V\win10\GPIO\GPIO GPIO \EmNANO-i230V\win10\GPIO\I2C...
-
Page 5: Connectors Quick Reference
Connectors Quick Reference Top View Bottom View - 5 -... -
Page 6: Board Dimensions
Board Dimensions Ø2.7 Ø6.5 44.63 Unit:mm - 6 -... -
Page 7: Connector Pin Assignment
Connector Pin Assignment Note: A pin with a remark “(N/C)“ is a pin that the signal isn’t available on this board while the remark beyond the bracket delivers the consortium-specified definition. B1 GND GND A1 B2 LAN_ACT# LAN1_MDI3- A2 B3 LPC_FRAME# LAN1_MDI3+ A3 B4 LPC_AD0 LINK_100# A4... - Page 8 B56 (N/C) (N/C) A56 B57 SD_WP GND A57 B58 (N/C) (N/C) A58 B59 (N/C) (N/C) A59 B60 GND GND A60 B61 PCIE_RXP2 PCIE_TXP2 A61 B62 PCIE_RXN2 PCIE_TXN2 A62 B63 SD_CD SD_DATA1 A63 B64 PCIE_RXP1 PCIE_TXP1 A64 B65 PCIE_RXN1 PCIE_TXN1 A65 B66 PCIE_WAKE# GND A66 B67 WAKE1#...
