Form Factor
COM Express® Compact
Type 6 CPU Module
I/O
USB 2.0/ USB 3.0/ SATA/
PCIe x1/ SPI / LPC/ eMMC
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first at:
http://www.arbor-technology.com
Please do not hesitate to call or e-mail our customer service when you still can not
find out the answer.
http://www.arbor-technology.com
E-mail: info@arbor.com.tw
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Copyright
2017 All Rights Reserved.
®

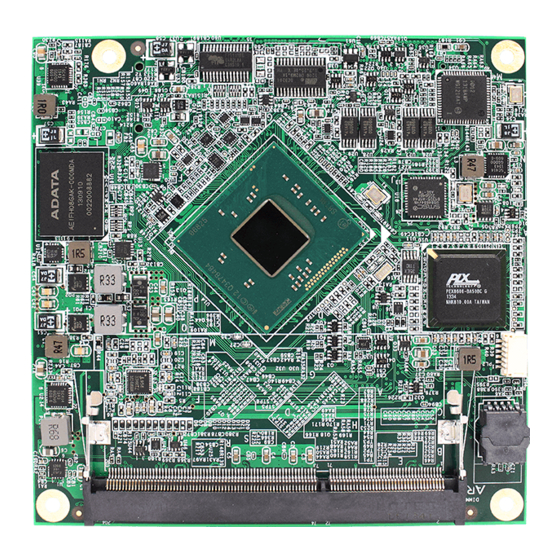

EmETXe-i2309
COM Express® Compact Type 6 CPU Module
CPU
Intel® Atom™ processor
E3845 1.91GHz
LAN
Intel® i210IT PCIe GbE
Controller
Quick Installation Guide
- 1 -
Version 1.2
Video
24-bit Dual Channels
LVDS/ DisplayPort/
Analog RGB
Audio
HD Audio Interface
4041230900120P
Advertisement
Table of Contents
Related Manuals for Arbor Technology EmETXe-i2309
Summary of Contents for Arbor Technology EmETXe-i2309
- Page 1 EmETXe-i2309 COM Express® Compact Type 6 CPU Module Quick Installation Guide Version 1.2 Form Factor Video 24-bit Dual Channels COM Express® Compact Intel® Atom™ processor LVDS/ DisplayPort/ Type 6 CPU Module E3845 1.91GHz Analog RGB Audio USB 2.0/ USB 3.0/ SATA/ HD Audio Interface Intel®...
-
Page 2: Packing List
Module Type 2, 3, 4, 5 and 6 support two connectors with four rows of pins (440 pins) Connector placement and most mounting holes have transparency between Form Factors. The differences among the Module Type 6 and EmETXe-i2309 are summarized in table below: Module Type... -
Page 3: Specifications
Specifications System Soldered onboard Intel ® Atom™ processor E3845 1.91GHz 1 x DDR3L SO-DIMM socket, supporting up to 8GB Memory 1333MT/s SDRAM BIOS Insyde UEFI BIOS Watchdog Timer 1~255 levels reset (function depends on carrierboard) USB Port* 8 x USB 2.0 ports*, 1 x USB 3.0 port 7 x PCIe x1 lanes Expansion Bus SPI and LPC (Low Pin Count) interfaces, GPIO... -
Page 4: Ordering Information
E3845 1.91GHz COM Express® Compact CPU (BTO)* module Optional Accessories Starterkit-002-2309 COM Express Type 6 Starter Kit for EmETXe-i2309 Heat spreader, non-thereaded standoffs (bore hole) HS-2309-F2-NT* (95x95x11mm), not compatible with WT series Universal evaluation heatsink kit w/ thermal pad HS-0000-W4... - Page 5 Find Device Drivers on CD The CPU module supports Windows 7 and 8. Find the necessary drivers on the CD that comes with your purchase. For different OS, the driver installation may vary slightly, but generally they are similar. DO install Chipset→Graphic→Audio before the rest to prevent errors.
- Page 6 Board Dimensions\Connectors Quick Reference Unit:mm - 6 -...
- Page 7 COM Express AB Connector (bottom side) GND (FIXED) GND (FIXED) PCIE_RX4- PCIE_TX4- GBE0_ACT# GBE0_MDI3- SD_WP(N/C)/GPO2 LPC_FRAME# GBE0_MDI3+ PCIE_RX3+ PCIE_TX3+ LPC_AD0 GBE0_LINK100# PCIE_RX3- PCIE_TX3- LPC_AD1 GBE0_LINK1000# LPC_AD2 GBE0_MDI2- PCIE_RX2+ PCIE_TX2+ LPC_AD3 GBE0_MDI2+ PCIE_RX2- PCIE_TX2- LPC_DRQ0#(N/C) GBE0_LINK#(N/C) SD_CD#(N/C)/GPO3 SD_DATA1(N/C)/GPI1 LPC_DRQ1#(N/C) GBE0_MDI1- PCIE_RX1+ PCIE_TX1+ LPC_CLK GBE0_MDI1+...
- Page 8 COM Express CD Connector (bottom side) GND (FIXED) GND (FIXED) PEG_TX1-(N/C) PEG_RX1-(N/C) TYPE2# TYPE1#(N/C) USB_SSTX0- USB_SSRX0- PEG_TX2+(N/C) PEG_RX2+(N/C) USB_SSTX0+ USB_SSRX0+ PEG_TX2-(N/C) PEG_RX2-(N/C) GND (FIXED) GND (FIXED) USB_SSTX1-(N/C) USB_SSRX1-(N/C) PEG_TX3+(N/C) PEG_RX3+(N/C) USB_SSRX1+(N/C) PEG_RX3-(N/C) USB_SSTX1+(N/C) PEG_TX3-(N/C) RSVD RSVD USB_SSRX2-(N/C) RSVD USB_SSTX2-(N/C) RSVD USB_SSTX2+(N/C) USB_SSRX2+(N/C) PEG_TX4+(N/C)
