Summary of Contents for CUMMINS ALLISON JetCount 4020
- Page 1 JetCount ® Currency Counter Operating Instructions for All Models...
-
Page 2: Power Specifications
Power Specifications High voltage inside. Risk of electric shock. Turn power OFF and unplug power cord from machine before cleaning. Do not attempt repairs. Repairs must be made by authorized Cummins-Allison Corp. personnel. Plug three-prong grounded plug (supplied) into properly grounded three-prong outlet. -
Page 3: Statement Of Agency Compliance
Statement of Agency Compliance This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Class A Compliance Statement Radio frequency present. -
Page 4: Table Of Contents
Table of Contents POWER SPECIFICATIONS .............. INSIDE FRONT COVER STATEMENT OF AGENCY COMPLIANCE................1 FCC CLASS A COMPLIANCE STATEMENT ................ 1 SAFETY COMPLIANCE ....................... 1 ® GETTING TO KNOW YOUR JETCOUNT CURRENCY COUNTER ........4 THE JETCOUNT CURRENCY COUNTER ................5 4020 C .................... - Page 5 Printer Type ......................... 30 Setup Report ....................... 30 Remote Display Count ....................31 REFERENCE ........................32 ..................... 32 AILY LEANING ROCEDURES Recommended Cleaning Materials................. 32 Daily Cleaning ......................32 ..............36 TOPPING ONDITIONS AND ECOVERY TEPS ....................38 ACHINE PECIFICATIONS .......................
-
Page 6: Getting To Know Your Jetcount ® Currency Counter
Getting to Know Your JetCount Currency Counter ® Thank You Thank you for selecting the JetCount currency counter from Cummins Allison. ® For Your Records Please fill in the following information for easy reference. Model No. Serial No. Address: Your Local... -
Page 7: The Jetcount Currency Counter

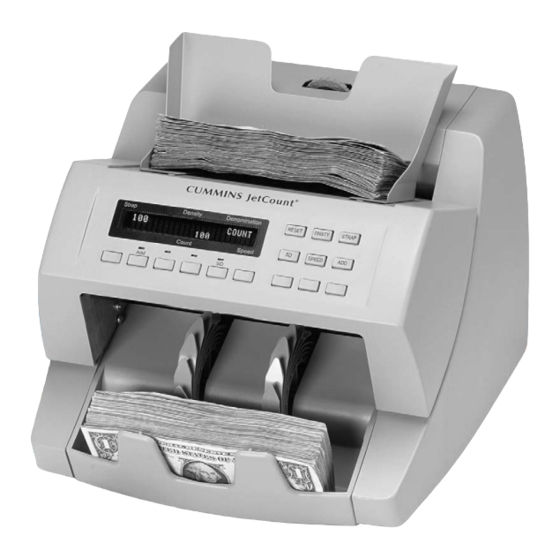

The JetCount Currency Counter ® This manual is designed to provide the new user with a detailed description of the various features and modes of operation for the JetCount currency counter models 4020, 4021 and 4022. Model 4020 Control Panel Strap Density Denomination... -
Page 8: Ontrol Panel
Model 4021, 4022 Control Panel Strap Density Denomination RESET DNSTY STRAP Count Speed SPEED Key Explanation Description This key is used when clearing counts and to restart the machine after a stopping RESET condition. DENSITY This key is used for setting doubles detection sensitivity by denomination. This key is used for setting a Strap Limit at any preset value (5, 10, 20, 25, 50, STRAP 75, 100 or infinity). -
Page 9: All Models: Key Numbers
$10, $20, $50, $100) are used as a multiplier when JetCount is in VALUE mode. * Strapping and denomination keys are mutually exclusive and cannot be simultaneously engaged. To order the key-top kit, contact a Cummins Allison representative. Direct Access Strapping Keys (One Sample Configuration Shown) Strap... -
Page 10: Key Explanation
Direct Access Denomination Keys Strap Density Denomination RESET DNSTY STRAP Count Speed SPEED DENOM VALUE $100 Key Explanation Description This key is used when clearing counts and restarts the machine after a stopping RESET condition. DENSITY This key is used for setting doubles detection sensitivity by denomination. This key is used for setting a Strap Limit at any preset value (5, 10, 20, 25, 50, STRAP 75, 100 or infinity). -
Page 11: The Basics
The Basics Power High voltage inside. Risk of electric shock. Turn power OFF and unplug power cord from machine before cleaning. Do not attempt repairs. Repairs must be made by authorized Cummins- Allison Corp. personnel. Plug three-prong grounded plug (supplied) into properly grounded three- prong outlet. -
Page 12: Setting Sd Detection
To adjust the sensitivity for food stamps when in COUNT mode, follow the same procedure used to set up for currency. Setting SD Detection If your JetCount is equipped to detect counterfeit currency (models 4021 and 4022) Suspect Document Detection is enabled by pressing SD. Be sure SD is set to ON in the Key Lockout Setup Field. -
Page 13: Thickness Adjustment Dial
To set individual sensitivity levels for UV, Fluorescence and Magnetics, press and hold down SD for 2-3 seconds. Press KEY 4 to set sensitivity settings to LOW, MED or HI for COUNT mode. In VALUE mode, each denomination ($1-$100) may be set independently to LOW, MED or HI. -
Page 14: Memory Levels
multiplier to each note counted. You may use the VALUE key to toggle to the desired denomination, or press the Direct Access Denomination key. The display will indicate the denomination selected Memory Levels JetCount has two memory levels: Memory Level Description Strap Limits can be set at any number between 1-100 and infinity. -
Page 15: Printed Reports
Printed Reports Port 1 or 2 on the back of the JetCount (find the connectors in the lower right corner when facing the front of the machine) is designed for the connection of a printer. The printer can be enabled or disabled during the setup process. - Page 16 JETCOUNT SETUP COMM REPORT NORMAL DATE______________________________ Serial Number: 123456 OPTIONS CORE:020-4020-24R01 020-4020-25R01 DEFAULT TYPE FACTORY SD FUNCTION CONTROL FUNCTION SETTING AUDIO ALARM STATUS SUSP DOC STRAP KEY7 STRP LIM CHAIN STRAP KEY8 DOUBLE STRAP KEY9 STRAP KEY10 HLF NOTE STRAP KEY11 STRAP KEY12...
- Page 17 SUSPECT DOCUMENT $100 COUNT SUSPECT DOCUMENT SELECTION MENU DENOM SENS UV FLUOR MAG $100 $100 $100 COUNT COUNT COUNT SPEED HIGH VALUE COUNT DENOMINATION $1 © 2012 Cummins-Allison Corp.
-
Page 18: How To Use Count Mode
How to Use Count Mode Count mode counts any currency, food stamps, etc., that fit the hopper size. In this mode, JetCount is only counting “slips of paper” (no currency scanning is taking place). Therefore, the COUNT total reflects the number of pieces. When the ADD function is ON, JetCount will accumulate totals until RESET is pressed to clear count totals. -
Page 19: Direct Access Strapping
Direct Access Strapping The optional Direct Access Strapping keys give the operator direct access to preset strap limits. Without this option, straps may be set by pressing STRAP and scrolling to a preset value or holding down STRAP for other values. Pressing a Strap key of 50 would produce this screen: Strap Density... -
Page 20: Batch Accumulation, Add Key On
In this case, the display reads: Strap Density Denomination COUNT Count Speed Removing notes from the stacker resets the Batch count to zero and, if a printer is enabled, a Batch Report automatically prints. Reaching a Strap Limit also resets the Batch count to zero. Batch counts may be manually reset to zero by pressing RESET. - Page 21 Continuing this example, the operator now runs 70 more coupons. The display reads as follows: Strap Density Denomination COUNT Count Speed Clearing totals when JetCount is in ADD mode is accomplished by pressing RESET and, if a printer is connected, a report automatically prints. ©...
-
Page 22: How To Use Value Mode
How to Use Value Mode JetCount can be used to process any document or note that fits in the hopper. It can also be used to process U.S. currency if the machine is equipped with VALUE mode. Because JetCount does not “read” the note’s value, it is necessary to preset JetCount before processing currency. -
Page 23: Batch Accumulation, Add Key Off
The optional Direct Access Strapping keys give the operator direct access to preset Strap Limits. To set a strap limit of 50, press a strap key of 50 to produce this screen: Strap Density Denomination Count Speed Place currency in the hopper and JetCount will begin counting each note. The machine will add the value of all the notes based on the chosen denomination key. -
Page 24: Batch Accumulation, Add Key On
Strap Density Denomination $150 Count Speed The $150 appearing at the center of the bottom line of the display is the total of all $1s and $5s processed to this point. Continuing with the $10 notes, the screen reads: Strap Density Denomination $230... - Page 25 Pressing the DENOM key twice or the Direct Access key prepares the JetCount to process $5 notes. Processing the $5 notes will produce this screen: Strap Density Denomination $150 Count Speed The $150 appearing at the center of bottom line of the display is the total of all the $1 and $5 notes processed to this point Continuing with the $10 notes, the screen reads: Strap...
-
Page 26: Special Mode Menu
Special Mode Menu Both external ports ARE NOT compatible with phones or network connections, including Ethernet devices. Never plug a phone or network connection, including Ethernet devices, into either external port. Equipment damage may occur. These special modes only should be accessed by trained personnel. Incorrect use can negatively impact operation of the JetCount. -
Page 27: Setup Fields
Count Speed Diagnostic Setup contains special setup options used by trained Cummins Allison service technicians. Press KEY 5 to return to Special Mode option 1) USER SET UP. To exit the Special Mode Menu and return to normal operation, press KEY 7. - Page 28 Press KEY 3 for the arrow prompt to view options and make changes. Strap Density Denomination 10) FUNCT SETTIN → STRAP KEY 7 Count Speed Press KEY 13 or KEY 14 to view sub-selections. For this example, press KEY 13 or KEY 14 to change to DENOM keys.
-
Page 29: Default Type
Default Type Because JetCount can be used in a number of different working environments, it is built with two pre-programmed default settings: a “Factory” setting and a “User” setting. The “User” setting allows you to customize the machine’s default settings. After all necessary fields have been changed, be sure Default Type is set to USER and default the machine in Special Modes Menu to save the new settings. -
Page 30: Audio Alarm Status
Never plug a phone or network connection, including Ethernet devices, into either external port. Equipment damage may occur. These ports are used when interfacing with a computer (COMP); Cummins Allison Information Settlement System (CISS); Cummins Allison Information Settlement System with Status (CISS+ST);... -
Page 31: Comm Report
This field enables Normal Communications Report format or Wedge Communications Report format. When connected to the Cummins Allison Software Wedge, be sure to set Port 1 or Port 2 to standard computer interface (COMP) and COMM Report to “Wedge.” In all other circumstances, set COMM Report to “Normal.”... -
Page 32: Function Key Setting
Key Lockout Option SD Function Results Control MAG UV MAG UV • If Mag and UV Option is OFF, Key Lockout for both options is automatically set to OFF. However, if the Option is changed to ON, Key Lockout will not revert to the ON setting. •... -
Page 33: Remote Display Count
Remote Display Count When the machine is connected to the remote display, enabling this feature to COUNT allows the JetCount to display the piece count. If this feature is set to VALUE, then the value amount will be displayed. © 2012 Cummins-Allison Corp. -
Page 34: Reference
Reference Daily Cleaning Procedures Daily cleaning of the JetCount is recommended to ensure maximum productivity and reliability, especially for high-volume applications, as well as for those processing highly circulated (dirty) notes. Recommended Cleaning Materials Simple Green, the recommended cleaning agent, can be an eye irritant. Avoid eye contact. - Page 35 Turn power OFF (rocker panel to 0). Disconnect power cord from the back of the JetCount. Raise hopper. Remove feeder plate as shown below. Use a microfiber towel to clean the black start sensor at the top, middle of the feeder plate, as identified at left. Use a Simple Green Safety Towel to remove dirt buildup from the upper and lower aluminum rollers.
- Page 36 If there is heavy buildup on the aluminum rollers, remove it with a clean, soft eraser as shown. Use a Simple Green Safety Towel to clean all rubber sections of the large, black feed rollers. Rotate the rollers. Also clean the flat, center rubber-drive tire, as identified at left. Use a microfiber towel or vacuum to remove any remaining dust in the bottom stacker.
- Page 37 Clean and lower hopper. Carefully reconnect power cord. Turn power ON (rocker panel to I). Perform a test run with some notes. © 2012 Cummins-Allison Corp.
-
Page 38: Stopping Conditions And Recovery Steps
Stopping Conditions and Recovery Steps The following conditions cause the machine to stop and require action by the user. Condition Description Documents are fed from the top hopper to the stacker until the hopper is empty. NORMAL “TIME-OUT” The machine will “time-out” in 2 seconds and is ready for the next group of documents. - Page 39 Condition Description The machine has run two or more documents through the reading mechanism without the proper spacing. The display will read CHAIN DETECTED. Remove the CHAINS documents from the stacker and place them back into the hopper. Press RESET (KEY 1).
-
Page 40: Machine Specifications
Machine Specifications Processing Speed 600, 800, 1,000, 1,200, 1,400 and 1,600 notes per minute Counting Accuracy 99.99% Hopper Capacity 300 notes Stacker Capacity 150 notes Minimum: 2.44” (H) x 3.5” (L) Document Size Maximum: 3.5” (H) x 7.12” (L) Dimensions 9.5”... -
Page 41: Safety Messages And Advisories
Glossary Safety Messages and Advisories Icon Definition Warning indicates a hazardous situation which, if not avoided, could result in death or serious injury. Caution indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. Notice is used to address practices not related to physical injury. In this manual, notice indicates a situation which, if not avoided, could result in property damage. - Page 42 Term Definition Factory Mode A special set of pre-programmed defaults for the JetCount Setup Fields. Hopper The area on top of the JetCount where documents are placed for processing. Key is used to reset counts to zero. The RESET key is also used to restart the Reset machine after a stopping condition.
-
Page 43: Warranty Information
Warranty Information Equipment Warranty The Equipment shall conform to the specifications set forth in SELLER’s Quotation or published specification sheets. No changes in specifications shall be made without the written consent of SELLER. SELLER WARRANTS ALL NEW EQUIPMENT TO BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP UNDER NORMAL USE AND SERVICE FOR THE SPECIFIED WARRANTY PERIOD. -
Page 44: Disclaimer And Limitation Of Liability
SOFTWARE PERFORM AS WARRANTED, BUYER MAY RETURN THE EQUIPMENT TO SELLER AT BUYER’S EXPENSE AND RECEIVE A REFUND OF THE PURCHASE PRICE LESS A REASONABLE ALLOWANCE FOR BUYER’S USE. Disclaimer and Limitation of Liability The warranties herein shall be applicable only if the Equipment shall be the property of the original purchaser or user and shall have been properly used, operated and maintained in accordance with the manual or instructions provided with the Equipment and for the purpose for which sold. - Page 45 852 Feehanville Drive Mt. Prospect, IL 60056 800 786 5528 cumminsallison.com This manual contains proprietary information of Cummins-Allison Corp. It is intended solely for the information and use of parties authorized by Cummins-Allison Corp. to maintain the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without express written permission of Cummins-Allison Corp.
