Installing the Device

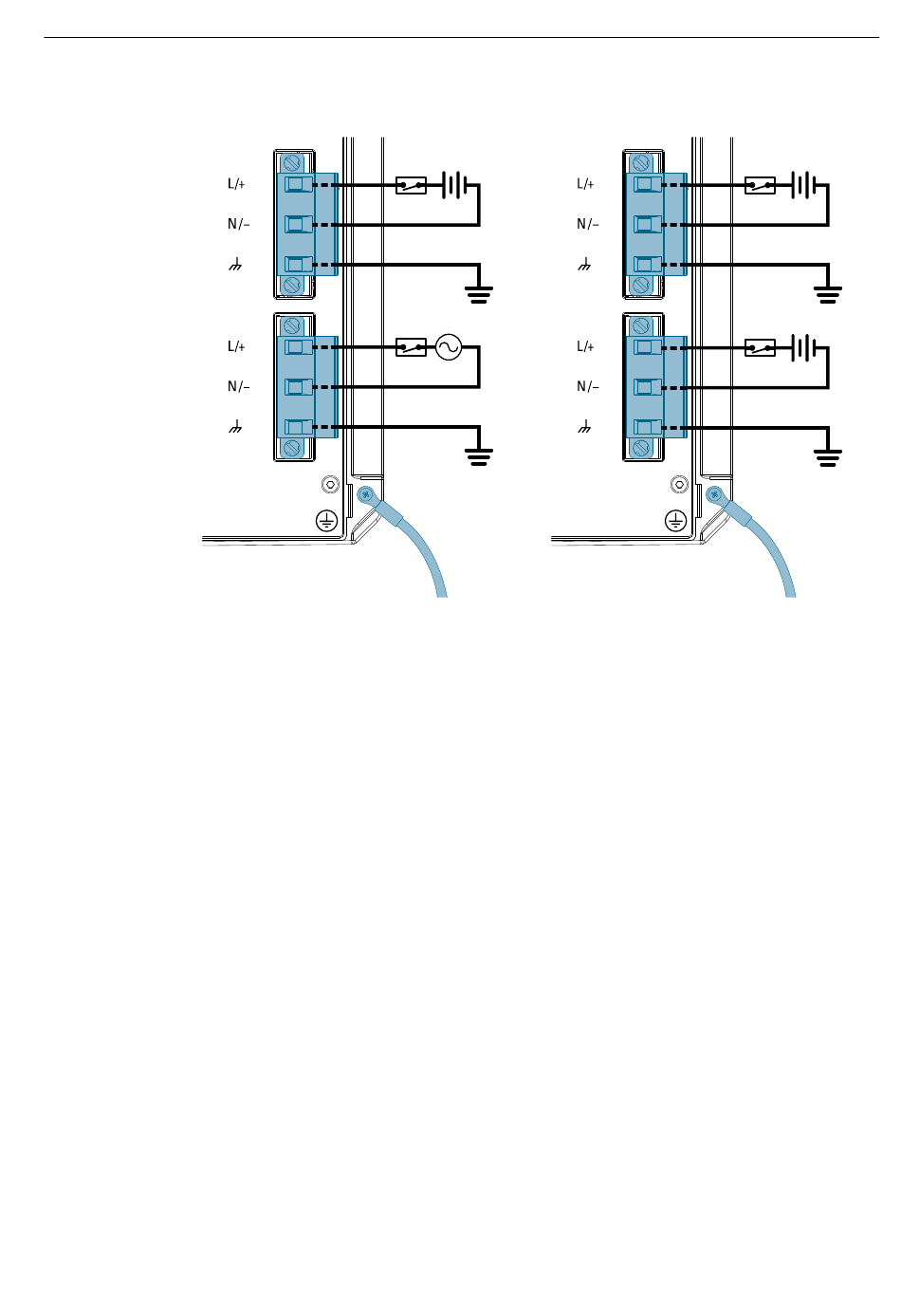

2.6.2 Wiring Examples
Figure 2.13
18
-
+
Dual HI AC and DC Power
Supplies

Figure 2.14
Dual HI DC Power Supplies
Installation Manual, 04/2022, C79000-G8976-1404-11
-
+
-
+
RUGGEDCOM RSG908C
