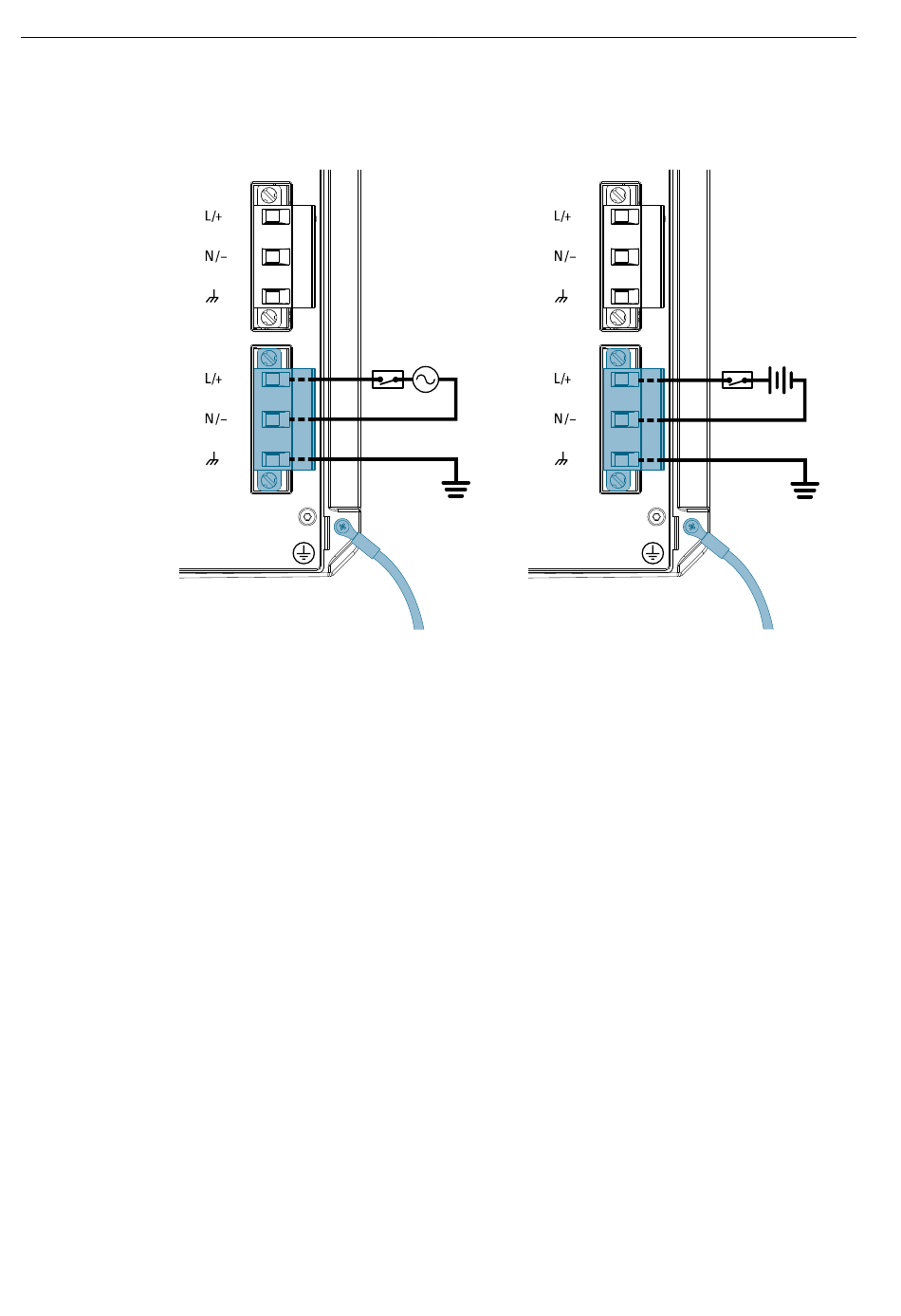

HI Power Supply Configurations
Figure 2.11
RUGGEDCOM RSG908C
Installation Manual, 04/2022, C79000-G8976-1404-11
Single HI AC Power Input
Configuration
2.6.2 Wiring Examples

Figure 2.12
Single HI DC Power Input
Configuration
Installing the Device
-
+
17
