London
NOTE: Do not secure the drain hose to the
other hoses at the roof level. The drain
hose must be lower than the London HVAC
unit.

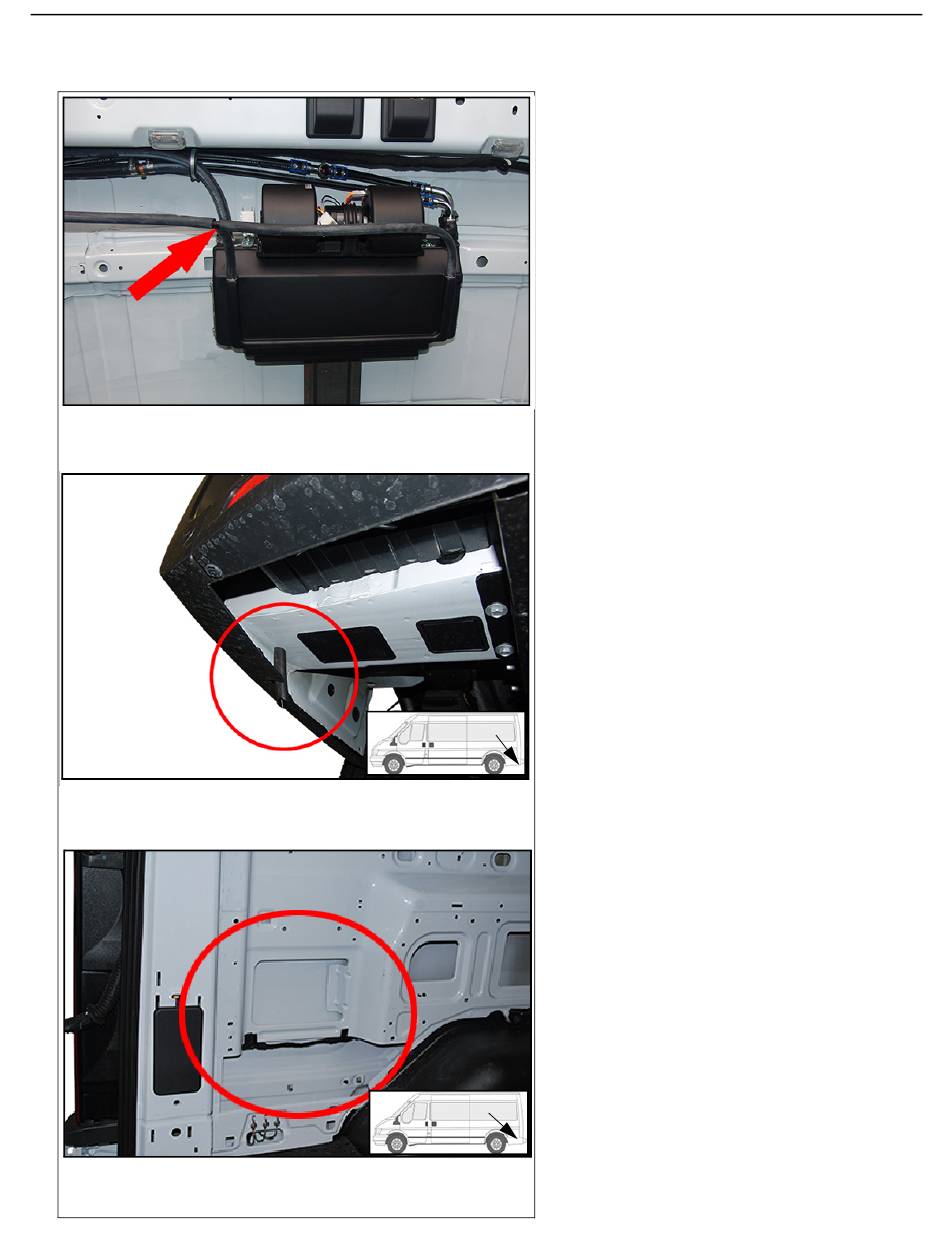

27. Connect the drain hoses to the London
HVAC unit. Tie both sides together with a
"T" fitting.
28. Route the drain hose from the London
HVAC unit assembly down the left-rear
corner of the vehicle and through the factory-
supplied hole in the floor.
• Cut the drain hose about 1 in. (25 mm)
from the bottom of the floor at a 45°
angle, away from the direction of travel.
Electrical Installation
29. Fabricate and install a panel to attach the
fuse block and relay strip to.
20
Ford Transit
