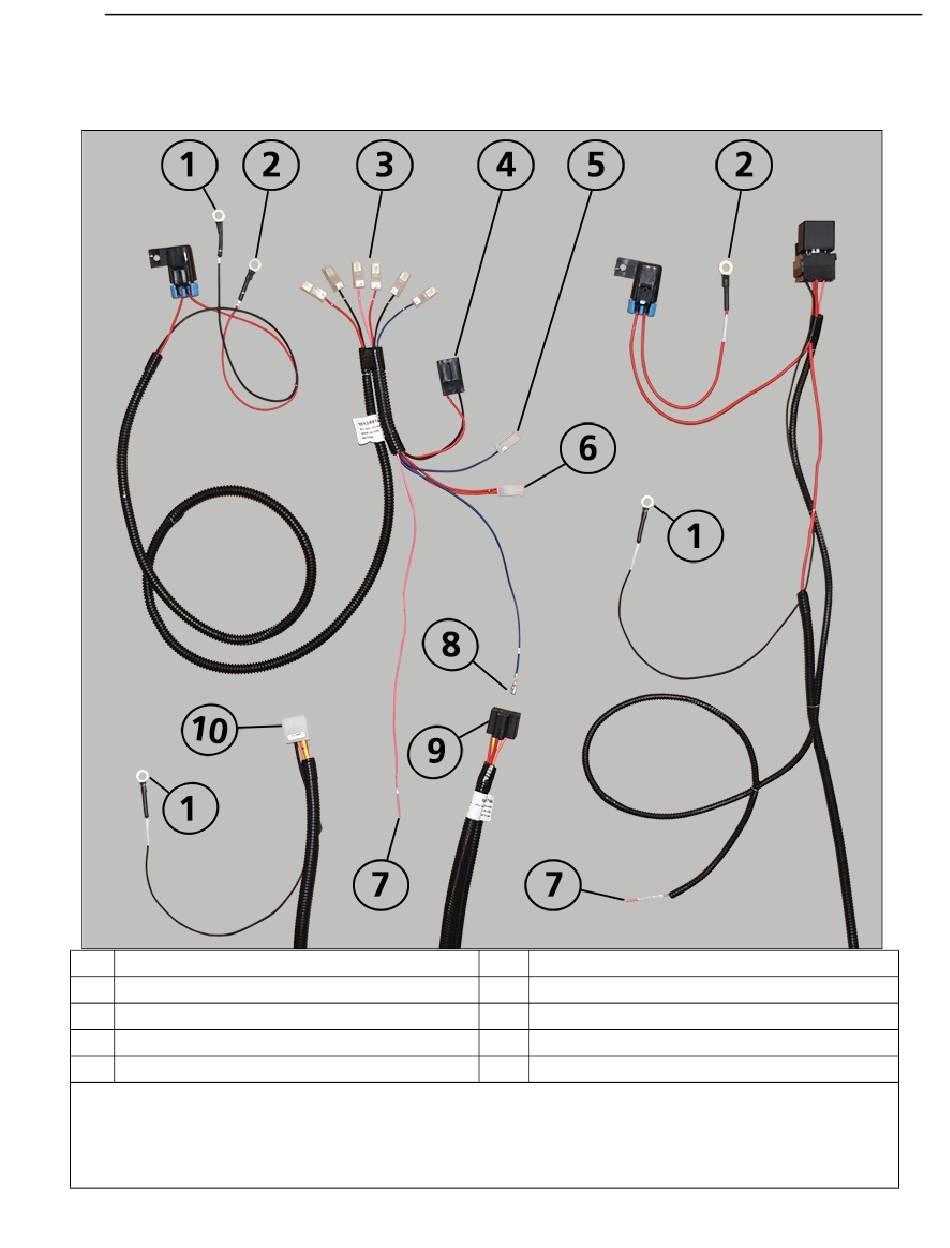

Refer to the image below for electrical connections as needed
1
Ground
3
NEO controller connections (*see below)
5
Extreme board jumper (not used)
7
12V Ignition on
9
Blower connector at Neo controller
*J1
Red
*J3
Black
*J5
Black
Electrical Installation
2
12V constant power
4
Refrigerant valve
6
Thermostat
8
Blower ON signal wire
10
Blower connector at evaporator
See Item #3 Above
*J2
Blue
*J4
Pink
*J6
Red
