Ford Transit

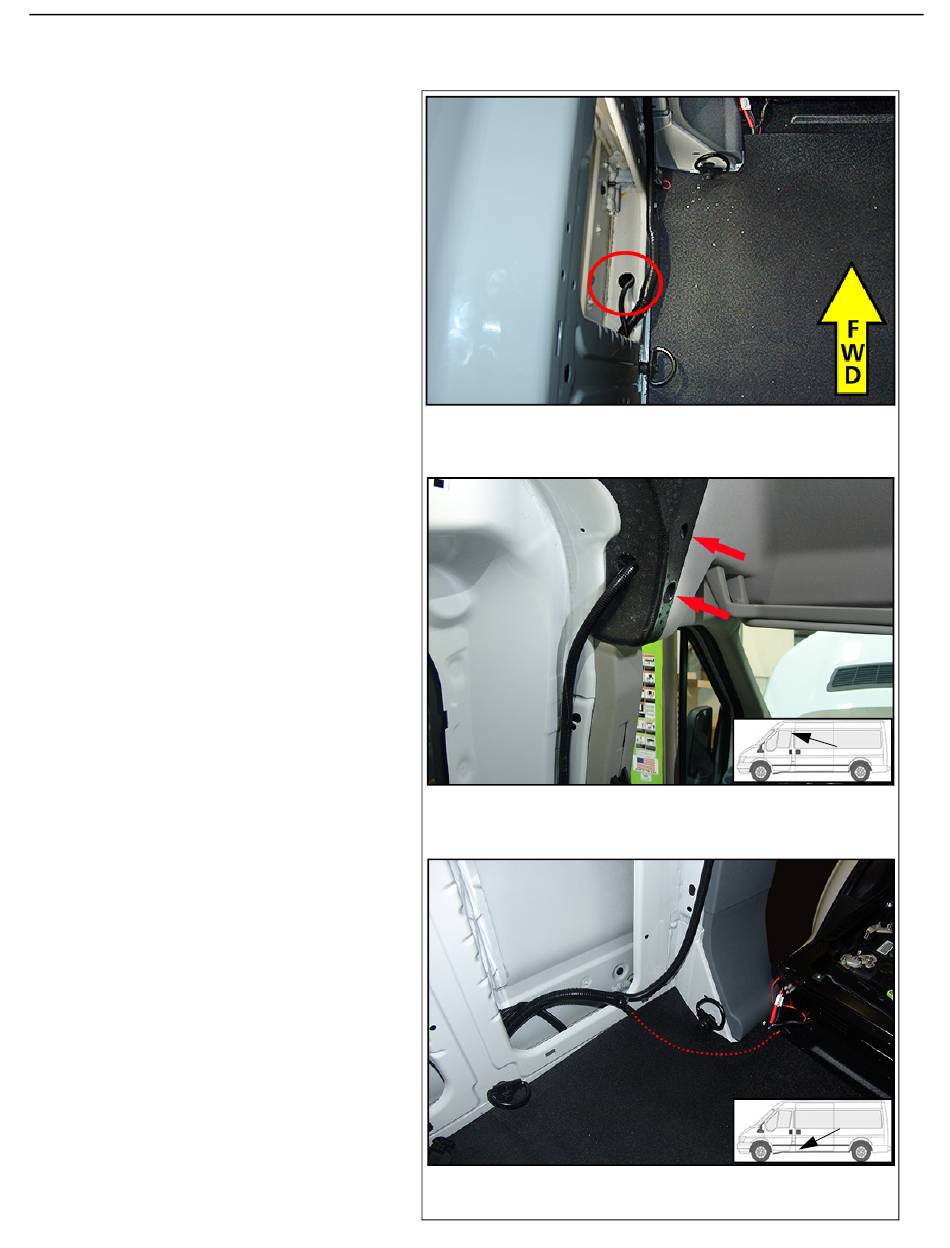

36. Route the coolant pump harness through the
hole.
NOTE: Headliner shown installed for refer-
ence purposes.
37. Drill a 1.25 inch (32 mm) hole in the rear of
the left foam panel, approximately centered
between the two indents. Route the control
panel wiring harness through the hole and to
the top center of the windshield. Secure as
necessary.
38. Route the power portion of the wiring
harness under the flooring to the battery
compartment.
