Hose Installation

NOTE: Before cutting any hoses ensure
there is enough hose for proper routing
and securing of the hose.

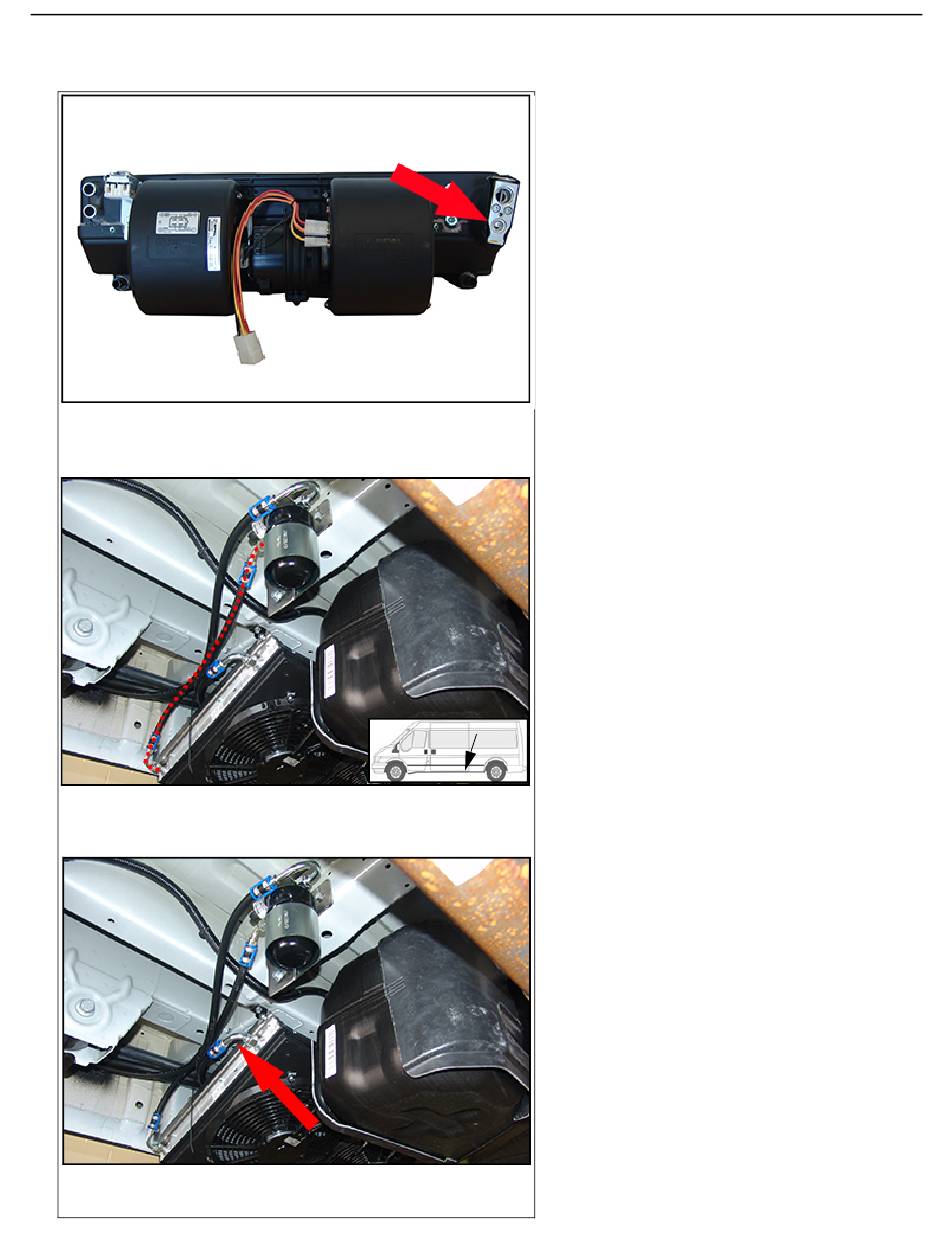

15. Using a #6 90º and a #6 180º fitting,
connect a hose between the evaporator high-
pressure port and the outlet of the receiver/
dryer.
16. Using a #6 45º and a #6 90º fitting, connect
the receiver/dryer input port to the condenser
outlet port.
NOTE: Install the service ports in a location
that allows for servicing.
17. Using a #8 90º fitting, route a hose from the
condenser inlet port to the area where service
ports are being installed.
