Chapter 1 Installation

1.4 Wiring

1.4.1

Connection of cables to Display unit

Connect the power cable and cables from the transducer to the connectors on the Display
unit.
1-26

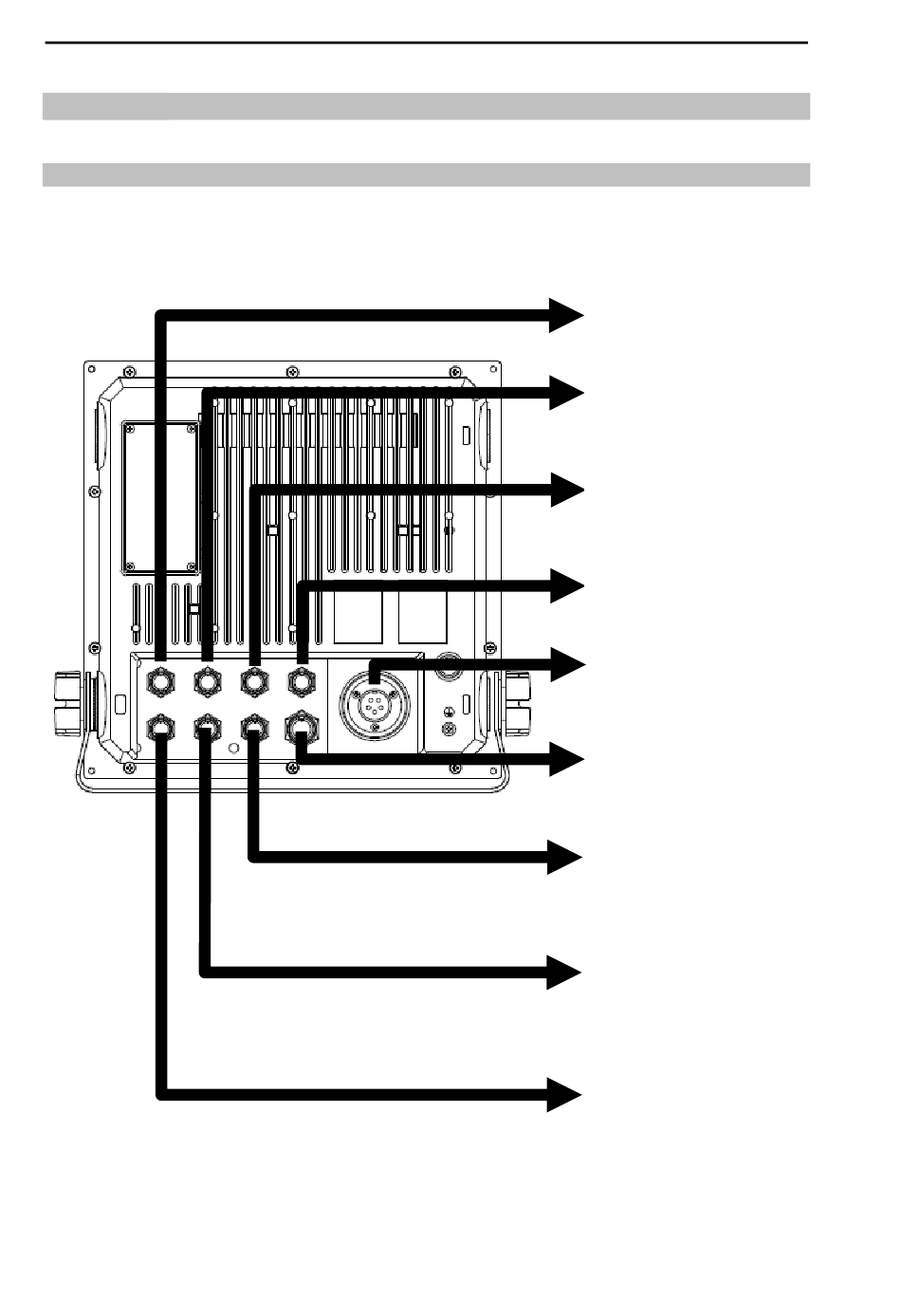

Fig. 1.21 Cable connections
CVS-872D
(J1)
● External synchronous
input/output
External echo sounder
(J2)
● Sona-Tone
TM
output
Line output for speaker
with amplifier
(J3)
● NMEA2 input/output
(12 V Power output)
GPS, plotter etc
(J8)
● NMEA1 input/output
GPS, plotter etc.
(J7)
● Transducer
To transducer via junction
box (JB-34)
(POWER)
● Power input
10.8 VDC to 31.2 VDC
(J6)
● via junction box (JB-34)
・XID
・Water temp. sensor data
input
(J5)
● External monitor output
Analog RGB
(J4)
● CCD camera input
0092607062-01
