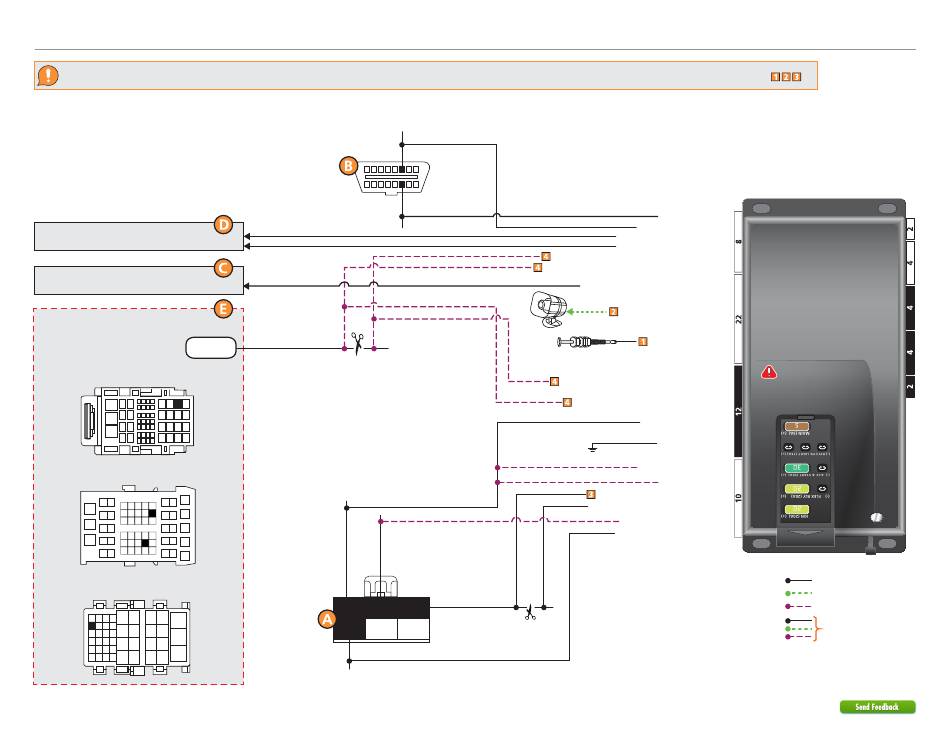

Wiring diagram
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
B-CAN Wires
Refer to the "Vehicle connections" section.
Parking Lights
Refer to the "Vehicle connections" section.
EMS COM connections are only
needed if the vehicle has a
transponder/immobilizer.
Connector
Refer to the Vehicle connections section
for the connector, pin and wire color.
1 - EM11 White 55-pin connector
10
OR
2 - EM11 White 58-pin connector
41
12
OR
3 - EM11 White 43-pin connector
10
7
933.HKHT1 3.20.193.2 2013 Hyundai Sonata
©2022 VOXX•DEI LLC. All rights reserved.
OBDII Diagnostic
(connector side view)
C-CAN High: pin 6
1
8
9
16
C-CAN Low: pin 14
Cut
(+) Accessory:
Orange,
pin 2
(+)12V:
Green,
pin 1
(+) Starter:
Yellow, pin 3
1
2
3
4
5
6
(+) Ignition: Pink, pin 4
Ignition Switch
(white connector)
HS CAN Low: Tan: 1
HS CAN High: Tan/Black: 2
HS CAN 2 Low: Orange/Brown: 3
HS CAN 2 High: Orange/Green: 4
Immo. Data Interrupt (vehicle side): Orange/Black: 7
Immo. Data Interrupt (connector side): Yellow/Black: 8
(-) Parking Lights Output: Lt. Green/Black: 1
(+) Siren Output: Brown/Red: 11
Siren
(-) Hood Input: Gray: 21
Hood Pin
Immo. Data Interrupt (vehicle side): Blue/White: 1
Immo. Data Interrupt (connector side): Blue: 3
(+) 12V Input: Red: 6 & 12
(-) Ground: Black: 10
(+) 12V Input: Red/Black: 2
(+) 12V Input: Red: 5
Starter Input (connector side): Green: 6
(+) Starter Output (vehicle side): Violet: 7
(+) Accessory Output: Orange: 8
(+) Ignition Input/Output: Pink: 10
CUT
).
IMPORTANT:
Position the
fuses correctly!
Slide to open
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
