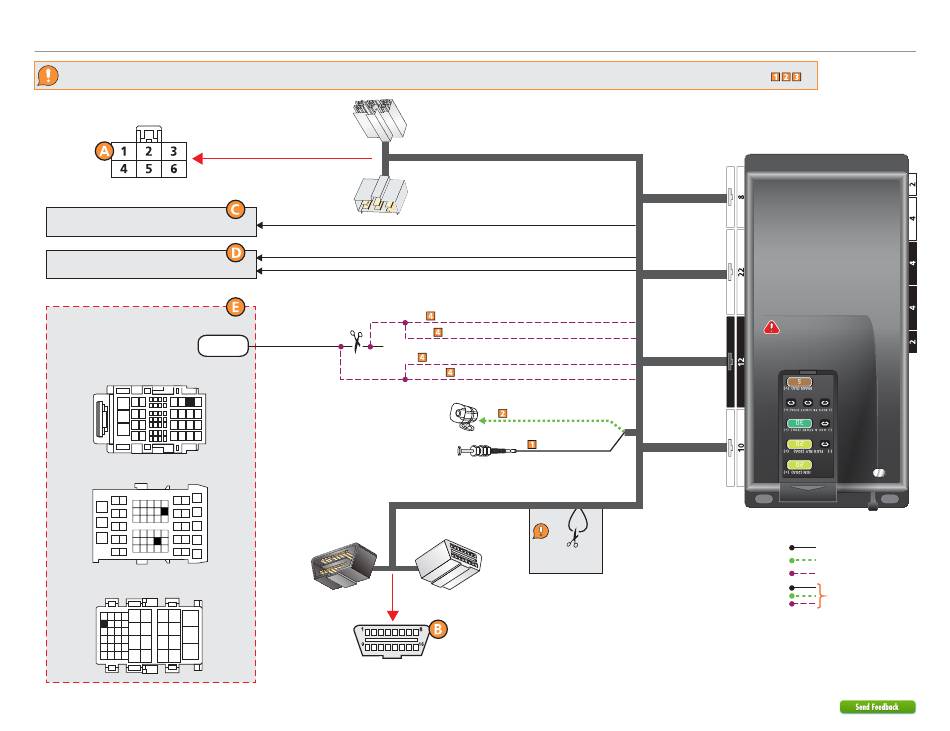

Wiring diagram
with
T-Harness (THHYN3)
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Ignition Switch
Parking Lights
Refer to the "Vehicle connections" section.
B-CAN Wires
Refer to the "Vehicle connections" section.
EMS COM connections are only
needed if the vehicle has a
transponder/immobilizer.
Connector
Refer to the Vehicle connections section
for the connector, pin and wire color.
1 - EM11 White 55-pin connector
10
OR
2 - EM11 White 58-pin connector
41
12
OR
3 - EM11 White 43-pin connector
10
6
933.HKHT1 3.20.193.2 2013 Hyundai Sonata
©2022 VOXX•DEI LLC. All rights reserved.
DS4+
THHYN3 (Optional T-Harness)
(-) Parking Lights Output: Lt. Green/Black
HS CAN 2 Low: Orange/Brown
HS CAN 2 High: Orange/Green
Immo. Data Interrupt (vehicle side): Orange/Black
Immo. Data Interrupt (vehicle side): Blue/White
Immo. Data Interrupt (connector side): Yellow/Black
Cut
Immo. Data Interrupt (connector side): Blue
(+) Siren Output: Brown/Red
Siren
Hood Pin
OBDII Diagnostic
(connector side view)
8-Pin White Connector
22-Pin White Connector
12-Pin Black Connector
(-) Hood Input: Gray
10-Pin White Connector
Cut the
Yellow/Black loop
for this installation.
).
IMPORTANT:
Position the
fuses correctly!
Slide to open
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
