Programming WITH HS CAN & FT CAN connections & WITHOUT Transponder Immobilizer
(For security-only programming, refer to "Module programming for security-only installations".)

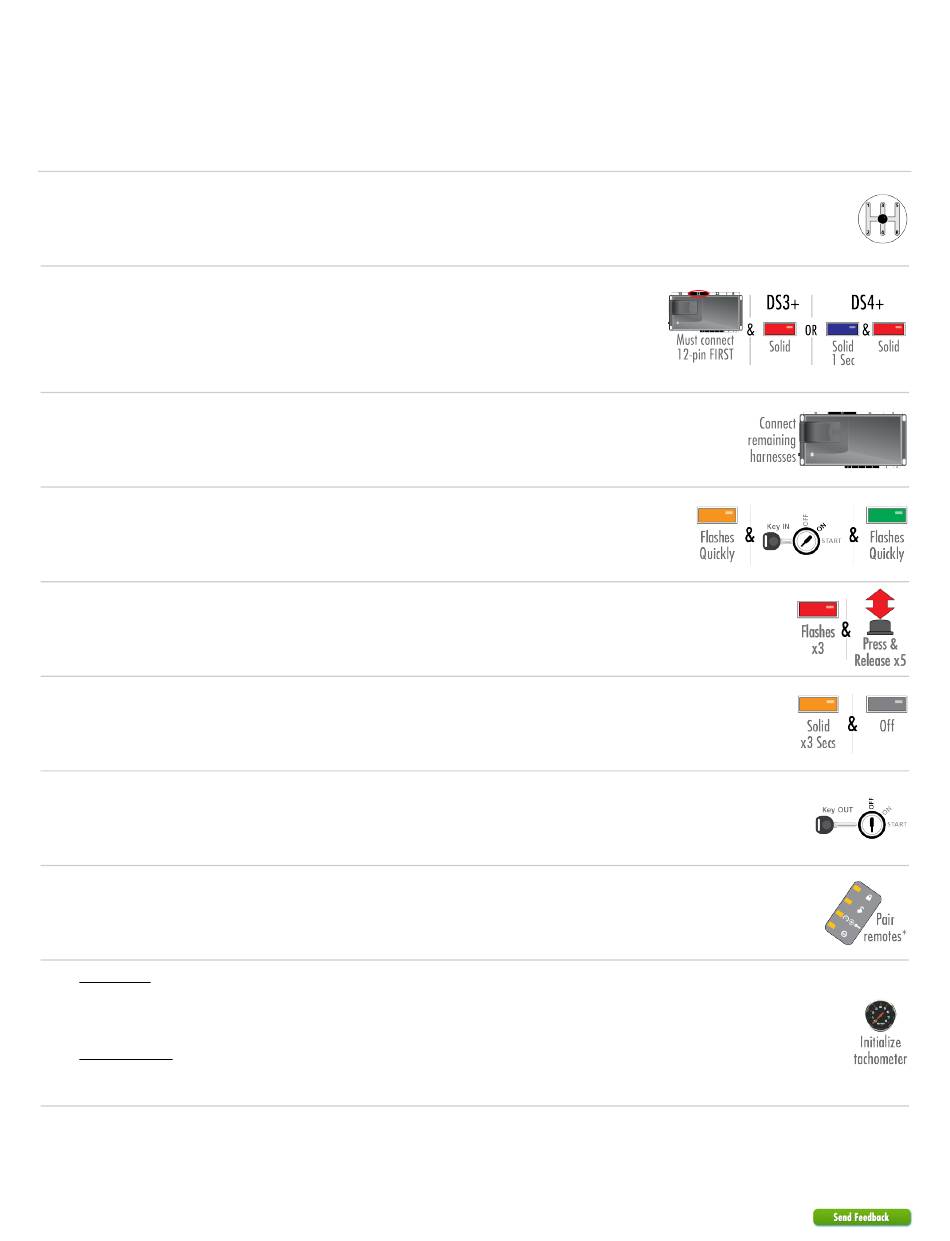

Please ensure that the vehicle is in a safe location, and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
DS3+: Connect the 12-pin main power harness to the DS3+ module FIRST.
Wait until the LED turns ON solid red before proceeding to the next step.
2
DS4+: Connect the 12-pin main power harness to the DS4+ module FIRST.
The LED will turn ON solid Blue for 1 second to confirm Bluetooth communication.
Wait until the LED turns ON solid red before proceeding to the next step.
3
Connect the remaining harnesses to the module.
The LED starts flashing orange quickly. (If the LED is still solid red, press Unlock on the OEM
4
remote.)
Insert and turn the key to the ON position. The LED starts flashing green quickly.
5
When the LED flashes red 3 times, press the programming button 5 times.
6
The LED turns ON solid orange 3 seconds, then shuts OFF.
7
Turn the key to OFF and remove it from the ignition barrel.
Pair remotes (if applicable). For information on how to pair a specific remote, please refer to
8
its corresponding owner documentation, which can be found inside the product packaging of
the complete system or on www.directechs.com.*
DATA Tach: Firmware using DATA Tach, the tachometer is preprogrammed for the vehicle
and no further action is required. For instructions on how to adjust the tach or use Virtual tach,
refer to "Initialize Virtual Tach (not needed with hardwired or data tach applications)".
9
Hardwire Tach: Firmware using the Violet/White Hardwired Tach input will require
programming. For instructions on how to program or adjust the tach or use Virtual tach, refer
to "Initialize Virtual Tach (not needed with hardwired or data tach applications)".
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
13
933.HKHT1 3.20.193.2 2013 Hyundai Sonata
