Module programming for security-only installations

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.

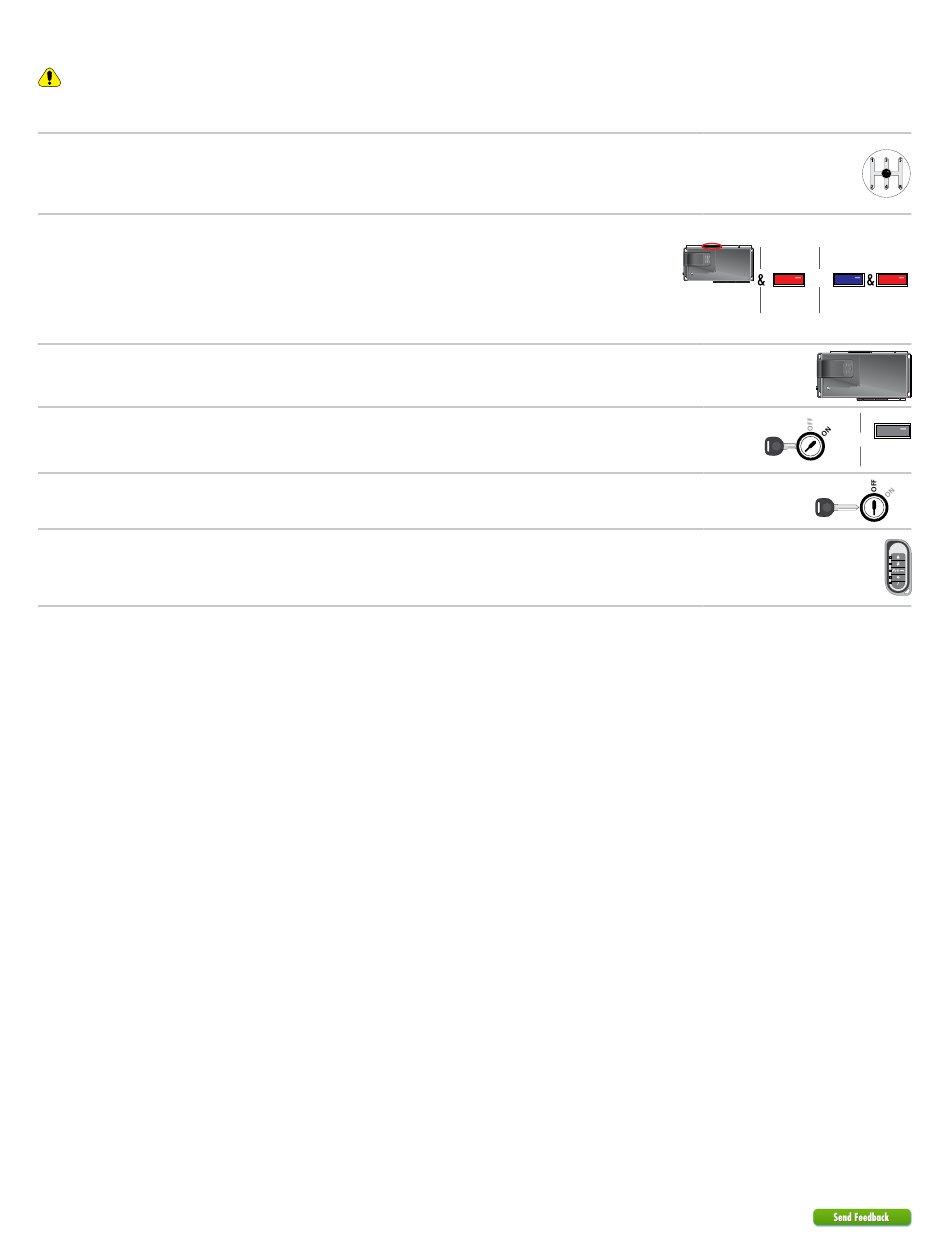

To connect the module:
Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles
1
equipped with a manual transmission, make sure the gearshift is in the neutral position.
Connect the 12-pin main power harness to the module.
DS3+: Wait until the LED turns on solid red then proceed to the next step.
2
DS4+: The LED turns ON solid blue for 1 second to confirm Bluetooth communication.
Wait until the LED turns ON solid red, then proceed to the next step.
3
Connect the remaining harnesses to the module.
4
Insert and turn the key to the ON position and wait until the LED turns OFF.
5
Turn the key to the OFF position and remove it from the ignition barrel.
6
Pair remotes (if applicable).
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
