INSTALLATION GUIDE
DB3
2011 Subaru Outback - 403.SUBARU2 1.25
Designed by Installers for Installers
© 2017 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle's
electrical system and components.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIRECTED DB3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Directechs DIRECTED DB3

Summary of Contents for Directechs DIRECTED DB3

  • Page 1 INSTALLATION GUIDE 2011 Subaru Outback - 403.SUBARU2 1.25 Designed by Installers for Installers © 2017 Directed, Vista CA This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s electrical system and components.

  • Page 2: Table Of Contents

    Contents Introduction Pre-installation and application warnings Wiring diagram Key release connection Vehicle connections Connecting the module Module programming LED diagnostics and troubleshooting Soft reset Hard reset Feature programming Feature and option list Limited one year consumer warranty Quick reference guide...
  • Page 3 Warning! Safety first The following safety warnings must be observed at all times: • Due to the complexity of this system, installation of this product must only be performed by an authorized Directed dealer. • When properly installed, this system can start the vehicle via a command signal from the remote control. Therefore, never operate the system in an area that does not have adequate ventilation.

  • Page 4: Introduction

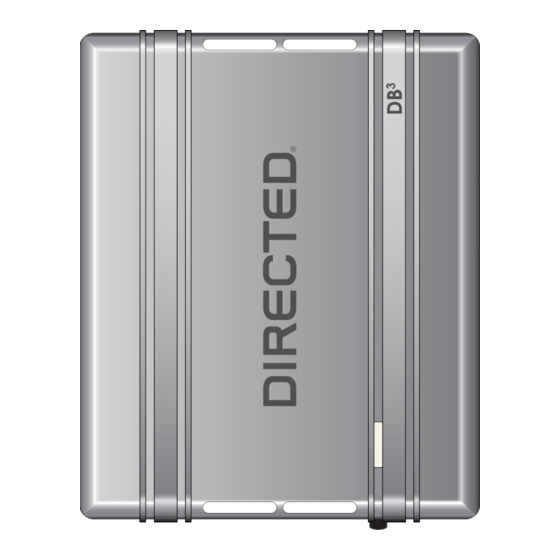

    DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. This solution is compatible with the 2011 Subaru Outback and offers the following features: •...

  • Page 5: Pre-Installation And Application Warnings

    Pre-installation and application warnings Firmware notes: This section highlights important information for this specific firmware and will assist in pricing accordingly, as well as bringing awareness to any operational or vehicle limitations. T-Harness Keys required for Keys required for compatible programming operation Key2GO is mandatory to control the immobilizer override in this firmware.

  • Page 6: Wiring Diagram

    Wiring diagram (+) Brake Status Input (-) Lock Output (-) Unlock Output (AC) Tach Input (-) Trunk Output (-) Trunk Status Input (-) GWR (Status) (-) Door Status Input (-) Ground (-) Ground (-) E-Brake Status Input (+) Accessory 1 (-) Parking Light B280, 34-pin white conn.

  • Page 7: Key Release Connection

    Key release connection Only required for Pit Stop Mode or Manual Transmission vehicles. BCM (behind the fuse box) (-) Ground (+) 12V (-) Key Release 2: pin 3 7 6 5 (-) Key Release Output: Blue/Red: 12 (+) 12V (+) Key Release 1: pin 4 B281, 35-pin white conn.

  • Page 8: Vehicle Connections

    Vehicle connections The connection information listed below is specific to the 2011 Subaru Outback. Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color Ref.
  • Page 9 Input 10-pin black connector (H3) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color Ref. H3/1 Green (-) W2W Only - Lock Input H3/2 Blue (-) W2W Only - Unlock Input H3/3 Red/White (-) W2W Only - Trunk Input H3/4 White/Violet No Connection...

  • Page 10: Connecting The Module

    Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. Flashing a module using your computer: 1. Connect the interface module to your computer using the XKLoader2.
