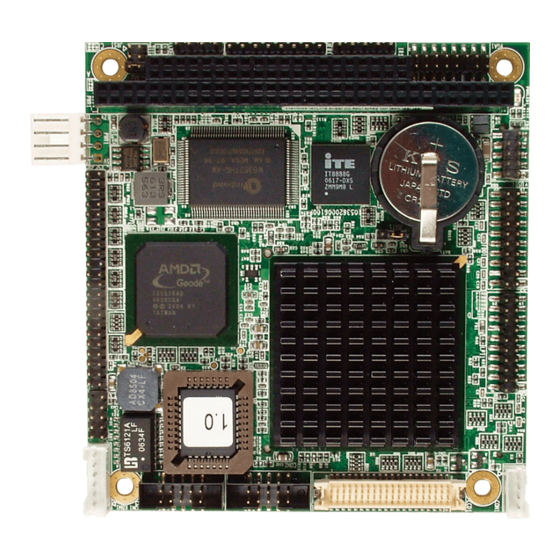

Em104-a5362
CPU
AMD Geode™ LX800
LAN
1 x Realtek 8100C
10/100 Base-T Ethernet
PC/104 CPU Module
Quick Installation Guide
- 1 -
Version 1.2
Chipset
AMD LX800
CS5536
I/O
PC104 / USB / IDE /
COM / LPT / FDD
4041536200120P
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Arbor Technology Em104-a5362
Summary of Contents for Arbor Technology Em104-a5362
- Page 1 Em104-a5362 PC/104 CPU Module Quick Installation Guide Version 1.2 Form Factor Chipset PC/104 CPU module AMD Geode™ LX800 AMD LX800 CS5536 Video Analog RGB/ TTL LCD 1 x Realtek 8100C PC104 / USB / IDE / 10/100 Base-T Ethernet COM / LPT / FDD ♦...
-
Page 2: Packing List
Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x Em104-a5362 1 x Driver CD 1 x Quick Installation Guide If any of the above items is damaged or missing, contact your vendor immediately. -
Page 3: Specifications
Specifications Form Factor PC/104 CPU module Processor AMD Geode™ LX800 Cache 64K L1 cache and 128K L2 cache Chipset AMD LX800 + CS5536 System Memory 1 x 200 pins DDR SO-DIMM up to 1GB SDRAM AMD Geode LX series CPU integrated VGA VGA/ LCD Controller controller with 2D Engine (Shared memory Max. -
Page 4: Board Dimensions
The Installation Paths of CD Driver Driver Path CHIPSET \Chipset\AMD\LX \ISA\ITE8888 \Ethernet\REALTEK\8100C \Graphics\AMD\LX Board Dimensions - 4 -... - Page 5 Jumpers/ Connectors Quick Reference Jumpers Label Function JRS1 COM2 RS-232/422/485 Selection JBAT1 Clear CMOS Setting Connectors Label Function CFD1 CompactFlash Type II Socket COM1 ~ COM2 Serial Port Connectors CON1 RS-422/485 Connector DIMM1 200-pin DDR SO-DIMM Socket FDD1 Floppy Disk Drive Connector IDE1 Primary IDE Connector Infrared (IR) Connector...
-
Page 6: Connectors Quick Reference
Connectors Quick Reference CON1 LCD1 COM2 COM1 KBM1 LAN1 CFD1 (Bottom side) LPT1 IDE1 FDD1 JBAT1 USB1 PWR1 PC/104 JRS1 VGA1 JFRT1 LLED1 - 6 -... - Page 7 Jumpers IDE1: Primary IDE Connector (3) Connector type: 2.00mm pitch 2x22-pin box headers JRS1: COM2 RS-232/422/485 Selection (6) Connector type: 2.00mm pitch 2x3-pin headers RS-232 Mode RS-422 RS-485 (Default) Description Description Short Open Open RESET# Open Short Open DATA7 DATA8 Open Open Short...
- Page 8 PC/104: PC/104 ISA Interface (5) VGA1: Analog RGB Output Connector (10) Connector type: 2.00mm pitch 2x8-pin headers Connector type: PC104 press fit 2x20-pin connector Pin Description Pin Description GREEN BLUE LLED1: LAN LED indicators (7) Connector type: 2.54mm pitch 1x4-pin headers Description 10 GND LAN1_ACTIVE-...
- Page 9 LPT1: Parallel Port Connector (14) LCD1: TTL LCD Connector (16) Connector type: 2.0mm pitch 2x10-pin headers Connector type: DF-13-40DP-1.25V Description Description Description Description STROBE VDD5 VDD5 PTD0 ERROR PTD1 INIT VDD3 VDD3 PTD2 SLIN Vcon (N.C.) PTD3 LPD1 LPD0 PTD4 LPD3 LPD2 PTD5...
- Page 10 CFD1: CompactFlash Type II Socket CFD1 does not support hot swap. Description Description DATA3 DATA11 DATA4 DATA12 DATA5 DATA13 DATA6 DATA14 DATA7 DATA15 CS#1 CD#3 IO READ IO WRITE IRQ14 CSEL IDE RESET DRDY ADDR2 DREQ ADDR1 DACK ADDR0 DASP DATA0 DIAG DATA1...
