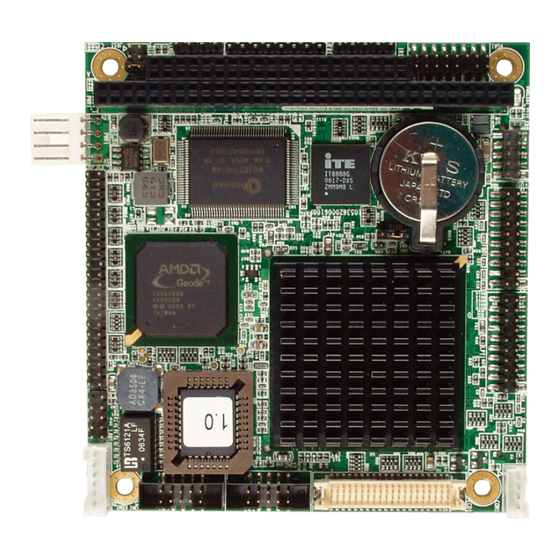

Pc/104 cpu module
Hide thumbs Also See for Em104-a5362:

Advertisement

Quick Links

Em104-a5362
PC/104 CPU Module
User's Manual
Version 1.2
2008.08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Em104-a5362 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Arbor Technology Em104-a5362

  • Page 1 Em104-a5362 PC/104 CPU Module User’s Manual Version 1.2 2008.08...
  • Page 2 This page is intentionally left blank.
  • Page 3: Table Of Contents

    Index Table of Contents Chapter 1 - Introduction ............1 1.1 Copyright Notice ............. 1.2 About User’s Manual ............. 1.3 Warning ................1.4 Replacing the lithium battery ........1.5 Technical Support ............1.6 Warranty ................1.7 Packing List ..............1.8 Ordering Information .............
  • Page 4 Index COM1/ COM2: Serial Port Connector ....20 CFD1: CompactFlash II Socket ......21 2.3 The Installation Paths of CD Driver ......Chapter 3 - BIOS ..............23 3.1 BIOS Introduction ............3.2 BIOS Setup ..............3.3 Standard CMOS Features .......... 3.4 Advanced BIOS Features ...........
  • Page 5: Chapter 1 Introduction

    Introduction Chapter 1 Introduction Chapter 1 - Introduction -  -...
  • Page 6: Copyright Notice

    Introduction 1.1 Copyright Notice All Rights Reserved. The information in this document is subject to change without prior notice in order to improve the reliability, design and function. It does not represent a commitment on the part of the manufacturer. Under no circumstances will the manufacturer be liable for any direct, indirect, special, incidental, or consequential damages arising from the use or inability to use the product or documentation, even if advised of the...
  • Page 7: Replacing The Lithium Battery

    Introduction 1.4 Replacing the lithium battery Incorrect replacement of the lithium battery may lead to a risk of explosion. The lithium battery must be replaced with an identical battery or a battery type recommended by the manufacturer. Do not throw lithium batteries into the trashcan. It must be disposed of in accordance with local regulations concerning special waste.
  • Page 8: Warranty

    Introduction 1.6 Warranty This product is warranted to be in good working order for a period of two years from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
  • Page 9: Packing List

    Introduction 1.7 Packing List  x Em04-a362  x Driver CD  x Quick Installation Guide If any of the above items is damaged or missing, contact your vendor immediately. 1.8 Ordering Information Em04-a362VL/ PC/04 CPU module with AMD Geode™ LX800 LX800 00MHz, CRT/LCD &...
  • Page 10: Specifications

    Introduction 1.9 Specifications Form Factor PC/04 CPU module Processor AMD Geode™ LX800 Cache 64K L cache and 28K L2 cache Chipset AMD LX800 + CS36 System Memory  x 200 pins DDR SO-DIMM up to GB SDRAM AMD Geode LX series CPU integrated VGA VGA/ LCD Controller controller with 2D Engine (Shared memory Max.
  • Page 11: Board Dimensions

    Introduction 1.10 Board Dimensions Unit:mm - 7 -...
  • Page 12 Introduction Unit:mm - 8 -...
  • Page 13: Chapter 2 Installation

    Installation Chapter 2 Installation Chapter 2 - Installation - 9 -...
  • Page 14: Block Diagrams

    Installation 2.1 Block Diagrams Analog R.G.B. AMD Geode 1 x 200pin LX800 CPU Memory Bus SO-DIMM Socket TTL 18/24 bit 500MHz PCI to ISA PC/104 PCI Bus ISA Bus Bridge PCI LAN Controller RJ-45 USB I/F 4 x USB AMD Geode Super IO IDE ATA I/F LPC I/F...
  • Page 15: Jumpers And Connectors

    Installation 2.2 Jumpers and Connectors LCD1 COM2 COM1 CON1 KBM1 LAN1 LPT1 IDE1 FDD1 JBAT1 USB1 PWR1 PC/104 JRS1 VGA1 JFRT1 LLED1 -  -...
  • Page 16 Installation Jumper / Connector Quick Reference Jumpers Label Function JRS COM2 RS-232/422/48 Select JBAT CMOS Jumper Settings Connectors DIMM 200 pins DDR SDRAM DIMM Socket PC04_ PC/04 for ISA Interface KBM PS/2 Keyboard and Mouse VGA CRT Display LCD TTL LCD Panel Connector COM ~ COM2 Serial Ports CON...
  • Page 17: Kbm1: Keyboard & Mouse Connector

    Installation KBM1: Keyboard & Mouse Connector (1) Connector type: 2.0mm pitch x6 pins wafer connector Description KB_DATA MS_DATA KB_CLK KB_VCC MS_CLK LAN1: Fast Ethernet Connector (2) Description Description N/C (Key) Connector type: 2.0mm pitch 2x pin header - 3 -...
  • Page 18: Ide1: 44 Pin Ide Connector

    Installation IDE1: 44 pins IDE Connector (3) Connector type: 2.0mm pitch 2x22 pin header Description Description IDE RESET DATA7 DATA8 DATA6 DATA9 DATA DATA0 DATA4 DATA DATA3 DATA2 DATA2 DATA3 DATA DATA4 DATA0 DATA N/C (Key) IO WRITE IO READ IO READY IDESEL DACK...
  • Page 19: Pc/104: Pc/104 Isa Interface

    Installation PC/104: PC/104 ISA Interface (5) Description Description Description Description IOCHCK# MEMCS6# SBHE# RST_DRV IOCS6# LA23 IRQ0 LA22 IRQ9 IRQ LA2 IRQ2 LA20 DREQ2 IRQ SA9 IRQ4 SA8 0WS# DACK0# SA7 +2V DREQ0 MEMR# IOCHRDY DACK# MEMW# SMEMW# DREQ SA9 SMEMR# DACK6# SA8...
  • Page 20: Jrs1: Com 2 Rs-232/422/485 Select

    Installation JRS1: COM 2 RS-232/422/485 Select (6) It can be configured COM 2 to operate in RS-232, RS-422 or RS-485 mode Connector type: 2.00mm pitch 2x3 pin header. Select RS-232 (Default) RS-422 RS-48 LLED1: LAN LED indicators (7) Connector type: 2.4mm pitch x4 pin header. Description LAN_ACTIVE- LAN_ACTIVE+...
  • Page 21: Ir1: Intrared Connector

    Installation IR1: Infrared Connector (9) Connector Type: 2.4mm pitch  pins header Voltage IRRX IRTX VGA1: CRT Connector (10) Connector type: 2.0mm pitch 2x pin header Description Description GREEN BLUE N/C (Key) VDDAT HSYNC VSYNC VDCLK USB1: USB Connector (11) USB supports two USB 2.0 w/ 480MB/s by pin header Description Description...
  • Page 22: Fdd1: 20 Pins Fdd Connector

    Installation FDD1: 20 pins FDD Connector (12) Connector type: 2.0mm pitch 2x0 pin header Description Description Drive density Select 0 N/C (Key) Drive Density Select  Write Data# Index# Write Gate# Motor Enable A# Track 0# Driver Select B# Write Protect# Driver Select A# Read Data# Motor Enable B#...
  • Page 23: Lpt1: 20 Pins Parallel Port Connector

    Installation LPT1: 20 pins Parallel Port Connector (14) Connector type: 2.0mm pitch 2x0 pin header Description Description STROBE PTD0 ERROR PTD INIT PTD2 SLIN PTD3 PTD4 PTD GND (Key) PTD6 BUSY PTD7 SELECT CON1: RS-422/ 485 Output Connector (15) Connector type: 2.0mm pitch x4 pins wafer connector RS-422 RS-48 Data+...
  • Page 24: Lcd1: Ttl Lcd Connector

    Installation LCD1: TTL LCD Connector (16) Connector type: DF-3-40DP-.2V Description Description VDD VDD VDD3 VDD3 Vcon (N.C.) LPD LPD0 LPD3 LPD2 LPD LPD4 LPD7 LPD6 LPD9 LPD8 LPD LPD0 LPD3 LPD2 LPD LPD4 LPD7 LPD6 LPD9 LPD8 LPD2 LPD20 LPD23 LPD22 FP_VS DOTCLK...
  • Page 25: Cfd1: Compactflash Ii Socket

    Installation CFD1: CompactFlash II Socket CFD does not support hot swap. Description Description PDD3 PDD PDD4 PDD2 PDD PDD3 PDD6 PDD4 PDD7 PDD CS#0 CS# PDIOR# PDIOW# IRQ4 CSEL# IDE_RST# PDRDY PDA2 PDREQ PDA PDACK# PDA0 IDE_ACT# PDD0 CFDIAG PDD PDD8 PDD2 PDD9...
  • Page 26: The Installation Paths Of Cd Driver

    Installation 2.3 The Installation Paths of CD Driver Driver Path CHIPSET \Chiset\AMD\LX \ISA\ITE8888 \Ethernet\REALTEK\800C \Graphics\AMD\LX - 22 -...
  • Page 27: Chapter 3 - Bios

    BIOS Chapter 3 BIOS Chapter 3 - BIOS - 23 -...
  • Page 28: Bios Introduction

    BIOS 3.1 BIOS Introduction The Award BIOS (Basic Input/Output System) installed in your computer sys- tem’s. The BIOS provides for a standard device such as disk drives, serial ports and parallel ports. It also adds password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.
  • Page 29: Standard Cmos Features

    BIOS 3.3 Standard CMOS Features “Standard CMOS Features” allows you to record some basic hardware configurations in your computer system and set the system clock and error handling. If the CPU card is already installed in a working system, you will not need to select this option.
  • Page 30 BIOS IDE Primary HDDs / IDE Secondary HDDs The onboard PCI IDE connectors provide Primary and Secondary channels for connecting up to four IDE hard disks or other IDE devices. Each channel can support up to two hard disks; the first is the “Master” and the second is the “Slave”.
  • Page 31 BIOS Halt On This field determines whether or not the system will halt if an error is detected during power up. All errors (default) Whenever the BIOS detects a non-fatal error, the system will stop and you will be prompted. No errors The system boot will not be halted for any error that may be detected.
  • Page 32: Advanced Bios Features

    BIOS 3.4 Advanced BIOS Features Quick Power On Self Test When enabled, this field speeds up the Power On Self Test (POST) after the system is turned on. If it is set to Enabled, BIOS will skip some items. Setting: Enabled (Default), Disabled. First/ Second Boot Device These fields determine the drive that the system searches first for an operating system.
  • Page 33: Boot Up Numlock Status

    BIOS Boot Up NumLock Status It allows you to activate the NumLock function after you power up the system. Setting: On (Default), Off. Security Option It allows you to limit access to the System and Setup. When you select System, the system prompts for the User Password every time you boot up.
  • Page 34: Advanced Chipset Features

    BIOS 3.5 Advanced Chipset Features CAS Latency Time It allows CAS latency time in HCLKs as 2 or 2.. The system board designer should set the values in this field, depending on the DRAM installed. Do not change the values in this field unless you change specifications of the installed DRAM or CPU.
  • Page 35: Flat Panel Configuration

    BIOS XOR MB0 Setting: Disabled (Default), Enabled. XOR Bit Select Setting: 8 (Default), 9, 20, 2. Video Memory Size In order to determine how much memory is allocated to the video graphics device. Setting: None, 8M (Default), 6M, 32M, 64M, 28M, 24M. Output display In order to specify the display devices the system is connected to.
  • Page 36: Integrated Peripherals

    BIOS 3.6 Integrated Peripherals OnChip IDE Devicev >>> On-Chip IDE Channel 1 The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately. Setting: Disabled, Enabled (Default). - 32 -...
  • Page 37 BIOS IDE Primary Master/Slave PIO It allows your system HDD controller to run faster. Rather than having the BIOS issue with a series of commands that transferring to or from the disk drive, PIO (Programmed Input/Output) allows the BIOS to communicate with the controller and CPU directly. When Auto is selected, the BIOS will select the best available mode.
  • Page 38: Onboard Fdc Controller

    BIOS SuperIO Device >>> Onboard FDC Controller Select “Enabled” if you wish to use it. Select “Disabled” if you don’t wish to use it. Setting: Disabled, Enabled (Default). Serial/ Onboard Parallel Port It allows you to select the onboard serial and parallel ports with their addresses.
  • Page 39 BIOS UR2 Duplex Mode Setting: Full, Half (Default). Use IR Pins Setting: RxD2,TxD2 , IR-Rx2Tx2 (Default). Parallel Port Mode Setting: SPP (Default) ECP+EPP Normal EPP Mode Select Setting: EPP.9, EPP.7 (Default) ECP Mode Use DMA Setting: , 3 (Default). - 3 -...
  • Page 40 BIOS IT8888 ISA Decode IO >>> It allows you to use the IT8888 ISA Decode IO menu to set the IO memory range for the onboard ISA. Decode I/O Space 0/ 1/ 2/ 3/ 4/ 5 It allows you to allocate system resources to the ISA bridge and to enable the function correctly.
  • Page 41: It8888 Isa Decode Memory

    BIOS Decode I/O Address 0/ 1/ 2/ 3/ 4/ 5 [15:4] It allows you to allocate an address to the ISA bus. The address may range from 000 to 0FFF. Decode I/O Size 0/ 1/ 2/ 3/ 4/ 5 It allows you to specify the size of the ISA bus. Setting:  Byte, 2 Bytes, 4 Bytes, 8 Bytes, 6 Bytes, 32 Bytes, 64 Bytes, 28 Bytes.
  • Page 42: Onboard Lan Boot Rom

    BIOS Decode Memory Speed 0/ 1/ 2/ 3 It allows you to specify the memory speed of the ISA bus. Setting: Subtractive Speed, Slow Speed, Medium Speed, Fast Speed. Decode Memory Addr. 0/ 1/ 2/ 3 [23: It allows you to allocate a memory address to the ISA bus. The address may range from 000 to 0FFF.
  • Page 43: Pnp/Pci Configurations

    BIOS 3.7 PNP/PCI Configurations PNP OS Installed It allows you to enable the PNP OS Install option if it is supported by the OS installed. Setting: No (Default), Yes. Reset Configuration Data It allows you to determine whether to reset the configuration data or not. Setting: Disabled (Default), Enabled.
  • Page 44: Irq Resources

    BIOS IRQ Resources It allows you to configure the IRQ / DMA Resources. Memory Resources It allows you to configure the Memory Resources. PCI/VGA Palette Snoop Some non-standard VGA display cards may not show colors properly. It allows you to set whether or not MPEG ISA/VESA VGA cards can display with PCI/VGA.
  • Page 45: Pc Health Status

    BIOS 3.8 PC Health Status Current CPU Temperature CPU/ MEM VCore VCC3/ +5V/ +12V/ VBAT(V)/ 5VSB - 4 -...
  • Page 46: Load Optimized Defaults

    BIOS 3.9 Load Optimized Defaults It allows you to load the default values to your system configuration. The default setting is optimal and enabled all high performance features. - 42 -...
  • Page 47: Set Password

    BIOS 3.10 Set Password Using Password to set a password that will be used exclusively on the system. To specify a password, highlight the type you want and press <Enter>. The Enter Password: message prompts on the screen. Type the password, up to eight characters in length, and press <Enter>.
  • Page 48: Save & Exit Setup

    BIOS 3.11 Save & Exit Setup Typing “Y”, you will quit the setup utility and save all the changes into the CMOS memory. Typing “N”, you will return to Setup utility. - 44 -...
  • Page 49: Exit Without Saving

    BIOS 3.12 Exit Without Saving Typing “Y” will quit the Setup utility without saving the modifications. Typing “N” will return you to Setup utility. - 4 -...
  • Page 50: Bios Beep Sound Code List

    BIOS 3.13 BIOS Beep Sound code list Beep Sound Message  short (Beep) System booting is normally 2 short (Beep) CMOS setting error  long -  short (Beep) DRAM error  long - 2 short (Beep) Display card or monitor connected error  long - 3 short (Beep) Keyboard error  long - 9 short (Beep)
  • Page 51: Award Bios Post Codes

    BIOS 3.15 Award BIOS POST Codes CFh Test CMOS read/write functionality Early chipset initialization: Disable shadow RAM, L2 cache (socket 7 and below), program basic chipset registers Ch Detect memory: Auto detection of DRAM size, type and ECC, auto detection of L2 cache (socket 7 and below) C3h Expand compressed BIOS code to DRAM Ch Call chipset hook to copy BIOS back to E000 &...
  • Page 52 BIOS Reserved HPM initialization (notebook platform) Reserved Check validity of RTC value; Load CMOS settings into BIOS stack. If CMOS checksum fails, use default value instead; Prepare BIOS resource map for PCI & PnP use. If ESCD is valid, take into consideration of the ESCD's legacy information;...
  • Page 53 BIOS Initialize EISA slot Reserved Calculate total memory by testing the last double last word of each 64K page; Program writes allocation for AMD K CPU Reserved Reserved 4Ch Reserved 4Dh Reserved Program MTRR of M CPU; initialize L2 cache for P6 class CPU & program cacheable range;...
  • Page 54 BIOS Reserved Reserved Reserved Enter AWDFLASH.EXE if: AWDFLASH.EXE is found in floppy dive and ALT+F2 is pressed Reserved Detect and install all IDE devices: HDD, LS20, ZIP, CDROM... Reserved Detect serial ports and parallel ports Reserved Reserved Detect and install coprocessor Reserved 7Ch Reserved 7Dh Reserved...
  • Page 55: Chapter 4 Appendix

    Appendix Chapter 4 Appendix Chapter 4 - Appendix -  -...
  • Page 56: I/O Port Address Map

    Appendix 4.1 I/O Port Address Map Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The following table lists the I/O port addresses used. Address Device Description 00000022 - 0000003F PCI bus 00000044 - 00000047...
  • Page 57: Interrupt Request Lines (Irq)

    Appendix 000003F8 - 000003FF Communications Port 00000778 - 0000077B Printer Port 00000A79 - 00000A79 ISAPNP Read Data Port 00000D00 - 0000FFFF PCI Bus 0000FC00 - 0000FCFF Realtek RTL839/80x family Fast Ethernet NIC 0000FF00 - 0000FF0F Standard Dual Channel PCI IDE Controller 4.2 Interrupt Request Lines (IRQ) Peripheral devices use interrupt request lines to notify CPU for the service required.
  • Page 58: Memory Address Map

    Appendix 4.4 Memory Address Map Address Device Description EE000000 - EEFFFFFF Standard Floppy Disk Controller EFFE8000 - EFFEBFFF AMD Win 2K/XP Graphics Driver EFFEC000 - EFFEFFFF AMD Win 2K/XP Graphics Driver EFFF0000 - EFFF3FFF AMD Win 2K/XP Graphics Driver EFFF4000 - EFFF7FFF Geode LX AES Crypto Driver EFFF8000 - EFFFBFFF AMD Win 2K/XP Graphics Driver...
