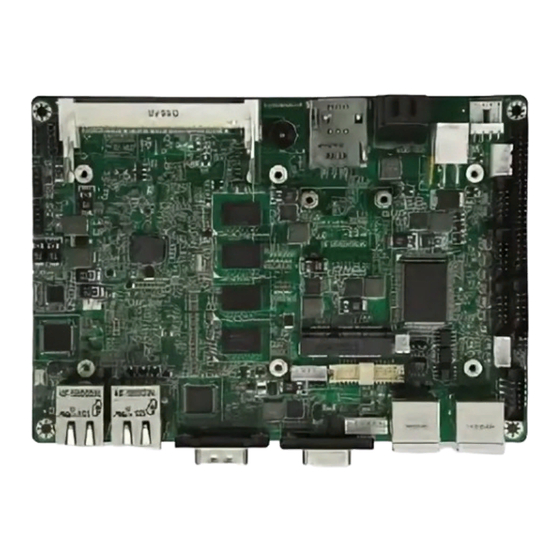

EmCORE-i290H
Form Factor
EPIC Compact Board
Video
Single Channel 18-bit
LVDS/ Analog RGB
I/O
Mini PCI/ Mini-Card/
SATA/ SIM/ USB/ COM/
DIO
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first at:
ftp://ftp.arbor.com.tw/pub/manual
Please do not hesitate to call or e-mail our customer service when you still can not
find out the answer.
http://www.arbor.com.tw
E-mail: info@arbor.com.tw
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Copyright
2012 All Rights Reserved.
®
CPU
Soldered onboard Intel
Atom™ N455 1.6GHz/
D525 1.8GHz Processor
LAN
2 x Realtek 8111E PCIe
Gigabit Ethernet
- 1 -
EPIC Compact Board
Quick Installation Guide
Chipset
®
®
Intel
Audio
Realtek ALC886 HD Audio
CODEC, Line-in/ Line-out/
Mic-in
Version 1.0
ICH8M
4041029000100P
Advertisement
Table of Contents
Related Manuals for Arbor Technology EmCORE-i290H
Summary of Contents for Arbor Technology EmCORE-i290H
- Page 1 EmCORE-i290H EPIC Compact Board Quick Installation Guide Version 1.0 Form Factor Chipset EPIC Compact Board ® ® Soldered onboard Intel Intel ICH8M Atom™ N455 1.6GHz/ D525 1.8GHz Processor Video Audio Single Channel 18-bit 2 x Realtek 8111E PCIe Realtek ALC886 HD Audio...
-
Page 2: Packing List
Packing List Before you begin installing your Compact Board, please make sure that the following materials have been shipped: 1 x EmCORE-i290H EPIC Compact Board with heat sink 1 x Power cable 1 x Quick Installation Guide 1 x Driver CD If any of the above items is damaged or missing, contact your vendor immediately. -
Page 3: Specifications
Specifications Form Factor EPIC Compact Board Soldered onboard Intel Atom N455 1.6GHz, or ® D525 1.8GHz processor Chipset Intel ICH8M ® System Memory Soldered onboard DDR3 2GB SDRAM Integrated Intel Graphics Media Accelerator 3150, ® Display Analog RGB/ Single Channel 18-bit LVDS/ Dual Independent Display 2 x Realtek RTL8111E PCIe Gigabit Ethernet Ethernet... -
Page 4: Board Dimensions
Board Dimensions - 4 -... - Page 5 Jumpers/ Connectors Quick Reference Jumpers Label Function JAT1 AT/ATX Power Mode Selection JBAT1 Clear CMOS Setting JRS1 COM2 RS-232 / 422 / 485 Selection JVLCD1 LCD Voltage Selection Connectors Label Function AUDIO1 Audio Connector COM1 ~ COM5 Serial port Connectors JCOM1 RS-422/485 Output Connector DIO1...
- Page 6 Jumpers Location JRS1 IDE1 COM3 JRS1 JBAT1 AUDIO1 JAT1 4 JVLCD1 - 6 -...
-
Page 7: Connectors Location
Connectors Location IDE1 COM2 IDE1 AUDIO1 EATX1 JCOM1 COM3 SAPO1 COM3 COM4 COM5 USB2 JRS1 12VIN1 USB1 SATA1 AUDIO1 EKBMS1 SIM1 VGA1 JBATT1 LVDS1 COM1 INV1 MPCI1 26 LAN2 LAN1 JFRT1 25 DIO1 USB3 USB4 - 7 -... - Page 8 Jumpers Connectors JRS1: COM2 RS-232/422/485 Selection (1) IDE1: Primary IDE Connector (5) Connector type: 2.00mm pitch 2x3-pin headers. Connector type: 2.00mm pitch 2x22-pin box headers. RS-232 Pin Desc. Desc. Mode RS-422 RS-485 (Default) IDE RESET Short Open Open DATA7 DATA8 Open Short Open...
- Page 9 AUDIO1: Audio Connector (11) VGA1: Analog RGB Connector (16) Connector type: D-Sub 15-pin female. Connector type: 2.00mm pitch 2x5-pin box headers. Desc. Desc. Description Description Line Left In Line Right In GREEN CRT_DETECT MIC1 MIC2 BLUE 9 10 D-DATA Line-out Left Line-out Right H-SYNC JCOM1: RS-422/485 Output Connector (12)
- Page 10 INV1: LCD Inverter Connector (19) MPCI1 : Mini-PCI Socket (26) Connector type: 2.00mm pitch 1x5-pin box wafer connector. Description +12V Backlight on/off MC1: Mini-Card Socket (27) Brightness control LAN1, 2: GbE RJ-45 connectors (20, 21) LAN1, LAN2 support Gigabit Ethernet Connector type: RJ-45 JBATT1: External Battery connector (28) USB3, 4: USB Connectors (22, 23)
