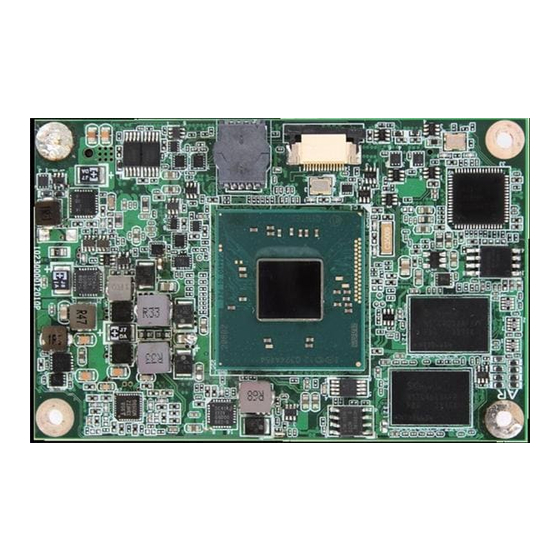

- Page 1 EmNANO-i2300 COM Express® Mini Type 10 CPU Module User’s Manual Version 1.2 2017.04...
- Page 2 This page is intentionally left blank. - 2 -...
-
Page 3: Revision History
Revision History Version Release Time Description August, 2014 Initial release December, 2016 Updated the following sectons to the latest spec: • 1.3. Specifications • 1.5. Ordering Information • 2.2. Block Diagram • 2.4 COM Express® Mini Type 10 AB Connector •... - Page 4 This page is intentionally left blank. - ii -...
- Page 5 Contents Table of Contents Revision History .................i Table of Contents ................iii Preface....................v Copyright Notice ..................v Declaration of Conformity ............... v CE ....................v FCC Class A ................... vi RoHS ....................vi SVHC / REACH ................vii Warning ....................vii Replacing Lithium Battery ..............vii Technical Support ..................vii Warranty....................viii Chapter 1 - Introduction ..............1...
- Page 6 Contents 3.2.11. XR28V382 UART ............... 23 3.3. Security ..................24 3.4. Power ..................... 25 3.4.1 Advanced CPU Control ............26 3.5. Boot ....................28 3.6. Exit ....................30 - iv -...
-
Page 7: Declaration Of Conformity
Preface Preface Copyright Notice All Rights Reserved. The information in this document is subject to change without prior notice in order to improve the reliability, design and function. It does not represent a commitment on the part of the manufacturer. Under no circumstances will the manufacturer be liable for any direct, indirect, special, incidental, or consequential damages arising from the use or inability to use the product or documentation, even if advised of the possibility of such... - Page 8 (PBDE) in electrical and electronic products. Member states of the EU are to enforce by 7/1/2006. ARBOR Technology Corp. hereby states that the listed products do not contain unintentional additions of lead, mercury, hex chrome, PBB or PBDB that exceed a maximum concentration value of 0.1% by weight or for cadmium exceed...
-
Page 9: Technical Support
Preface SVHC / REACH To minimize the environmental impact and take more responsibility to the earth we live, Arbor hereby confirms all products comply with the restriction of SVHC (Substances of Very High Concern) in (EC) 1907/2006 (REACH --Registration, Evaluation, Authorization, and Restriction of Chemicals) regulated by the European Union. All substances listed in SVHC < 0.1 % by weight (1000 ppm) Warning Single Board Computers and their components contain very delicate Integrated Circuits (IC). - Page 10 Preface Warranty This product is warranted to be in good working order for a period of two years from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
-
Page 11: Chapter 1 - Introduction
Chapter 1 Introduction Chapter 1 - Introduction - 1 -... -
Page 12: The Product
Introduction 1.1. The Product • Soldered onboard Intel® Atom E3800 series SoC processor • Integrated Gigabit Ethernet • 1 x DDI port, 1 x LVDS port • 1 x USB 3.0 port, 8 x USB 2.0 ports, 2 x Serial port •... -
Page 13: Specifications
Introduction 1.3. Specifications Form Factor COM Express® Mini Type 10 CPU Module Soldered onboard Intel Atom E3825 1.33GHz or E3845 1.91GHz ® processor Memory Soldered onboard 2GB DDR3L SDRAM BIOS Insyde UEFI BIOS Serial Port 2 x serial ports (RX/TX only, via LPC to UART EXAR XR28V382 1 x USB 3.0 port USB Port* 8 x USB 2.0 ports(Port0~2 support USB2.0 only) -
Page 14: Inside The Package
1.4. Inside the Package Before starting to install the single board, make sure the following items are shipped: 1 x EmNANO-i2300 COM Express® Mini CPU Module 1 x Driver CD 1 x Quick Installation Guide If any of the aforelisted items is damaged or missing, contact your vendor immediately. -
Page 15: Chapter 2 - Getting Started
Chapter 2 Getting Started Chapter 2 - Getting Started - 5 -... -
Page 16: The Ultra-Small Com Express® Mini Module
Getting Started 2.1. The Ultra-small COM Express® Mini Module EmNANO-i2300 is a COM Express® Mini Type 10 module. 55 mm x 84 mm is the smallest in ARBOR’s COM Express® product lineup, next to the Basic size (125 mm x 95 mm) and Compact size (95mm x 95mm) form factors. -
Page 17: Block Diagram
Getting Started 2.2. Block Diagram Onboard DDR3L DDR3L 1066 / 1333MHz (up to 4GB) 2GB SDRAM 1 x DDI port 1 x LVDS Single Channel 24-bit 1 x eDP PTN3460 HD Audio 3 x USB 2.0 Ports(Support USB2.0 only) 5 x USB 2.0 Ports（Support USB1.1/2.0） 1 x USB2.0 USB Hub Intel®... -
Page 18: Board Dimensions
Getting Started 2.3 Board Dimensions 84.00 44.00 2.00 4.00 76.00 Ø Unit:mm - 8 -... - Page 19 Introduction Connector Pin Assignment Note: A pin with a remark “(N/C)“ is a pin that the signal isn’t available on this board while the remark beyond the bracket delivers the consortium-specified definition. B1 GND GND A1 B2 GBE0_ACT# GBE0_MDI3- A2 B3 LPC_FRAME# GBE0_MDI3+ A3 B4 LPC_AD0 GBE0_LINK100# A4 B5 LPC_AD1 GBE0_LINK1000# A5 B6 LPC_AD2...
- Page 20 Introduction B56 RSVD (N/C) RSVD (N/C) A56 B57 SD_WP (N/C) GND A57 B58 PCIE_RX3+ (N/C) PCIE_TX3+ (N/C) A58 B59 PCIE_RX3- (N/C) PCIE_TX3- (N/C) A59 B60 GND GND A60 B61 PCIE_RX2+ PCIE_TX2+ A61 B62 PCIE_RX2- PCIE_TX2- A62 B63 SD_CD# (N/C) SD_DATA1 (N/C) A63 B64 PCIE_RX1+ PCIE_TX1+ A64 B65 PCIE_RX1-...
-
Page 21: Connectors Quick Reference
Introduction 2.5 Connectors Quick Reference Bottom View TOP View - 11 -... -
Page 22: Driver Installation Notes
Introduction 2.6. Driver Installation Notes The board supports Windows 7 and Windows 8.1. Find the necessary drivers on the CD that comes with your purchase. For different OS, the driver/utility installation may vary slightly, but generally they are similar. DO follow the sequence below to install all drivers to prevent errors: Chipset→Graphics→Audio→Ethernet→GPIO→MBI→TXE Find the drivers on CD by the following paths:... -
Page 23: Chapter 3 - Bios
Chapter 3 BIOS Chapter 3 - BIOS - 13 -... - Page 24 BIOS The BIOS Setup utility is featured by Insyde BIOS to configure the system settings stored in the system’s BIOS ROM. Insyde BIOS is activated once the computer powers on. After entering the utility, use the left/right arrow keys to navigate between the top menus and use the down arrow key to access one.
-
Page 25: Main
Advanced Security Power Boot Exit Main Set the current default language BIOS Version R1.07 used by the InsydeH2O. Project Name EmNANO-i2300 Build Date 07/13/2016 Build Time 14:04:01 Platform firmware information VLV SOC 11(D0 Stepping) MRC Version 0.95 PUNIT FW 0x25... -
Page 26: Advanced
BIOS 3.2. Advanced The Advanced menu controls the system’s CPU, IDE, Super IO, AHCI and USB. It also helps users monitor hardware health. InsydeH20 Setup Utility Rev. 5.0 Advanced Security Power Boot Exit Main Configures Boot Settings. Boot Configuration PCI Express Configuration USB Configuration Audio Configuration LPSS &... -
Page 27: Boot Configuration
BIOS 3.2.1. Boot Configuration Setting Description Numlock Select Power-on state for Num lock 3.2.2. PCI Express Configuration Configures PCI Express by the following settings: Setting Description PCI Express Root Port Enables/disables this PCIe port. PCIe Port Speed Options are: Auto (default), Gen 1, Gen 2 PCIe Port ASPM (default) PCI Express Root Options are: Port 1/2/3/4 Disable : disables ASPM... -
Page 28: Usb Configuration
BIOS 3.2.3. USB Configuration Select this submenu to view the status of the USB ports and configure USB features. The featured settings are: Setting Description XHCI Pre-Boot Mode Enables/disables XHCI Pre-Boot mode support Support Default: Enabled Set the mode of operation of xHCI controller xHCI Mode Options are Disabled/Enabled/Auto/Smart Auto(default) Enables/disables XHCI controller... -
Page 29: Lpss & Scc Configuration
BIOS 3.2.5. LPSS & SCC Configuration The featured settings are: Setting Description LPSS & SCC Device Set the mode of LPSS & SCC Device Mode Options are ACPI mode(default)/PCI mode Set whether to auto Switch LPSS & SCC devices from ACPI mode to LPSS & SCC Auto Switch PCI mode when OS not support ACPI mode. -
Page 30: Video Configuration
BIOS 3.2.6. Video Configuration 3.2.6.1 Video Configuration Setting Description Set Logo & SCU Resolution. Logo & SCU Resolution Options are Auto (default) / 640 x480 / 800 x 600 / 1024 x 768 3.2.6.2 VBT Hook Configuration Setting Description Set the hardware DDI0 configuration. Configure DDI0 as Options are Default/DisplayPort/ HDMI/DVI /DisplayPort with HDMI/ DVI Compatible (default) / No Device Set the hardware DDI1 configuration. -
Page 31: Sata Configuration
BIOS 3.2.7. SATA Configuration Select this submenu to configure the SATA controller and HD. Setting Description Enables/disables the present SATA controller. SATA Controller Default: Enabled Enables/disables the SATA test mode. SATA Test Mode Default: Disabled Configures how to sun the SATA drives. Configures SATA Mode Options available are AHCI (default) and IDE. SATA Port 0 Hot Plug Enables/disables hot-pluggable feature for the SATA port. Capability Default: Enabled SATA Port 1 Hot Plug... -
Page 32: Lm90 Thermal Sensor
BIOS 3.2.9. LM90 Thermal Sensor Displays the LM90 thermal sensor information. Setting Description Local Temperature Displays Local Temperature Remote Temperature Displays Remote Temperature Thermal Status Display Thermal Status 3.2.10. SIO FINTEK71869E Configures SIO by the following settings: Setting Description Set the state of Power Loss mode Power Loss mode Options are Always On(default)/Always Off Serial Port... -
Page 33: Xr28V382 Uart
BIOS 3.2.11. XR28V382 UART Configures XR28V382 UART by the following settings: Setting Description Enables/Disables share IRQ. Share IRQ support Default: Disabled Set Share IRQ model (available if “Share IRQ Support” is enabled) Share IRQ Mode Options are Low (Windows) (default) / High (DOS/Linux) Serial Port Enables/disables the Serial port. Com Port Type Setup the COM port type as RS232 (default) / RS485 Serial Port A/B... -
Page 34: Security
BIOS 3.3. Security The Security menu sets up the password for the system’s administrator account. Once the administrator password is set up, this BIOS Setup utility is limited to access and will ask for the password each time any access is attempted. InsydeH20 Setup Utility Rev. -
Page 35: Power
BIOS 3.4. Power The Power menu sets up the power option of system InsydeH20 Setup Utility Rev. 5.0 Advanced Security Power Boot Exit Main These items control various CPU Advanced CPU Control parameters. Wake on PME <Disabled> Auto Wake on S5 <Disabled>... -
Page 36: Advanced Cpu Control
BIOS 3.4.1 Advanced CPU Control InsydeH20 Setup Utility Rev. 5.0 Advanced Security Power Boot Exit Main Enable or disable processor XD Advanced CPU Control capability Use XD Capability <Enabled> Limit CPUID Max value <Disabled> Bi-Directional PROCHOT# <Enabled> VTX-2 <Enabled> TM1 and TM2 <Enabled>... - Page 37 BIOS Enable/disables AESNI AESNI Feature Default: Enabled Enable/disables CPU Digital Thermal Sensor function. Default: Enabled Active Processor Set the Number of cores to enable in each processor package. Cores Options are ALL (default) /1 Enables/disables processor performance states (P-States) P-States(IST) Default: Enabled Boot Performance Select the performance state that BIOS will set before OS handoff...
-
Page 38: Boot
BIOS 3.5. Boot The Boot menu configures how to boot up the system such as the configuration of boot device priority. InsydeH20 Setup Utility Rev. 5.0 Advanced Security Power Boot Exit Main Select boot type to Dual type, Boot Type <Legacy Boot Type> Legacy type or UEFI type Quick Boot <Enabled> Quiet Boot <Enabled>... - Page 39 BIOS Select boot to Acpi 3.0/Acpi 1.0B APCI Selection Options are Acpi 1.0B/Acpi 3.0/Acpi 4.0 (default) /Acpi 5.0 Disables or enables booting to USB boot devices. USB Boot Timeout Set the waiting seconds before booting the default boot selection Automatic Failover Enables/disables the Automatic Failover.
-
Page 40: Exit
BIOS 3.6. Exit The Save & Exit menu features a handful of commands to launch actions from the BIOS Setup utility regarding saving changes, quitting the utility and recovering defaults. InsydeH20 Setup Utility Rev. 5.0 Advanced Security Power Boot Exit Main Exit Saving Changes Exit system setup and save...
