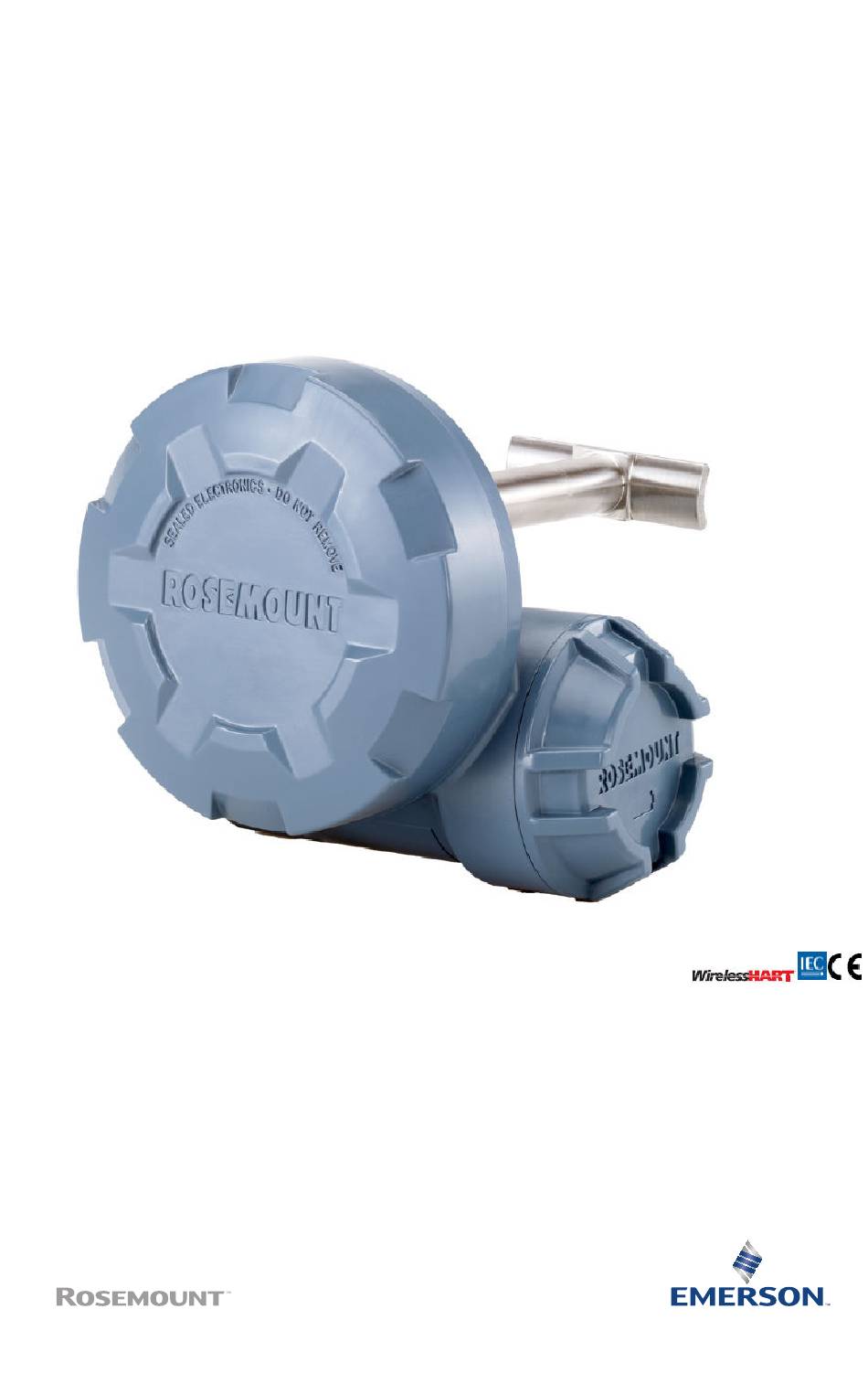

Quick Start Guide
00825-0200-4708, Rev DD
June 2022
™
Rosemount
708 Wireless Acoustic
Transmitter

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rosemount 708 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson Rosemount 708

Summary of Contents for Emerson Rosemount 708

  • Page 1 Quick Start Guide 00825-0200-4708, Rev DD June 2022 ™ Rosemount 708 Wireless Acoustic Transmitter...
  • Page 2 Quick Start Guide June 2022 Safety messages NOTICE This guide provides basic guidelines for the Rosemount 708. It does not provide instructions for detailed configuration, diagnostics, maintenance, service, troubleshooting, or installations. Refer to the Rosemount 708 Reference Manual for more instruction. This guide and the manual are available electronically on Emerson.com/Rosemount.

  • Page 3: Table Of Contents

    June 2022 Quick Start Guide Contents Transmitter overview........................5 Considerations..........................6 Field Communicator connections....................8 Installation........................... 9 Configuration..........................18 Verify operation......................... 22 Product Certifications.........................27 Quick Start Guide...
  • Page 4 Quick Start Guide June 2022 Emerson.com/Rosemount...

  • Page 5: Transmitter Overview

    June 2022 Quick Start Guide Transmitter overview Figure 1-1: Rosemount 708 Wireless Acoustic Transmitter A. Power module cover — power module is inside device; unscrew cap for access B. Waveguide — acoustic and temperature sensors C. Electronics cover — cover is sealed and cannot be removed D.

  • Page 6: Considerations

    SmartPower Solutions, model number 701PGN Green Power Module, into the Rosemount 708 Transmitter to power the device. This results in a simpler and faster network configuration. Enabling Active Advertising on the Gateway ensures new devices are able to join the network faster.
  • Page 7 June 2022 Quick Start Guide Figure 2-2: Antenna Position Quick Start Guide...

  • Page 8: Field Communicator Connections

    June 2022 Field Communicator connections The power module needs to be installed in the device for the Field Communicator to interface with the Rosemount 708. This transmitter uses the green power module; order model number 701PGNKF. Field ® communication with this device requires a HART protocol-based Field Communicator using the correct 708 DD.

  • Page 9: Installation

    SmartPower Solutions, model number 701PGN Green Power Module, into the Rosemount 708 Transmitter to power the device. This results in a simpler and faster network configuration. Enabling Active Advertising on the Gateway ensures new devices are able to join the network faster.
  • Page 10 Field Communicator connections The power module needs to be installed in the device for the Field Communicator to interface with the Rosemount 708 Transmitter. This transmitter uses the green power module; order model number 701PGN. ®...
  • Page 11 4.1.4 Electrical Power module The Rosemount 708 Transmitter is self-powered. The power module contains one “D” size primary lithium/thionyl chloride battery. Each battery contains approximately 5.0 grams of lithium. Under normal conditions, the battery materials are self-contained and are not reactive as long as the battery and the power module are maintained.
  • Page 12 Table 4-2 for High Temperature option (HT01) for ambient temperature derating. Table 4-1: Ambient Temperature Derating Process temperature Max ambient °C °F °C °F Table 4-2: Ambient Temperature Derating - HT01 Process temperature Max ambient °C °F °C °F 1022 Emerson.com/Rosemount...
  • Page 13 June 2022 Quick Start Guide Table 4-2: Ambient Temperature Derating - HT01 (continued) Process temperature Max ambient °C °F °C °F 4.1.6 Mounting installation considerations Procedure 1. Inspect mounting bands periodically and re-tighten if necessary. Some loosening may occur after initial installation due to thermal expansion/contraction.
  • Page 14 Quick Start Guide June 2022 Procedure 1. Locate the Rosemount 708 Transmitter on a horizontal section of piping as close as possible to the equipment to be monitored. Align the waveguide of the transmitter as shown in Figure 4-4 2. Ensure the mounting location is free of foreign matter and corrosion to ensure good contact between the piping and waveguide.
  • Page 15 2. Press standoff plates together so plates and transmitter foot are aligned. 3. Tighten each screw to 90 in-lb (10.2 N-m). 4. Locate the Rosemount 708 Transmitter and high temperature mounting hardware on a horizontal section of the piping as close as possible to the equipment being monitored.
  • Page 16 Quick Start Guide June 2022 Example Figure 4-6: High Temperature Mounting Hardware Figure 4-7: Rosemount 708 Transmitter with High Temperature Mounting Kit A. For pipe sizes ½ to 1¼-in. B. Bracket mounting Dimensions are in inches (millimeters). Emerson.com/Rosemount...
  • Page 17 June 2022 Quick Start Guide Figure 4-8: Piping, Insulation Side View Quick Start Guide...

  • Page 18: Configuration

    Device configuration ® Remove the power module cover and connect to the HART Communication terminals for configuration. The Rosemount 708 Acoustic Wireless Transmitter will receive HART ™ Communication from a Field Communicator or AMS Device Manager. When using a Field Communicator, any configuration changes must be sent to the transmitter using the Send key (F2).
  • Page 19 HART modem, or remotely using the Gateway. Procedure • To configure the Rosemount 708 Transmitter, double click (or right click and select Configure/Setup) on the device icon that will appear below either the HART modem or Gateway connection tree. Device network configuration To communicate with the Gateway (and ultimately the host system), the transmitter must be configured to communicate with the wireless network.
  • Page 20 2, 1, 2 Network ID, Set Join Key 5.3.3 Fast Key sequence Table 5-1 lists the Fast Key sequence for common transmitter functions. Table 5-1: Rosemount 708 Fast Key Sequence Function Key sequence Menu items Device 2, 2, 5 Tag, Long Tag, Descriptor, Message, Date,...
  • Page 21 June 2022 Quick Start Guide HART menu tree Figure 5-2: Field Communicator Menu Tree Quick Start Guide...

  • Page 22: Verify Operation

    • Suite Wireless Configurator or AMS Device Manager If the Rosemount 708 Transmitter was configured with the network ID and join key, and sufficient time has passed, the transmitter will be connected to the network. If network ID and join key were not configured, reference...
  • Page 23 AMS Device Manager When the device has joined the network, it will appear in the AMS Device Manager as illustrated in Figure 6-2. For WirelessHART transmitter communication, a Rosemount 708 DD is required. To obtain the latest DD, Quick Start Guide...
  • Page 24 Quick Start Guide June 2022 visit the Emerson Easy Upgrade site at: Emerson.com/Rosemount/Device- Install-Kits. Figure 6-2: AMS Device Manager Note ™ SteamLogic software is provided for viewing steam trap status. Refer to the manual on the CD for more information.
  • Page 25 Figure 6-3: Emerson Wireless Gateway Network Settings Field Communicator use Note In order to establish communication with a Field Communicator, power the Rosemount 708 Transmitter by connecting the power module. For more ™ information on the power module, refer to Emerson SmartPower Solutions Product Data Sheet.
  • Page 26 Quick Start Guide June 2022 Figure 6-4: Field Communicator Connections Emerson.com/Rosemount...

  • Page 27: Product Certifications

    RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.
  • Page 28 ≤ +70 °C) when installed per Rosemount drawing 00708-1000; Type 4X Special Conditions for Safe Use (X): 1. The Rosemount 708 Wireless Acoustic Transmitter shall only be used with the 701PGNKF Rosemount SmartPower battery pack. 2. Potential Electrostatic charging Hazard – See instructions.
  • Page 29 Ex ia IIC T4 Ga, T4(–40 °C ≤ T ≤ +70 °C) Special Condition for Safe Use (X): 1. The plastic enclosure of the Rosemount 708 may constitute a potential electrostatic ignition risk and must not be rubbed or cleaned with a dry cloth.
  • Page 30 1. See certificate for special conditions. A.14 Korea IP Korea Intrinsic Safety Certificate: 13-KB4BO-0145X Markings: Ex ia IIC T4 T4 (–40 °C ≤ T ≤ +70 °C) Special Condition for Safe Use (X): 1. See certificate for special conditions. Emerson.com/Rosemount...
  • Page 31 June 2022 Quick Start Guide A.15 Declaration of Conformity ™ Figure A-1: Rosemount 708 Wireless Acoustic Transmitter Quick Start Guide...
  • Page 32 Quick Start Guide June 2022 Emerson.com/Rosemount...
  • Page 33 June 2022 Quick Start Guide Quick Start Guide...
  • Page 34 Quick Start Guide June 2022 A.16 China RoHS China RoHS Rosemount 708 List of Parts with China RoHS Concentration above MCVs Rosemount 708 / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg)
  • Page 35 June 2022 Quick Start Guide Quick Start Guide...
  • Page 36 For more information: Emerson.com © 2022 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies.
