Quick Start Guide
00825-0200-4702, Rev GE
August 2018
™
Rosemount
702 Wireless Discrete
Transmitter

Advertisement

Table of Contents
loading

Related Manuals for Emerson Rosemount 702

Summary of Contents for Emerson Rosemount 702

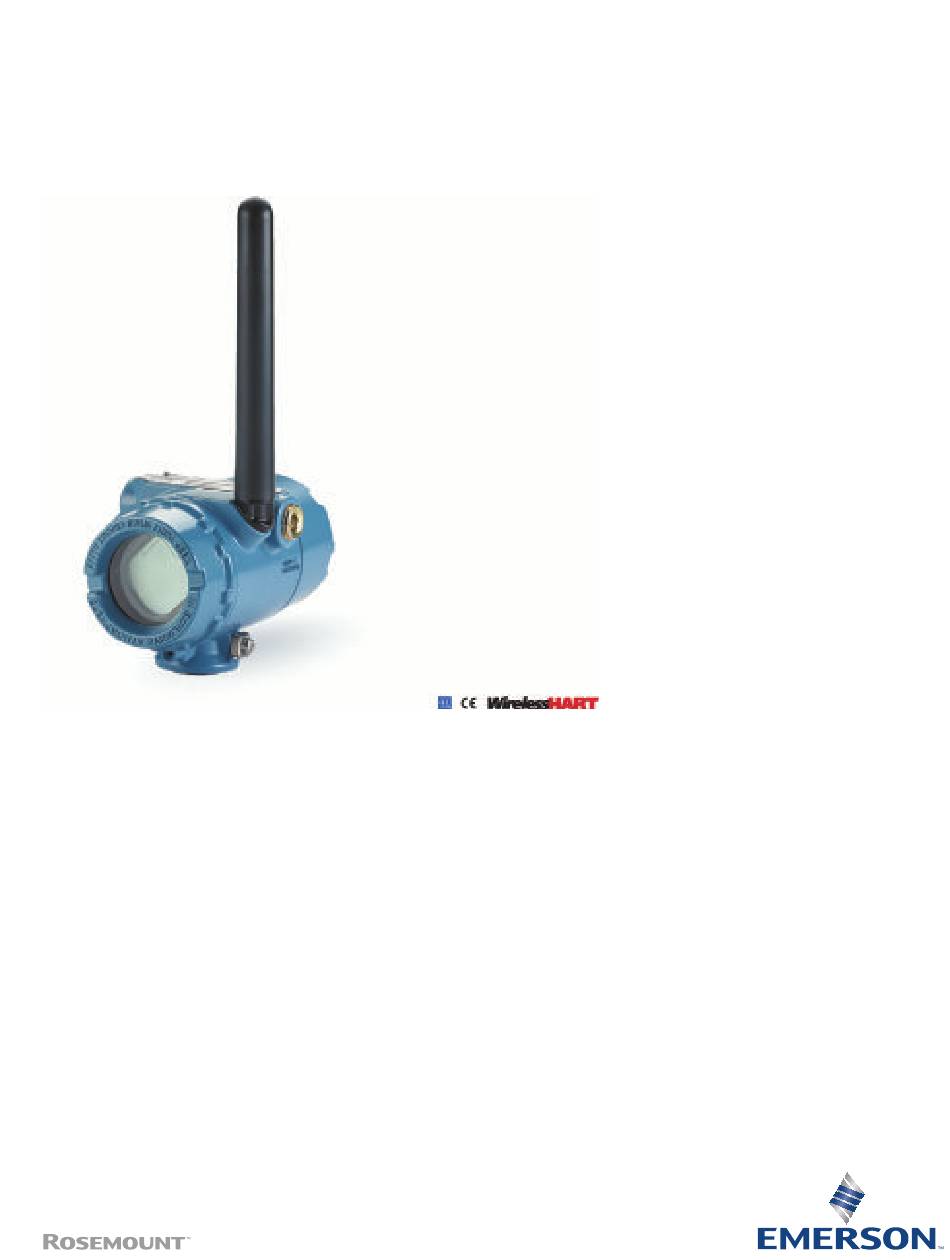

  • Page 1 Quick Start Guide 00825-0200-4702, Rev GE August 2018 ™ Rosemount 702 Wireless Discrete Transmitter...

  • Page 2: Wireless Considerations

    Gateway. This results in a simpler and faster network installation. Enable Active ™ Advertising on the Gateway to ensure new devices are able to join the network faster. For more information see the Emerson Wireless 1420 Gateway Reference Manual.

  • Page 3: Field Communicator Connections

    ■ Direct mount, where the switch is connected directly to the Rosemount 702 Transmitter housing’s conduit entry. ■ Remote mount, where the switch is mounted separate from the Rosemount 702 Transmitter housing, then connected to the Rosemount 702 Transmitter via conduit.
  • Page 4 1. Install the switch according to standard installation practices making sure to use thread sealant on all connections. 2. Attach the Rosemount 702 Transmitter housing to the switch using the threaded conduit entry. 3. Attach the switch wiring to the terminals as indicated on the wiring diagram (see...

  • Page 5: Remote Mount

    1. Install the switch according to standard installation practices making sure to use thread sealant on all connections. 2. Run wiring (and conduit if necessary) from the switch to the Rosemount 702 Transmitter. 3. Pull the wiring through the threaded conduit entry of the Rosemount 702 Transmitter.
  • Page 6 To maintain wireless performance and avoid non-compliance with spectrum regulations, do not change the length of cable or the antenna type. If the supplied remote mount antenna kit is not installed per these instructions, Emerson is not responsible for wireless performance or non-compliance with spectrum regulations.

  • Page 7: Device Network Configuration

    Network ID and Join Key of the Gateway and other devices in the network. If the Network ID and Join Key do not match that of the Gateway, the Rosemount 702 Transmitter will not communicate with the network. The Network ID and Join Key may be...

  • Page 8: Verify Operation

    Local display Start-up sequence When the Rosemount 702 Transmitter is first powered up, the LCD display will display a sequence of screens: All Segments On, Device Identification, Device Tag, and then the user chosen variables of the periodic display. During steady state operation, the LCD display gives a periodic display of user chosen variables at the configured wireless update rate.

  • Page 9: Smart Wireless Gateway

    August 2018 Function Key sequence Menu items Communications 3, 3 Join Status, Wireless Mode, Join Mode, Number of Available Neighbors, Number of Advertisements Heard, Number of Join Attempts Smart Wireless Gateway In the Gateway’s integrated web server, navigate to the Explorer page. This page shows whether the device has joined the network and is communicating properly.

  • Page 10: Troubleshooting

    2. To change the Network ID and Join Key in the wireless device, use a Field Communicator and enter the following Fast Key sequence. Function Fast Key sequence Menu items Wireless 2, 1, 1 Join Device to Network 3. Follow the on screen prompts. Rosemount 702 Wireless Discrete Transmitter...

  • Page 11: Dry Contact Switch Inputs

    Dual input The Rosemount 702 Transmitter will accept the input from one or two single pole single throw switches on inputs CH1 and CH2. The wireless output of the transmitter will be both a primary variable (PV) and a secondary variable (SV). The PV is determined by the CH1 input.
  • Page 12 Dual input, limit contact logic When configured for Limit Contact Logic, the Rosemount 702 Transmitter will accept the input from two single pole single throw switch on inputs CH1 and CH2, and will use limit contact logic for the determination of the wireless outputs.
  • Page 13 Dual input, opposing contact logic When configured for Opposing Contact Logic, the Rosemount 702 Transmitter will accept the input from a double pole single throw switch on inputs CH1 and CH2, and will use opposing contact logic for the determination of the wireless outputs.
  • Page 14 The Rosemount 702 Transmitter output does not provide any voltage or current, the output circuit must have power of its own. The Rosemount 702 Transmitter output has maximum switch capacity per channel of 26 volts DC and 100 milliamps.
  • Page 15 Rosemount 702 Transmitter. The time required for this wireless communication from the Gateway to the Rosemount 702 Transmitter is dependent on many factors, including the size and topology of the network and the total amount of downstream traffic on the wireless network.
  • Page 16 B. OUTPUT If two output circuits are connected to a single Rosemount 702 Transmitter with a single power supply, both CH + and CMN terminals must be connected to each output circuit. The negative power supply wires must be at the same voltage and connected to both CMN terminals.

  • Page 17: Terminal Block Connections

    August 2018 Figure 23: Wiring an Interposing Relay to Switch Greater Currents or Voltages A. Power Supply B. LOAD Plunger arrival detection Terminal block connections The plunger arrival detection configuration for measurement option code 52 is intended for use with the ETC Cyclops Plunger Arrival Sensor.
  • Page 18 Latching feature The Rosemount 702 has a latching feature that, when enabled, allows detection of momentary state changes to be held for a configurable latch period. The latching feature can be configured to detect either high or low state changes. By default, the Plunger state (channel 1) is enabled to latch high state changes for a period of one minute.

  • Page 19: System Verification

    WARNING When state latching is enabled, the discrete variable reported to the system will represent the latched value which may not be the actual state value measured by the Rosemount 702 Transmitter WARNING Ensure that the state latch time value is long enough for the value to be reported throughout the entire system to guarantee the state transition is not missed.
  • Page 20 The Rosemount 702 Wireless Discrete Transmitter can support up to 500 feet of TraceTek hydrocarbon or solvent sensor cable (TT5000 or TT5001 series). The total amount of sensor cable connected to a single Rosemount 702 Transmitter is not to exceed 500 ft.
  • Page 21 ■ Tyco TraceTek sensors must be installed as per manufacturer recommendations. ■ Do not run the Rosemount 702 Transmitter for long periods (more than two weeks) with a Tyco fuel sensor in the leak state as this will more rapidly deplete the power module.
  • Page 22 If a device is not present on the wireless network, appropriate action must be taken by the host system. Field Communicator use Note In order to communicate with a Field Communicator, power the Rosemount 702 Transmitter by connecting the power module. Table 6: Rosemount 702 Transmitter Fast Key Sequence Function...

  • Page 23: Safety Shower And Eye Wash Monitoring

    These kits contain the switches, brackets and cables that are necessary to install the Rosemount 702 to monitor both the safety shower and the eye wash in a single station. Because each has two input channels, one Rosemount 702 Transmitter can be used to monitor both a safety shower and an eye wash.

  • Page 24: Product Certifications

    When the eye wash valve is activated (valve open) by pushing down on the hand paddle, the TopWorx switch is activated (closed switch) and the Rosemount 702 Transmitter senses that switch closure. This switch state is then transmitted by the Rosemount 702 Transmitter to the Gateway, which then sends that information to the control host or alert system.

  • Page 25: Ordinary Location Certification

    Special Conditions for Safe Use (X): 1. The Rosemount 702 Transmitter housing contains aluminum and is considered a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.

  • Page 26: I6 Canada Intrinsically Safe

    Special Conditions for Safe Use (X): 1. The Rosemount 702 Transmitter housing contains aluminum and is considered a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.

  • Page 27: I7 Iecex Intrinsic Safety

    August 2018 Sensor terminal parameters (option code 32) Fuel sensor terminal parameters (option code 61) IIA = 1000 µF = 1000 µF O IIA = 200 mH = 4.2 mH O IIC O IIC = 800 mH = 16.8 mH O IIB O IIB = 1000 mH...
  • Page 28 3. The Rosemount 702 enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in a Zone 0 area.

  • Page 29: Eac - Belarus, Kazakhstan, Russia

    August 2018 China I3 China Intrinsic Safety Certificate: GYJ18.1330X Standards: GB3836.1-2010, GB3836.4-2010, GB3836.20-2010 Markings: (option 32, 61): Ex ia IIC T4/T5 Ga, T4(-60 ≤ T ≤ 70 °C)/T5(-60 ≤ T ≤ 40 °C) (option 32, 42): Ex ic IIC T4/T5 Gc, T4(-60 ≤ T ≤...
  • Page 30 = 800 MГH O IIB O IIB = 1000 MГH = 1000 MГH O IIA O IIA Special Conditions for Safe Use (X): 1. See certificate for special conditions. Combinations Combination of I1, I5, and I6 Rosemount 702 Wireless Discrete Transmitter...

  • Page 31: Eu Declaration Of Conformity

    August 2018 EU Declaration of Conformity Figure 38: EU Declaration of Conformity Quick Start Guide...
  • Page 32 August 2018 Rosemount 702 Wireless Discrete Transmitter...
  • Page 33 August 2018 Quick Start Guide...

  • Page 34: China Rohs

    O: Indicate that said hazardous substance in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572. GB/T 26572 X: Indicate that said hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572. Rosemount 702 Wireless Discrete Transmitter...
  • Page 35 August 2018 Quick Start Guide...
  • Page 36 Twitter.com/Rosemount_News © 2018 Emerson. All rights reserved. Facebook.com/Rosemount Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a Youtube.com/user/RosemountMeasurement trademark and service mark of Emerson Electric Co. Rosemount is mark of one of the Google.com/+RosemountMeasurement...
