Emerson Rosemount 708 Quick Start Manual

Wireless acoustic transmitter
Hide thumbs Also See for Rosemount 708:

Advertisement

Quick Links

Download this manual
Quick Start Guide
00825-0200-4708, Rev DF
November 2023
Rosemount
™
708 Wireless Acoustic
Transmitter

Advertisement

loading

Related Manuals for Emerson Rosemount 708

Summary of Contents for Emerson Rosemount 708

  • Page 1 Quick Start Guide 00825-0200-4708, Rev DF November 2023 Rosemount ™ 708 Wireless Acoustic Transmitter...
  • Page 2 Quick Start Guide November 2023 Safety messages NOTICE This guide provides basic guidelines for the Rosemount 708. It does not provide instructions for detailed configuration, diagnostics, maintenance, service, troubleshooting, or installations. Refer to the Rosemount 708 Wireless Acoustic Transmitter Reference Manual for more instruction.

  • Page 3: Table Of Contents

    November 2023 Quick Start Guide NOTICE Shipping considerations for wireless products The unit was shipped to you without the power module installed. Remove the power module prior to shipping. Each power module contains one “D” size primary lithium battery. Primary lithium batteries are regulated in transportation by the U.S.
  • Page 4 Quick Start Guide November 2023 Rosemount 708...

  • Page 5: Transmitter Overview

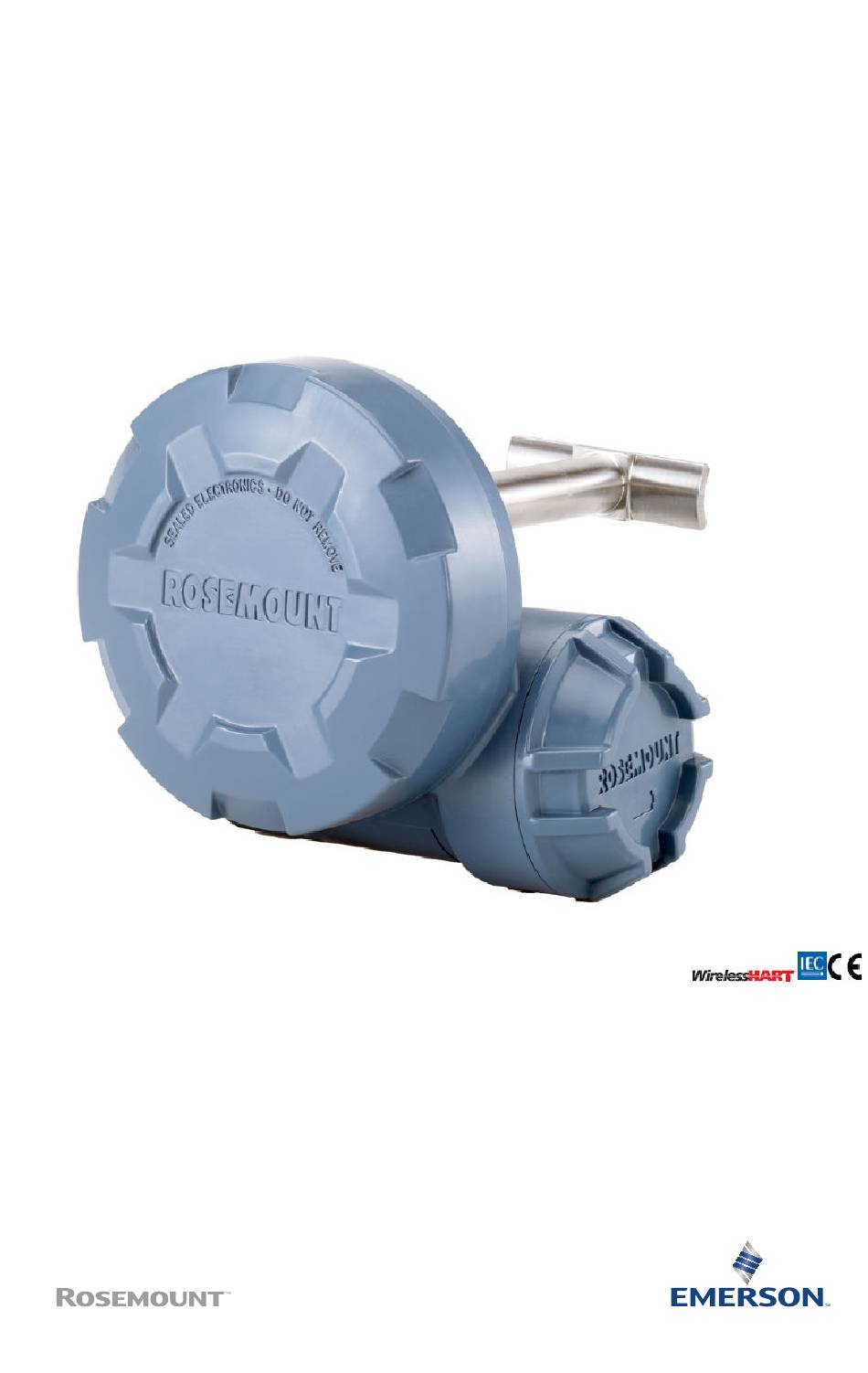

    November 2023 Quick Start Guide 1  Transmitter overview Figure 1-1: Rosemount 708 Wireless Acoustic Transmitter A. Power module cover — power module is inside device; unscrew cap for access B. Waveguide — acoustic and temperature sensors C. Electronics cover — cover is sealed and cannot be removed D.

  • Page 6: Installation

    SmartPower Solutions, model number 701PGN Green ™ Power Module, into the Rosemount 708 Transmitter to power the device. This results in a simpler and faster network configuration. Enabling Active Advertising on the Gateway ensures new devices are able to join the network faster. For more information, see the Emerson Wireless 1410 Gateway Reference Manual.
  • Page 7 Refer to best practices for additional information on optimal mounting locations of device. Figure 2-2: Antenna position Recommended practices When mounting the device, consider recommended practices to achieve the best wireless performance. See Rosemount 708 Wireless Quick Start Guide...
  • Page 8 . Field communication with this device requires a HART ® 701PGNKF based Field Communicator using the correct Rosemount 708 device driver (DD). Field Communicator connections are located on the power module. The power module is keyed and can only be inserted in one orientation.
  • Page 9 The electronics cover is sealed and cannot be removed. Do not attempt to unscrew the cover. Power module The Rosemount 708 Transmitter is self-powered. The power module contains one “D” size primary lithium/thionyl chloride battery. Each battery contains approximately 0.2 oz. (5.0 g) of lithium.
  • Page 10 High Temperature option (HT01) for ambient temperature derating. Table 2-1: Ambient temperature derating Process temperature Max ambient °C °F °C °F Table 2-2: Ambient temperature derating - HT01 Process temperature Max ambient °C °F °C °F 1022 Rosemount 708...
  • Page 11 Mount transmitter in a high temperature application. Procedure 1. Locate the Rosemount 708 Transmitter on a horizontal section of piping as close as possible to the equipment to be monitored. Align the waveguide of the transmitter as shown Figure 2-4.
  • Page 12 Figure 2-4: Transmitter orientation Figure 2-5: Power module installation NOTICE Wireless devices should be powered up in order of proximity from the Gateway, beginning with the closest device to the Gateway. This will result in faster network formation. Rosemount 708...
  • Page 13 2. Press standoff plates together so plates and transmitter foot are aligned. 3. Tighten each screw to 90 in.-lb. (10.2 N-m). 4. Locate the Rosemount 708 Transmitter and high temperature mounting hardware on a horizontal section of the piping as close as possible to the equipment being monitored.
  • Page 14 Quick Start Guide November 2023 Example Figure 2-6: High temperature mounting kit: hardware for bracket mounting Rosemount 708...
  • Page 15 November 2023 Quick Start Guide Figure 2-7: Rosemount 708 Transmitter with high temperature mounting kit A. For pipe sizes ½ to 1¼-in. B. Bracket mounting Dimensions are in inches (millimeters). Figure 2-8: Piping insulation, side view Quick Start Guide...

  • Page 16: Configuration

    Remove the power module cover and connect to the HART ® communication terminals for configuration. The Rosemount 708 Acoustic Wireless Transmitter will receive HART communication from a Field Communicator or AMS Device Manager. When using a Field Communicator, use the Send key (F2) to send configuration changes to the transmitter.
  • Page 17 November 2023 Quick Start Guide 3.3  Device network configuration To communicate with the Gateway (and ultimately the host system), the transmitter must be configured to communicate with the wireless network. Using a Field Communicator or AMS Device Manager, enter the network ID and join key so they match the network ID and join key of the Gateway and other devices in the network.
  • Page 18 Join Device to Network 2, 1, 2 Network ID, Set Join Key 3.3.3  Fast key sequences Table 3-1 lists the fast key sequences for common transmitter functions. Table 3-1: Rosemount 708 fast key sequences Function Menu items sequence Device 2, 2, 5 •...
  • Page 19 November 2023 Quick Start Guide 3.4  Remove power module Procedure • After the device has been configured, remove the power module and replace the power module cover. Only insert the power module when the device is ready for commissioning. Quick Start Guide...
  • Page 20 Quick Start Guide November 2023 3.5  HART menu tree ® Figure 3-2: Field Communicator Menu Tree Rosemount 708...

  • Page 21: Verifying Operation

    • AMS Suite Wireless Configurator or AMS Device Manager If the Rosemount 708 Transmitter was configured with the network ID and join key, and sufficient time has passed, the transmitter will be connected to the network. If network ID and join key were not...
  • Page 22 Emerson Wireless Gateway Using the Gateway’s web interface, navigate to the Explorer page as shown in Figure 4-1. Locate the device in question and verify all status indicators are good (green). Figure 4-1: Emerson Wireless Gateway Explorer page Rosemount 708...
  • Page 23 AMS Device Manager as illustrated in Figure 4-2. For WirelessHART ® transmitter communication, a Rosemount 708 device driver (DD) is required. To obtain the latest DD, visit the Emerson Easy Upgrade site Software & Drivers. Figure 4-2: AMS Device Manager 4.2.2  Network connection troubleshooting...
  • Page 24 Operate using a Field Communicator Note In order to establish communication with a Field Communicator, power the Rosemount 708 Transmitter by connecting the power module. For more information on the power module, refer to the Emerson Wireless SmartPower Solutions Product Data Sheet.
  • Page 25 November 2023 Quick Start Guide (continued) Table 4-1: Rosemount 708 fast key sequence Function Menu items sequence Guided Setup 2, 1 • Basic Setup • Join Device to Network • Configure Update Rates • Alert Setup Manual Setup 2, 2 •...

  • Page 26: Product Certifications

    (RF) spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.
  • Page 27 T4 (–40 °C ≤ T ≤ +70 °C) when installed per Rosemount drawing 00708-1000; Type 4X Special Conditions for Safe Use (X): 1. The Rosemount 708 Wireless Acoustic Transmitter shall only be used with the 701PGNKF Rosemount SmartPower Battery ™ Pack.
  • Page 28 ≤ +70 °C) Markings Special Conditions for Safe Use (X): 1. The plastic enclosure of the Rosemount 708 may constitute a potential electrostatic ignition risk and must not be rubbed or cleaned with a dry cloth. 2. The Model 701PGNKF Power Module may be replaced in a hazardous area.
  • Page 29 November 2023 Quick Start Guide ABNT NBR IEC 60079-0: 2013, ABNT NBR IEC 60079-11: Standards 2013 Ex ia IIC T4 Ga, T4 (–40 °C ≤ T ≤ +70 °C) Markings Special Condition for Safe Use (X): See certificate for special conditions. A.11 ...
  • Page 30 Quick Start Guide November 2023 Special Condition for Safe Use (X): See certificate for special conditions. Rosemount 708...
  • Page 31 November 2023 Quick Start Guide A.15  Declaration of Conformity Figure A-1: Rosemount 708 Wireless Acoustic Transmitter ™ Quick Start Guide...
  • Page 32 Quick Start Guide November 2023 Rosemount 708...
  • Page 33 November 2023 Quick Start Guide A.16  China RoHS China RoHS Rosemount 708 List of Parts with China RoHS Concentration above MCVs Rosemount 708 / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd)
  • Page 34 Quick Start Guide November 2023 Rosemount 708...
  • Page 35 November 2023 Quick Start Guide Quick Start Guide...
