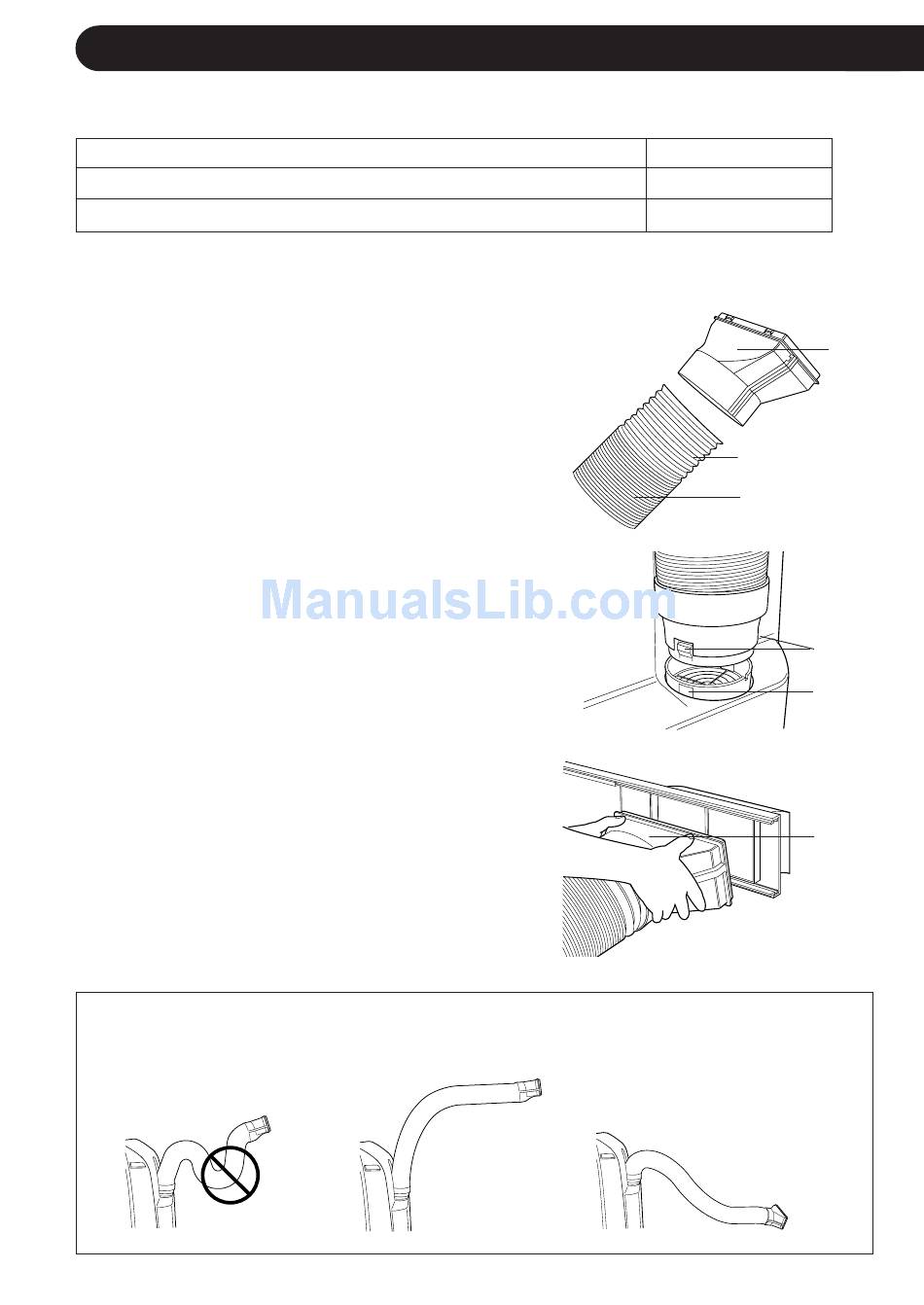

INSTALLATION AND REMOVAL OF EXHAUST HOSE

The exhaust hose must be installed or removed in accordance with the usage mode.
MODE
COOL, FAN, VENTILATION, DEHUMIDIFICATION with no container
DEHUMIDIFICATION with container(minimum capacity 3 gallons)
Installation of the exhaust hose
1
Attach the window exhaust adapter to
the exhaust hose.
Extend one end of the exhaust hose and
insert it into the window exhaust adapter,
and turn it (approx. three times) until it
stops.
Make sure they are securely attached
afterwards.
2
Attach the exhaust hose adapter to the
unit.
Insert the two projections on the exhaust
hose adapter into the two holes on the
unit, and firmly attach them to each
other.
3
Slide and open the exhaust cover on
the window panel, and attach the win-
dow exhaust adapter.
Surface of window exhaust adapter
marked "TOP" should be at the top when
it is installed in a double-hung sash
window.
Surface of window exhaust adapter
marked "TOP" should be on the window
frame side when it is installed in a sliding
sash window.
The exhaust hose should be as short as possible for operational efficiency;
however, it must not be twisted or bent.
Unacceptable
Acceptable
E-16
EXHAUST HOSE
Install
Remove
Extend
Exhaust hose
Acceptable
Window
exhaust
adapter
Projection
Hole
"TOP"
