Part Names - Sharp CV -P09FX Installation And Operation Manual

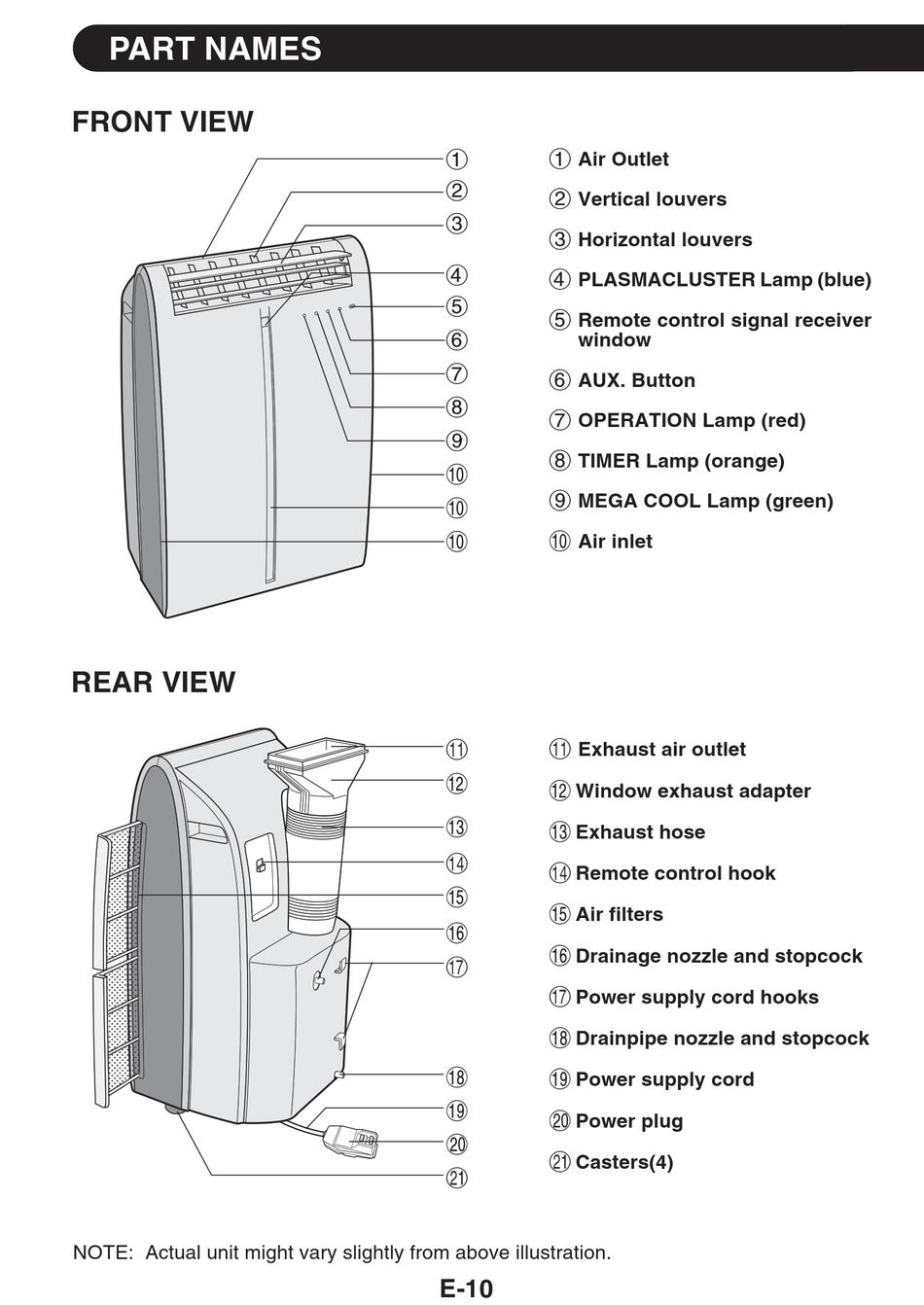

PART NAMES

FRONT VIEW
REAR VIEW
NOTE: Actual unit might vary slightly from above illustration.
1 Air Outlet
1
2
2 Vertical louvers
3
3 Horizontal louvers
4
4 PLASMACLUSTER Lamp (blue)
5
5 Remote control signal receiver
6
window
7
6 AUX. Button
8
7 OPERATION Lamp (red)
9
8 TIMER Lamp (orange)
0
9 MEGA COOL Lamp (green)
0
0 Air inlet
0
q q Exhaust air outlet
w
w Window exhaust adapter
e
e Exhaust hose
r
r Remote control hook
t
t Air filters
y
y Drainage nozzle and stopcock
u
u Power supply cord hooks
i Drainpipe nozzle and stopcock
i
o Power supply cord
o
p Power plug
p
a Casters(4)
a
E-10
