Protouch2 GUI User Manual

10 Offline Support

Offline support allows for generation of configuration file even without the hub being
connected to the system.

10.1 Selecting Offline mode

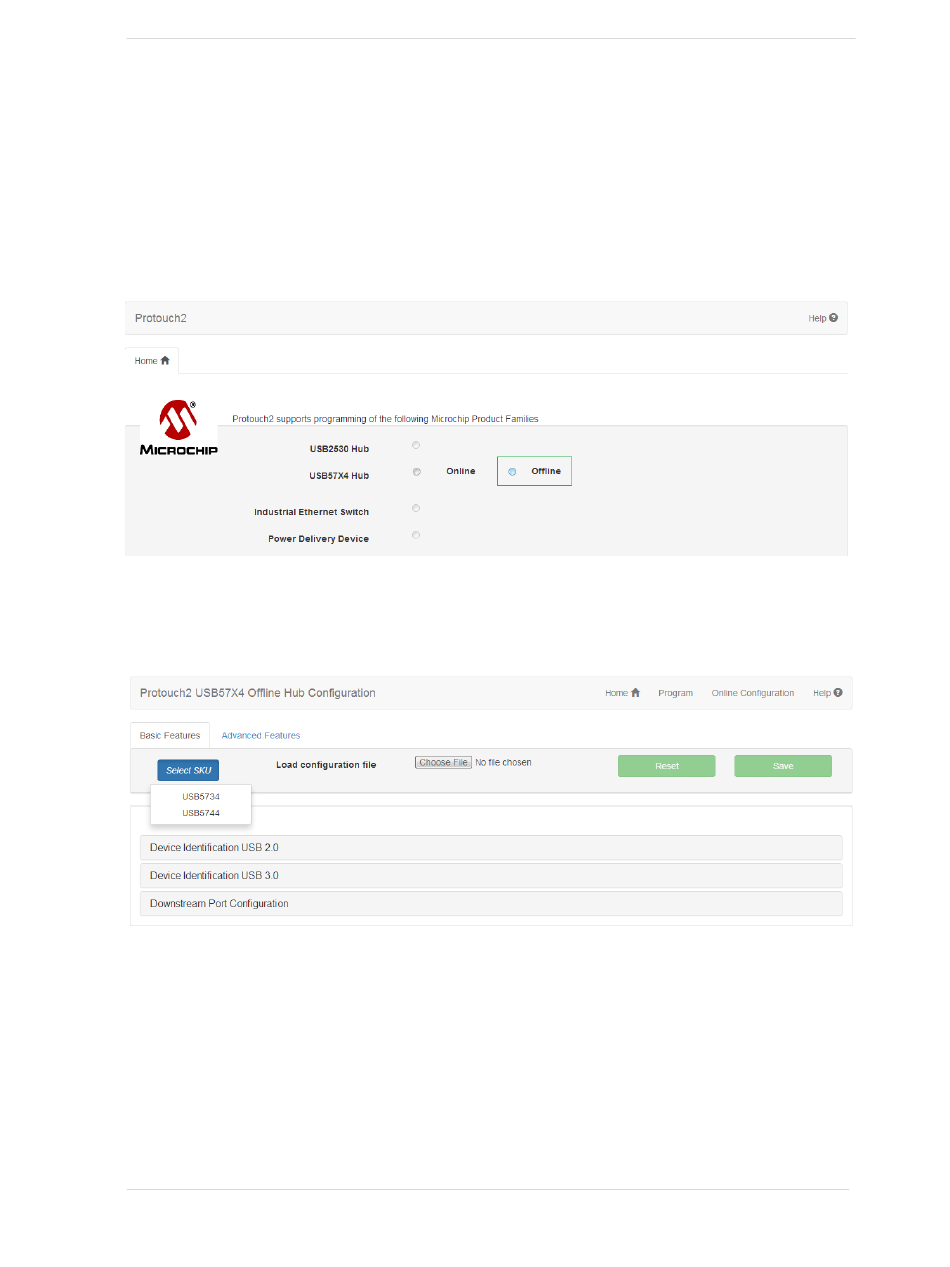

Select the radio button on the landing page as shown below

10.2 Selecting the part number

Select the part number of interest from the drop down shown below
10.3 Loading a configuration file on top of the default SKU
settings
If user wants to generate configuration file for a device whose configuration is
already modified then that device‟s dump file should be loaded using "Load
Configuration file" option. This should be done before any changes are done to the
configuration settings, Once changes are made to the default settings; the "Save
Configuration File" becomes active instead of the "Load Configuration File"
