9.3.2 Advanced Features

9.3.2.1 Downstream Port Configuration (advanced)

9.3.2.1.1 Swap D+/D-:
USB2.0 DP and DM Pins can be swapped using GUI.
9.3.2.1.2 PHY Boost and Varisense:
USB signal drive strength in upstream and downstream transceivers can be changed
using PHY Boost. USB signal receiver sensitivity can be changed by using Varisense.

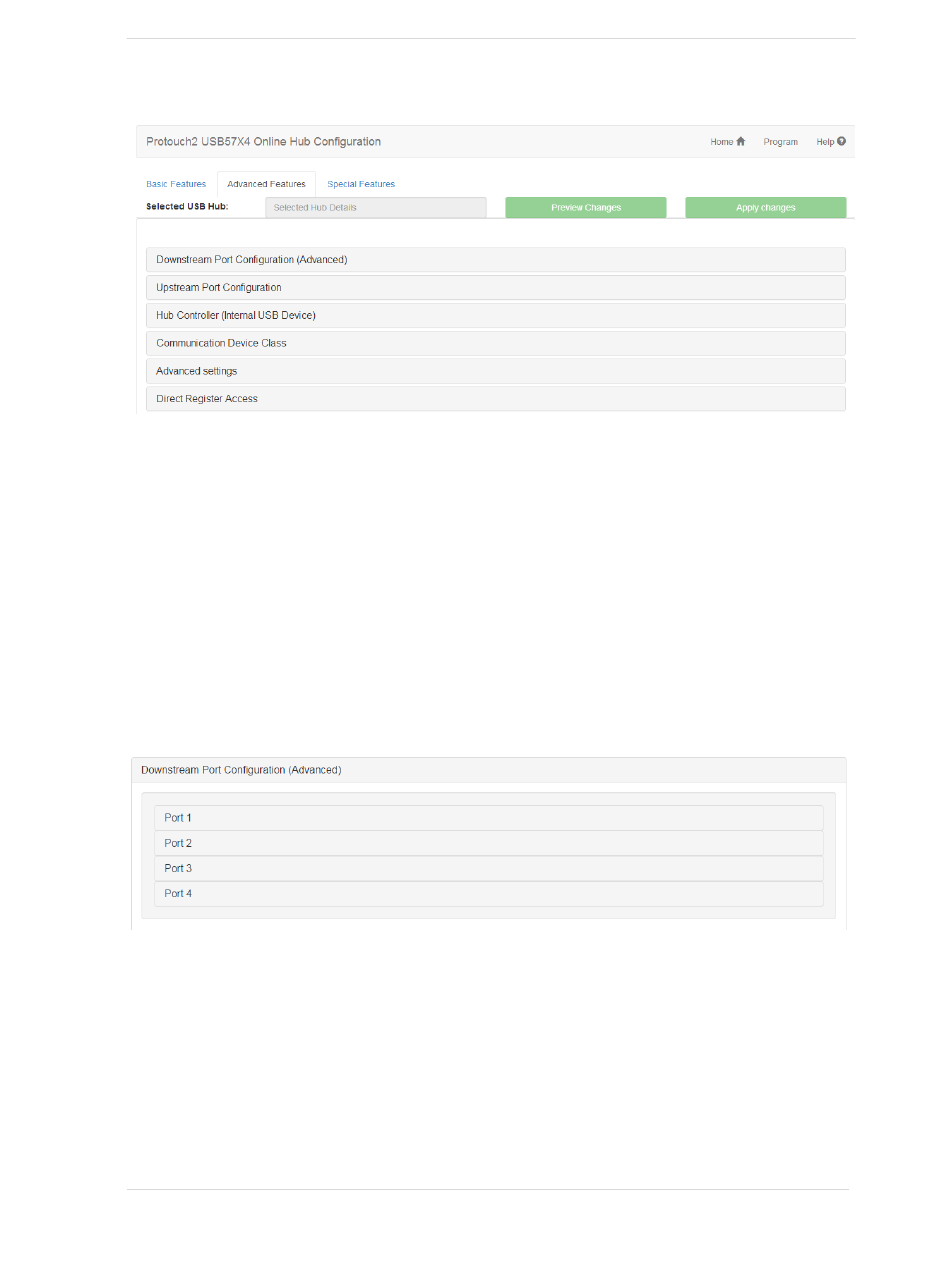

Downstream Ports PHY Boost and Varisense value can be changed by using GUI as
shown below
