9.3.1 Basic Features

Features that are widely used and modified by several customers are grouped in the
Basic features Tab

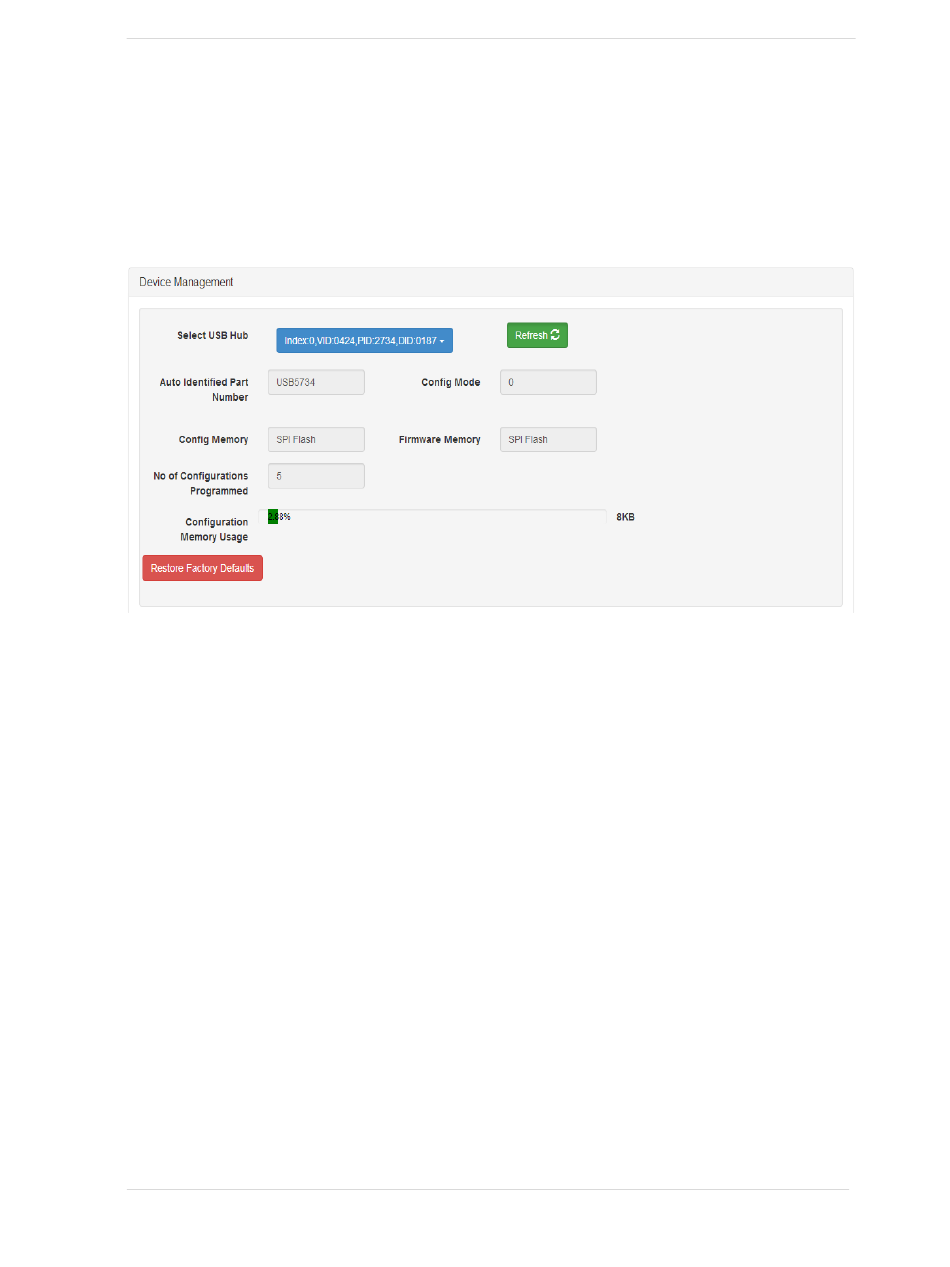

9.3.1.1 Device Management

9.3.1.1.1 Select USB Hub
This is the default screen that will be displayed once Protouch2 is launched. Once the
Protouch2 is launched all the GUI elements (in all pages) will remain disabled except
"Select USB Hub" and the default item selected will be "Hub at index 0".
9.3.1.1.2 Auto Identified Part Number
This will give information about the SKU which is nothing but default PID of the
SKU. The Auto-identification is independent of VID/PID changes.
9.3.1.1.3 Config Memory and Firmware Memory
There can be only two possibilities as follows
1. Firmware is running from ROM, configuration is always loaded from OTP
2. Firmware is running from SPI Flash, configuration is always loaded from SPI
9.3.1.1.4 No of configurations programmed
No of configurations Programmed will be displayed based on the information read
from the hub. The tool allows programming as long as there is free configuration
memory space.
9.3.1.1.5 Configuration Memory Usage
Configuration space usage progress bar shows the % of configuration memory used.
Colour coding is based on the usage %.
