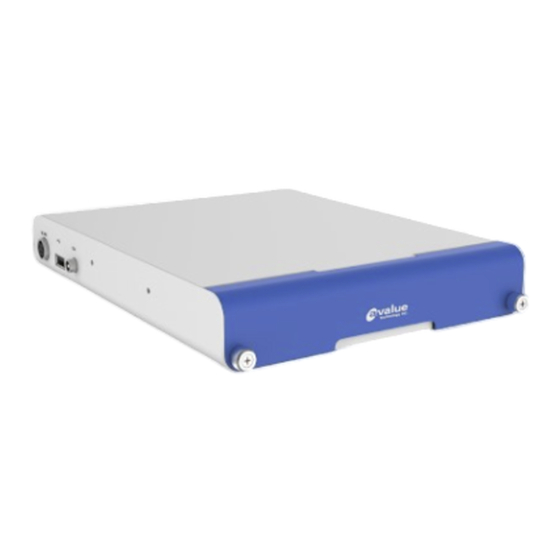

- Page 1 EPB-1001 Battery Expansion Box Quick Reference Guide Ed –25 February 2022 Copyright Notice Copyright 2022 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017E700A1R...
- Page 2 HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE. Purposes and Applications The intended use of EPB-1001 is to provide another option to charge panel PCs in all different circumstances where mobility is a must. Instructions for the User EPB-1001 is not intended to be used by patients.
- Page 3 11. Maintenance: to properly maintain and clean the surfaces, use only the approved products or clean with a dry applicator. 12. Accessory equipment connected to EPB-1001 must be in compliance with the respective nationally harmonized IEC standards (i.e. IEC 60950 for data processing equipment, IEC 60065 for video equipment, IEC 61010-1 for laboratory equipment, and IEC 60601-1 for medical equipment.) Furthermore, all configurations shall comply with the...
- Page 4 Contact your distributor, sales representative for technical support if you need additional assistance. Please have the following information ready before you call: Product name and serial number Description of your peripheral attachments Description of your software (operating system, version, application software, 4 EPB-1001 Quick Reference Guide...
- Page 5 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ EPB-1001 Quick Reference Guide...
-
Page 6: Table Of Contents
Icon/ Button Indication & Behaviour ................... 17 System Dimensions ..................... 18 VESA Bracket Installation ..................19 Hardware Configuration ................... 20 EPB-1001 Overviews ..................21 EPB-1001 Jumper & Connector list ..............22 EPB-1001 Jumpers & Connectors settings ............23 2.8.1 Vout SET (JVSET1) ........................23 2.8.2 EC Debug connector (JDB1) ..................... -
Page 7: Getting Started
Quick Reference Guide 1. Getting Started 1.1 Packing List 1 x EPB-1001 Battery Expansion Box 1.2 Peripherals Pack with EPB-1001 Optional External USB Cable 500mm (P/N: E170U080090R) Optional External Power Output Cable 450mm DC Plug with lock (P/N: E170P060330R) -
Page 8: Cable Drawings
EPB-1001 1.3 Cable Drawings External USB Cable (P/N: E170U080090R): External Power Output Cable 450mm DC Plug with lock (P/N: E170P060330R): Optional External Power Output Y Cable DC Plug/ Power Din (P/N: E170P100110R): 8 EPB-1001 Quick Reference Guide... - Page 9 Quick Reference Guide Optional External Power Output Y Cable DC Plug/ Lockable DC Plug (P/N: E170P080290R): EPB-1001 Quick Reference Guide...
-
Page 10: Vesa Bracket Drawing
EPB-1001 1.4 VESA Bracket Drawing (Unit: mm) 10 EPB-1001 Quick Reference Guide... - Page 11 Quick Reference Guide (Unit: mm) EPB-1001 Quick Reference Guide 11...
-
Page 12: Rechargeable Lithium Ion Battery
Varying from these procedures and conditions may yield different results. LED Operation The Pack is equipped with a Check button to activate green LEDs and display the remaining capacity on 5 LEDs in the following manner: 12 EPB-1001 Quick Reference Guide... -
Page 13: System Specifications
Voltage Protection Charge Current 4A Max. for 2 batteries Charge Voltage 16.8V Charge Duration 2 hours approximately (Single Battery) Charge Duration 4 hours approximately (Dual Battery) Output Current Per 6.8A Battery Output Voltage Per 14.4V EPB-1001 Quick Reference Guide 13... - Page 14 (Battery body EN 62368-1) EN 60601-1 Safety IEC60601-1 compliance EN 60601-1-2 4 (EMI ClassB) FCC class part-15B (ITE) for EPB-1001 Dust and Rain Test Top Side IPX1 Vibration Test Random Vibration Operation: 1. PSD: 0.03622G²/Hz , 1.5 Grms 2. operation mode 3.
- Page 15 -40°C ~ 75°C (-40 ~ 167°F) (without battery pack) Temperature Transportation Condition (in range -40°C ~ 75°C, 10% ~95% of °C and % R.H.) Altitude 5000m Expected Service 830453.79 Hrs Life Note: Specifications are subject to change without notice. EPB-1001 Quick Reference Guide 15...
-
Page 16: System Overview
EPB-1001 1.7 System Overview 1.7.1 Front/Side View Connectors Label Function Note Power System power indicator Battery Status Indicator Battery Status Indicator USB Type A connector DC IN DC power-in connector DC OUT DC power-out connector 16 EPB-1001 Quick Reference Guide... -
Page 17: Icon/ Button Indication & Behaviour
(at 2.5 sec interval) Power Button Behavior Indication Long press 3 seconds Power on, Power button LED on Long press 3 seconds Power off, Power button LED off Short press Show battery status EPB-1001 Quick Reference Guide 17... -
Page 18: System Dimensions
EPB-1001 1.8 System Dimensions (Unit: mm) 18 EPB-1001 Quick Reference Guide... -
Page 19: Vesa Bracket Installation
Quick Reference Guide 1.9 VESA Bracket Installation 1. Follow the steps to install VESA brackets. 2. Follow the steps to install EPB-1001 into the VESA brackets. EPB-1001 Quick Reference Guide 19... -
Page 20: Hardware Configuration
EPB-1001 2 Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw 20 EPB-1001 Quick Reference Guide... -
Page 21: Epb-1001 Overviews
Quick Reference Guide 2.6 EPB-1001 Overviews EPB-1001 Quick Reference Guide 21... -
Page 22: Epb-1001 Jumper & Connector List
EPB-1001 2.7 EPB-1001 Jumper & Connector list Jumpers Label Function Note JVSET1 Vout SET 2 x 2 header, pitch 2.00 mm Connectors Label Function Note JBAT1 Battery connector 1 5 x 2 wafer, pitch 2.00 mm JBAT2 Battery connector 2 5 x 2 wafer, pitch 2.00 mm... -
Page 23: Epb-1001 Jumpers & Connectors Settings
Quick Reference Guide 2.8 EPB-1001 Jumpers & Connectors settings 2.8.1 Vout SET (JVSET1) +19V * +12V *Default 2.8.2 EC Debug connector (JDB1) Signal EC_DB_SMCLK0 EC_DB_SMDAT0 EPB-1001 Quick Reference Guide 23... -
Page 24: Battery Connector 1 (Jbat1)
EPB-1001 2.8.3 Battery connector 1 (JBAT1) Signal PIN PIN Signal TH1_A TH1_A BAT_SMDAT_A BAT_SMDAT_A BAT_SMCLK_A BAT_SMCLK_A +V_CHARGER_1 +V_CHARGER_1 2.8.4 Battery connector 2 (JBAT2) Signal PIN PIN Signal TH2_B TH2_B BAT_SMDAT_B BAT_SMDAT_B BAT_SMCLK_B BAT_SMCLK_B +V_CHARGER_2 +V_CHARGER_2 24 EPB-1001 Quick Reference Guide... -
Page 25: To Main Board Connector (Jsmb1) (By Option)
Quick Reference Guide 2.8.5 To Main board connector (JSMB1) (by Option) Signal +3.3VSB JSMB_SMCLK3 JSMB_SMDAT3 EPB-1001 Quick Reference Guide 25... -
Page 26: Battery Management
EPB-1001 3.Battery Management 26 EPB-1001 Quick Reference Guide... -
Page 27: Information
EPB-1001 Console Battery Management App can be downloaded from the product page on Avalue website. Simply double click to install this App to your PC that is connecting with EPB-1001. Then you may click on the three tabs on the top of the App— Management Page, Settings Page, and Information Page. -
Page 28: Management
EPB-1001 3.2 Management 3.3 Settings 28 EPB-1001 Quick Reference Guide... -
Page 29: General Safety Guide
Quick Reference Guide 4. General Safety Guide EPB-1001 Quick Reference Guide 29... -
Page 30: Cleaning And Disinfecting
EPB-1001 4.1 Cleaning and Disinfecting During normal use of EPB-1001, the device may become dirty and should be regularly cleaned. Cleaning Instructions •Use a 70 percent isopropyl alcohol wipe, 75 percent ethyl alcohol wipe, or Clorox Disinfecting Wipes. •Use only a soft, lint-free cloth. Avoid abrasive cloths, towels, paper towels, or similar items.
