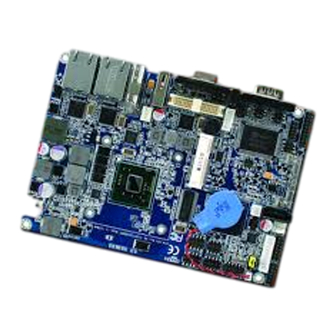

- Page 1 ECM-CDV 3.5" Intel Cedarview Module Quick Installation Guide Ed – 26 December 2011 Part No. E2017CDV000R...
-
Page 2: Fcc Statement
Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the... -
Page 3: Table Of Contents
2.3.17 General purpose I/O connector (DIO1) ..........18 2.3.18 SATA power connector (SPWR1) ............18 2.3.19 CPU fan connector (FAN1) ..............19 2.3.20 System fan connector (FAN2) ............... 19 2.3.21 Touch connector (TOUCH1) ..............20 ECM-CDV Quick Installation Guide 3... -
Page 4: Getting Started
Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x 3.5” ECM-CDV Micro Module 1 x Quick Installation Guide for ECM-CDV 1 x AUX-032 daughter board 1 x DVD-ROM contains the followings: ... -
Page 5: Hardware Configuration
ECM-CDV Quick Installation Guide 2. Hardware Configuration ECM-CDV Quick Installation Guide 5... -
Page 6: Product Overview
ECM-CDV Quick Installation Guide 2.1 Product Overview 6 ECM-CDV Quick Installation Guide... -
Page 7: Jumper And Connector List
Miscellaneous settings connector 6 x 2 header, pitch 2.0 mm Touch Mode selector 3 x 1 header, pitch 2.0 mm JRI1/ JRI2 Serial port 1/2 pin9 signal selector 3 x 2 header, pitch 2.0 mm ECM-CDV Quick Installation Guide 7... - Page 8 9 x 1 wafer, pitch 2.0 mm USB1 USB connector 1 USB connector USB2/ 3/ 4 USB connector 0&1 / 2&3 / 4&5 5 x 2 header, pitch 2.0 mm LCD backlight brightness adjustment 3 x 1 header, pitch 2.54mm 8 ECM-CDV Quick Installation Guide...
-
Page 9: Setting Jumpers & Connectors
ECM-CDV Quick Installation Guide 2.3 Setting Jumpers & Connectors 2.3.1 Clear CMOS (CMOS1) Protect* Clear CMOS * Default 2.3.2 Touch Mode selector (JP1) 5-Wire* 4/8-Wire * Default ECM-CDV Quick Installation Guide 9... -
Page 10: Miscellaneous Settings Connector (Fpt1)
2.3.3 Miscellaneous settings connector (FPT1) Power Button ATX Mode* AT Mode * Default System Reset Power LED Mode HDD LED Mode Signal PIN PIN Signal HDD_LED+ PWR_LED+ HDD_LED# PWRSB_LED+ SYSRST PWRSB_LED- DS5_PANSW IN# ATX_EN# ATX_EN# 10 ECM-CDV Quick Installation Guide... -
Page 11: Serial Port 1/ 2 Pin9 Signal Select (Jri1/ Jri2)
ECM-CDV Quick Installation Guide 2.3.4 Serial port 1/ 2 pin9 signal select (JRI1/ JRI2) Ring* +12V JRI1 Signal PIN PIN Signal JRI2 JNRIA/B# NRIA/B# NRIA/B# +12V NRIA/B# * Default 2.3.5 Battery connector (BT1) Signal ECM-CDV Quick Installation Guide 11... -
Page 12: Power Connector (Pwr1)
ECM-CDV Quick Installation Guide 2.3.6 Power connector (PWR1) Signal PIN PIN Signal +12~28V +12~28V 2.3.7 Audio connector (AUD1) Signal PIN PIN Signal MIC1-JD LINE1-JD FRONT-JD MIC-LIN MIC-RIN LINE1_LIN LINE1_RIN LINEOUT_L LINEOUT_R 12 ECM-CDV Quick Installation Guide... -
Page 13: Lcd Inverter Connector (Bkl1)
For inverters with adjustable Backlight function, it is possible to control the LCD brightness through the VR signal controlled by VR1. 2.3.8.1 Signal Description – LCD Inverter Connector (BKL1) Signal Signal Description Vadj = 0.75V ~ 4.25V (Recommended: 4.7KΩ, >1/16W) BRIGHT LVDS_BLKTEN LCD backlight ON/OFF control signal ECM-CDV Quick Installation Guide 13... -
Page 14: Lcd Backlight Brightness Adjustment (Vr1)
LVDS connector (LVDS1) Signal PIN PIN Signal VDD5_LVDS VDD3_LVDS VDD5_LVDS VDD3_LVDS EDP_DDC_SDA EDP_DDC_SCL DATA0_P DATA1_P DATA0_N DATA1_N DATA2_P DATA3_P DATA2_N DATA3_N DATA4_P DATA5_P DATA4_N DATA5_N DATA6_P DATA7_P DATA6_N DATA7_N LVDS_CLK1_P LVDS_CLK2_P LVDS_CLK1_N LVDS_CLK2_N VDD12_LVDS VDD12_LVDS 14 ECM-CDV Quick Installation Guide... -
Page 15: Usb Connector 0&1 / 2&3 / 4&5 (Usb2/ 3/ 4)
USB connector 0&1 / 2&3 / 4&5 (USB2/ 3/ 4) Signal PIN PIN Signa USB3 USB_NP0/2/4 USB_PP0/2/4 USB_PP1/3/5 USB_NP1/3/5 2.3.12 LPC connector (LPC1) Signal PIN PIN Signal +V3P3_S PLTRST# LPC_FRAME# LPC1_PCI_CLK SERIRQ +V5S +V5A LPC_LDRQ0# ECM-CDV Quick Installation Guide 15... -
Page 16: Spi Connector (Spi1)
ECM-CDV Quick Installation Guide 2.3.13 SPI connector (SPI1) Signal PIN PIN Signal SPI_HOLD# SPI_SI SPI_SO SPI_CLK SPI_CS# +V3P3A_SPI 2.3.14 Serial port 2 connector (COM2) Signal PIN PIN Signal DCDB# RxDB TxDB DTRB# DSRB# RTSB# CTSB# RIB# 16 ECM-CDV Quick Installation Guide... -
Page 17: Keyboard & Mouse Connector (Kb1)
ECM-CDV Quick Installation Guide 2.3.15 Keyboard & Mouse Connector (KB1) Signal PIN PIN Signal KBDA KBCK GND_PS2 VCC_PS2 MSDA MSCK 2.3.16 Serial port 2 in RS-422-485 mode (RS1) Signal PIN PIN Signal 485_422TX- 422RX- 485_422TX+ 422RX+ ECM-CDV Quick Installation Guide 17... -
Page 18: General Purpose I/O Connector (Dio1)
ECM-CDV Quick Installation Guide 2.3.17 General purpose I/O connector (DIO1) Signal PIN PIN Signal SMB_CLK 17 18 SMB_DATA 2.3.18 SATA power connector (SPWR1) Signal 18 ECM-CDV Quick Installation Guide... -
Page 19: Cpu Fan Connector (Fan1)
ECM-CDV Quick Installation Guide 2.3.19 CPU fan connector (FAN1) Signal CPU_FANOUT CPU_FANIN +12V 2.3.20 System fan connector (FAN2) Signal SYS_FANIN +12V ECM-CDV Quick Installation Guide 19... -
Page 20: Touch Connector (Touch1)
ECM-CDV Quick Installation Guide 2.3.21 Touch connector (TOUCH1) Signal 4-Wire 5-Wire 8-Wire Right Sense Left Sense Bottom Sense SENSE Sense Top Sense Right Right Excite Left Left Excite Bottom Bottom Excite Top Excite TOUCH_GND 20 ECM-CDV Quick Installation Guide...
