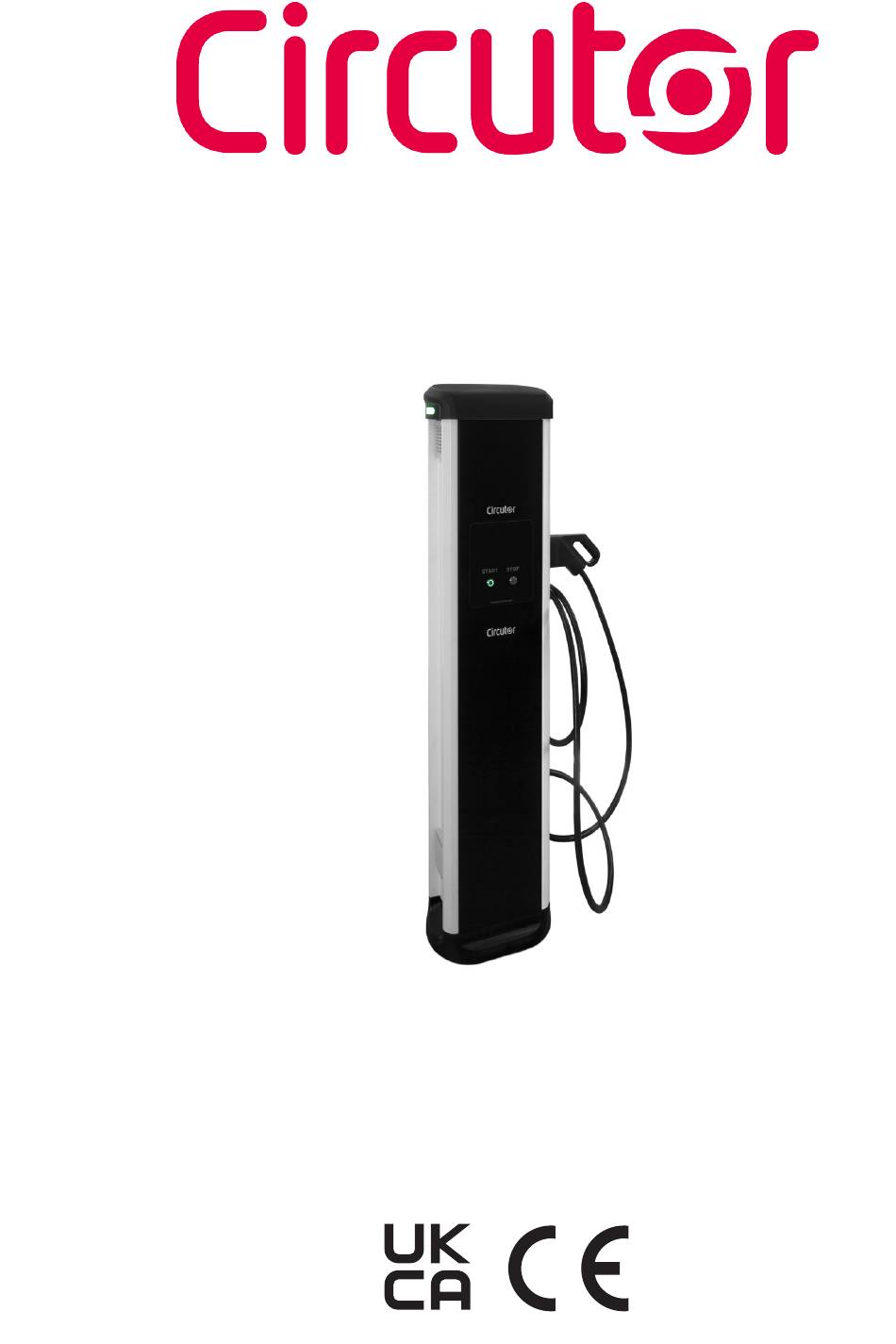

- Page 1 URBAN DC INSTALLATION GUIDE (M335A01-03-22A)
- Page 2 URBAN DC Installation Guide...
-
Page 3: Disclaimer
CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifica- tions and the most updated manuals. - Page 4 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2022 by CIRCUTOR, S.A. All rights are reserved. CIRCUTOR S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
-
Page 5: Table Of Contents
D. Positioning ............................20 E. Fixation............................21 F. Metal plate .............................21 G. Wiring ............................22 H. Verification ...........................23 I. How to use and configure MASTER and SATELLITE URBAN DC ..........24 6.-. How to use URBAN DC BASIC ......................26 A.Standby............................26 B. Start charging..........................26 C. Charging............................26 D. - Page 6 URBAN DC Installation Guide...
-
Page 7: So, Hello
URBAN DC So, hello! This manual provides commissioning and use instructions information about URBAN DC, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. This document has different sections such as step-by-step installation procedure and technical data. -
Page 8: Before Installation
(broken • Do not use this unit for anything plugs, caps that don’t close...). other than electric vehicle charging • Use only CIRCUTOR supplied spare modes are expected in IEC 61851. parts. • Do not modify this unit. If modified, CIRCUTOR will reject all responsibility •... -
Page 9: Electrical Wiring Considerations
URBAN DC Before installation E l e c t r i c a l w i r i n g c o n s i d e r a t i o n s Take into consideration this section before start wiring connections of the Charge Point. -
Page 10: Important Electrical Safety Instructions
URBAN DC Important Electrical Safety Instructions Read carefully all the instructions before starting in order to ensure properly handling of electrical parts. A safe work environment is not enough to control all potential electrical hazards. It is recommended to be very cautious and work safely. So, the safety rules shown below could help to control risks of injury or death from workplace hazards. -
Page 11: Evse Classification
URBAN DC EVSE Classification Classification of the unit according to the IEC 61851-1:2017: • EV supply equipment connected to 1 — Power supply Input AC supply network • Permanently connected 2 — Power supply Output • DC EV supply equipment 3 —... -
Page 12: Oveview

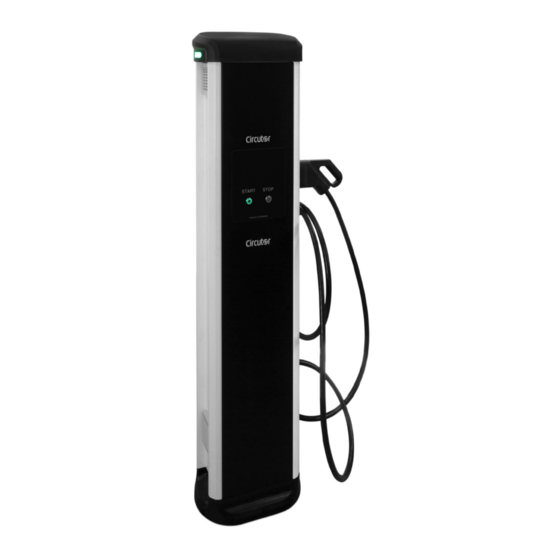

URBAN DC What’s included: Installation guide Charge Point Installation & CirCarLife RFID User Manual Mifare Card Electric cabinet key + Foundation security key Depending on the model chosen, the elements included in the package can vary. Installation Guide... - Page 13 URBAN DC Overview 13 14 URBAN DC SATELLITE URBAN DC BASIC URBAN DC MASTER 1.- Hat 6.-Ventilation 11.-Cable gland 2.-LED beacon light 7.-Base 12.- Screen 3.-Holder 8.-START button 13.- RFID reader 4.-Cable 9.-STOP button 14.- Credir card payment 5.-Key lock access 10.-Cable roller...
- Page 14 URBAN DC Installation Guide...
-
Page 15: Dimensions
URBAN DC Dimensions Charge point: 1750 Measures in mm Installation Guide... - Page 16 URBAN DC What is needed: Nuts DIN 934 M16 Washers DIN 9021 M16 Templates Foundation bolts Installation Guide...
-
Page 17: Installation
URBAN DC Installation Space requirements When installing the unit, respect the minimum distances for maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows how it should be installed. • Do not install near areas where water or fluids can penetrate into the unit. -
Page 18: Foundation
URBAN DC Foundation • Place the foundation bolts into the template using the provided nuts with the help of a 24mm open-end wrench. • Once the kit is assembled, it must be placed in the ground taking into consideration the following measures. -
Page 19: Opening
URBAN DC Opening 1.- Introduce provided URBAN DC key in the lock located at the mid part of the unit and the security key at the top and bottom locks of the unit. Then, the unit is unlocked and ready to be opened. -
Page 20: Positioning
2.- Place the Charge Point through the four foundation bolts. Make sure that the Charge Point pre-holes of the metal plate match with the cable glands. URBAN DC can be placed at outdoor or indoor areas to charge electric vehicles. This product series is designed to be placed on the ground. -
Page 21: Fixation
URBAN DC Fixation Firmly tighten the 4 nuts using a 24mm open-end wrench. • Metal plate • It is recommended to install cable glands (not supplied) in pre-holes position. • Assembly metal plate using the 4 supplied screws. Installation Guide... -
Page 22: Wiring
URBAN DC Wiring THREE-PHASE CHARGE POINT Connect to the 400VAC. Terminal block maximum cross-section: 16mm Type of cable allowed by the terminal block: Aluminium & copper Al/Cu Do not forget to connect the ground cable to the ground terminal Make sure all screws are securely tightened at 4...5 Nm... -
Page 23: Verification
URBAN DC Verification 1 — P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks. Pay special attention to Neutral Cable. 2 — M A I N T E N A N C E M O D E Pull outward the Tamper Switch located in the lower half of the Charge Point. -
Page 24: How To Use And Configure Master And Satellite Urban Dc
- Master-Satellite User Manual To get it send a mail to: sat@circutor.com URBAN DC BASIC Serie it is not configurable. In order to see how to use it, see chapter “6.-How to use URBAN DC BASIC ” in this manual. Installation Guide... - Page 25 URBAN DC Installation Guide...
-
Page 26: How To Use Urban Dc Basic
URBAN DC URBAN DC BASIC Serie it is not configurable. As detailed in previous chapters, the unit has a LED beacon light and two illuminated buttons, the START and STOP ones. The LED beacon light is located in the top of side view where the cable is. -
Page 27: Charged
URBAN DC How to use URBAN DC BASIC Charged When the EV is fully charged, it turns to Standby step, in which both LED beacon and START button are green. Stop charging While the unit is in charge status or is completely charged, the user is available to finish the charge pressing the STOP button. - Page 28 URBAN DC MODELS SPECIFICATIONS Models URBAN DC MASTER, URBAN DC SATELLITE, URBAN DC BASIC Maximum AC input current Required power supply capacity 27 kVA Maximum output power 25 kW Output voltage range 150-920 Vdc Maximum output current 70 A Number of connectors...
-
Page 29: Technical Data
Network hub RFID Extension Switch TCP ethernet 8 ports OPTIONAL DEVICES Wireless communication LATAM/APAC - 4G LTE/GPRS/GSM (only available in URBAN DC MASTER) Network hub RFID Extension Switch TCP ethernet 16 ports (only available in URBAN DC MASTER) Legic Advant / Legic Prime... - Page 30 Security Key lock Environment Indoor / Outdoor Cable support Integrated connector holder and cable roller Cable length 5.5 meters URBAN DC MASTER URBAN DC SATELLITE URBAN DC BASIC Weight 70 kg. 70 kg. 65 kg. Dimensions (W x H x D)
-
Page 31: Need Help
CIRCUTOR guarantees its products against any manufacturing defect for two years after the delivery of the devices. CIRCUTOR will repair or replace any defective factory product returned during the guar- antee period. • No returns will be accepted and no device will be repaired or replaced if it is not accompanied by a report indicating the defect detected or the reason for the return. - Page 32 CIRCUTOR, SA. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...
