ALINX Xilinx Core Board AC6150 User Manual

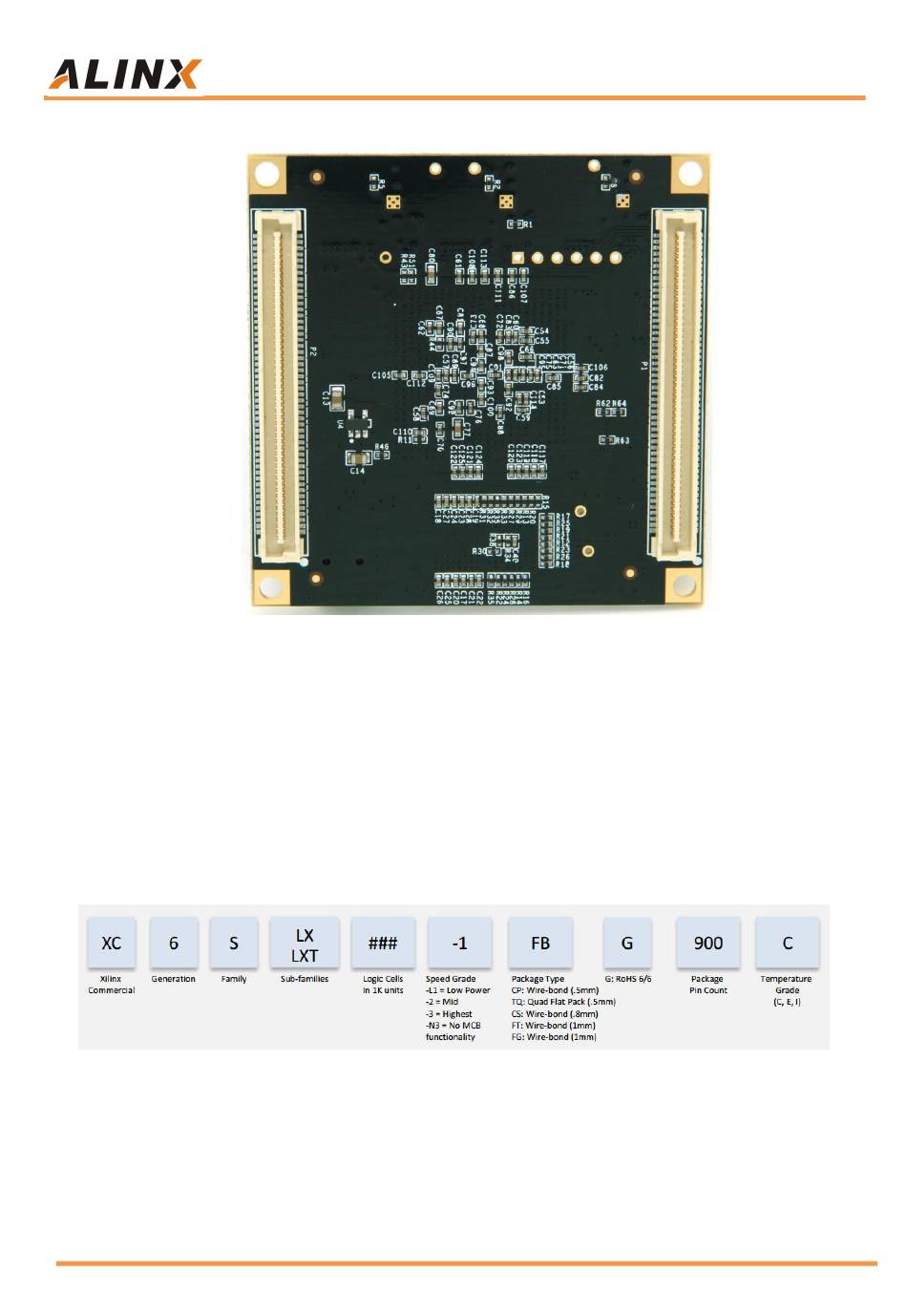

Rear View

Part 2: FPGA

As mentioned above, the FPGA model we use is XC6SLX150-2FG484C,
which belongs to Xilinx's SPARTAN6 series. The speed grade is 2, and the
temperature grade is Commercial grade. This model is a FGG484 package
with 484 pins. Xilinx SPARTAN6 FPGA naming rules as below
Figure 2-1: The Specific Chip Model Definition of SPARTAN6 Series
