Johnson Controls Metasys IFC-200 Installation Procedures Manual page 37

S ta n d o ffs

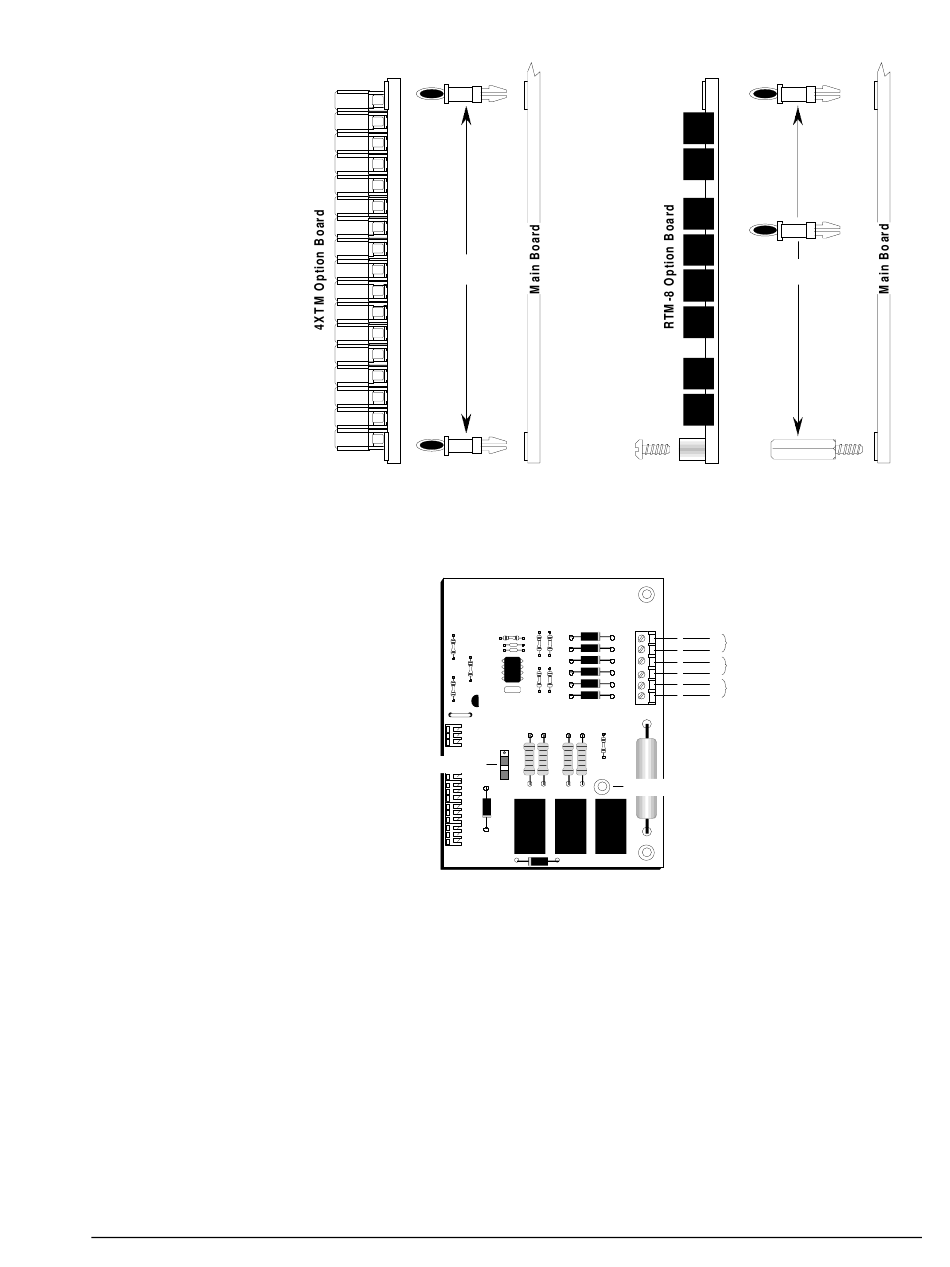

Figure 29: Optional Module Installation
4XTM
D isc o n n e c t S w itc h
4XTM Transmitter Module (Activated Polarities Shown)
Figure 30: 4XTM Transmitter Module
(Polarities Shown in Activated Positions)
1. Push the disconnect switch down to prevent unwanted activation of the
municipal box during testing of the control panel.
The Disconnect LED will remain illuminated while the municipal box is
disconnected. The System Trouble LED will indicate disconnected and/or
open circuit conditions on the municipal box.
2. Cut the TBL jumper if you want an open condition during Alarm
Reverse-Polarity output operation.
Hardware Installation—IFC-200 Hardware Installation Procedures
Insert screw here.
Use metal screw and
standoff here.
T B L Ju m p e r
D is co n n e c t L E D
S ta n d o ffs
FIG2-22
+ R e m o te A la rm
1
-
2
+
3 R e m o te T r o u b le
-
4
+
5 M u n ic ip a l B o x
-
6
FIG2-23
37
