36 Hardware Installation—IFC-200 Hardware Installation Procedures
The IFC-200 has an optional module slot, using locations J6, J7, and J8 on
the system board. There are two optional modules available for the
IFC-200, the 4XTM Transmitter Module and the RTM-8 Relay Module.
Jumper JP5 must be cut before installation of an optional module to enable
module supervision.
A B C D E F
1 2 3
G H I J K L M N O
4 5 6
P R S T U V W X Y
7 8 9
Q Z
*
# 0
D E T M O D
ENTER

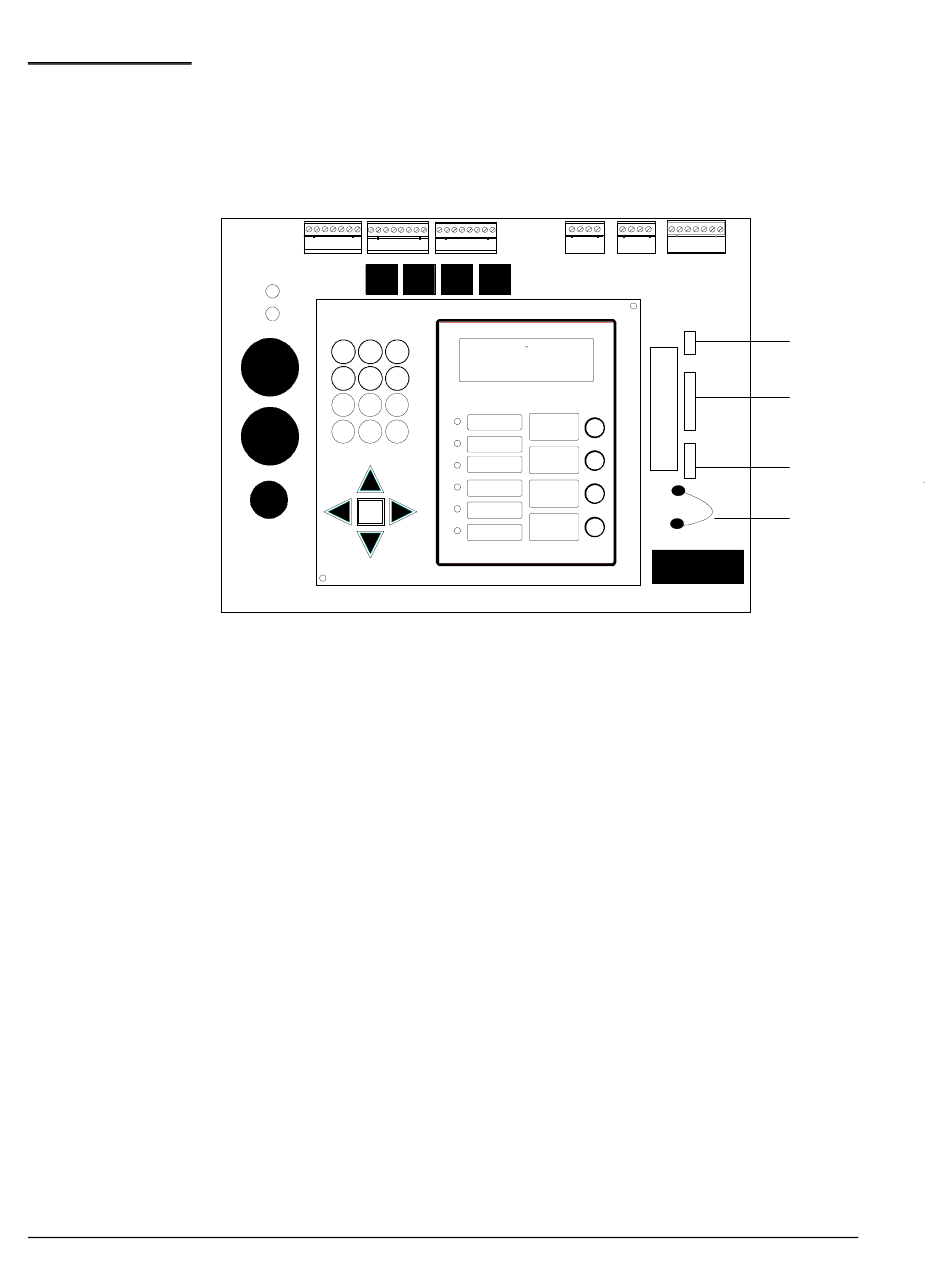

Figure 28: Optional Module Location
Follow the steps below to install optional modules. Refer to Figure 29.
1. Insert the two nylon standoffs (provided) into the holes located on the
right-side edge of the main board.
2. Carefully align the pins on the main board with the connector on the
option board.
3. Press firmly on the option board until it locks in place on the
standoffs.
4. Affix the terminal identification labels provided with the option
modules.
Use the screw supplied to fasten the module to the main board using the
hole on the upper right hand corner of RTM-8 (when the board is in place
for installation) and the corresponding hole on the main board.
.
J6
J7
J8
Jumper JP5
20 0C IR BD
